Zoom
Description

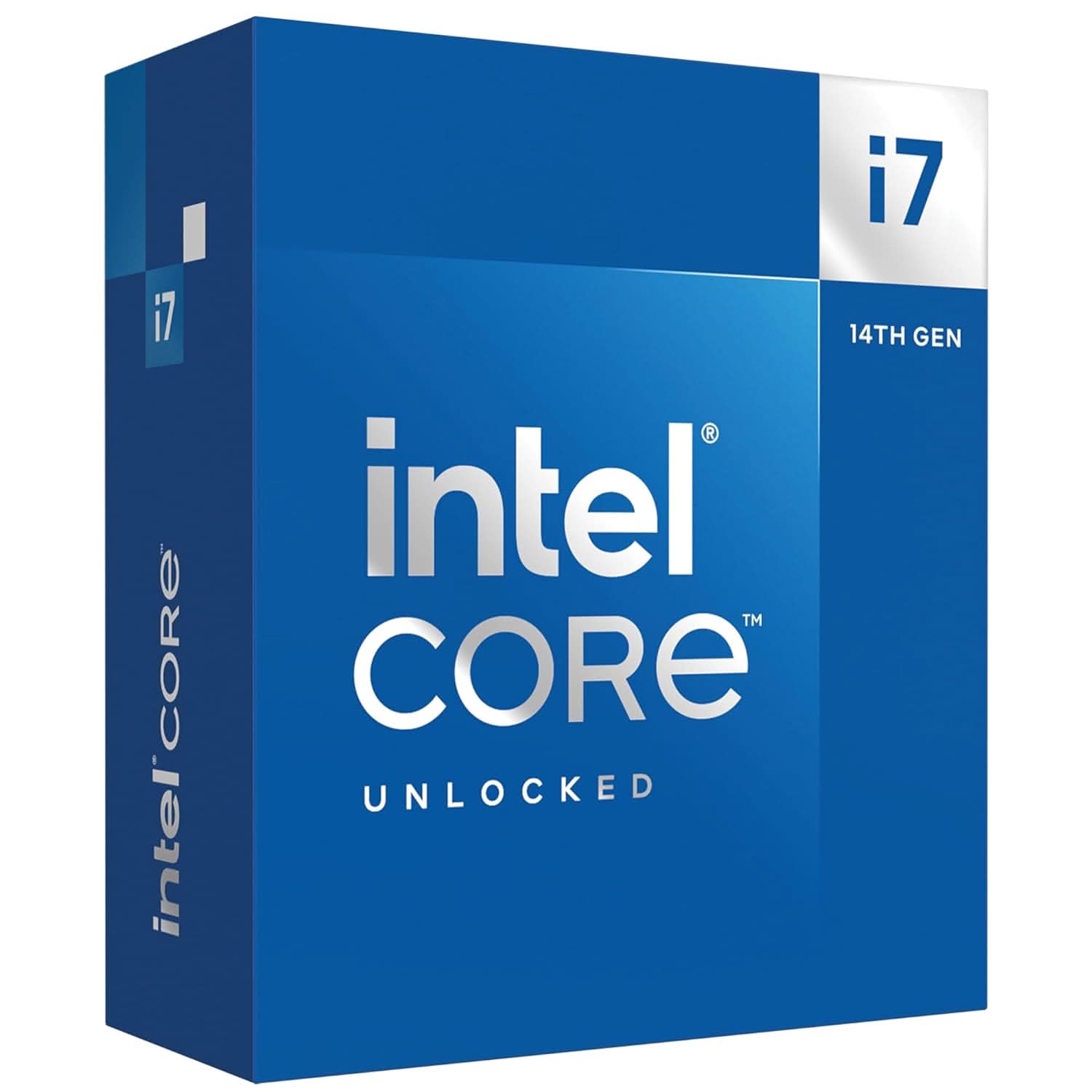

| Product Collection | IntelÆ Coreô i7 Processors (14th gen) |
| Code Name | Products formerly RAPTOR LAKE |
| Vertical Segment | Desktop |
| Processor Number | i7-14700K |
| Lithography | Intel 7 |
| CPU Specifications | |
| Total Cores | 20 |
| # of Performance-cores | 8 |
| # of Efficient-cores | 12 |
| Total Threads | 28 |
| Max Turbo Frequency | 5.6 GHz |
| IntelÆ Turbo Boost Max Technology 3.0 Frequency á | 5.6 GHz |
| Performance-core Max Turbo Frequency | 5.5 GHz |
| Efficient-core Max Turbo Frequency | 4.3 GHz |
| Performance-core Base Frequency | 3.4 GHz |
| Efficient-core Base Frequency | 2.5 GHz |
| Cache | 33 MB IntelÆ Smart Cache |
| Total L2 Cache | 28 MB |
| Processor Base Power | 125 W |
| Maximum Turbo Power | 253 W |
| Supplemental Information | |
| Embedded Options Available | No |
| Memory Specifications | |
| Max Memory Size (dependent on memory type) | 192 GB |
| Memory Types | Up to DDR5 5600 MT/s Up to DDR4 3200 MT/s |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 89.6 GB/s |
| ECC Memory Supported á | Yes |
| GPU Specifications | |
| Graphics Base Frequency | 300 MHz |
| Graphics Max Dynamic Frequency | 1.6 GHz |
| Graphics Output | eDP 1.4b | DP 1.4a | HDMI 2.1 |
| Execution Units | 32 |
| Max Resolution (HDMI)á | 4096 x 2160 @ 60Hz |
| Max Resolution (DP)á | 7680 x 4320 @ 60Hz |
| Max Resolution (eDP - Integrated Flat Panel)á | 5120 x 3200 @ 120Hz |
| DirectX* Support | 12 |
| OpenGL* Support | 4.5 |
| OpenCL* Support | 3 |
| Multi-Format Codec Engines | 2 |
| IntelÆ Quick Sync Video | Yes |
| IntelÆ Clear Video HD Technology | Yes |
| # of Displays Supported á | 4 |
| Device ID | 0xA780 |
| Expansion Options | |
| Direct Media Interface (DMI) Revision | 4 |
| Max # of DMI Lanes | 8 |
| Scalability | 1S Only |
| PCI Express Revision | 5.0 and 4.0 |
| PCI Express Configurations á |
