Description
About This Product

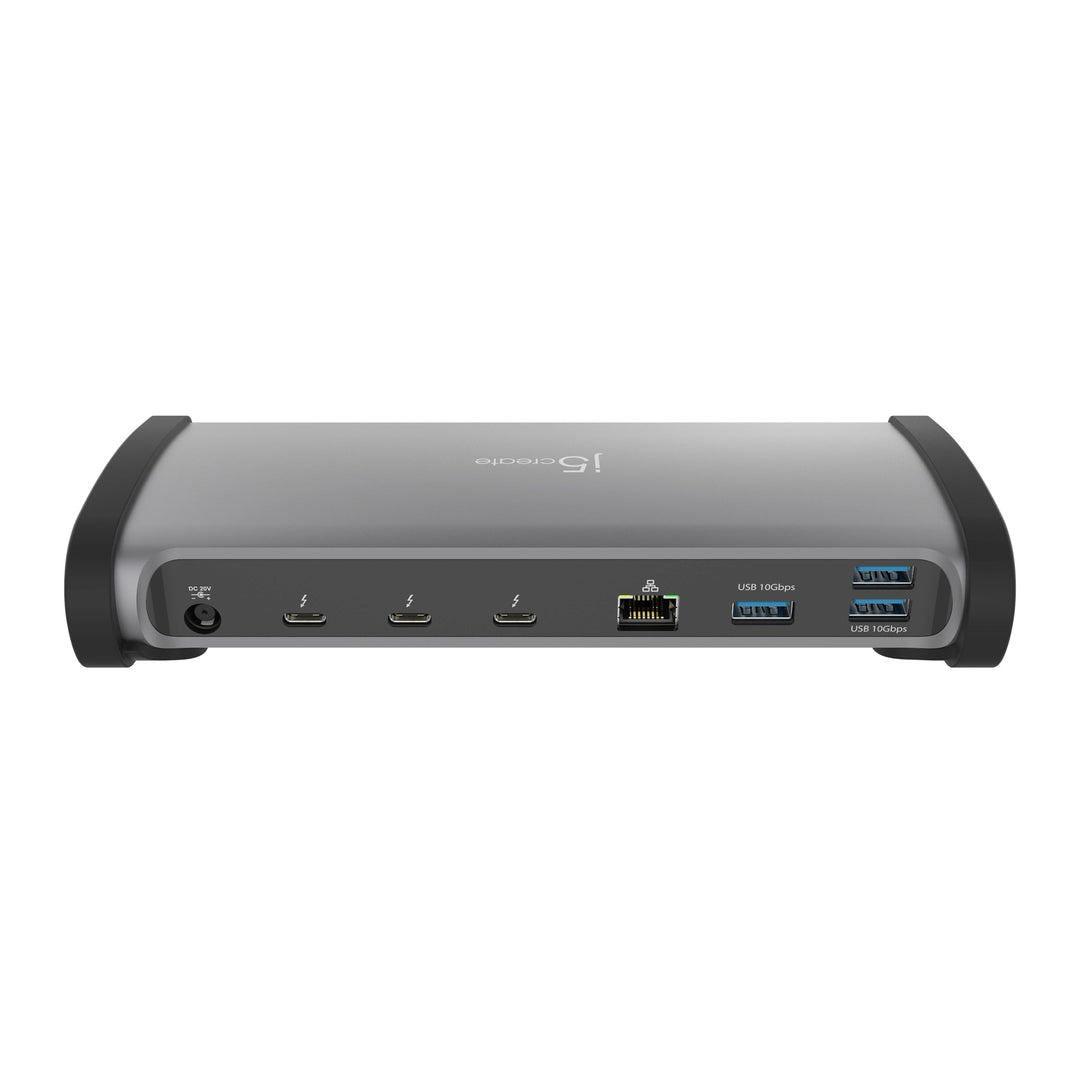

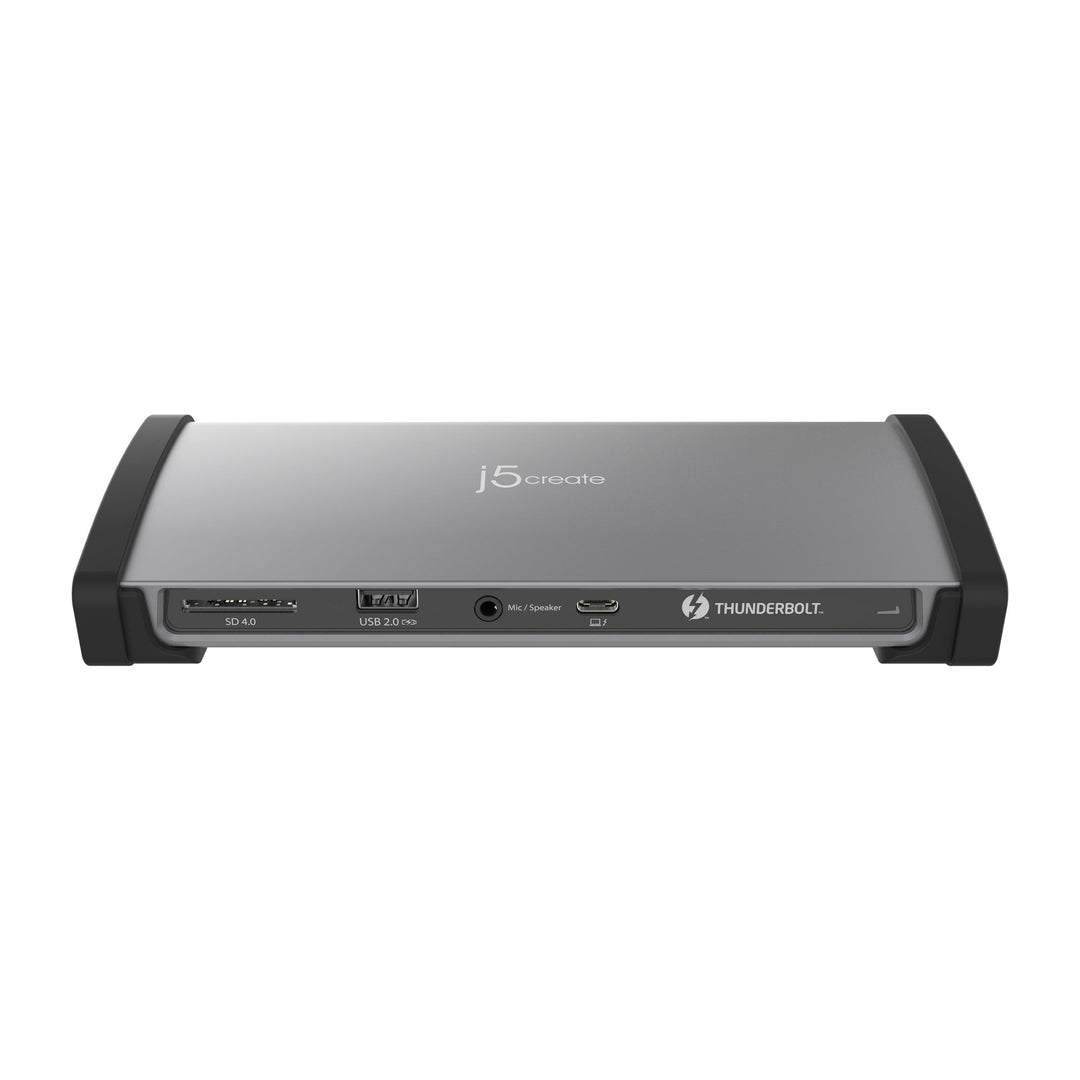

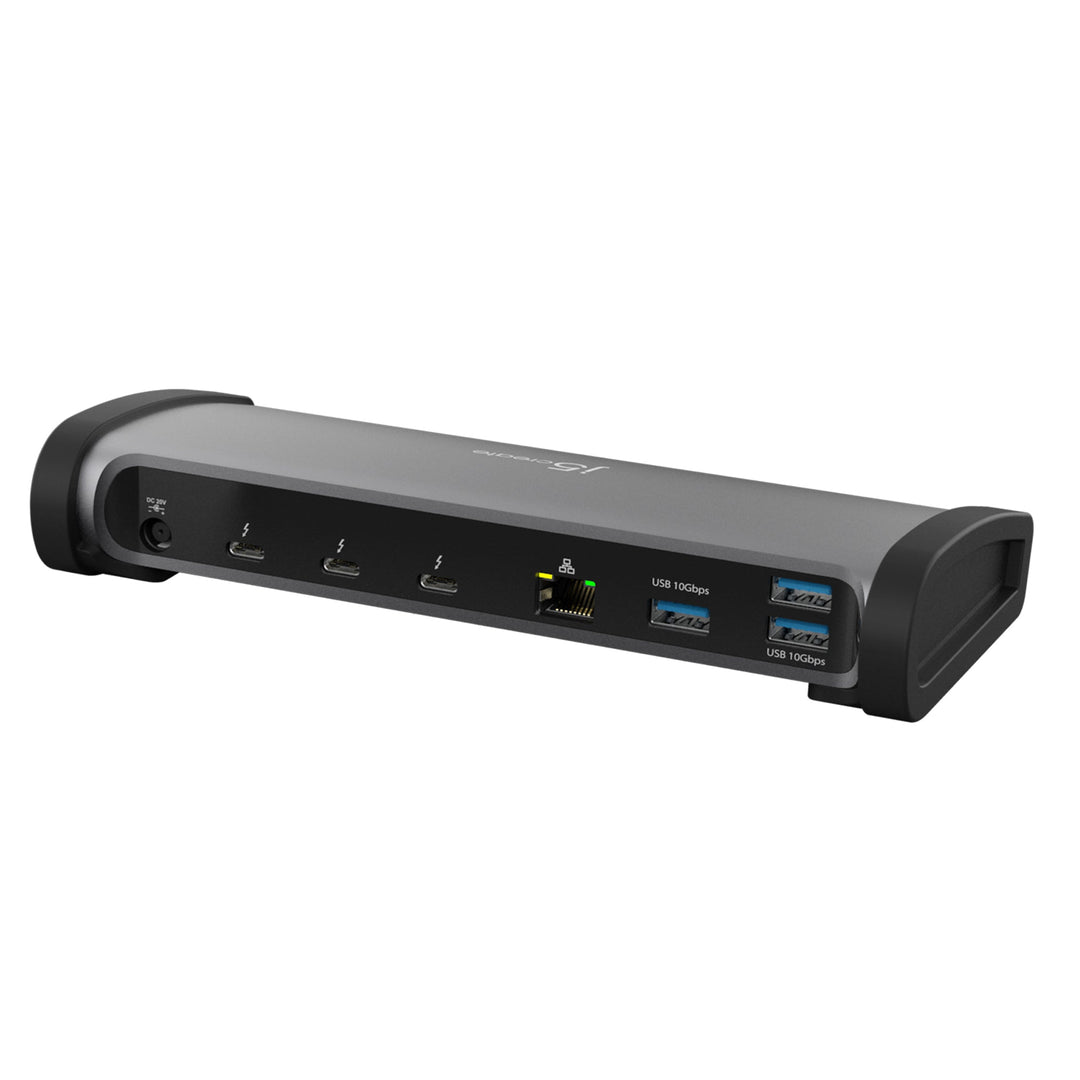

This Thunderbolt™ 4 Docking Station turns your Mac® or Windows® laptop into a full workstation with three Thunderbolt™ 4 outputs. Supports resolution up to dual display 4K or one display at 8K. Great for content creators, professionals, and enthusiast that require high resolution displays for the best visual experience.
With 96W Power Delivery, three USB™ 3.2 ports, and a USB-C® port, this docking station is perfect for your MacBook®, or Windows® laptop that support Thunderbolt™ 4 allowing you to add high-speed ports to your laptop. This Thunderbolt™ 4 docking station also has an RJ45 Gigabit Ethernet port, SD™ 4.0 memory card reader/writer, and combo audio jack for added flexibility.
All 11 ports are combined into one slim docking station, so you will have all the connections you need to stay productive!
Features
• Providing the ultimate connectivity for Thunderbolt™ 4 laptops
• Intel® Thunderbolt™ 4 certified for reliability and compatibility
• Capable of ultra-high data transfer speeds
• Supports dual 4K@60Hz displays or one high-resolution 8K display with crystal clear image quality
• Supports Thunderbolt™ daisy chain feature to connect more Thunderbolt™ devices
• Perfectly made for MacBook Pro® (2021 and later) and Thunderbolt™4 laptops
• 3 x Thunderbolt™ 4 USB-C® 40Gbps
• Power adapter 135W AC adapter with up to 96W PD charge
• Backwards compatible with Thunderbolt™ 3
System Requirements
- • Available Thunderbolt™ 4 port
- • Compatibility
- - MacBook Pro® 2016 and later
- - Surface Pro™ 8, Surface™ laptop studio
- - 2021 iMac® M1, 2019/2017 iMac®, iMac Pro®, 2021 iPad Pro® M1
*Compatibility is not limited to just the devices listed above
*Please refer to the manufacturer of your computer for more information about your device
| Hardware | |
| Warranty | 2 Year Limited |
| Host Connector | 1 - Thunderbolt™ 4 Female |
| Video Output | 3 - Thunderbolt™ 4 Female |
| Power Source | Self-powered |
| Network Interface | RJ45 (Gigabit Ethernet) |
| Audio Supported | Yes |
| Ports |
|
| Performance | |
| Maximum Display Resolution | Thunderbolt™ Mode 2 - 4K @ 60 Hz 1 - 4K @ 120 Hz (Via DP™) 1 - 4K @ 144 Hz (with DSC) 1 - 8K @ 30 Hz 1 - 8K @ 60 Hz (with DSC) MFDP Mode (Base on HBR3 Host) 1 - 4K @ 60 Hz |
| Maximum Display Refresh Rate | 60 Hz via Thunderbolt™ 4 |
| Maximum Data Transfer Rate | 40Gbps |
| Displays Supported | 2 |
| Compatible Networks | 10/100/1000 Base-T, auto-negotiating |
| Audio Channel | 3 -Thunderbolt™ 4 / 3.5 combo audio jack |
| Power | |
| Power Delivery | 96W |
| Power Consumption | 1.2A |
| Input Current | 2.5A |
| Input Voltage | 110V-240V |
| Output Current | 6.75A |
| Output Voltage | 20V |
| Physical Specifications | |
| Color | Black / Space Grey |
| Enclosure Type | Aluminum |
| Cable Length | 2.3 ft. / 70 cm |
| Product Height | 7.64 in./194 mm |
| Product Width | 3.32 in./ 84.39 mm |
| Product Depth | 1.21in./ 30.85 mm |
| Product Weight | 14.5 oz /411g |
| Storage Temperature | 14 to 149°F (-10 to 65°C) |
| Storage Humidity | < 85% non-condensing |
| Operating Temperature | 32 to 118°F (0 to 48°C) |
| Operating Humidity | < 85% non-condensing |
Special Notes
- • An 8K-capable display is required for obtaining the 7680 x 4320 resolution
- • If connected to a USB™ 3.2 host port or under, or if using a USB™ 3.2 host cable or under, performance or functionality may be limited
Package Contents
- • 1 - JTD562 Thunderbolt™ 4 Docking Station
- • 1 - 135W AC adapter with up to 96W PD charge
- • 1 - Thunderbolt™ 4 to Thunderbolt™ 4 Cable (2.3 ft / 70 cm)
- • 2 - USB-C® to 4K DisplayPort™ Cable (JCA141)
- • 1 - Quick Installation Guide (QIG)
