Description
About This Product

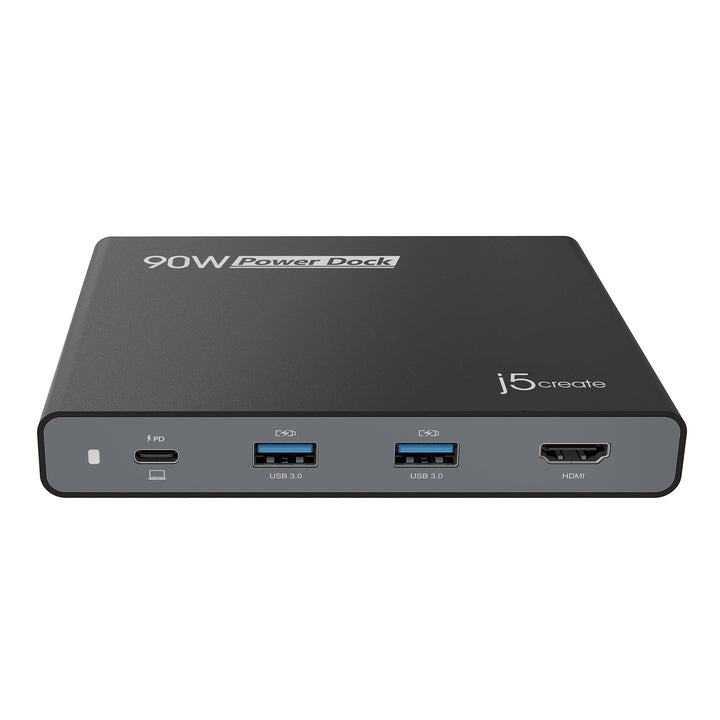

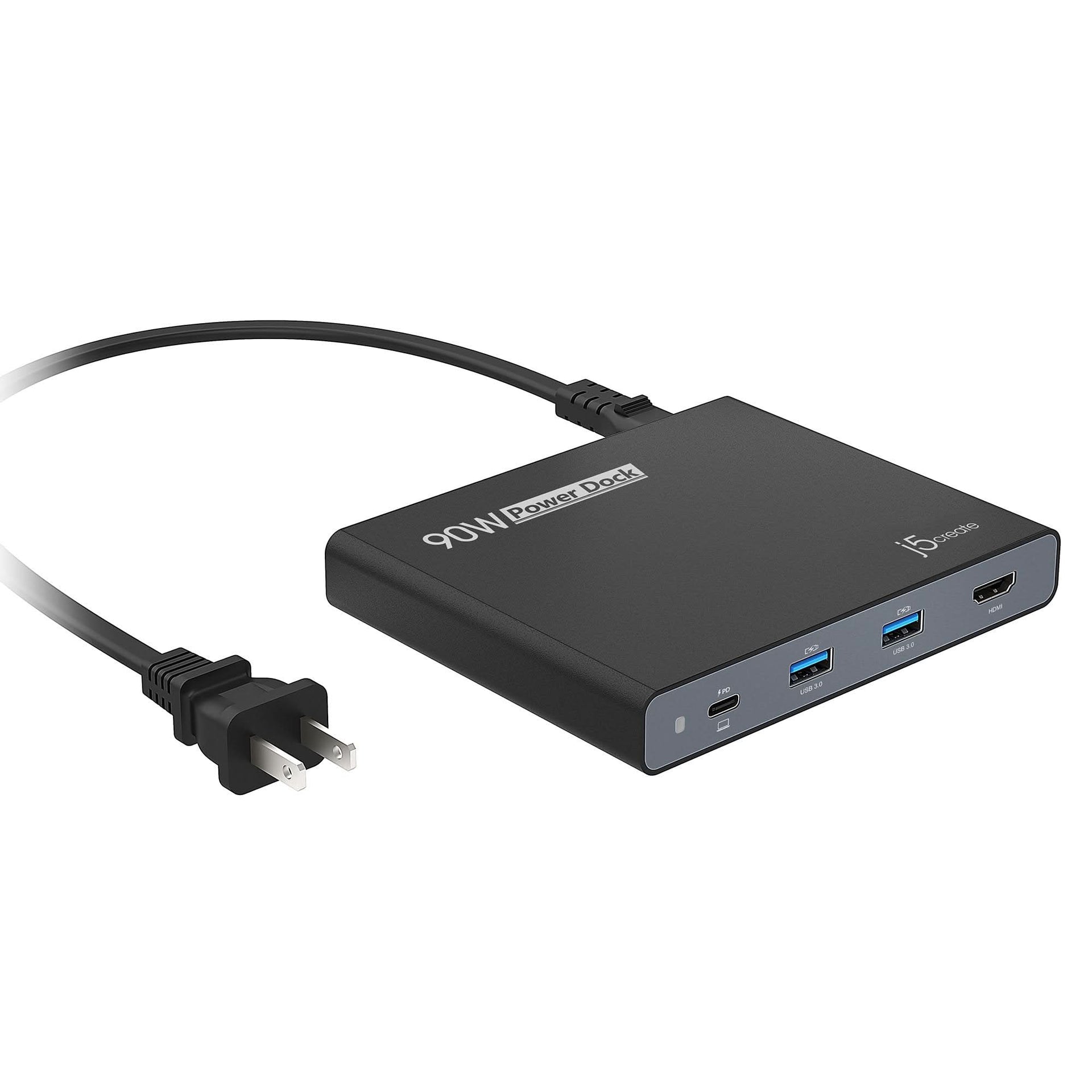

• USB-C™ portable dock with built-in 90W power supply
• Supports HDMI™ output resolution 4K @ 30 Hz
• Power Delivery 3.0 charger, supports USB-C™ upstream charging max 65W
• 2-port USB™ Type-A data transfer up to 5 Gbps, supports BC1.2 fast charging, max 2.4A
• LED charging status indicator
This Powered USB-C™ Docking Station is an accessory that works with Windows®, macOS® X and Android™ OS, featuring a USB™ hub that offers Power Delivery charging, HDMI™ video output, 2x USB™ Type-A ports. It also offers a USB™ 3.1 Gen1 SuperSpeed data link to your USB-C™ laptop for on-the-go convenience. The USB-C™ hub with a 90W power adapter has an embedded Power Delivery 3.0 charger, which can supply up to 65W PD to charge a USB-C™ PD charging device.
Hardware | |
Input | 100 - 240V; 50/60 Hz; 1.5A |
USB-C™ Output | 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A (65W) |
USB™ Type-A Output | BC1.2, CDP: 5V1.5A |
HDMI™ Output | 4K @ 30 Hz |
LED | Charging status |
Physical Specifications | |
Dimensions | Main body: Cable length: |
Weight | Approximately 0.566 lb/257g |
Environmental | |
Storage Temperature | - 10-65 °C |
Storage Humidity | <85% non-condensing |
Operation Temperature | 0-25°C |
Operation Humidity | <85% non-condensing |
System Requirements
- • Available DisplayPort™ Alt Mode over USB-C™ Port
- • USB™ PD 2.0/ 3.0 compatible for upstream charging
Package Contents

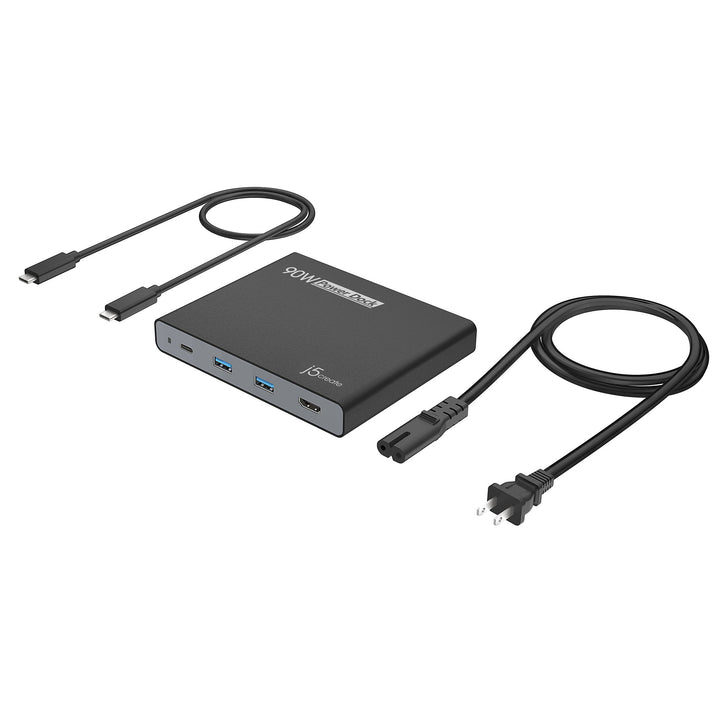

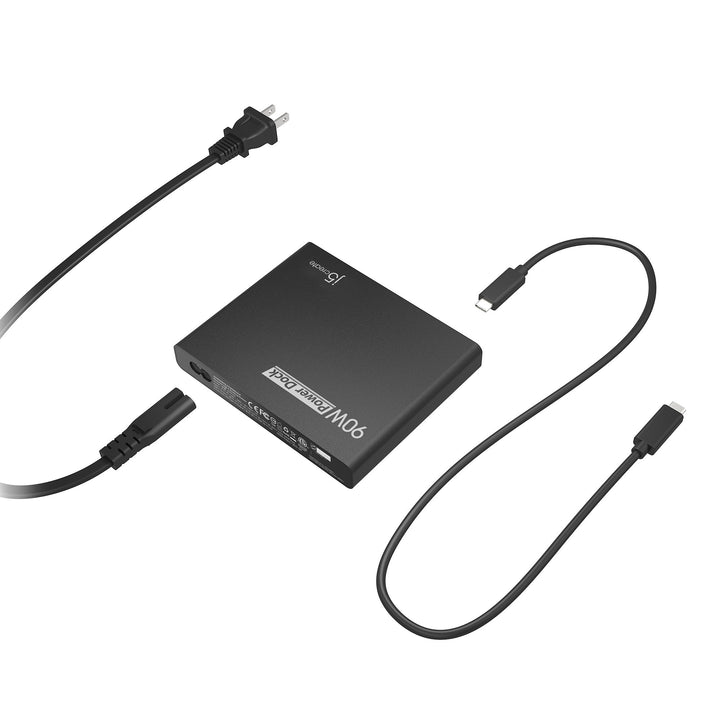

- • Powered USB-C™ Docking Station (JCDP392)
- • 1.97 ft/60 cm USB-C™ to USB-C™ Cable
- • 1 - Detachable power cord length and plug type varies by region
