Description
About This Product

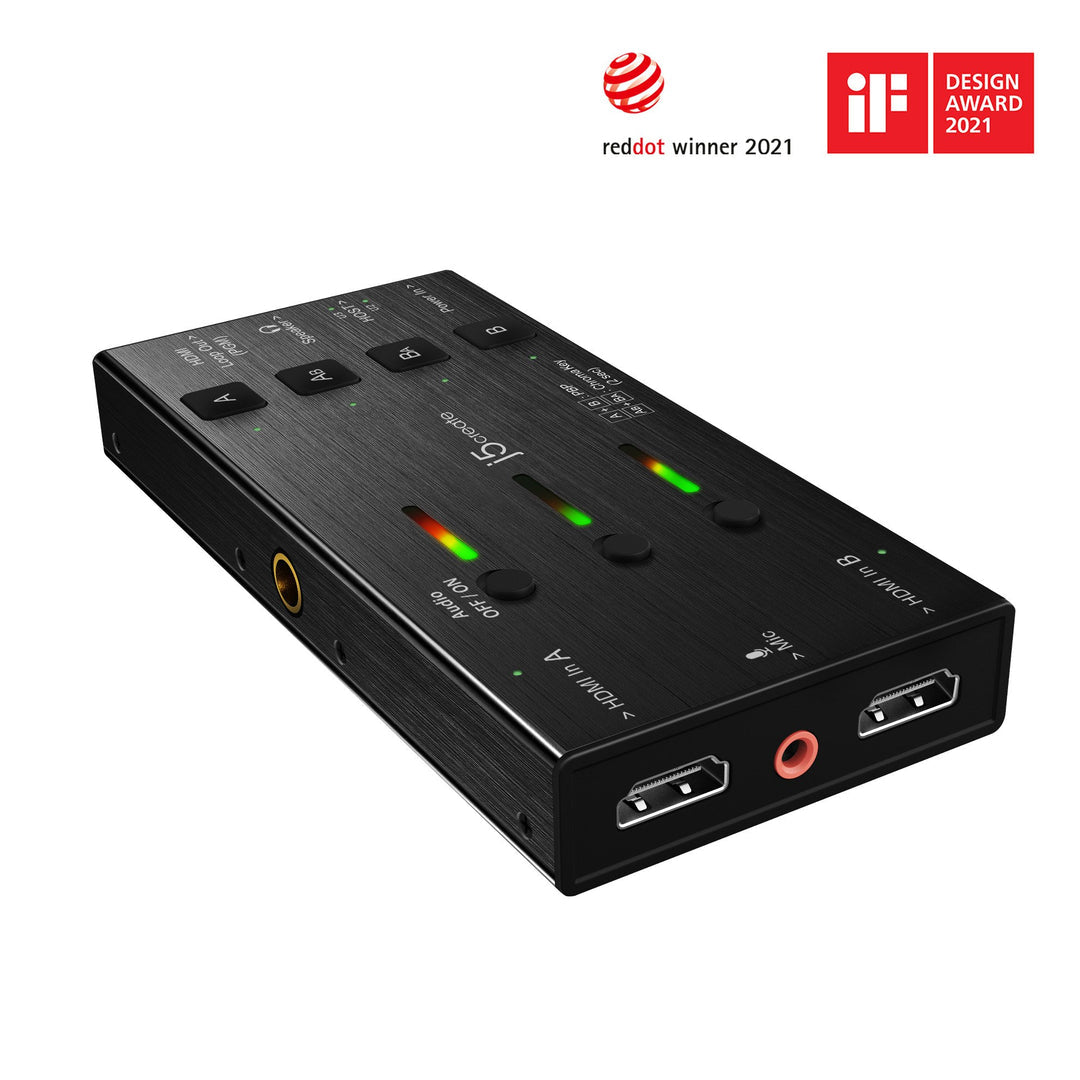

The JVA06 Dual HDMI™ Video Capture allows users to capture uncompressed 1080p video from two HDMI™ sources simultaneously and customize the content in real time. Whether you’re live streaming or recording, there are six screen mode configurations available, including PIP (Picture in Picture) and PBP (Picture by Picture) displays. You can quickly adjust the display settings and transitions with the built-in buttons on the device. The JVA06 also features a Chroma Key application allowing users to drop in a new background image.
With a flexible audio connection via HDMI™ or analog 3.5 mm port, you can record audio directly from your HDMI™ sources and microphone. It has a built-in audio mixer function allowing users to toggle between four different audio settings and three audio inputs (Mic In, HDMI™ A and HDMI™ B).
The JVA06 is perfect for content creators/producers who want to level up their content without spending a fortune and live streamers who want to simplify their setup without compromising the quality of their content. It features a USB-C® host connection with Power Delivery 3.0 and two cold shoe adapters to attach to your DSLR for the perfect combination of ease-of-use and mobility, giving you the ability to live stream without interruptions and charge your connected USB-C device at the same time.
Features
• Dual HDMI™ input for capturing 2 channels
• Full HD video and audio high performance record/playback through USB-C™ 3.1 Gen1
• Uncompressed 1080p @ 60 FPS capture via HDMI™ 1.3a
• Supports 1080p 60 HDMI™ loop out (PGM out)
• Six screen mode configurations with PIP (Picture in Picture) and PBP (Picture by Picture)

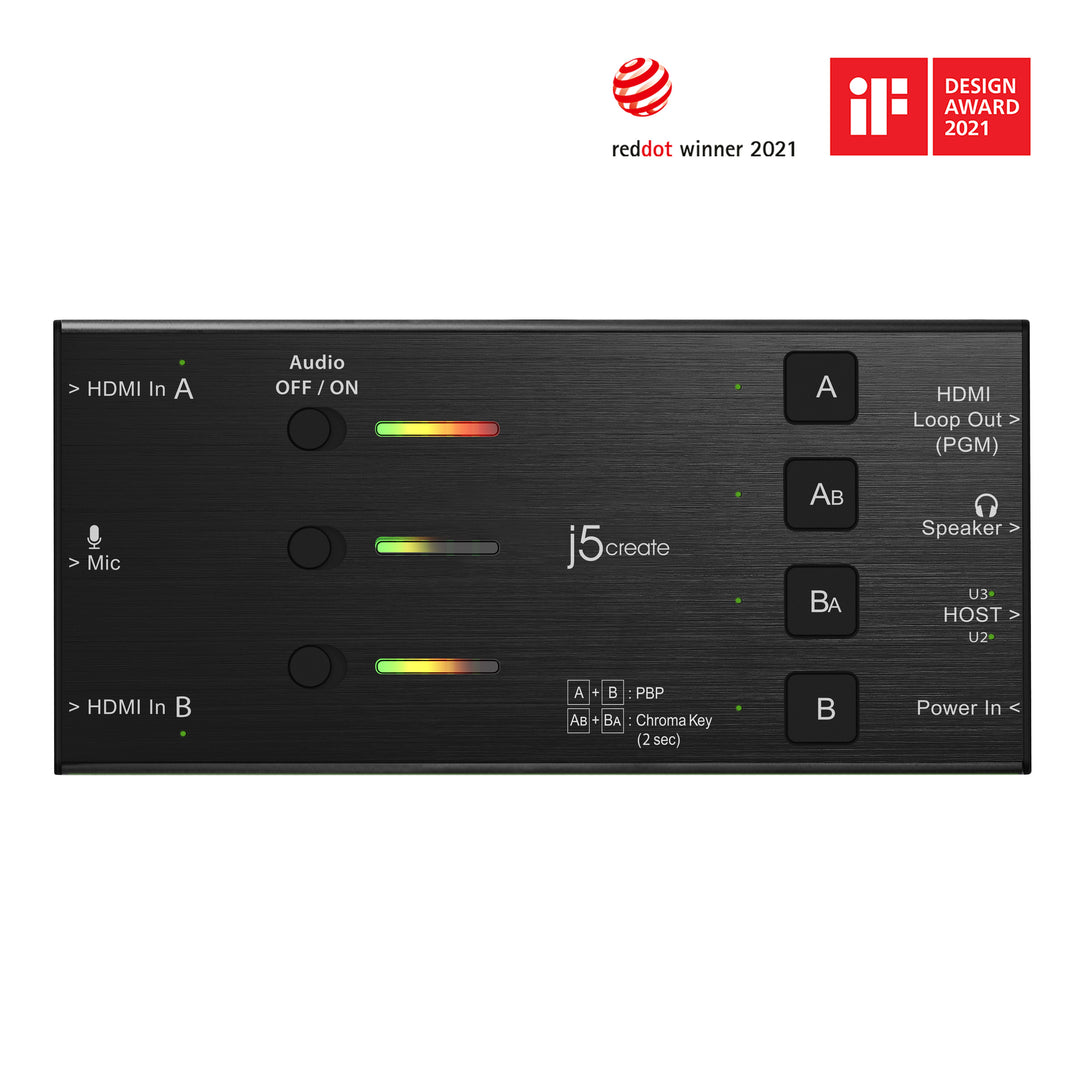

• Easily switch between different screen modes and adjust transition effects with the built-in buttons
• Directly activate Chroma Key features through the built-in controls
• Adjustable segmented window arrangements in PBP (Picture by Picture) mode
• Flexible audio connection via HDMI™ or add external audio with 3.5 mm mic-in and speaker out audio jack
• 3 individual audio mixer on/off switches supported
• 3 channel volume indicators
• Easy DSLR attachment with 2 cold shoe adapters (included)
• Supports USB-C™ Power Delivery 3.0
• UVC standard, plug & play
• LED activity indicator
• HDMI™ IN
• USB™ Link
• Volume Unit
-
-
System Requirements
Computer - Recommended software: OBS™
- Windows® 7 and later (Driver installation is required on Windows® 7)
macOS® X 10.10 and later
Linux® - CPU: Intel® Core™ i5 Gen 4 (3 GHz & above)
CPU: Intel® Core™ i7 Gen 4 & above - RAM: 4 GB memory or higher (8 GB is recommended)
Phone - Recommended software: CameraFi™ Live- Available USB-C™ port that supports USB™ Power Delivery 2.0 or 3.0
- Android™ 7.0 and higher
- CPU: Core 2 GHz & above
- RAM: 4 GB memory or higher
Hardware
Warranty
2-Year Limited
Host Connector
1 - USB-C™ Male
Video Input
2 - HDMI™ Female
Video Output
1 - HDMI™ Female
Audio Input
HDMI™ or 3.5 mm Mic in
Audio Output
HDMI™ or 3.5 mm Speaker out
Power Source
Bus-powered or self-powered (USB-C™ PD)

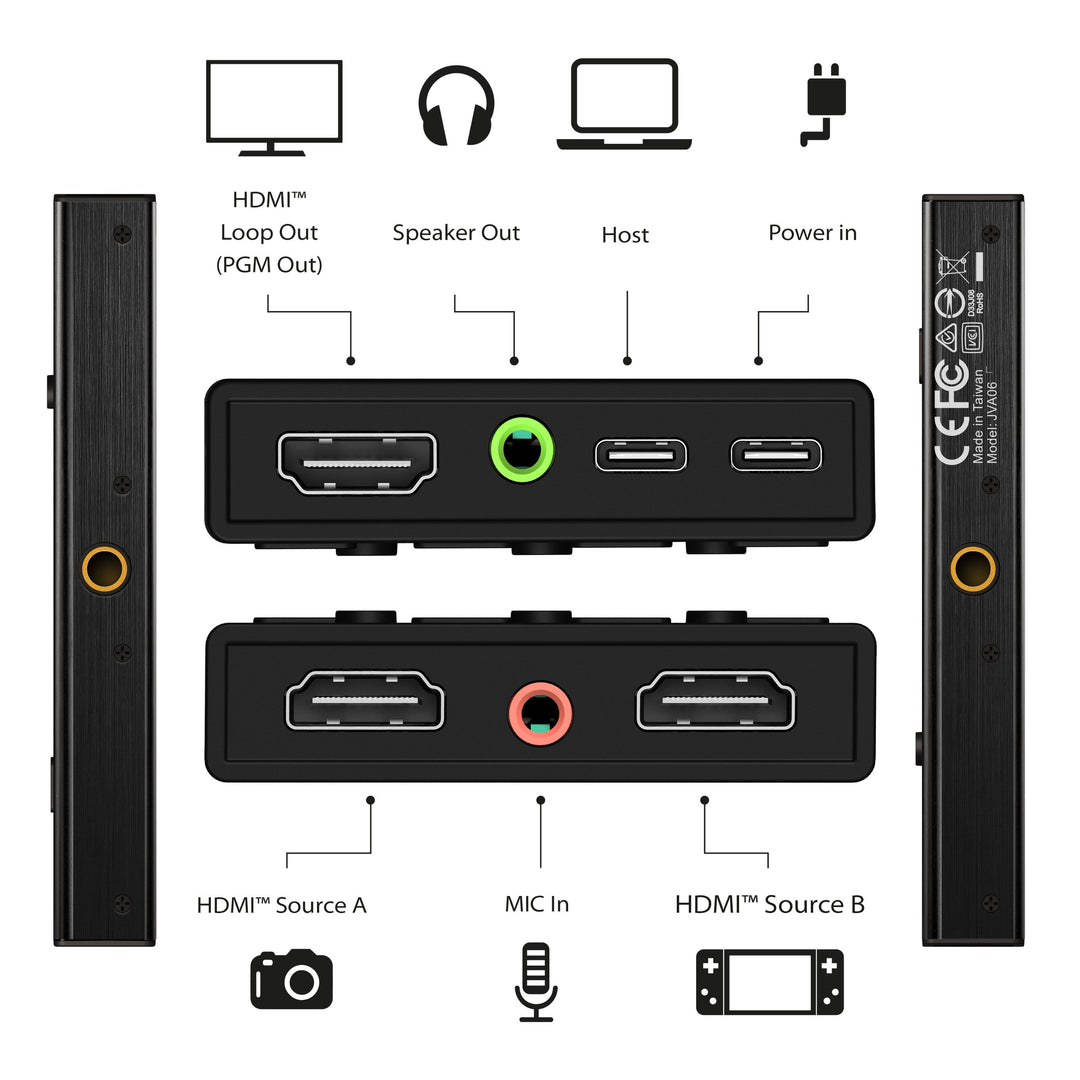

Ports
1 - USB-C™ 3.0 (host)
1 - USB-C™ 3.0 (power)
2 - HDMI™ input
1 - HDMI™ output
1 - Mic in
1 - Speaker out
2 - Cold shoesPerformance
Display Input Supported Resolutions
Progressive:
- 1920 x 1080p @ 24/25/30/50/60
- 1680 x 1050p @ 60
- 1600 x 1200p/900p @ 60
- 1440 x 900p @ 60
- 1400 x 1050p @ 60
- 1366 x 768p @ 60
- 1360 x 768p @ 60
- 1280 x 1024p/800p/720p @ 60
- 1024 x 768p @ 60
- 800 x 600p @ 60
- 720 x 576p/480p @ 60
- 640 x 480p @60
Interlace:
- 1920 x 1080i @ 50/60
- 720 x 576i @ 50
- 720 x 480i @ 60
Display Output Supported Resolutions
- 1920 x 1080p @ 60
- 1280 x 720p @ 60
- 720 x 576p @ 50
- 720 x 480p @ 60
- 640 x 480p @ 60
Maximum Display Refresh Rate
60 Hz
Audio Channel
2.1 via HDMI™
Audio Frequency
48 kHz
Mic
Stereo microphone supported
24-bit sigma-delta ADC
Headset
40 mW output power into 16Ω at 3.3V
THD -75 dB at 20 mWCompression
USB™ 2.0: MJPEG
USB™ 3.0: YUV 4:2:2Encode Format
USB™ 2.0: MJPEG
USB™ 3.0: YUV 4:2:2HDR Supported
No
Power
Power Delivery
Up to 60W via USB-C™
Power Consumption
≦ 1000A
Input Current
Up to 3A
Input Voltage
Up to 20V
Output Current
Up to 3A
Output Voltage
Up to 20V
Physical Specifications
Color
Black
Enclosure Type
Aluminum
Cable Length
USB-C™ to USB-C™: 23.6 inch (60 cm)
USB-C™ to USB™ Type-A 23.6 inch (60 cm)Product Height
0.7 inch (18.4 mm)
Product Width
5.3 inch (134.6 mm)
Product Depth
2.5 inch (63.7 mm)
Product Weight
6 oz (172g)
Storage Temperature
14 to 149°F (-10 to 65°C)
Storage Humidity
< 85% non-condensing
Operating Temperature
32 to 118°F (0 to 45°C)
Operating Humidity
< 85% non-condensing
Special Notes
The JVA06 can connect to a USB-C® port that does not support Power Delivery, but it will not pass power through the connected device.
Package Contents
- • 1 - JVA06 Dual HDMI™ Video Capture
- • 1 - Quick Installation Guide
- • 1 - USB-C™ 2.0 to USB-C™ cable
- • 1 - USB-C™ 3.0 to USB™ Type-A cable
- • 1 - 39.4 in./100 cm HDMI™ cable
