Description
About This Product

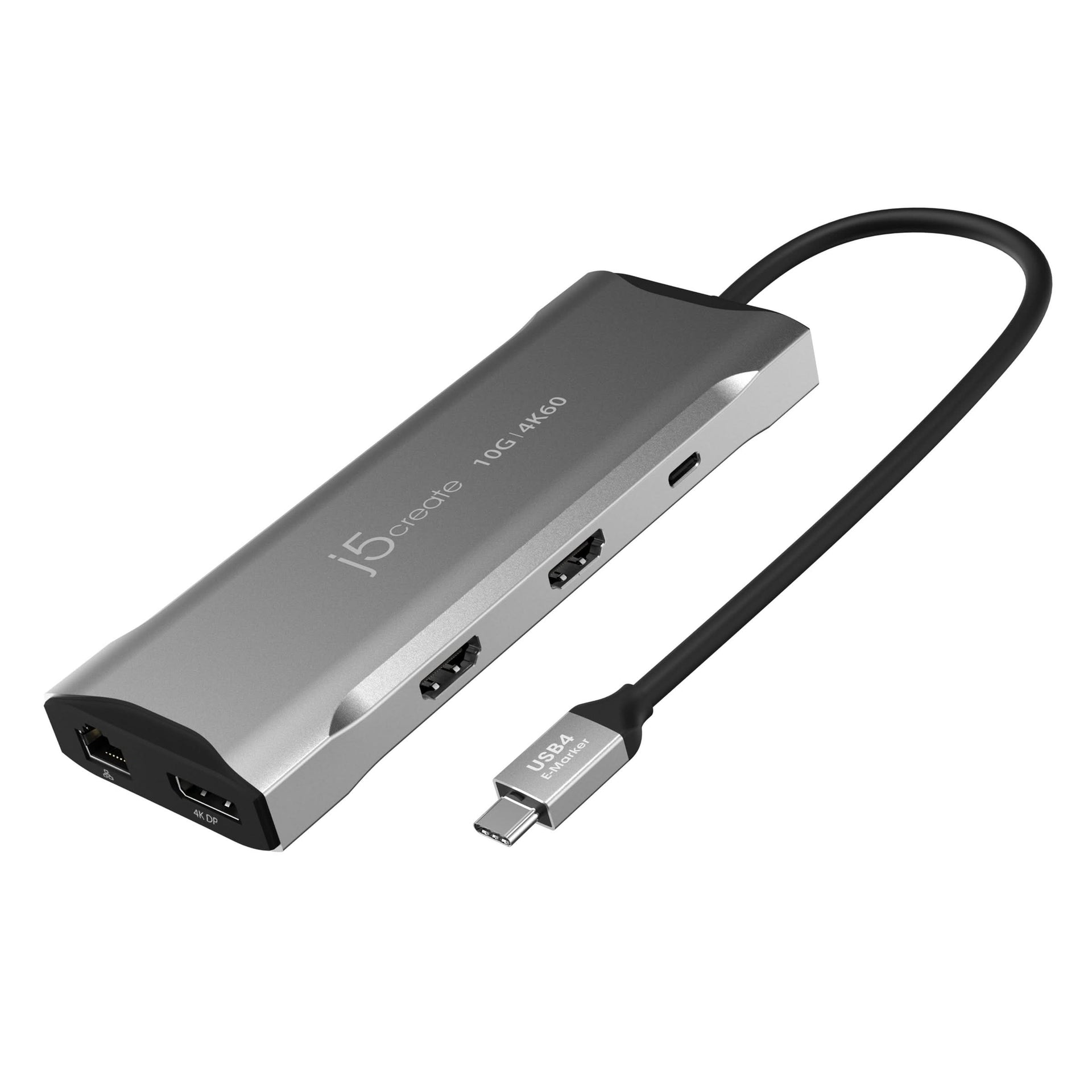

Equipped with an advanced USB-C® E-Mark chip, this multi-monitor mini dock is compatible with USB4™ hosts and devices, featuring everything you need, from triple video outputs to 10Gbps USB™ ports, as well as 100W Power Delivery pass-through charging.
This USB-C® mini dock supports DisplayPort™ 1.4 and Multi-Stream Transport (MST), giving you the ability to create a dual or triple 4K workstation with two HDMI™ and a DisplayPort™ output. It provides three USB™ SuperSpeed 10 Gbps ports (1 USB-C® and 2 USB™ Type-A) for peripheral connectivity or downstream charging, an SD™ & microSD™ 4.0 memory card reader/writer to manage your media files, and a Gigabit Ethernet port to access a wired network. It also supports Power Delivery 3.0, providing up to 100W pass-through charging to power the connected peripherals and charge your host laptop with a USB-C® power adapter.
Features
- • Advanced USB-C® E-Mark chip integrates USB4™, Thunderbolt™ 3 and Thunderbolt™ 4 compatibility
- • Backward compatible with USB™ 3.2/3.1
- • Three SuperSpeed USB™ 10Gbps downstream ports (1 USB-C® and 2 Type-A) to connect peripherals
- • Charge and power connected laptop and peripherals with 100W Power Delivery
- • SD™ & microSD™ 4.0 memory card reader/writer for media storage and transfer
- • Easily add a wired network connectivity with the Gigabit Ethernet port
- • Plug-and-play, no driver installation required
- • Extending one display up to 3840 x 2160 @ 60, easily switch to a higher refresh rate of 2560 x 1440 @ 144 via HDMI™ or 1920 x 1080 @ 240 via DP™ Port to enjoy your gaming under Windows® OS.
- • Supports dual 4K 60 Hz or triple 4K 30 Hz (2 HDMI™ and 1 DisplayPort™) on compatible USB-C® laptops with DisplayPort™ 1.4 alt mode with MST support*
System Requirements
- • Available USB-C® port that supports DisplayPort™ alternate mode and USB™ Power Delivery 2.0 or 3.0
Please refer to the manufacturer of your computer for more information about your device - • The host device must support DisplayPort™ 1.4 to achieve 4K resolution at 60 Hz, main DisplayPort™ 1.4 devices are listed as follows:
- • Macbook Air® 13" 2019 or later
- • Macbook Pro® 15" 2017 or later
- • Macbook Pro® 16"
- • iPad Pro® 11"/12" 2018 or later
- • Surface™ Pro 7
- • Surface™ Laptop 3
| Hardware | |
| Warranty | 2 Year Limited |
| Host Connector | 1 - USB-C® Male |
| Video Output | 2 - HDMI™ Female 1 - DisplayPort™ Female |
| Power Source | Bus-powered or self-powered |
| Network Interface | RJ45 (Gigabit Ethernet) |
| Audio Supported | Yes |
| Ports |
|
| Performance | |
| Maximum Display Resolution | 3840 x 2160 |
| Maximum Display Refresh Rate | Windows® (MST) 3840 x 2160 @ 60 Hz 2560 x 1440 @ 120 Hz 1920 x 1080 @ 144 Hz |
| Maximum Data Transfer Rate | 10Gbps |
| Displays Supported | 3 |
| Compatible Networks | 10/100/1000 Mbps |
| Audio Channel | 2.1 via HDMI™ |
| Power | |
| Power Delivery | Up to 100W via USB-C® |
| Power Consumption | ≤ 650 mA |
| Input Current | Up to 5A |
| Input Voltage | Up to 20V |
| Output Current | Up to 4.25A |
| Output Voltage | Up to 20V |
| Physical Specifications | |
| Color | Space Grey |
| Enclosure Type | Aluminum |
| Cable Length | 7.87 in. (20 cm) |
| Product Height | 5.8 in. (148 mm) |
| Product Width | 2.17 in. (55 mm) |
| Product Depth | 0.67 in. (17 mm) |
| Product Weight | 4.36 oz (123.5g) |
| Storage Temperature | 0 to 155°F (-17 to 68°C) |
| Storage Humidity | < 85% non-condensing |
| Operating Temperature | 30 to 116°F (-1 to 41°C) |
| Operating Humidity | < 85% non-condensing |
Special Notes
- • A host laptop without MST support can only connect to one additional monitor
- • The MST protocol is not currently supported by macOS® or Chrome OS™. The display output is limited to mirrored mode when connected.
- • A 4K-capable display is required for obtaining the 3840 x 2160 resolution
- • If connected to a USB™ 2.0 host port, or if using a USB™ 2.0 host cable, performance may be limited
- • If connected to a DisplayPort™ 1.2 device, performance will be limited to 3840 x 2160 @ 30 Hz (Windows®)
- • The mini dock can connect to a USB-C® port that doesn’t support Power Delivery, but it will not pass power through the connected device
- • If you are using high-powered USB™ devices, attach a USB-C® power adapter to the power delivery port to ensure maximum performance. To avoid disruption, do not remove the power adapter while copying files.
- • We advise no more than one (1) bus-powered/portable external hard disk drive to be connected to the adapter at a time
Package Contents
- • 1 - JCD397 4K60 Elite USB-C® Triple-Monitor 10Gbps Mini Dock
- • 1 - Quick Installation Guide (QIG)
