Description
About This Product

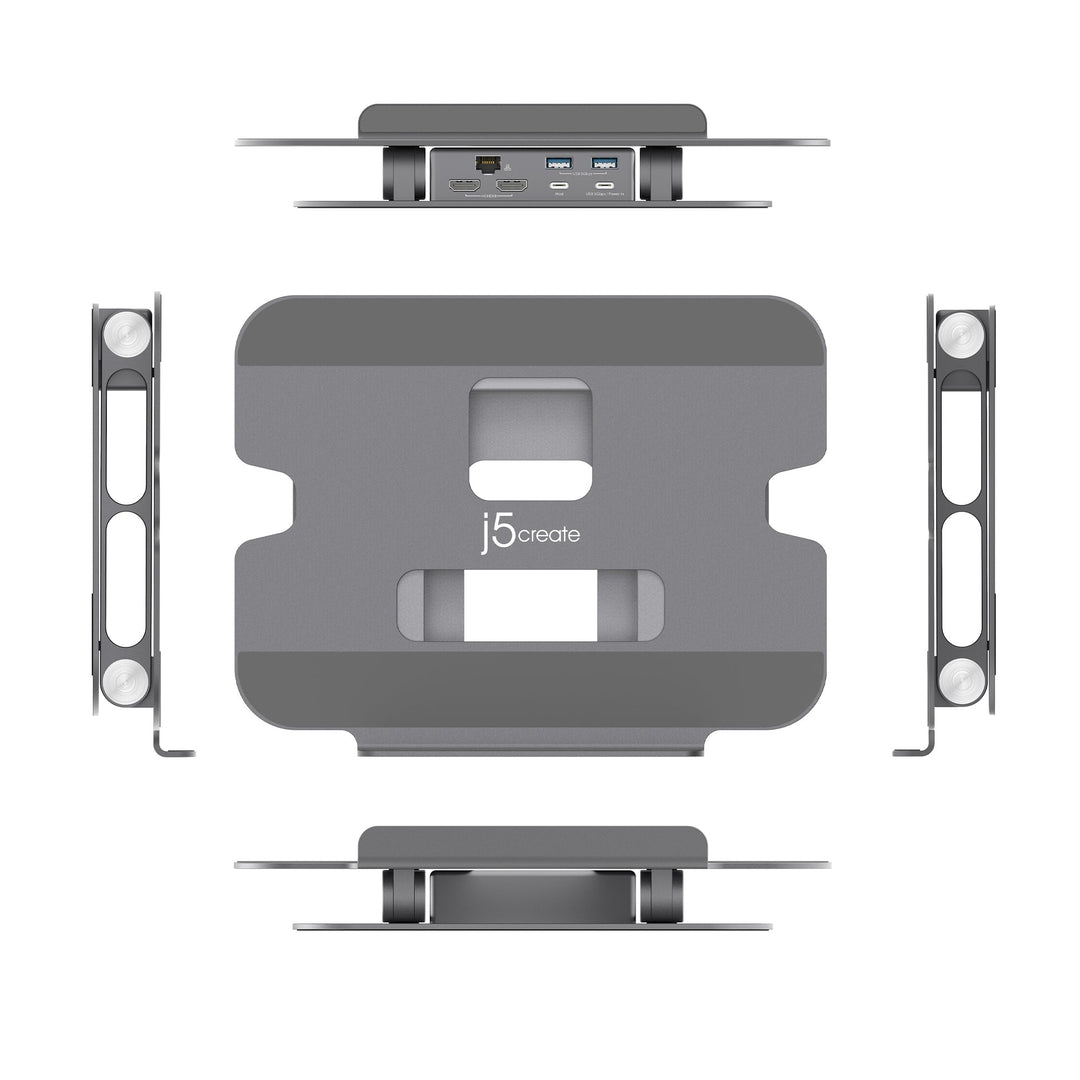

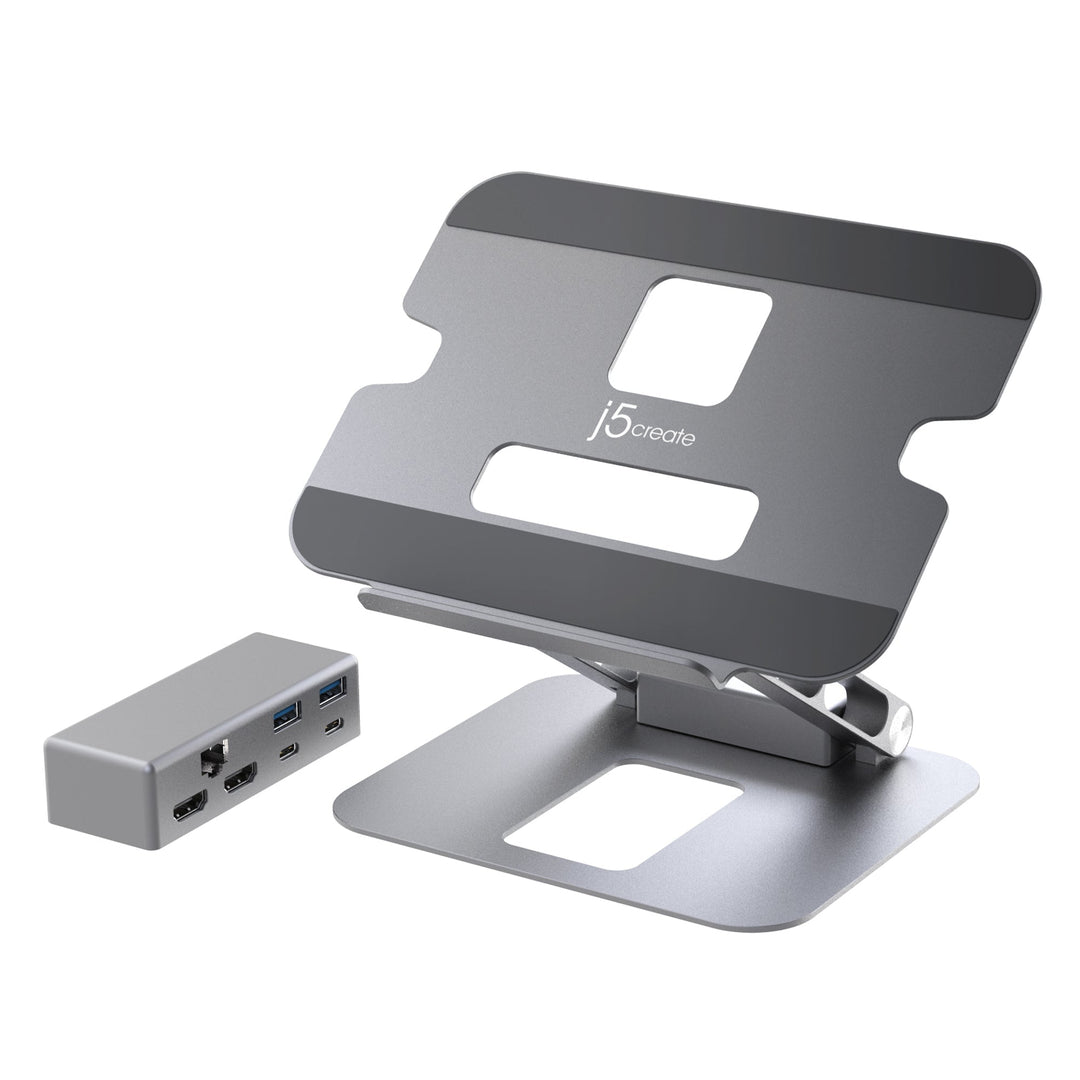

This multi-angle stand is made of durable aluminum and can support a variety of items in addition to a laptop including tablets, books, etc. Its foldable design allows for easy storage or transport, while the viewing angles and heights can be adjusted to fit your needs and optimize your viewing experience. This versatile stand gives you the ability to create a more efficient workspace, whether you need extra space or a standing desk setup.
The integrated USB-C® mini dock lets you easily create a workstation with one 4K HDMI™ or Dual 1080p HDMI™ display outputs, a Gigabit Ethernet port for easy network access, and two USB™ 5Gbps Type-A downstream ports, as well as a USB-C® port that supports 5Gbps data transfer rate and up to 100W pass-through, providing all the connectivity you need for enhanced productivity and to connect your peripherals.
Features
• Fits most laptops up to 16 in.
• Aluminum construction with a weight capacity of up to 9 lbs. (4 kg)
• Adjustable viewing angles and heights help reduce eye strain and improve posture
• Nonslip protective pads help prevent slipping and scratches
• Foldable design for easy storage and portability
• Supports 4K HDMI™ or dual 1080p HDMI™ display on compatible USB-C® laptops with DisplayPort™ 1.2 alt mode with MST support*
• Integrated USB-C® mini dock features a 4K HDMI™ output and three USB™ SuperSpeed 5Gbps ports
◦ Easily create a 4K HDMI™ or dual 1080p HDMI™ setup with your Thunderbolt™ 3/4 or USB-C® laptop with DP™ Alt mode
◦ Two 5Gbps Type-A ports for data transfer and syncing, or charging your USB™ devices
◦ One USB-C® port with 5Gbps data transfer and support for 100W power pass-through
◦ Reliable network connectivity via the Gigabit Ethernet port
System Requirements
- • Available USB-C® port that supports DisplayPort™ alt mode and USB™ Power Delivery 2.0 or 3.0
Please refer to the manufacturer of your hardware for more information on your device. - • DisplayPort™ v1.2 required on graphics card or video source to support 4K resolution @ 30 Hz.
- • The host device must support Multi-Stream Transport (MST) and DisplayPort™ 1.2 to achieve dual-monitor configuration
- • The MST protocol is not currently supported by macOS®
*macOS® only supports SST, which means all connected monitors will show the same content.
| Hardware | |
| Warranty | 2-Year Limited |
| Number of Tiers | N/A |
| Adjustable Angle | N/A |
| Maximum Weight Capacity | 9 lbs. (4 kg) |
| Additional Storage | No |
| Assembly Required | No |
| Docking Station Included | Yes |
| Host Connector | 1 - USB-C® Female |
| Video Output | 2 - HDMI™ Female |
| Power Source | Bus-powered or self-powered |
| Network Interface | Yes |
| Audio Supported | Yes |
| Ports | 1 - USB-C® 5Gbps (Data transfer & Power Delivery 3.0) 2 - USB™ 5Gbps Type-A 2- HDMI™ (4K for Single display, 1080p for Dual display) 1 - Gigabit Ethernet |
| Performance | |
| Maximum Display Resolution | 3840 x 2160 |
| Maximum Display Refresh Rate | 4K @ 30 Hz |
| Displays Supported | 2 |
| Wide Screen Supported | Yes |
| Audio Channel | 2.1 via HDMI™ |
| Power | |
| Power Delivery | Up to 100W |
| Power Consumption | ≤ 900 mA |
| Input Current | Up to 5A |
| Input Voltage | Up to 20V |
| Output Current | Up to 4.5A |
| Output Voltage | Up to 20V |
| Physical Specifications | |
| Color | Space Grey |
| Stand Material | Aluminum |
| Enclosure Type | Aluminum |
| Cable Length | 23.6 in. (60 cm) |
| Product Height | 11.4 in. (290 mm) |
| Product Width | 8.9 in. (226 mm) |
| Product Depth | 2.08 in. (53 mm) |
| Product Weight | ≈ 2.89 lbs. (1.31 kg) (including cable) |
| Operating Temperature | 30 to 116°F (0 to 30°C) |
| Operating Humidity | < 85% non-condensing |
| Storage Temperature | 0 to 155°F (-10 to 65°C) |
| Storage Humidity | < 85% non-condensing |
Special Notes
- • A 4K-capable display and cable are required for obtaining the 3840 x 2160 resolution
- • If connected to a USB™ 2.0 host port, or if using a USB™ 2.0 host cable, performance may be limited
- • The dock can connect to a USB-C® port that doesn’t support Power Delivery, but it will not pass power through the connected device
- • If you are using a high-powered USB™ device, attach a USB-C® power adapter to the power delivery port for optimal performance
- • To ensure files copy completely, do not remove the USB-C® power adapter while copying files. For maximum performance, use a computer and USB-C® power adapter equipped with PD 3.0
- • We advise no more than one (1) bus-powered/portable external hard disk drive to be connected to the USB™ hub at a time
Package Contents
- • 1 - JTS427 Multi-Angle Dual HDMI™ Docking Stand
- • 1 - USB-C® 3.2 male to male host cable
- • 1 - Quick Installation Guide (QIG)
