Zoom
Description
About the item
- Wirelessly cast full HD content from your mobile device to a larger display

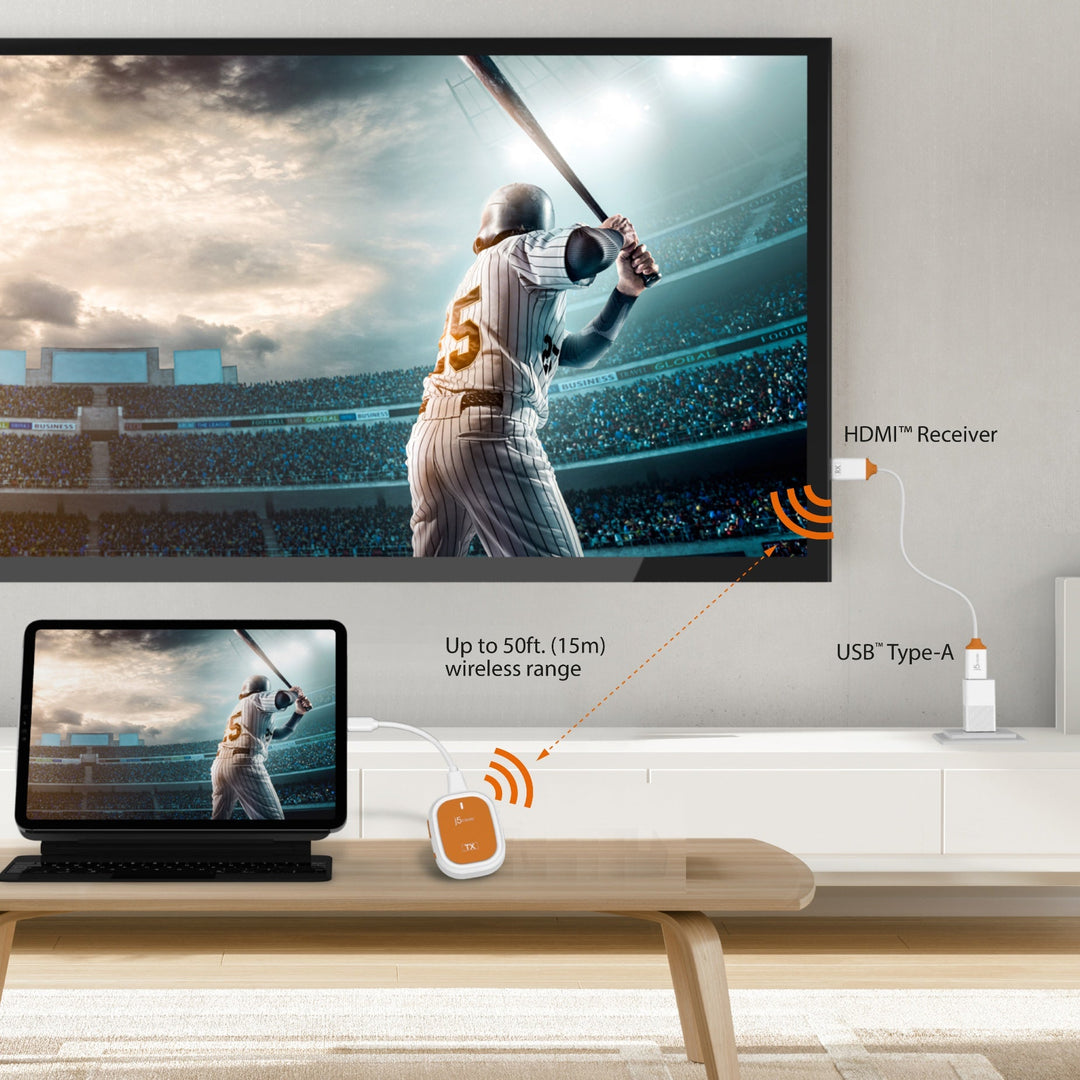

- Built-in antenna supports a wireless range up to 49.2 ft (15m)
- High-speed audio and video transmission with low latency (less than 0.13s/130 ms)
- With support of DRM technology and HDCP 1.4 compliance, you can enjoy your shows/movies on your favorite streaming applications, such as Netflix®, Amazon® Prime Video™, Hulu™, DISNEY+™, and other streaming apps
- Supports 1080p HD video
- A stable connection and smooth streaming experience
- Includes a USB™ Type-A extension cable for added convenience
- Compact design is ideal for home, office, school, or on-the-go
Specifications
| Category | Specification |
|---|---|
| Hardware | |
| Host Connector | USB-C® Male Connector (Transmitter) |
| Infrared | N/A |
| LED Indicators | N/A |
| Ports | N/A |
| Power Source | USB™ Type-A Male (Receiver) |
| Warranty | 1 Year Limited |
| Performance | |
| Audio Channel | 2.1 via HDMI™ |
| ESD Protection | N/A |
| HDCP Compliance | HDCP 1.4 |
| HDMI Compliance | HDMI™ v1.3 |
| Infrared Return Frequency | N/A |
| OVP Protection | N/A |
| RF Output Power | N/A |
| Security - Encryption | WPA2 |
| Supported Resolution - Output | 1920 × 1080 @ 60Hz |
| 1280 × 720 @ 60Hz | |
| Physical Specifications | |
| Cable Length | USB-C® Transmitter (TX): 3.9 in. (100 mm) |
| HDMI™ Receiver (RX): 23.6 in. (600 mm) | |
| Color | White |
| Connector Type | Plastic |
| Operating Humidity | < 85% non-condensing |
| Operating Temperature | +14 to +104°F (-10 to +40°C) |
| Product Depth | TX: 2.2 in. (56.11 mm), RX: 0.41 in. (37.1 mm) |
| Product Height | TX: 2.6 in (16 mm), RX: 0.37 in (9.45 mm) |
| Product Weight | TX: 1.64 oz (46.5 g), RX: 0.86 oz (24.5 g), |
| Extension Cable: 0.99 oz (28 g) | |
| Product Width | TX: 2.72 in (69.2 mm), RX: 0.74 in. (18.89 mm) |
| Storage Humidity | < 85% non-condensing |
| Storage Temperature | -4 to +122°F (-20 to +50°C) |
| Wireless Protocols | |
| Antenna Type | Internal antenna |
| Channel Width | 20 MHz |
| Frequency | 5.8 GHz |
| Range | Up to 10 - 15 meters |
| Standard | IEEE 802.11n |
| Package Contents | |

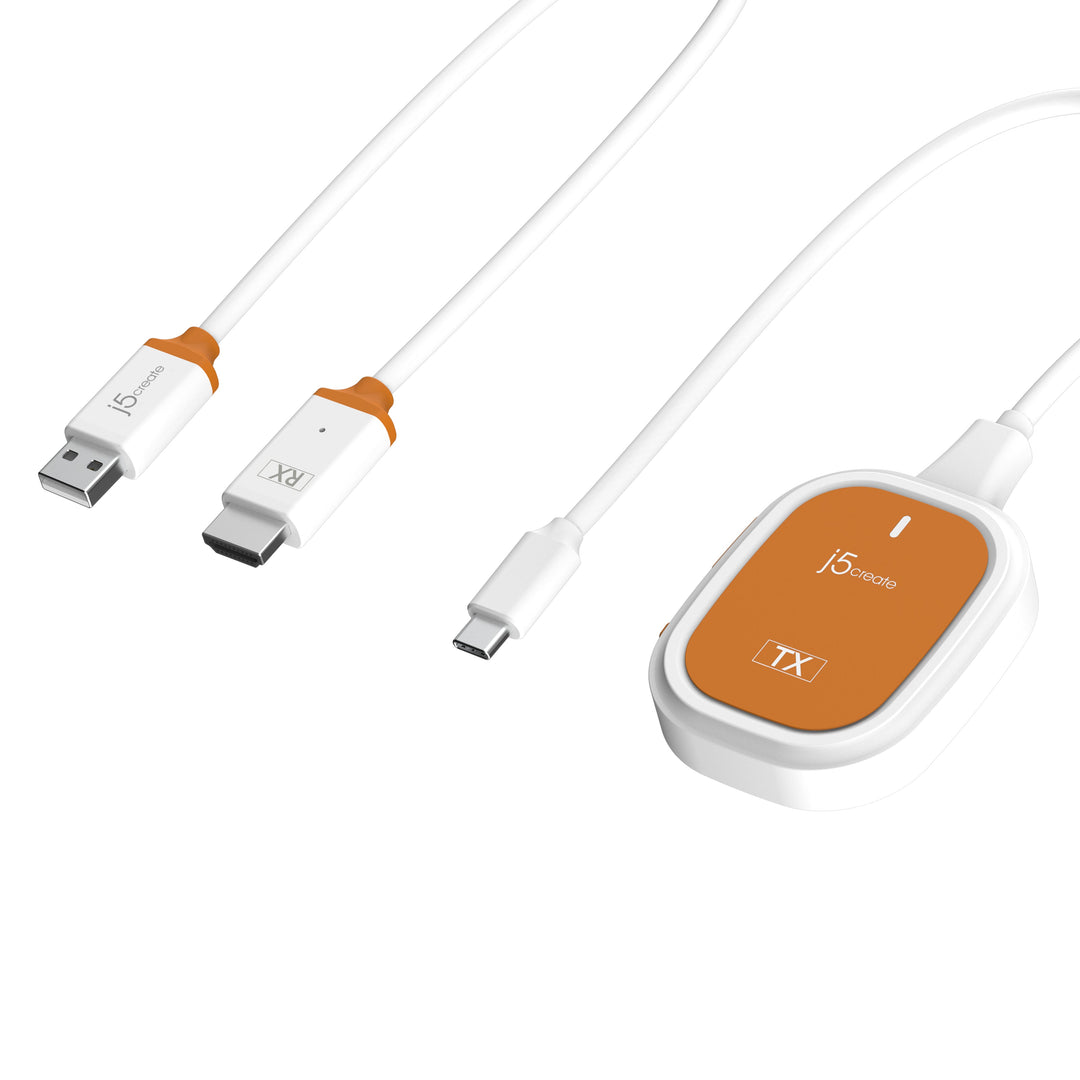

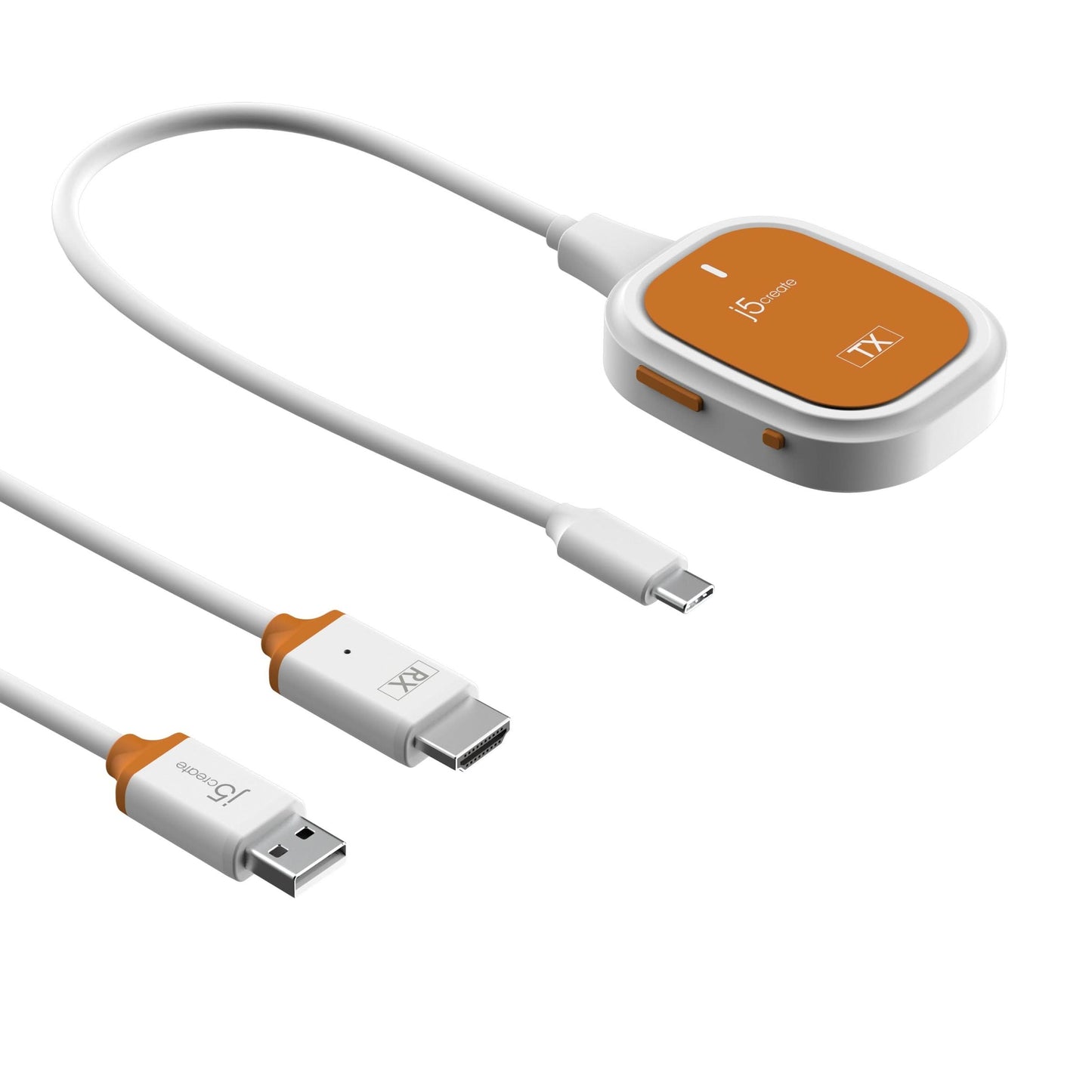

| 1 - JVAW61 ScreenCast FHD USB-C® Wireless Display Extender (1 x Transmitter & 1 x Receiver) | |
| 1 - USB™ Type-A extension cable (60 cm / 23.6 in.) | |
| 1 - Quick Installation Guide (QIG) |
