Description
About This Product
Features

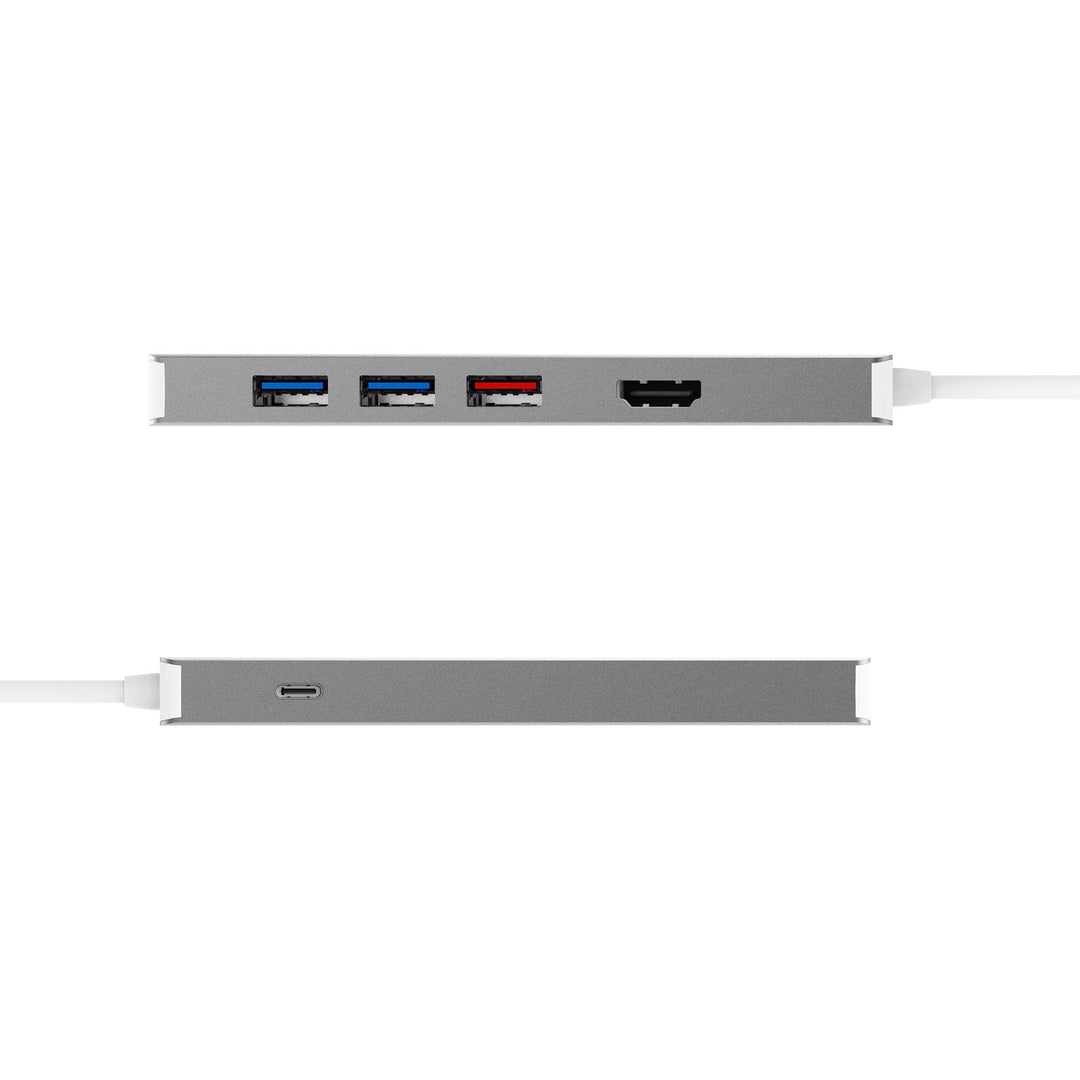

- The main body includes 6 outputs:
• 1 x HDMI™ with resolutions up to 4K @ 30 Hz
• 3 x USB™ Type-A 3.1 Gen 2 ports support 10 Gbps of data transfer
• 1 x USB-C™ 3.1 Gen 2 port supports 10 Gbps
• 1 x USB-C™ with power delivery charging up to 100W
- 2 modular kits include:
• 1 x Gigabit Ethernet
• 1 x microSD™ & SD™ card reader 4.0 UHS-II 312 MB/s
• Upgrade your transfer speed: USB™ 3.1 Gen 2, 10 Gbps and SD™ 4.0 UHS-II 312 MB/s.
• Fast charging for phone: supports fast charging for iPhone®, Samsung® phones, and other USB™ devices.
• Right angle cable for your comfort: With an innovative 90-degree L-shaped design, it's more comfortable, sturdier and less hassle to connect to the side of your laptop or tablet.
• Each module can be used individually or as an extension kit to the main body of the dock.

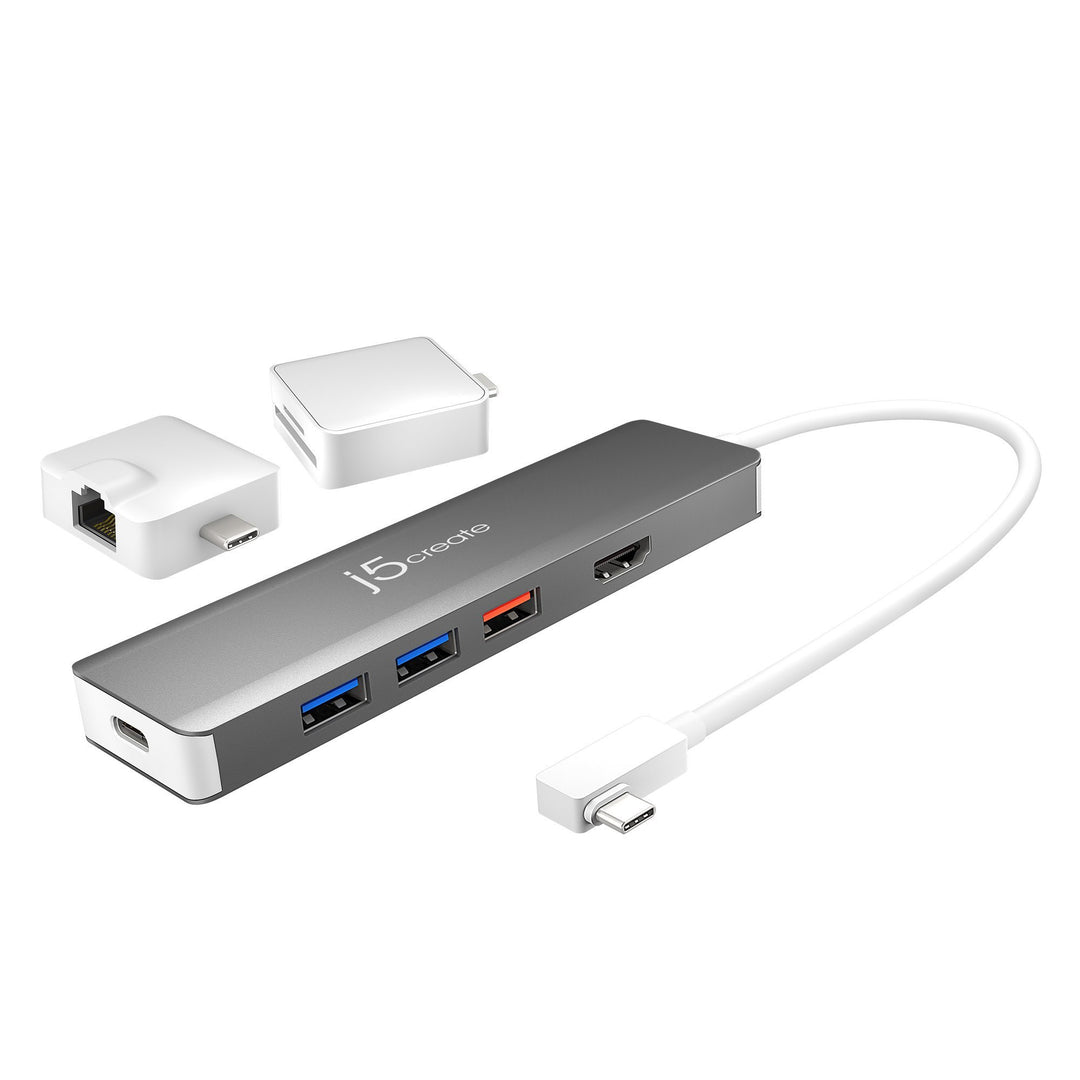

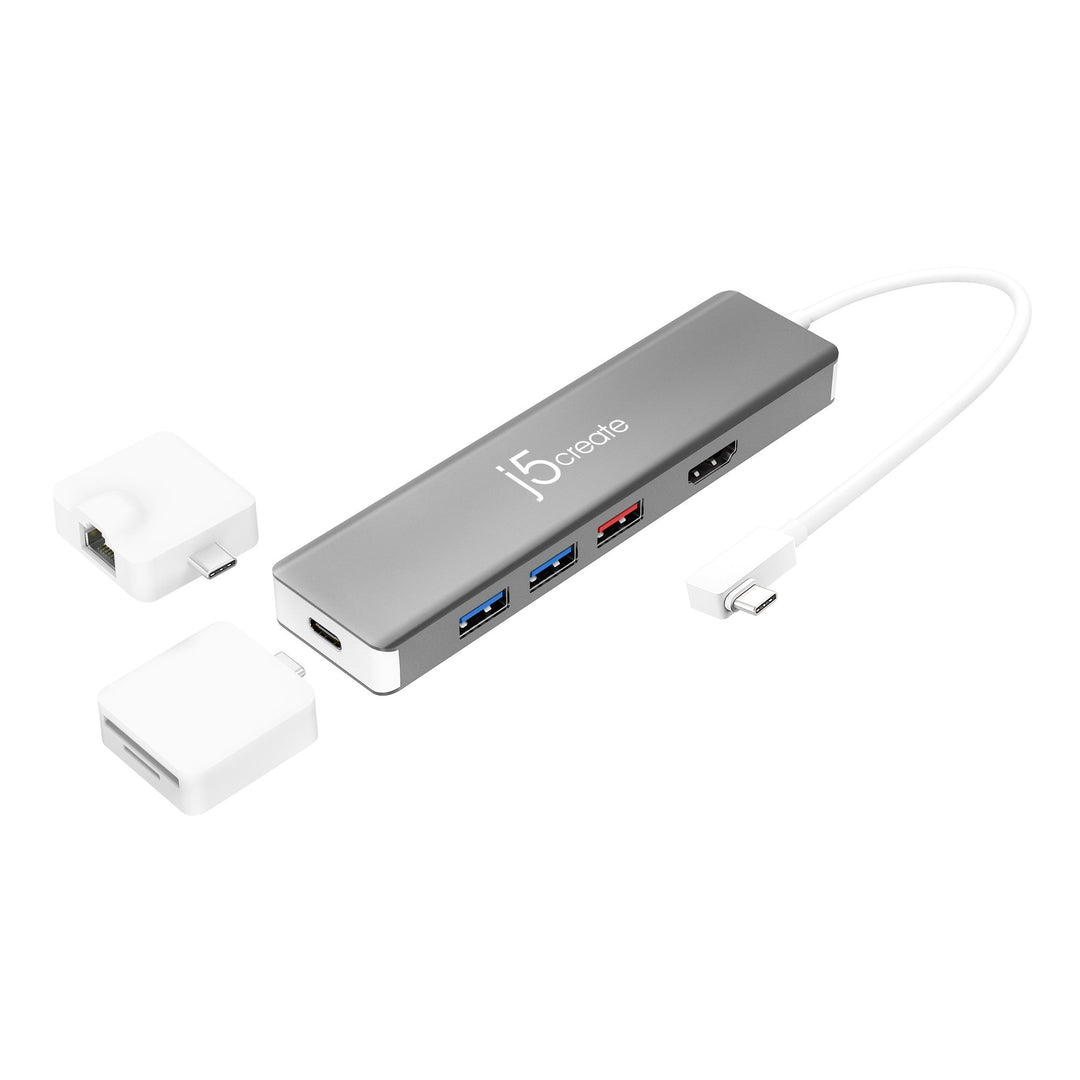

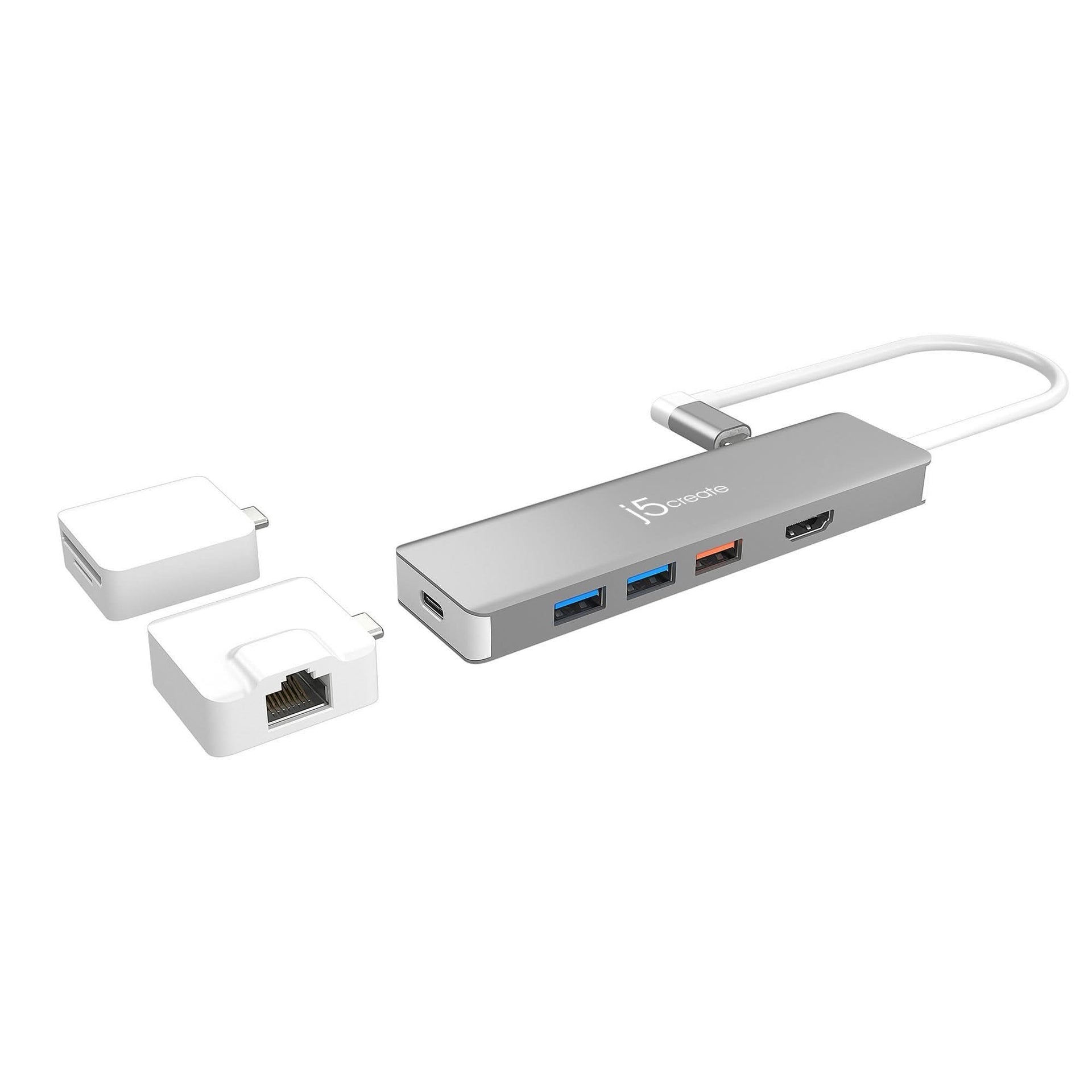

The JCD375 USB-C™ Modular Mini Dock 9-in-1 provides extra connectivity for your USB-C™ computer; featuring video, data storage and charging all in one. It includes 2 small detachable adapters (modular kits) to add extra ports and features to your laptop.
This pocket-sized multi-adapter allows you to add an additional USB™ 10G computer peripheral and HDMI™ monitor through your computer’s USB-C™ port. It also provides two modular kits that add a gigabit Ethernet port and/or an SD™ 4.0 card reader. Each kit can work separately as a complete mini adapter or be connected to the main body for use together.
-
System Requirements
- • Available DisplayPort™ Alt Mode over USB-C™ port
Note:
- • Available USB-C™ DisplayPort™ Alt mode
- • Available USB™ power delivery over USB-C™ to support upstream charging
- • If you are using a high-powered USB™, attach the USB-C™ power supply to the power delivery port to ensure maximum performance
Hardware Specifications Host Connector USB-C™ 3.1 male Video Output HDMI™ female Network Interface RJ45 (Gigabit Ethernet) Card Reader SD™ / microSD™ Audio Supported Yes Power Source Bus-Powered & Self-Powered Ports - USB™ Type-A x 3
- USB-C™ (PD) x1
- USB-C™ (Data Transfer) x1
- Gigabit Ethernet
- microSD™ & SD™ Card ReaderPerformance
Maximum Display Resolution 3840 x 2160 @ 30 Hz; 1920 x 1080 @ 60 Hz Maximum Display Refresh Rate 3840 x 2160 @ 30 Hz; 1920 x 1080 @ 60 Hz Maximum Data Transfer Rate 10 Gbps Displays Supported 1 Compatible Networks 10/100/1000 Mbps Compatible Cards SD™ / microSD™ (UHS-I, UHS-II) 312 Mbps Audio Channel 2.1 via HDMI™ Fast Charging BC1.2 Max 1.5A Power Delivery 100W Physical Specifications
Color Silver / White Enclosure Type Aluminum, ABS Plastic Cable Length 7.87 in. (200mm) Product Height 4.99 in. (126.5 mm) Product Width 1.28 in. (32.6 mm) Product Depth 0.48 in. (12.2 mm) Dimensions (L x W x D) Main Body:
-4.99 x 1.28 x 0.48 in. (126.5 x 32.6 x 12.2 mm
Kits:
-Gigabit Ethernet :34.25 x 32.59 x 14.10 mm
-microSD™ & SD™ Card Reader: 34.25 x 32.58 x 12.20 mmProduct Weight Main Body: 3.17 oz (90 g)
Kits:
-Gigabit Ethernet: 0.32 oz (9.2 g)
-microSD™ & SD™ Card Reader: 0.36 oz(10.2 g)Storage Temperature 0 to 155°F (-17 to 68°C) Storage Humidity < 85% non-condensing Operating Temperature 30 to 116°F (-1 to 41°C) Operating Humidity < 85% non-condensing
Package Contents
- • 1 x JCD375 ULTRADRIVE KIT USB-C™ Modular Mini Dock 9-in-1
- • 2 x modular kits
- • 1 x Quick Installation Guide
