Description
About This Product

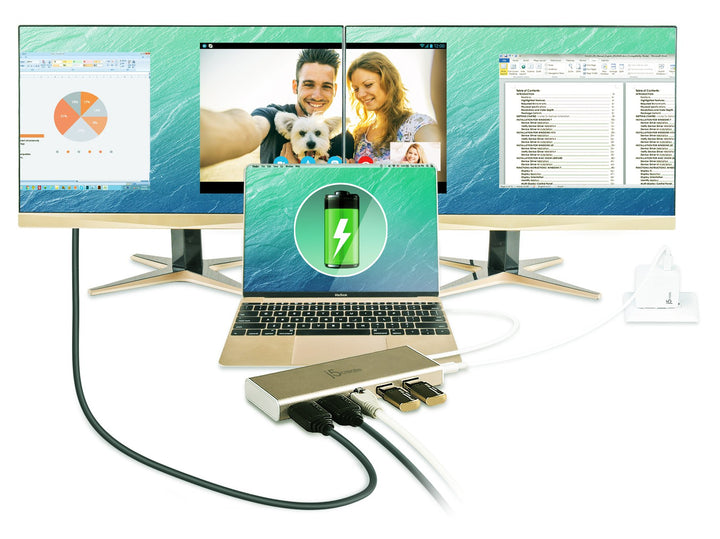

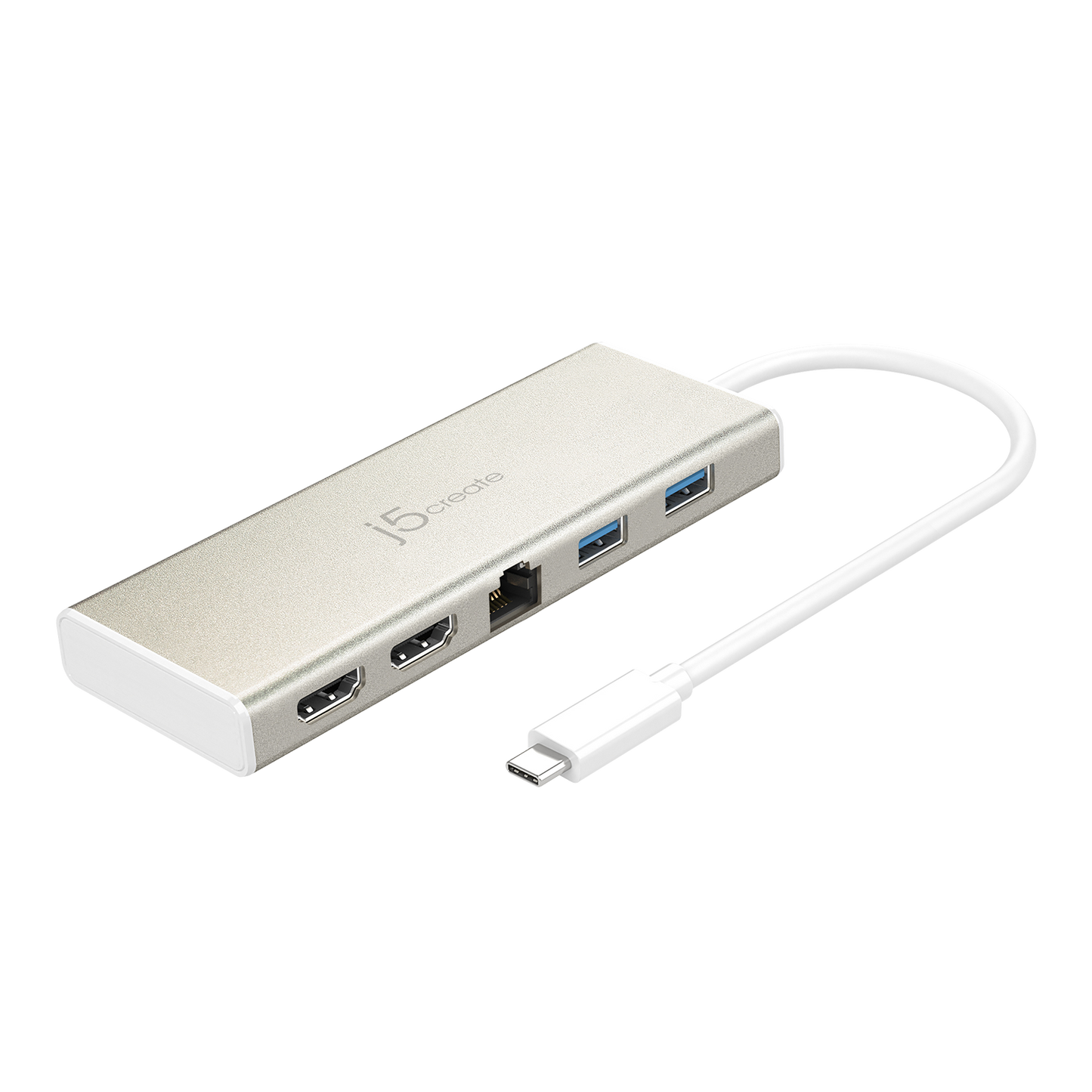

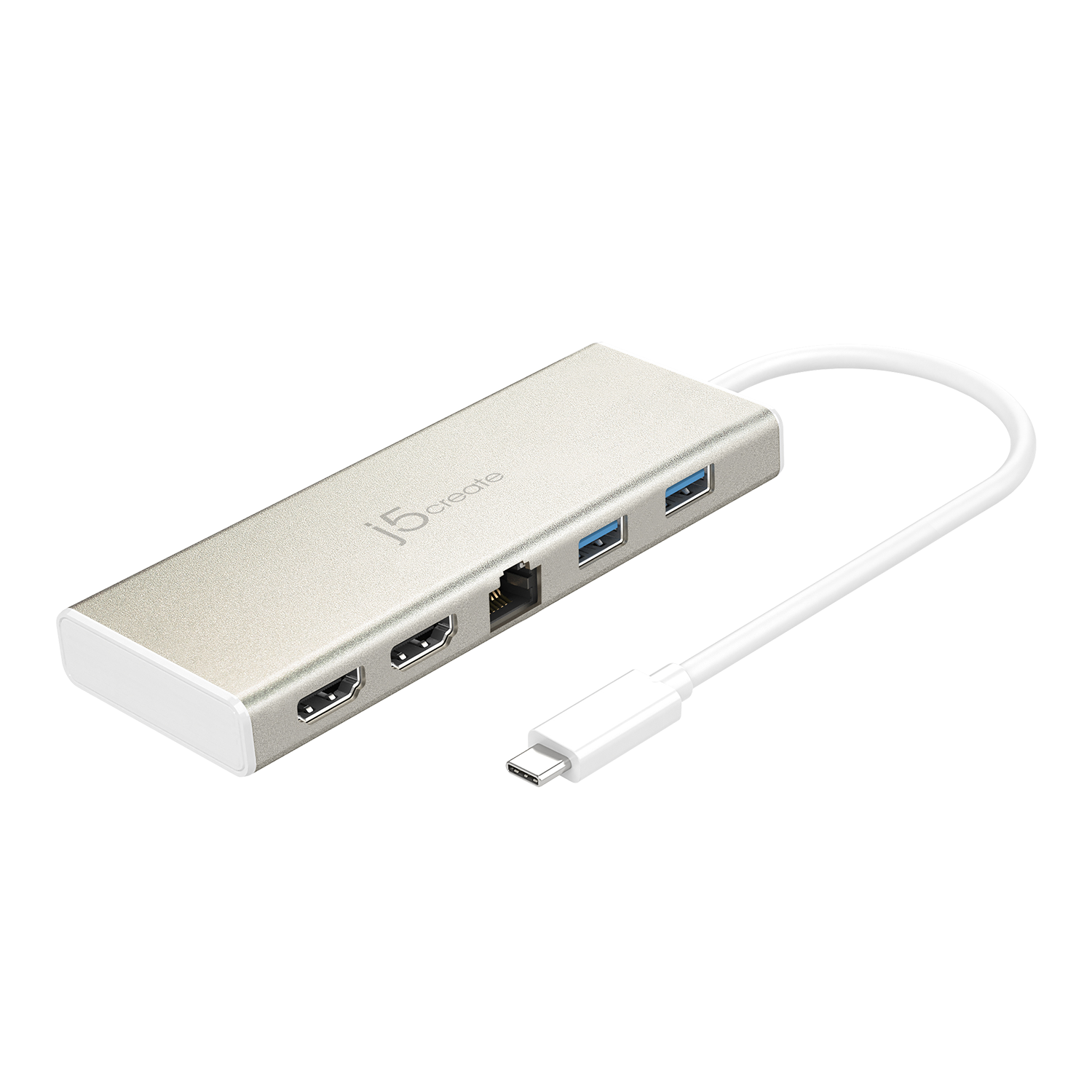

The USB-C® Dual HDMI™ Mini Dock provides extra connectivity for your USB-C® computer, featuring data transfer, power delivery and video displays. Easily add two additional USB™ computer peripherals, two HDMI™ monitors, and a Gigabit Ethernet connection through your USB-C® port. When connected to a power source, the USB-C® input charging port allows you to continue charging your laptop or smartphone. Its compact and lightweight design, making it great for use on the go.
Features
• Easily add a 4K or two 2K displays via HDMI™
• USB-C® power delivery 2.0 provides charging power to the connected devices
• Connect or charge your USB™ devices with 2 x USB™ ports
• SuperSpeed USB™ 3.0 provides up to 5 Gbps transfer rates, which is 10x faster than USB™ 2.0
• Hot-swappable USB™ enables you to add or remove monitors without rebooting your system
• Reliable network connectivity via the Gigabit Ethernet port
System Requirements
- • Windows® 10 or later
macOS® 10.14 or later - • Available USB-C® port that supports USB™ Power Delivery 2.0 or 3.0. (USB™ 3.0 is recommended)
Please refer to the manufacturer of your hardware for more information on your device. - • For office applications / Web:
- • CPU: Intel® Core™ i3 Dual Core 2.8 GHz
- • RAM: 2 GB memory or higher
- • For one 2K (2048 x 1152 @ 60 Hz) full-screen video playback:
- • CPU: Intel® Core™ i5 Quad Core
- • RAM: 4 GB memory or higher
- • For two 2K or one 4K (3840 x 2160 @ 30 Hz) full-screen video playback:
- • CPU: Intel® Core™ i7 Quad Core
- • RAM: 8 GB memory or higher
Special Notes
- • The adapter can connect to a USB-C® port that doesn’t support Power Delivery but it will not pass power through the connected device
- • A 4K-capable display is required for obtaining the 3840 x 2160 resolution
- • One of the HDMI™ ports can output resolutions up to 4K, while the other can output resolutions up to 1080p or 2K (2048 x 1152) when both are in use.
- • If you are using a high-powered USB™ device, attach a USB-C® power adapter to the power delivery port to ensure maximum performance. When using the USB-C® power adapter, the multi-adapter powers both the adapter (with attached peripherals) and your laptop.
| Hardware | |
| Warranty | 2-Year Limited |
| Host Connector | 1 - USB-C™ Male |
| Video Output | 2 - HDMI™ Female |
| Power Source | Bus-powered or self-powered |
| Network Interface | Yes |
| Audio Supported | Yes |
| Ports | 1 - USB-C® Power Delivery 2.0 |
| Performance | |
| Maximum Display Resolution | Dual Displays: Single Display: |
| Maximum Display Refresh Rate | 4K @ 30 Hz |
| Maximum Data Transfer Rate | 5 Gbps |
| Displays Supported | 2 |
| Compatible Networks | 10/100/1000 Mbps |
| Audio Channel | HDMI™ 2.1 |
| Power | |
| Power Delivery | Up to 60W via USB-C® |
| Power Consumption | ≤ 450mA |
| Input Current | Up to 3A |
| Input Voltage | Up to 20V |
| Output Current | Up to 3A |
| Output Voltage | Up to 20V |
| Physical Specifications | |
| Color | Champagne Metallic |
| Enclosure Type | Aluminum |
| Cable Length | 7.8 in. (198.12mm) |
| Product Height | 2.1 In. (54 mm) |
| Product Width | 5.1 In. (130 mm) |
| Product Depth | 0.6 In. (15 mm) |
| Product Weight | 4.00 oz (113.5 g) |
| Storage Temperature | 14 to 140°F (-10 to 65°C) |
| Storage Humidity | < 85% non-condensing |
| Operating Temperature | 32 to 98°F (0 to 37°C) |
| Operating Humidity | < 85% non-condensing |
Package Contents
- • 1 - JCD381 USB-C® Dual HDMI™ Mini Dock
- • 1 - Quick Installation Guide
Special Notes
• Driver installation is required for macOS® and Windows®. If the computer has network access and administrative rights, Windows® can automatically install the driver when the device is plugged in.
