Description
About This Product

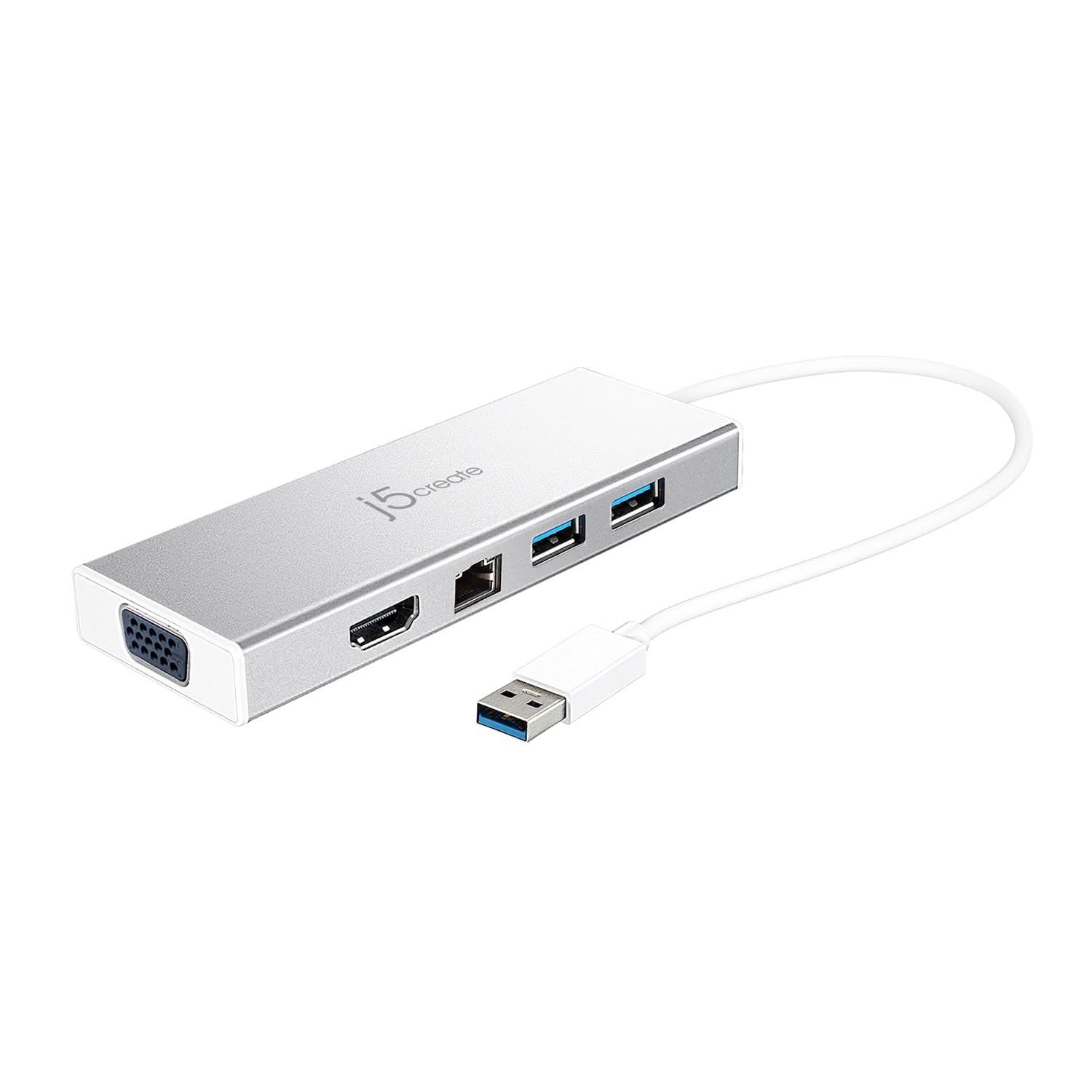

This dual-monitor USB™ 3.0 mini docking station features two USB™ 3.0 Type-A ports for connecting extra peripherals, an HDMI™ & VGA output port, providing up to 2048 x 1152 resolutions, as well as an integrated RJ45 Ether port for a reliable wired network connection.
With its space-saving, travel-friendly design, you can quickly set up a workstation while on the go!
Features
• Create a dual-monitor setup with HDMI™ and VGA outputs and together with your laptop display, you can have a maximum of 3 displays
• Compatible with USB™-enabled macOS® & Windows® laptops
• Backwards compatible with USB™ 2.0 and 1.1 hosts and devices
• Compact and lightweight design for maximum portability
• 4 display modes: Mirror, Extended, Primary, or Rotation*
• USB™ 3.0 provides up to 5 Gbps transfer rates, which is 10x faster than USB™ 2.0
• Reliable network connectivity via the Gigabit Ethernet port
System Requirements
- • Microsoft® Windows® 7 or later (32-bit or 64-bit)
macOS® 10.9 or later - • Available USB™ 3.0 port
- • For one 2K (1920x1080 @ 60 Hz) full-screen video playback
- o CPU: Intel® Core™ i5 Quad Core or AMD™ equivalent
- o RAM: 4 GB memory or higher
- o GPU: Intel® HD Graphics 5000 or AMD™ equivalent
- • For two 2K (1920x1080 @ 60 Hz) full-screen video playback
- o CPU: Intel® Core™ i7 Quad Core or AMD™ equivalent
- o RAM: 8 GB memory or higher
- o GPU: Intel® HD Graphics 620 or AMD™ equivalent
| Hardware | |
| Warranty | 2 Year Limited |
| Host Connector | 1 - USB™ Type-A 3.0 Male |
| Video Output | 1 - HDMI™ Female 1 – VGA Female |
| Power Source | Bus-powered and self-powered |
| Network Interface | RJ45 (Gigabit Ethernet) |
| Audio Supported | Yes |
| Ports | 2 - USB™ 3.1 Gen 1 Type-A |
| Performance | |
| Maximum Display Resolution | 1920x1080 |
| Maximum Display Refresh Rate | 60 Hz |
| Maximum Data Transfer Rate | 5 Gbps |
| Displays Supported | 2 |
| Compatible Networks | 10/100/1000 Mbps |
| Audio Channel | 2.1 via HDMI™ |
| Power | |
| Power Delivery | No |
| Power Consumption | ≧ 450 mA |
| Physical Specifications | |
| Color | Silver |
| Enclosure Type | Aluminum |
| Cable Length | 7.87 in. (200 mm) |
| Product Height | 0.56 in. (14.15 mm) |
| Product Width | 4.71 in. (119.6 mm) |
| Product Depth | 1.69 in. (42.8 mm) |
| Product Weight | 2.91 oz (82.6g) |
| Storage Temperature | 0 to 155°F (-17 to 68°C) |
| Storage Humidity | < 85% non-condensing |
| Operating Temperature | 30 to 116°F (-1 to 47°C) |
| Operating Humidity | < 85% non-condensing |
Special Notes:
- • Video playback for Windows® users
- o ‘Windows® Media Player’ is recommended for Windows® 8.1/8/7 users
- o ‘Movies & TV’ is recommended for Windows® 10 users
- • Gigabit Ethernet requires driver installation on macOS®

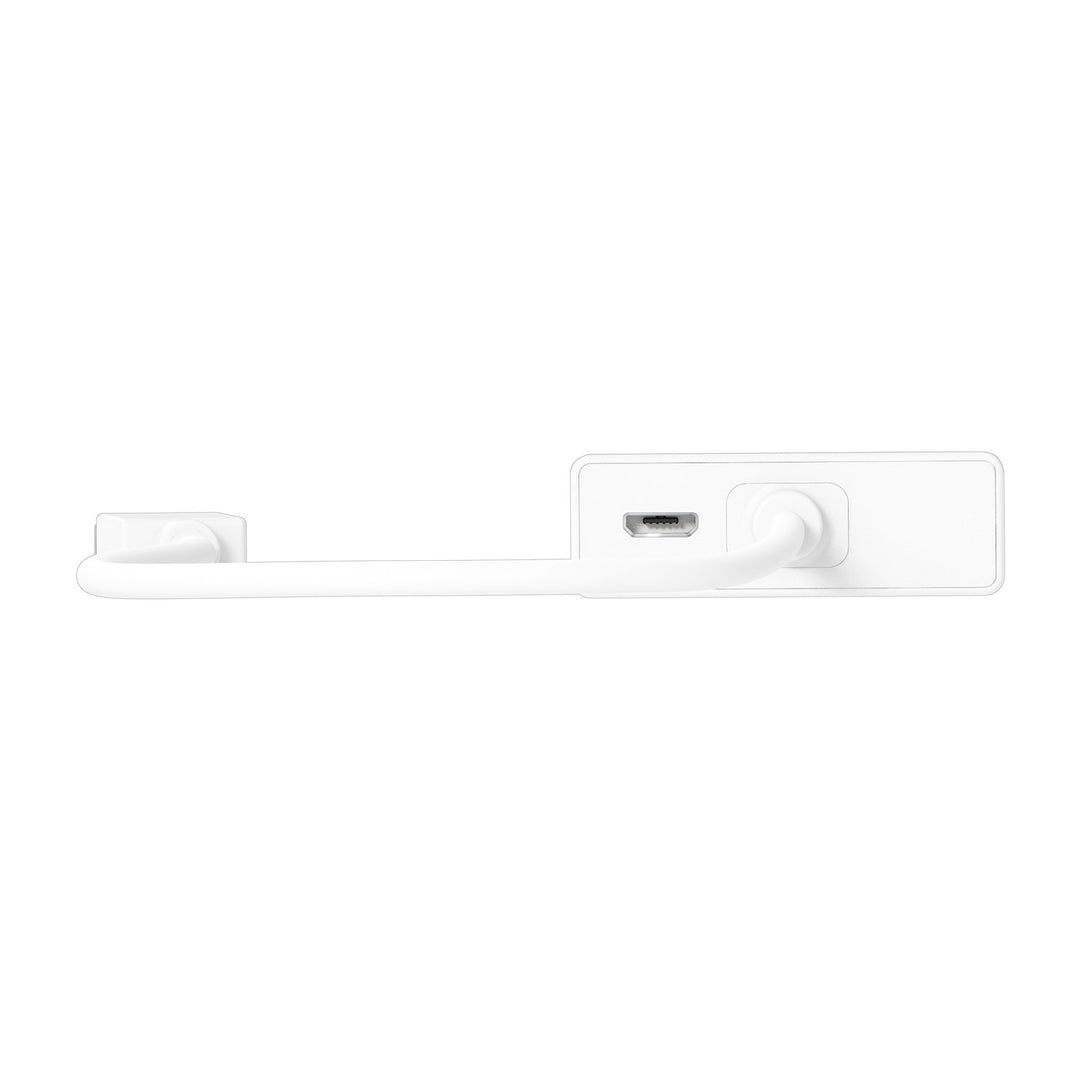

- • The micro USB™ Power In port is optional, but it is recommended when using with high-powered USB™ devices or with multiple peripherals at once.
- • macOS® 10.13.6 is limited to supporting only one additional display and your MacBook® must support AirPlay®
- • Rotation mode is supported on Windows® only
- • To ensure that your device is equipped with the most current driver, please visit our website at j5create.com and install the latest driver for this model
Package Contents
- JUD380 USB™ 3.0 Mini Dock
- Quick Installation Guide
