Description
About the item
- Easily connect to a 4K HDMI™ display with DisplayPort™ Alt Mode support over USB-C®
- Up to 100W power pass-through to charge your laptop and power the connected peripherals when used with a USB-C® power adapter (not included)
- Connect and charge your USB™ devices with 3 x USB™ ports
- Reliable network connectivity via the Gigabit Ethernet port
- Direct access to SD™ & microSD™ memory cards for data storage and transfer
- 3.5mm audio jack to connect microphone/headphones
- Security lock slot for anti-theft protection

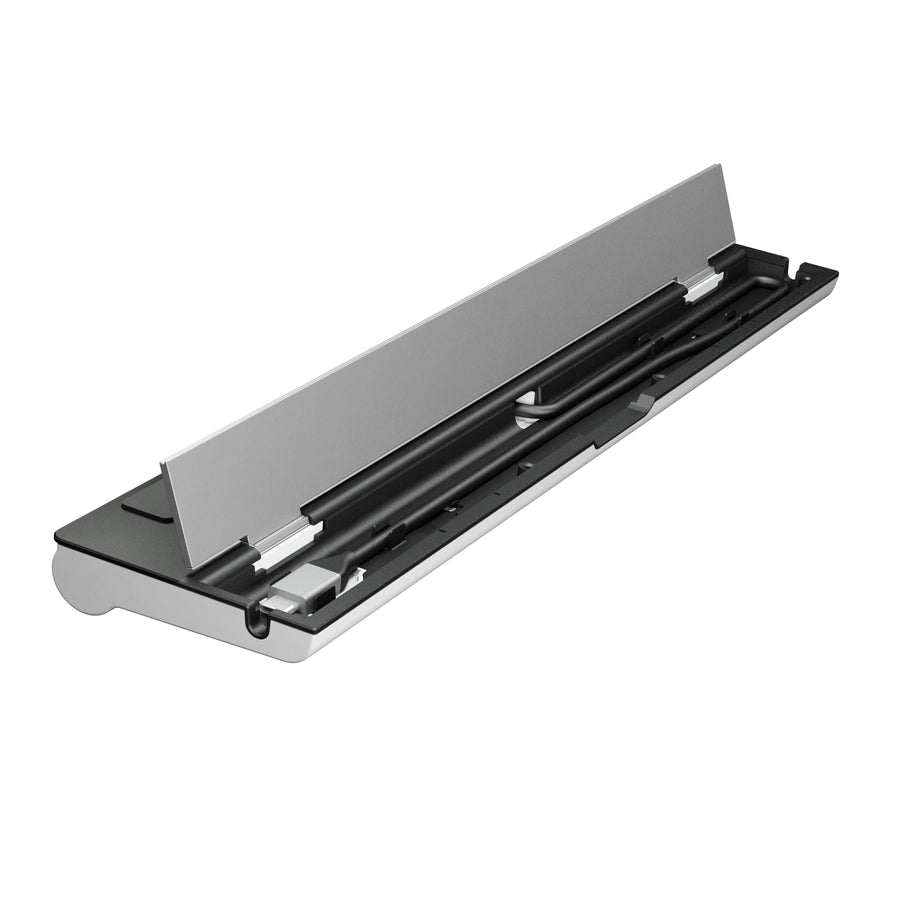

- Convenience setup with double-sided cable storage compartment
- Elevated design to assist with heat elimination
Specifications
Category | Specification |
---|---|
Hardware | |
Audio Supported | Yes |
Host Connector | USB-C® Male |
Network Interface | RJ45 (Gigabit Ethernet) |
Ports | 1 - USB-C® Power Delivery 3.0 |
3 - USB™ 3.0 Type-A | |
1 - 4K HDMI™ | |
1 - SD™ & microSD™ Memory Card Reader/Writer | |
1 - RJ45 Gigabit Ethernet | |
1 - 3.5 mm Combo Audio Jack | |
Power Source | Bus-powered |
Video Output | 1 - HDMI™ Female |
Warranty | 2 Year Limited |
Performance | |
Audio Channel | 2.1 via HDMI™ / 3.5 mm Aux |
Compatible Networks | 10/100/1000 Mbps |
Displays Supported | 1 |
Max Data Transfer Rate | 5 Gbps |
Max Display Refresh Rate | 30 Hz |
Max Display Resolution | 3840 x 2160 |
Power | |
Input Current | 5A |
Input Voltage | 20V |
Output Current | 5A |
Output Voltage | 20V |
Power Consumption | ≤ 900 mA |
Power Delivery | Up to 100W via USB-C® |
Physical Specifications | |
Cable Length | 1.48 ft (45 cm) |
Color | Grey & Black |
Enclosure Type | Aluminum |
Operating Humidity | < 85% non-condensing |
Operating Temperature | 32 to 118°F (0 to 48°C) |
Product Depth | 13.79 in. (350.18 mm) |
Product Height | 0.87 in. (21.98 mm) |
Product Weight | 10.58 oz (300 g) |
Product Width | 3.25 in. (82.46 mm) |
Storage Humidity | < 85% non-condensing |
Storage Temperature | 14 to 149°F (-10 to 65°C) |
Package Contents | |
1 - JCD533 USB-C® 4K HDMI™ Docking Station with Power Delivery | |
1 - Quick Installation Guide (QIG) |
