Description
About This Product

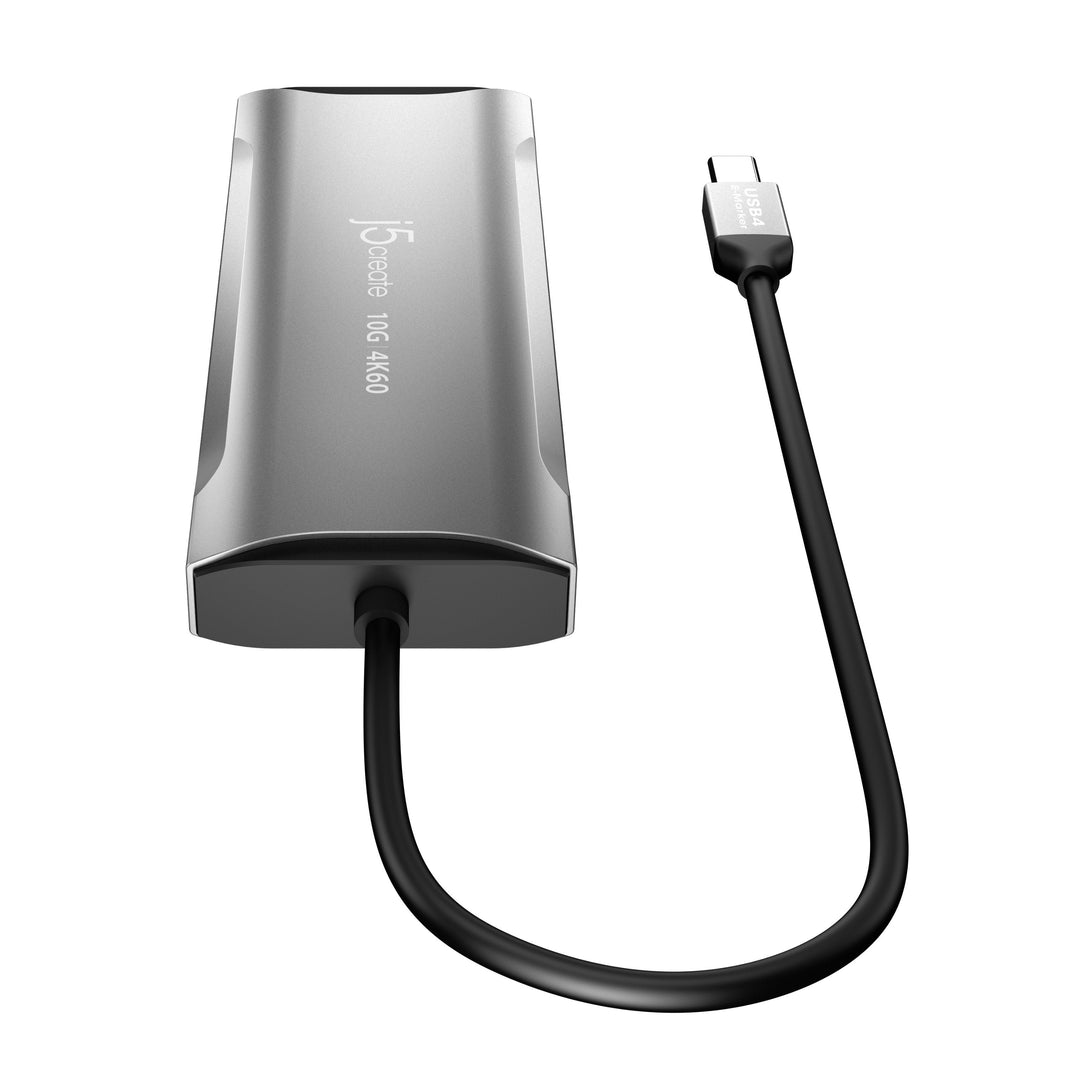

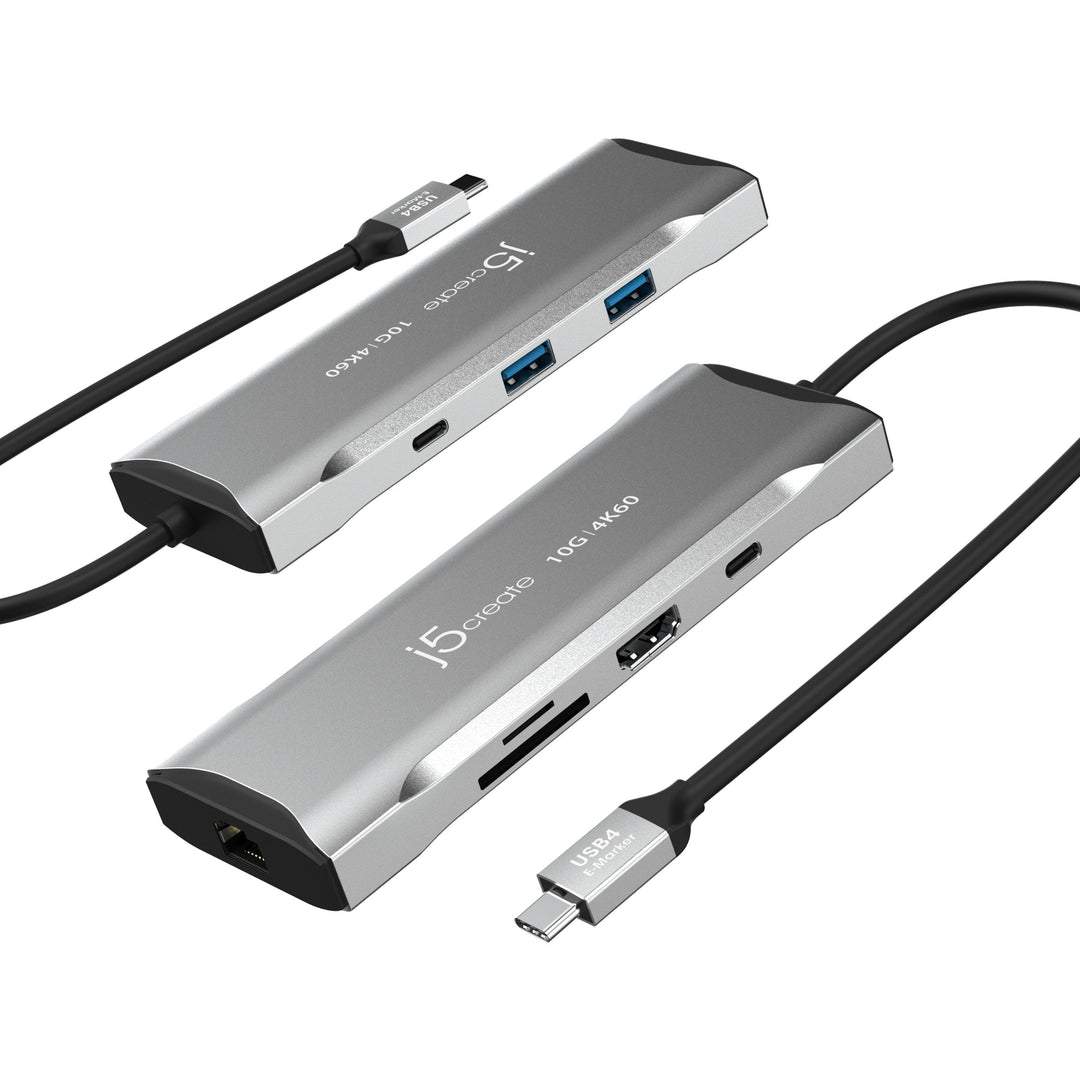

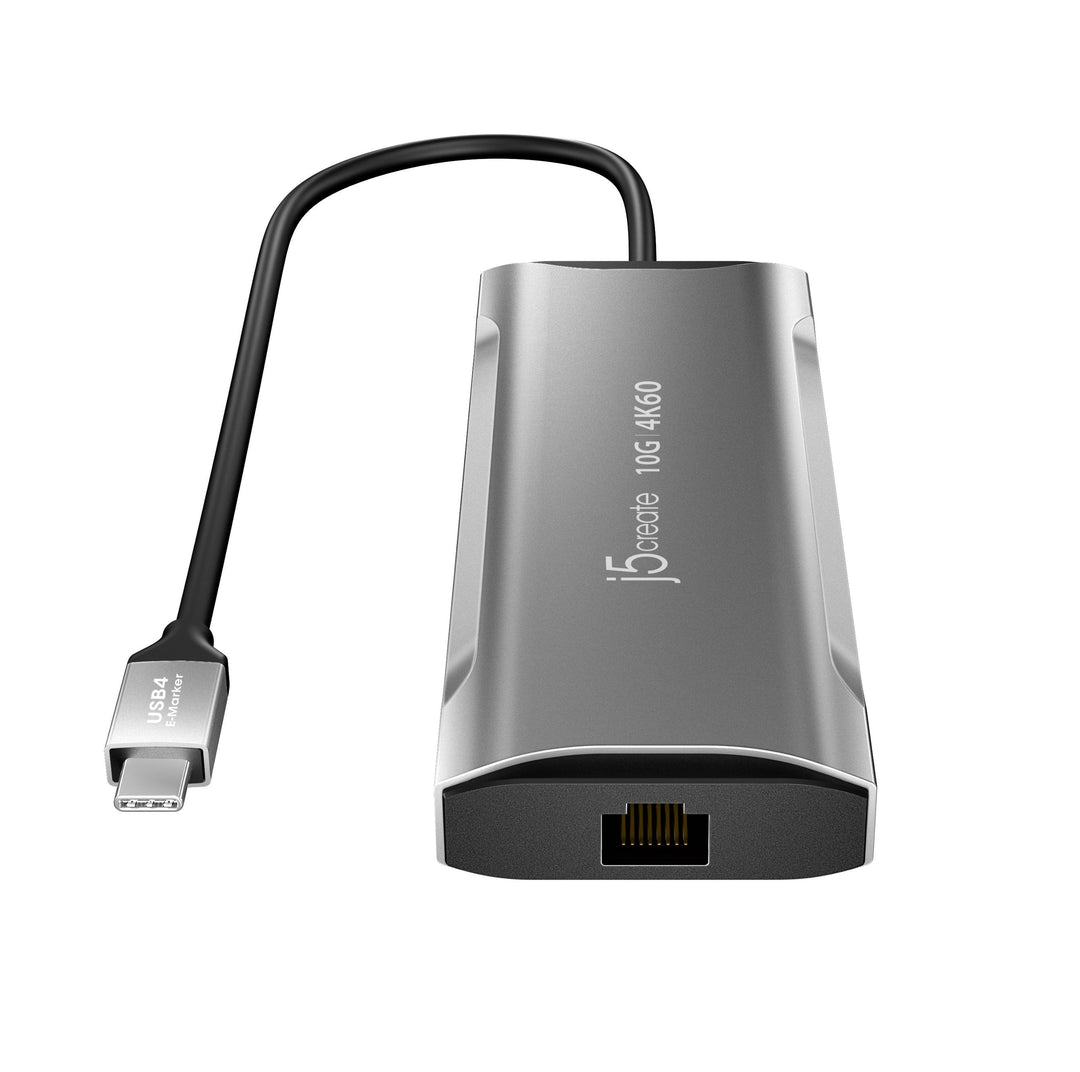

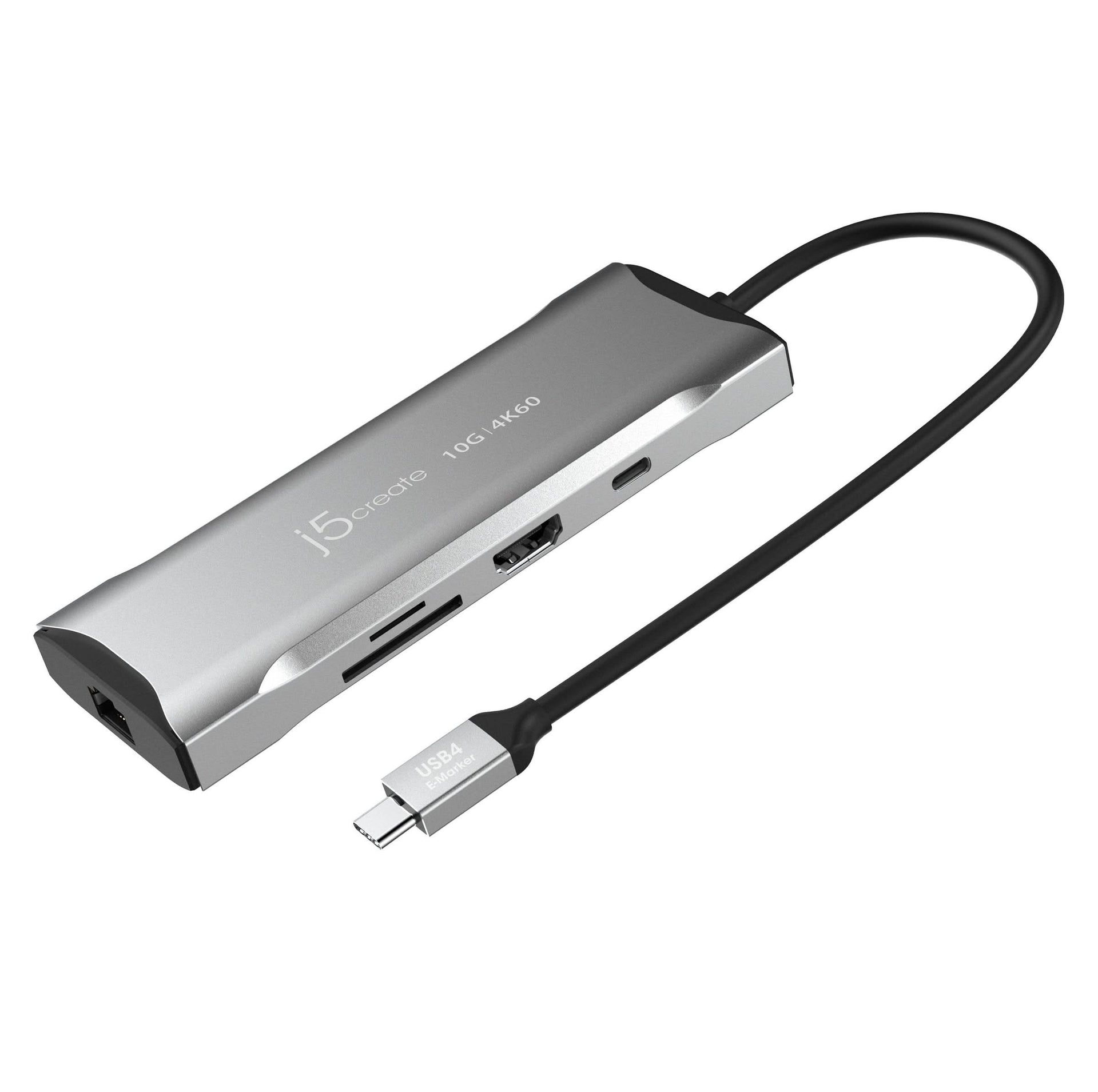

Featuring all the ports you need, the 4K60 Elite USB-C® 10Gbps Mini Dock is equipped with an advanced USB-C® E-Mark chip for compatibility with USB4™, Thunderbolt™ 3, and Thunderbolt™ 4 hosts and devices.
This USB-C® 10Gbps mini dock with DisplayPort™ 1.4 support lets you easily connect a 4K 60Hz display. It includes three USB™ SuperSpeed 10Gbps ports (1 USB-C® and 2 USB™ Type-A) for peripheral connectivity or downstream charging, an SD™ & microSD™ 4.0 memory card reader/writer to manage your media files, and a Gigabit Ethernet port to access a wired network.
The adapter also supports Power Delivery 3.0, which provides up to 100W pass-through charging to power the connected peripherals and charge your host laptop with a USB-C® power adapter.
Features
- • Built-in advanced USB-C® E-Mark integrates USB4™, Thunderbolt™ 3 and Thunderbolt™ 4 compatibility
- • Backward compatible with USB™ 3.2/3.1
- • Features a 4K HDMI™ output, supporting video resolutions up to 3840 x 2160 at 60 Hz
- • Maximize your gaming experience with 1920 x 1080 @ 144 Hz refresh rate
- • Extending one display up to 3840 x 2160 @ 60 Hz, easily switch to a higher refresh rate of 2560 x 1440 @ 120 Hz via HDMI™ port to enjoy your gaming under Windows® OS
- • Three SuperSpeed USB™ 10Gbps downstream ports (1 USB-C® and 2 Type-A) to connect peripherals
- • Charge and power connected laptop and peripherals with 100W Power Delivery
- • SD™ & microSD™ 4.0 memory card reader/writer for media storage and transfer
- • Easily add a wired network connectivity with the Gigabit Ethernet port
- • Plug-and-play, no driver installation required
System Requirements
- • Available USB-C® port that supports DisplayPort™ alternate mode and USB™ Power Delivery 2.0 or 3.0
Please refer to the manufacturer of your computer for more information about your device - • The host device must support DisplayPort™ 1.4 to achieve 4K resolution at 60 Hz. Example DisplayPort™ 1.4 devices are listed as follows, but not limited to:
- • Macbook Air® 13" 2019 or later
- • Macbook Pro® 15" 2017 or later
- • Macbook Pro® 16"
- • iPad Pro® 11"/12" 2018 or later
- • Surface™ Pro 7
- • Surface™ Laptop 3
| Hardware | |
| Warranty | 2 Year Limited |
| Host Connector | 1 - USB-C® Male |
| Video Output | 1 - HDMI™ Female |
| Power Source | Bus-powered or self-powered |
| Network Interface | RJ45 (Gigabit Ethernet) |
| Audio Supported | Yes |
| Ports |
|
| Performance | |
| Maximum Display Resolution | 3840 x 2160 |
| Maximum Display Refresh Rate | 3840 x 2160 @ 60 Hz 2560 x 1440 @ 120 Hz 1920 x 1080 @ 144 Hz (Windows®) |
| Maximum Data Transfer Rate | 10Gbps |
| Displays Supported | 1 |
| Compatible Networks | 10/100/1000 |
| Audio Channel | 2.1 via HDMI™ |
| Power | |
| Power Delivery | Up to 100W via USB-C® |
| Power Consumption | ≤ 400 mA |
| Input Current | Up to 5A |
| Input Voltage | Up to 20V |
| Output Current | Up to 4.25A |
| Output Voltage | Up to 20V |
| Physical Specifications | |
| Color | Space Grey |
| Enclosure Type | Aluminum |
| Cable Length | 7.87 in. (200 mm) |
| Product Height | 0.62 in. (16 mm) |
| Product Width | 5.4 in. (138 mm) |
| Product Depth | 1.96 in. (50 mm) |
| Product Weight | 3.77 oz (107g) |
| Storage Temperature | 0 to 155°F (-17 to 68°C) |
| Storage Humidity | < 85% non-condensing |
| Operating Temperature | 30 to 116°F (-1 to 41°C) |
| Operating Humidity | < 85% non-condensing |
Special Notes
- • A 4K-capable display is required for obtaining the 3840 x 2160 resolution
- • If connected to a USB™ 2.0 host port, or if using a USB™ 2.0 host cable, performance may be limited
- • If connected to a DisplayPort™ 1.2 device performance will be limited to 3840 x 2160 at 30 Hz
- • The adapter can connect to a USB-C® port that doesn’t support Power Delivery, but it will not pass power through the connected device
- • If you are using high-powered USB™ devices, attach a USB-C® power adapter to the power delivery port to ensure maximum performance. To avoid disruption, do not remove the power adapter while copying files.
- • We advise no more than one (1) bus-powered/portable external hard disk drive to be connected to the adapter at a time
Package Contents
- • 1 - JCD393 4K60 Elite USB-C® 10Gbps Mini Dock
- • 1 - Quick Installation Guide (QIG)
