Description
About This Product

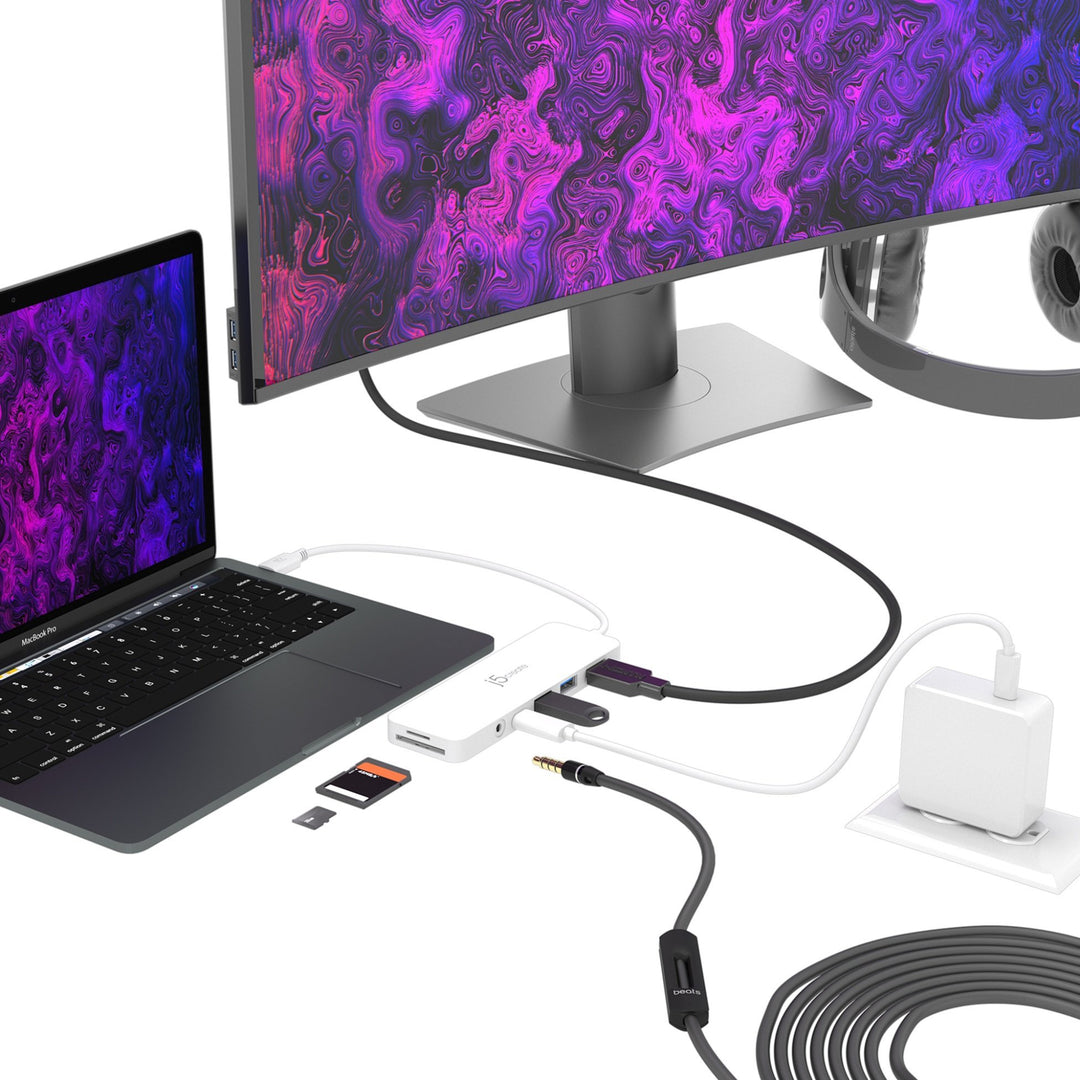

Our USB-C® Multi-Port Hub with Power Delivery provides extra connectivity for your computer. This pocket-sized multi-adapter with 2 USB™ 3.1 Type-A ports allows you to connect an external keyboard, mouse, or USB™ flash drive. With high-speed transmission up to 5 Gbps, data transfer is quick and easy. The HDMI™ port allows you to mirror or extend your screen and directly output 4K UHD @ 30 Hz or Full HD 1080p video to an HDTV, monitor, or projector.
Equipped with a USB-C® Power Delivery 3.0 charging port. It offers charging up to 60W when connected to a USB-C® power adapter. The hub also provides direct access to your SD™ & microSD™ memory cards. The audio/mic combo jack allows you to connect your headphone set or speakers.
Features
- • Ultra slim and light weight design
- • Supports HDMI™ resolutions up to 4K @ 30 Hz
- • 2 x USB™ 3.1 Gen 1 ports provide up to 5 Gbps transfer speed
- • Power delivery 3.0 provides up to 60W of charging power
- • Memory card reader/writer slots allow for external memory access up to 2 TB, supporting microSD™ and SD™ 3.0 UHS-I with data transfer speeds up to 104 MB/s
- • 3.5 mm audio / mic combo jack allows you to connect your headphone set or speakers.
- • Plug-and-play, no driver installation required
-
- System Requirements:
Available USB-C® port that supports DisplayPort™ Alt Mode and USB™ Power Delivery 2.0 or 3.0
Please refer to the manufacturer of your hardware for more information on your device
Special Notes:
- • A 4K-capable display is required for obtaining the 3840 x 2160 resolution
- • If you are using high-powered USB™ devices, attach the USB-C® power adapter to the power delivery port to ensure maximum performance. When using your USB-C® power adapter, the multi-adapter powers both the adapter (with attached peripherals) and your laptop
- • To ensure files copy completely, do not remove the USB-C® power adapter while copying files. For maximum performance, use a computer and USB-C® power adapter equipped with PD 3.0
Hardware Warranty
2-Year Limited Host Connector
1 - USB-C® 3.1 male
Video Output
1 - HDMI™ Female
Power Source
Bus-powered or self-powered Network Interface
N/A Audio Supported
Yes Ports
2 - USB™ Type-A 3.1 Gen 1
1 - USB-C® for PD 3.0 charging
1 - microSD™ & SD™ card reader/writer
1 - HDMI™
1 - 3.5 mm audio/mic combo jackPerformance
Maximum Display Resolution
3840 x 2160
Maximum Display Refresh Rate
30 Hz
Maximum Data Transfer Rate
5 Gbps
Displays Supported
1
Compatible Networks
N/A
Audio Channel
3.5 mm audio/mic combo jack
Power Power Delivery
Up to 60W via USB-C®
Power Consumption
400 mA
Input Current
Up to 3A
Input Voltage
Up to 20V
Output Current
Up to 3A
Output Voltage
Up to 20V
Physical Specifications
Color
White
Enclosure Type
ABS Plastic
Cable Length
5.9 in. (150 mm)
Product Height
4.8 in. (122 mm)
Product Width
1.53 in. (39 mm) Product Depth
0.43 in. (11 mm)
Product Weight
1.8 oz (51g)
Storage Temperature
0 to 155°F (-17 to 68°C)
Storage Humidity
< 85% non-condensing
Operating Temperature
30 to 116°F (-1 to 41°C)
Operating Humidity
< 85% non-condensing
Package Contents
- • 1 - JCD373 USB-C® Multi-Port Hub with Power Delivery
- • 1 - Quick Installation Guide
-
