About This Product

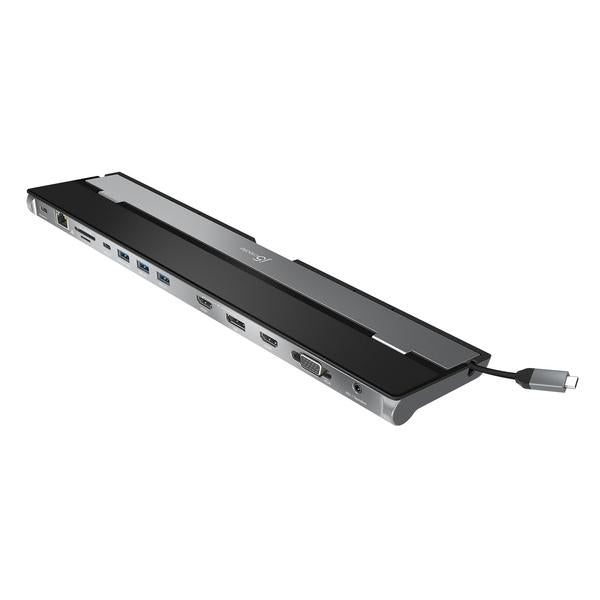

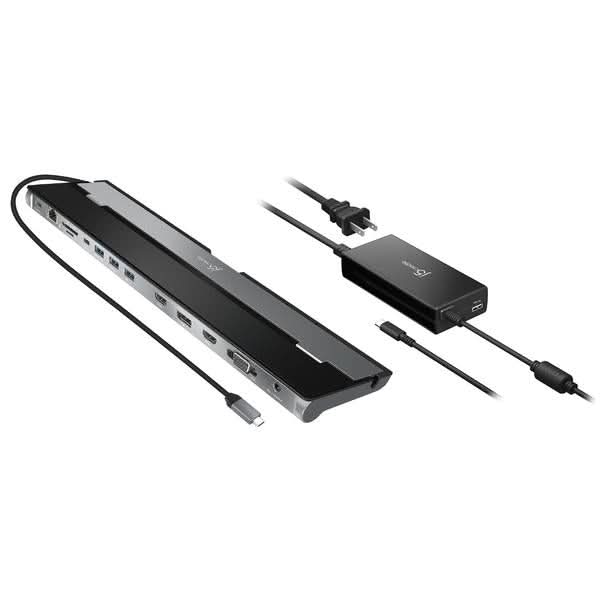

The USB-C™ Triple Display Docking Station provides extra connectivity from your computer. Extend up to three monitors through HDMI™, VGA, and DisplayPort™ or HDMI™. This docking station is designed to be used as a notebook stand, which assists with heat dissipation. With its flexible USB-C™ cord, it keeps in mind the location of the USB-C™ port on your device, ensuring an easy connection.
These multi-adapters allow you to add an additional USB™ 3.1/SD™/microSD™ computer peripheral, HDMI™/DisplayPort™/VGA monitor and Gigabit Ethernet through your USB™ port. One of the USB™ Type-A ports supports fast charging BC1.2 for a smartphone, tablet or iPad®. The USB-C™ port supports power delivery 3.0, allowing you to keep charging your notebook or smartphone while using the adapter.
Features:
• USB-C™ power delivery 100W pass-through
• USB-C™ downstream port Gen 1 5G x1；Power delivery adapter in port x1
• USB™ Type-A downstream port Gen 1 5G x3
• DisplayPort™ Alt mode supported
• DisplayPort™/HDMI™ output 4K @ 30 Hz
• USB™ graphic HDMI™ resolution 4K @ 30 Hz; VGA Resolution 1920 x 1080 dual output
• RJ45 Gigabit Ethernet
• SD™/microSD™ card slots allow for external memory access
• Combo audio jack mic/speaker
• Cable length 1.5 ft/45 cm
| Interface | |
| Host Interface | USB-C™ male connector with cable |
| Video Interface | HDMI™ female connector x 2 DisplayPort™ female connector x 1 VGA female connector x 1 |
| USB-C™ Port | USB-C™ downstream port female connector x 1 USB-C™ power in port female connector x1 |
| Ethernet Port | RJ45 female connector (Gigabit Ethernet) x 1 |
| USB™ Port | USB™ Type-A 3.1 5G female connector x 3 |
| Card Slots | SD™ 3.0 x 1 Slot microSD™ 3.0 x 1 Slot |
| Combo Audio Jack | Microphone and speaker |
| Power | |
| Power Mode | Bus-powered or self-powered |
| Functions | |
| DisplayPort™ Alt Mode | Display resolution: 4K @ 30 Hz |
| HDMI™ | Display resolution: 4K @ 30 Hz |
| VGA | Display resolution: 1920 x 1080 @ 60 Hz |
| USB-C™ | Power delivery 3.0 x 1 USB-C™ 3.1 port x 1 |
| USB™ | USB™ Type-A 3.1 port x 3 (USB™ 3.1 Gen 1/5 Gbps) BC 1.2 port x 1 |
| Ethernet | Transfer Rate: 1000 Mbps (Half Duplex)/1000 Mbps (Full Duplex) IEEE: IEEE 802.3az, IEEE 802.3, 802.3u, and 802.3ab, IEEE 802.3x Modes:
|
| Physical Specifications | |
| Dimensions | Main body: 3.24 (W) x 0.92 (H) x 13.78 (D) in. 82.5 (W) x 23.4 (H) x 350 (D) mm USB-C™ cable length: 1.5 ft/450 mm |
| Weight | Main body: Approximately: 0.66 lbs./300g |
