Description
About the item
- Supports dual 4K HDMI™ (4K@60Hz + 4K@30 Hz)
- Supports Power Delivery 3.1 140W power in
- Two USB™ 10Gbps and two USB™ 5Gbps ports for connecting peripherals
- Built-in magnetic wireless charger provides up to 15W fast wireless charging. Compatible with iPhone®
MagSafe®, Samsung® S23/S22/S21, Google™ Pixel™ 5/6/7, AirPods®, and more. The 15W wireless charging
will only work when a USB-C® 60W or above power adapter is connected to the dock. - Reliable network connectivity via the Gigabit Ethernet
- Cable storage compartment
- Security lock
Specifications
| Specification | Details |
|---|---|
| Audio Supported | Yes |
| Host Connector | 1 - USB-C® Male (PD3.1 100W, 20V/5A) |
| Network Interface | Yes |
| Output | Perfect for Google™ Pixel™, iPhone® with MagSafe®, and AirPods® |
| - Provide 15W of wireless charging to Google™ Pixel™ | |
| - Provide 7.5W of wireless charging to iPhone® | |
| - Provide 5W of wireless charging to AirPods® | |

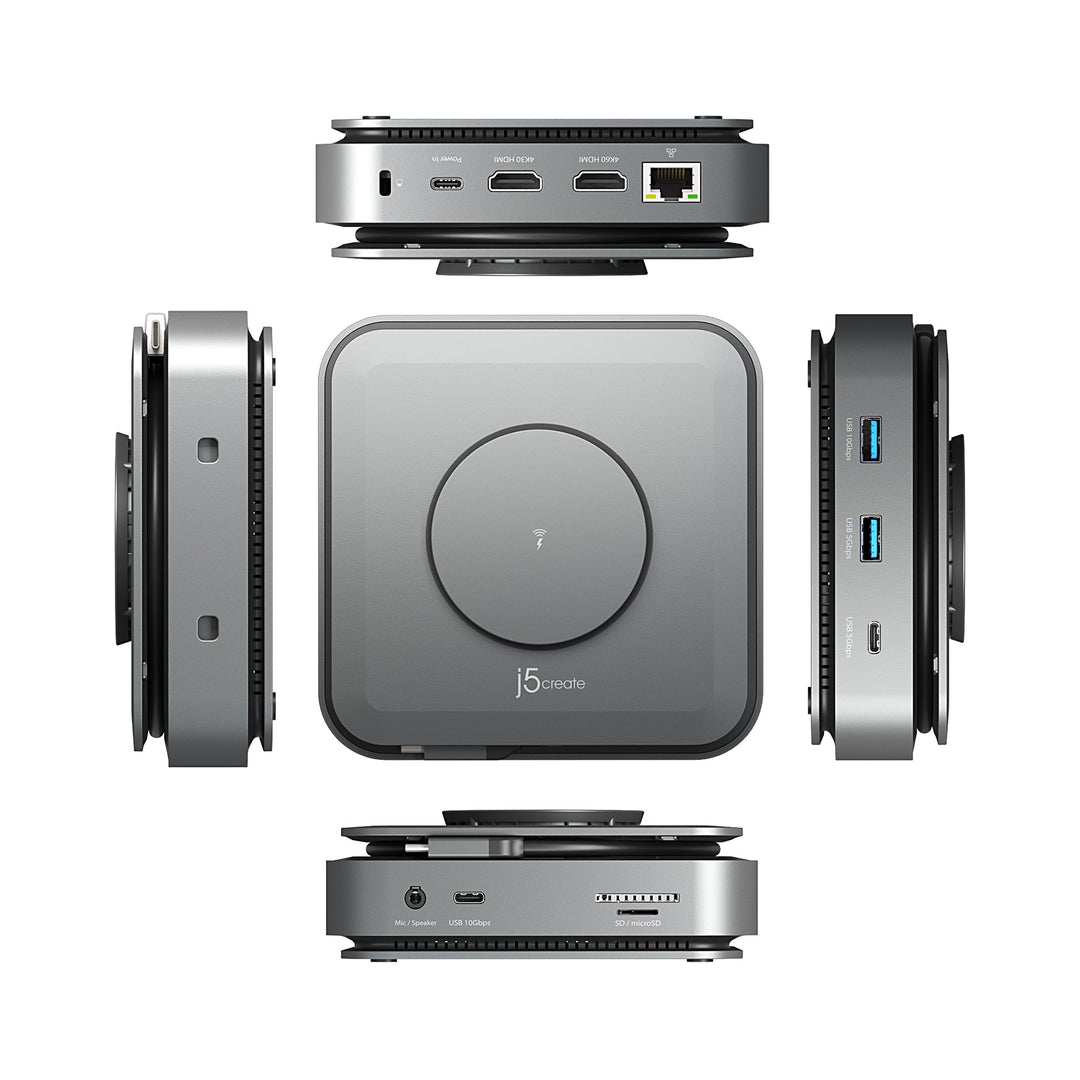

| Ports | 1 - USB-C® PD-in PD3.1 140W (28V/5A) |
| 2 - USB-C® 5Gbps & 10Gbps | |
| 2 - USB™ Type-A 5Gbps & 10Gbps | |
| 1 - Combo 3.5mm Audio Jack | |
| 1 - HDMI™ (USB™ display max resolution 4K@30Hz) | |
| 1 - HDMI™ (DP™-Alt max resolution 4K@60Hz) | |
| 1 - RJ45 Gigabit Ethernet | |
| 1 - SD™/microSD™ 3.0 | |
| 1 - Wireless charger 15W | |
| Power Source | Bus-powered or self-powered |
| Video Output | 2 - HDMI™ Female |
| Warranty | 2 Year Limited |
| Performance | 2.1 Audio Channel via HDMI™ |
| Compatible Networks | 10/100/1000 Mbps |
| Displays Supported | 2 |
| Max Data Transfer Rate | 10Gbps |
| Max Display Refresh Rate | 60 Hz |
| Max Display Resolution | 3840 x 2160 |
| Power | Input Current: Up to 5A |
| Input Voltage: Up to 28V | |
| Output Current: Up to 5A | |
| Output Voltage: Up to 20V | |
| Power Consumption: ≤ 900 mA | |
| Power Delivery: Up to 140W via USB-C® | |
| Physical Specifications | Cable Length: 2.28 ft (69.5 cm) |
| Color: Space Grey | |
| Enclosure Type: Plastic | |
| Operating Humidity: < 85% non-condensing | |
| Operating Temperature: 30 to 116°F (-1 to 41°C) | |
| Product Depth: Body: 5.12 in. (130 mm) | |
| Holder: 3.15 in. (80 mm) | |
| Product Height: Body: 1.71 in. (43.5 mm) | |
| Holder: 1.3 in. (33 mm) | |
| Product Weight: Body: 14.7 oz (416 g) | |
| Holder: 0.8 oz (22 g) | |
| Product Width: Body: 5.12 in. (130 mm) | |
| Holder: 5.12 in. (130 mm) | |
| Storage Humidity: < 85% non-condensing | |
| Storage Temperature: 0 to 155°F (-17 to 68°C) | |

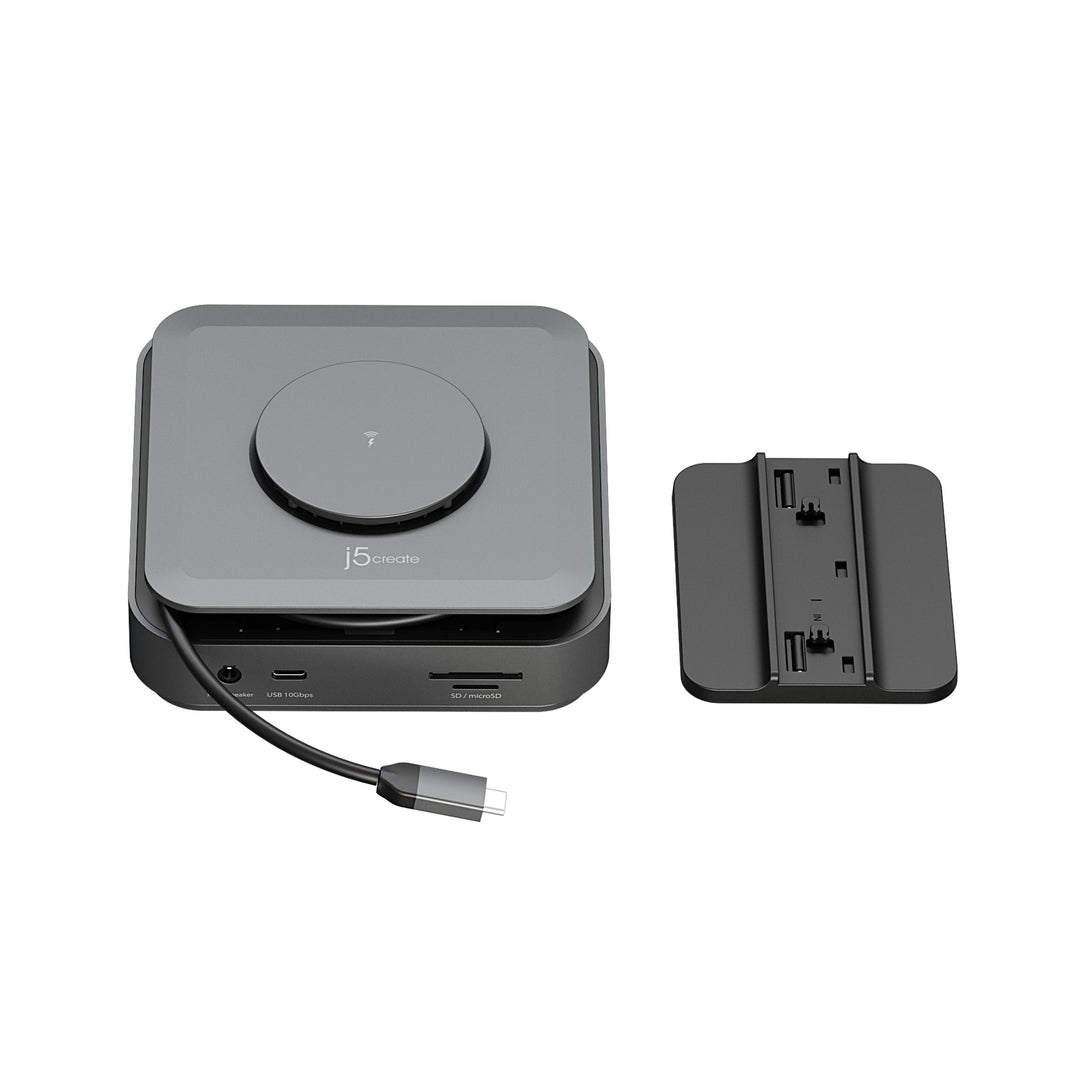

| Package Contents | 1 - JCD3199 USB-C® Dock Dual 4K HDMI™ |
| 1 - Dock Holder | |
| 1 - Quick Installation Guide (QIG) |
