Description
Features

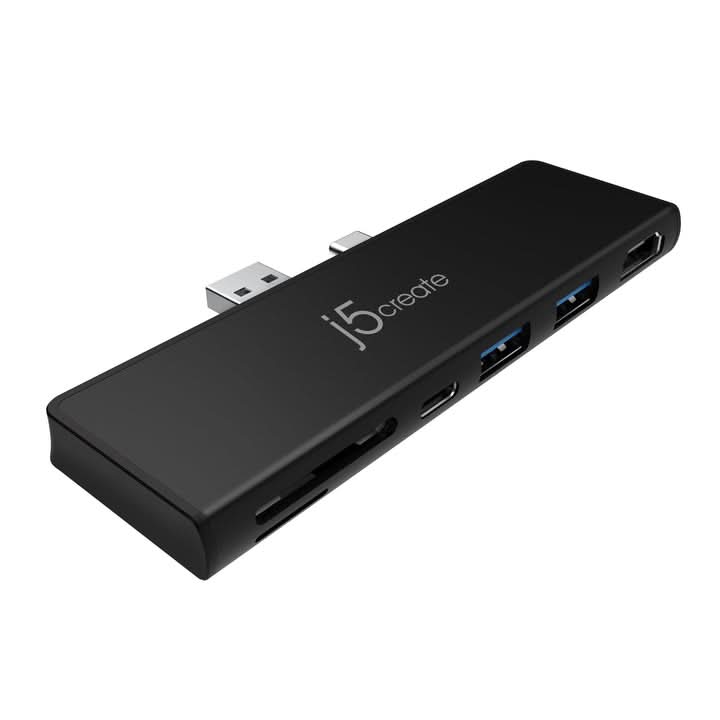

- Designed to sit flush against the Surface™ Pro 7
- 2-SuperSpeed+ USB™ 3.1 Gen 2 ports provide up to 10 Gbps transfer speed, which is 2x faster than USB™ 3.0, and 20x faster than USB™ 2.0
- Supports HDMI™ resolutions up to 4K @ 60 Hz with High Dynamic Range (HDR) and 3D vision
- USB-C™ 3.1 Gen 2 with PD 3.0 provides up to 60W of charging power + data transfer
- Memory card reader/writer slots allow for external memory access up to 2 TB, supporting microSD™ and SD™ 3.0 UHS-I with data transfer speeds up to 104 Mbps
- Plug-and-play, no driver installation required
Technical Details
| Hardware | |
| audio supported | Yes |

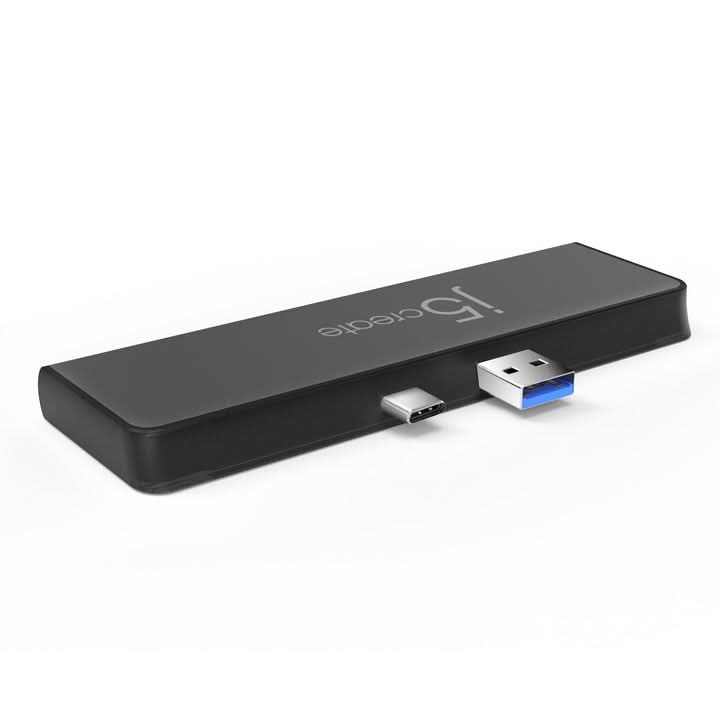

| host connector | 1 - USB-C™ 3.1 male 1 - USB™ Type-A male |
| network interface | N/A |

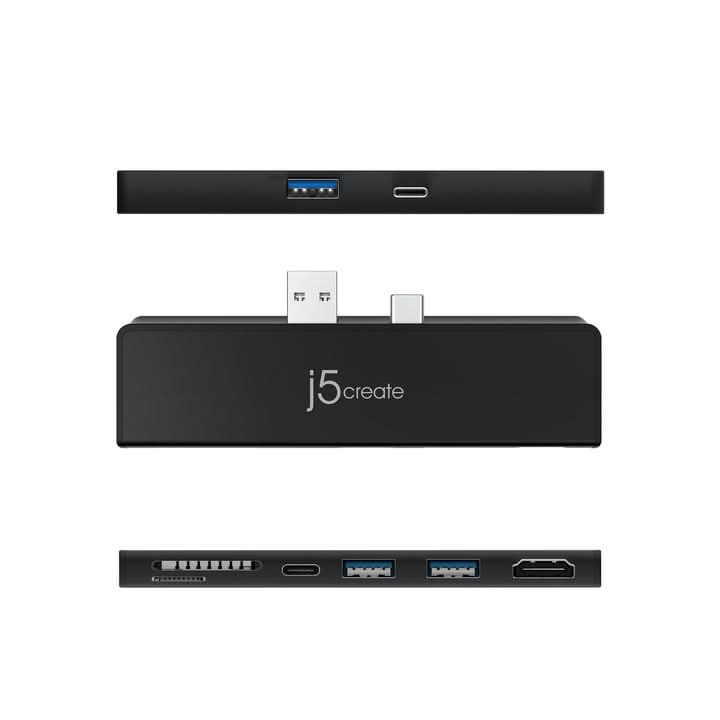

| ports | 2 - USB™ 3.1 Gen 2 Type-A 1 - USB-C™ 3.1 Gen 2 (PD 3.0 + Data Transfer) 1 - microSD™ & SD™ card reader/writer 1 - HDMI™ |
| power source | Bus-powered or self-powered |
| video output | 1 - HDMI™ Female |
| warranty | 2-Year Limited |
| Performance | |
| audio channel | 2.1 via HDMI™ |
| compatible networks | N/A |
| displays supported | 1 |
| max data transfer rate | 10 Gbps |
| max display refresh rate | 60 Hz |
| max display resolution | 3840 x 2160 |
| Power | |
| input current | Up to 3A |
| input voltage | Up to 20V |
| output current | Up to 3A |
| output voltage | Up to 20V |
| power consumption | ≤ 400 mA |
| power delivery | Up to 60W via USB-C™ |
| Physical Specifications | |
| cable length | N/A |
| color | Black or Silver |
| enclosure type | Aluminum |
| operating humidity | < 85% non-condensing |
| operating temperature | 30 to 116°F (-1 to 41°C) |
| product depth | 0.37 in. (9.5 mm) |
| product height | 4.65 in. (118 mm) |
| product weight | Silver: 1.57 oz (44.5g) Black: 1.68 oz (47.5g) |
| product width | 1.44 in. (36.5 mm) |
| storage humidity | < 85% non-condensing |
| storage temperature | 0 to 155°F (-17 to 68°C) |
Package Contents
- 1 - JCD324 ULTRADRIVEMINIDOCK™ 7-in-1 for Surface™ Pro 7
- 1 - Quick Installation Guide
