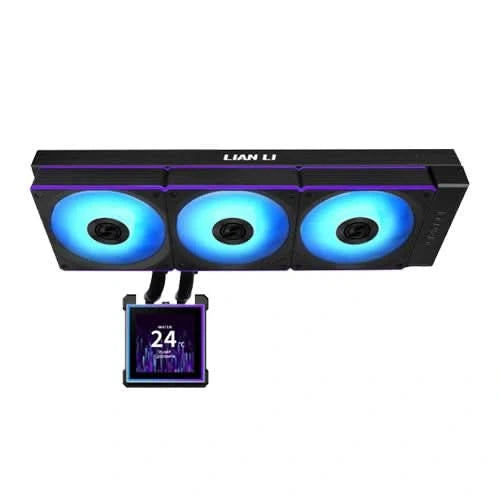

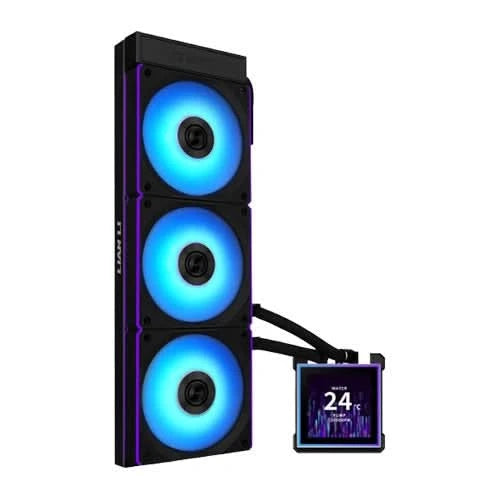

Lian Li HydroShift II LCD-S 360CL Black, 360mm AIO Liquid CPU Cooler

Features:

• Compact 360mm radiator (400 × 122 × 24 mm) with a slimmer profile for broader case compatibility and easier installation.
• 3.4” IPS LCD display (480×480, 500 nits, 60 Hz) delivering sharp visuals, smooth animations, and real-time system monitoring.
• Magnetic hot-swap LCD mount for easy installation/removal without powering off the system.
• Upgraded high-performance pump, reaching up to 3200 RPM with reduced noise and enhanced cooling efficiency.
• Side-mounted tubing with fully concealed wiring for an ultra-clean, cable-free aesthetic along the radiator edge.
• Three control modes via L-Connect 3: Offline, Wireless, USB Streaming (with media uploads and customizable widgets).
• Supports UNI FAN CL Wireless ecosystems and integrates seamlessly with wireless lighting sync.
• USB power and data lines embedded inside the tubing, eliminating visible front-side cables for a refined minimalist build.

This model is equipped with UNI FAN CL Wireless for high-efficiency airflow. Integrated RGB illumination shines through, and both the light strips and fan blades support independent effect control.

DYNAMIC INTERACTION, COMPLETE CONTROL

Enjoy a vivid, high-definition visual experience with a 480 × 480 resolution display boasting 500 nits of peak brightness. Even under bright lighting, every animation and metric remains crystal clear. The 60 Hz refresh rate ensures smooth, tear-free visuals for a fluid real-time monitoring experience.

MAGNETIC HOT-SWAP DISPLAY

Featuring magnetically aligned pogo-pin connectors, the screen securely snaps into place without powering down, allowing for fast installation or removal. Precise magnetic alignment ensures a safe, reliable connection, letting users conveniently attach the display after system assembly to avoid accidental damage.

PUMP PERFORMANCE UPGRADED

Experience the next level of cooling with our enhanced pump, now reaching speeds of up to 3200 RPM. the enhanced pump delivers more power with less noise. A hidden frame and skirted cover ensure a clean, streamlined look.

MINIMALIST AESTHETICS,MAXIMUM FREEDOM

Innovative side-mounted tubing runs cleanly along the radiator edge, reducing visual clutter. Cables are discreetly integrated within the sleeved tubing, delivering a seamless, cable-free look for an ultra-clean, minimalist build.

USB power and data cables are integrated directly into the tubing, removing visible wires from the front and delivering a cleaner, more refined interior. Pre-installed triple tube clips keep the tubing secured along the radiator edge, ensuring clean routing and a tidier case layout.

CONSTANT INNOVATION, CORE UNCHANGED

The compact radiator has been refined to 400 × 122 × 24 mm, reducing thickness, length, and width while maintaining 90% compatibility with mainstream cases.
Its smaller footprint eases installation across various builds, delivering efficient heat dissipation in a sleek, space-saving design.

REDESIGNED MOUNTING BRACKET

The CPU liquid cooler features a redesigned mounting system for easier, faster, and more secure installation, offering better stability and user-friendly setup.

BROAD COMPATIBILITY, SEAMLESS SUPPORT

The HydroShift II LCD-S AIO offers easy installation and broad CPU socket compatibility, featuring an upgraded AM4/AM5 bracket that ensures even pressure and improved thermal performance.

PWM Power Cable

If the motherboard cannot read the pump’s RPM, it’s recommended to connect the 4-pin PWM header to a SATA power adapter for a more stable power supply.
The 2-pin connector functions independently and does not require an additional power connection.

USB 2.0 Cable

Used for Streaming Mode and Advanced Wireless Mode to transfer media files such as JPG and MP4.

PRECISION FIT, EFFORTLESS INSTALLATION

The removable sliding tube mount enables precise tubing alignment with 140 mm fan brackets. This optimized layout enhances cable management and thermal organization, delivering a clean, minimalist aesthetic.

FLEXIBLE LAYOUT, UNLIMITED COMPATIBILITY

For hidden-tube installations, the top mounting area of the case should measure at least 280 × 400 mm.
You can easily adjust or remove the tube bracket (recommended clearance > 55 mm) to fit a wide range of case configurations across different usage scenarios.
Note: When installing in larger cases : With tighter space between the radiator bracket and motherboard, slight adjustments to the bracket position may be required (e.g., O11 Vision Compact).

MOUNTING BRACKET COVER

Designed to conceal the bracket and mounting screws, this cover refines the cooler’s appearance—completing its clean, minimalist aesthetic.

CABLE ORGANIZER

Used to neatly align and secure extended tubing, maintaining a clean and balanced exterior appearance.

INDUSTRIAL-GRADE CORRUGATED TUBING

Designed with a unique corrugated structure, the tubing offers superior flexibility and kink resistance for hassle-free routing-even in tight layouts.Its high-tensile durability ensures long-term performance and a consistent flow rate between the radiator and pump.

• PUMP SPEED: 1600-3200 RPM ±10%
• PUMP NOISE: ≤28dBA
• WATER BLOCK DIMENSIONS: 91 x 99 x 62mm
• LCD REFRESH RATE: 60Hz
• LCD PANEL: 3.4″ IPS
• LCD RESOLUTION: 480 x 480
• BRIGHTNESS: 500nit
• RADIATOR SIZE: 400 x 122 x 24mm
• RADIATOR MATERIAL: Aluminum
• TUBING LENGTH: 450/470mm
• FAN SIZE: 124 x 120 x 28mm
• FAN SPEED: 0，200-2100RPM
• FAN PRESSURE: 3.00H2O
• AIRFLOW: 72.7CFM
• NOISE LEVEL: 30dBA
• BEARING TYPE: Fluid Dynamic Bearing (FDB)
• CPU SOCKET SUPPORT: intel：LGA1700 LGA1851 / AMD：AM4 AM5
