Description
| General specifications | Sockets supported (Intel) | LGA 1700*/1150/1151/1155/1156/1200 LGA 1366/2011/2011-3/2066 |
| Sockets supported (AMD) | AM5 / AM4/FM2+/FM2/ FM1/AM3+/AM3/AM2+/AM2 | |
| Cold plate material | Copper | |
| Thermal paste | Pre-applied | |
| Tube length | 400mm | |
| Tube material | Low-permeability rubber with braided nylon sleeve | |
| Fittings, block side | Articulating 90-degree Elbow | |
| Fittings, radiator side | Barbed fitting | |
| Block height | 43mm | |
| Block measurements (with fittings) | 79 x 67 mm | |
| Block diameter (main block body) | 67 mm | |
| Fan specifications | Fan type | Aspect 12 PWM |
| Rotational speed | 500–2000 RPM | |
| Fan bearing | Rifle bearings | |
| Fan PWM control | Yes | |
| Fan acoustical noise | <10–33.2 dBA | |
| Fan maximum air flow | 13-56 CFM | |
| Fan maximum static pressure | 0.230–2.34 mm H2O | |
| Fan input voltage | 12V | |
| Fan maximum input current | 0.37A | |
| Fan MTTF | 90,000 hours | |
| Pump specifications | Rotational speed | 4000 ± 10% RPM |
| Bearing type | Ceramic | |
| PWM control | No | |
| Acoustical noise (full speed) | 22 dBA | |
| Maximum pressure | 1.8 mm H2O/ 17.6 kPa / 2.5 PSI | |
| Input voltage | 12V DC | |
| Input current (without fans) | 0.34 A | |
| MTTF | 50 000 hours | |
| Radiator specifications | Radiator dimensions | 392 x 120 x 27 mm |
| Radiator housing material | Aluminum | |
| Radiator fin material | Aluminum | |
| Radiator fan screw threads | 6-32 | |

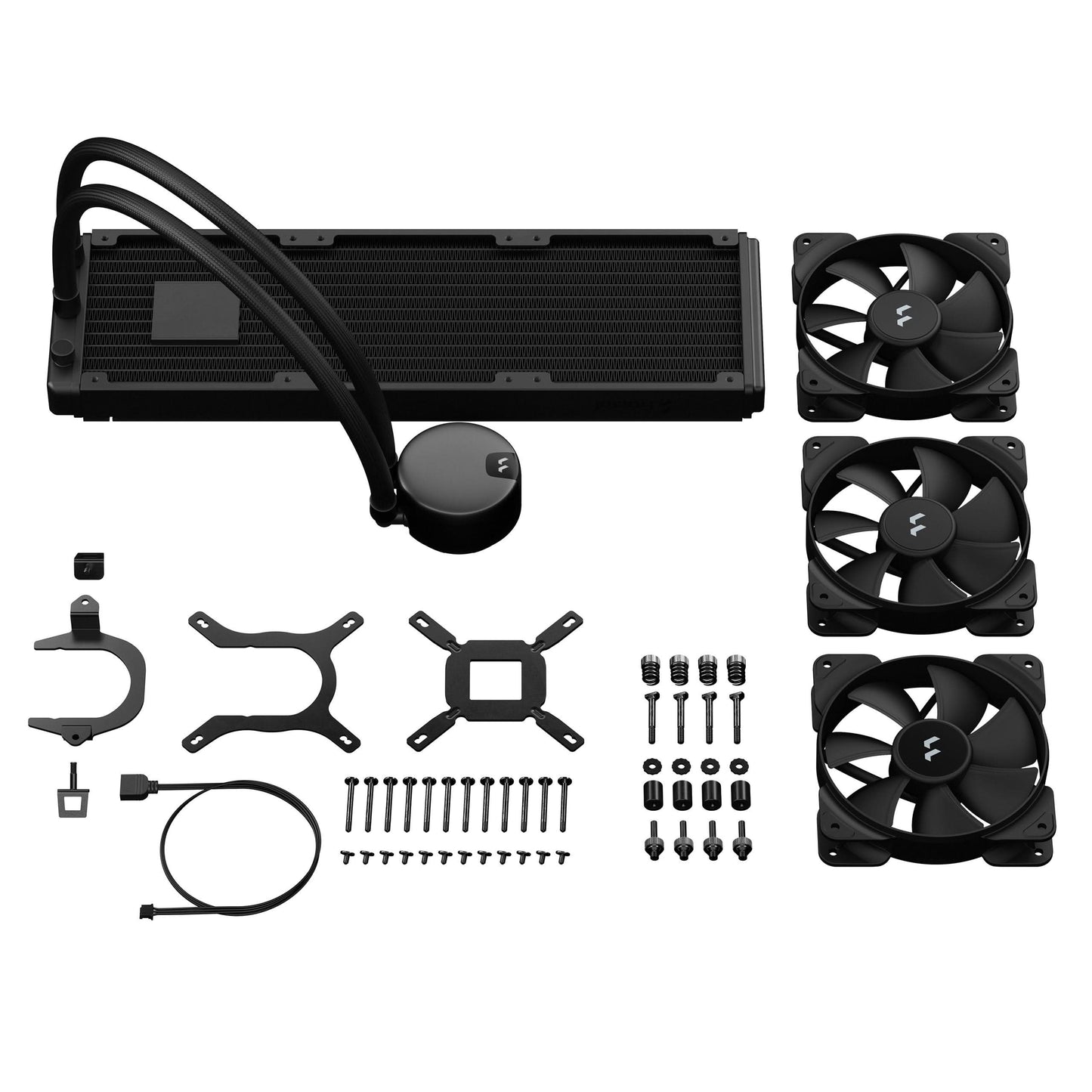

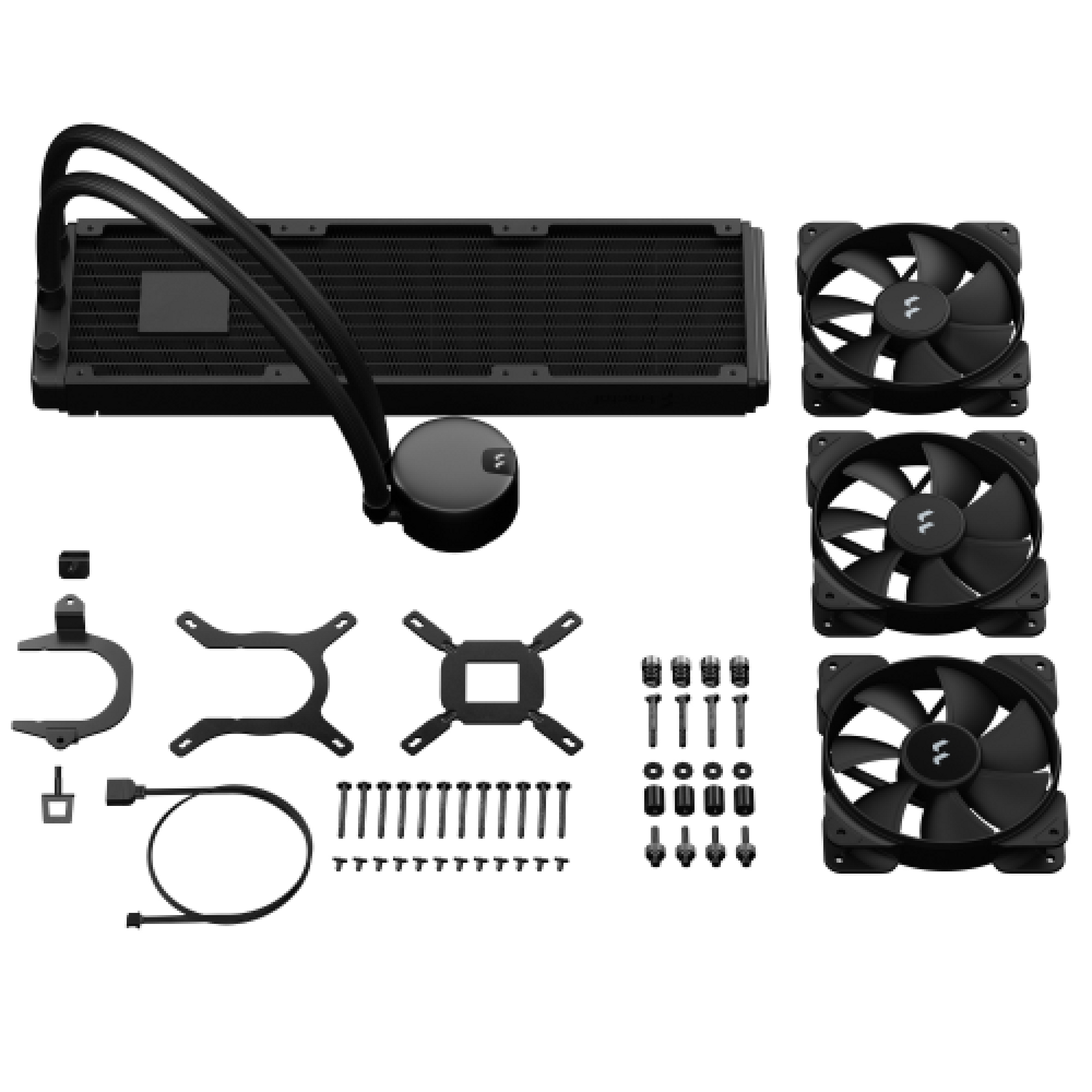

| Other | Package contents | CPU Cooler Assembly, 3x Aspect 12 PWM fans, User manual, Intel mounting kit, AMD mounting kit, 5V ARGB cable |
| Package dimensions | 448 x 205 x 137 mm | |
| Package weight | 2.20kg | |
| EAN | 7340172705987 | |
| UPC | 843276105983 | |
| JAN | 4537694317665 | |
| Product Code | FD-W-L1-S3611 |
