Description
Feature

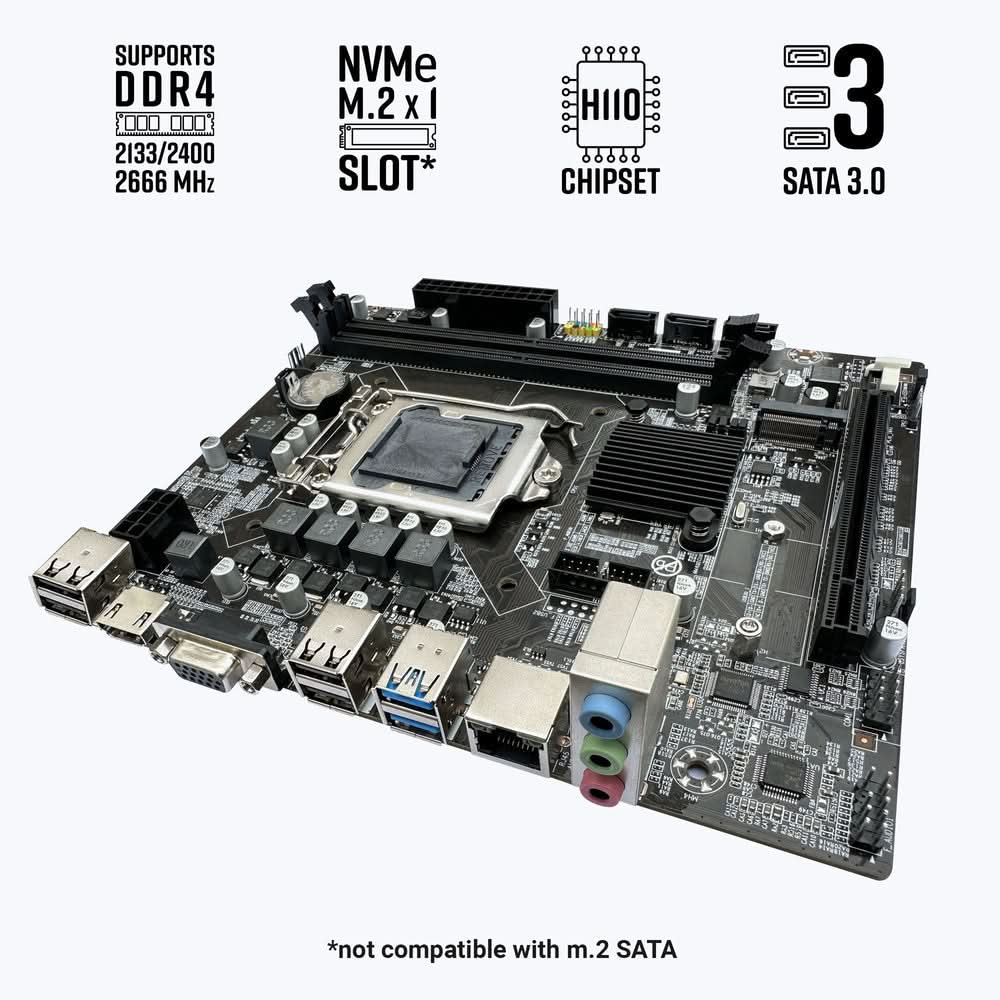

- H110 Chipset
- Supports DDR4/2133/ 2400/ 2666 MHz
- 3 SATA 3.0
- NVMe M.2 Slot
- USB 3.0
- 5.1 Audio
- LAN 10/100 Mbps
Specifications
| Supported CPU | Intel Pentium / Celeron / i3 / i5 / i7 (6th, 7th, 8th & 9th Generation) Series Processors in LGA 1151 | |
| Chipset | Intel H110 | |
| Memory Supported | "2 x DDR4 DIMM Memory Slots Memory up to 32GB Supports DDR4 2133/2400/2666 MHz memory" | |
| BIOS | AMI BIOS | |
| I/O Interface | 1 x HDMI port, 1 x VGA Port, 4 x USB 2.0 Port, 2 x USB 3.0 Port, 1 x RJ45 Port, 1 x 3-in-1 Audio | |

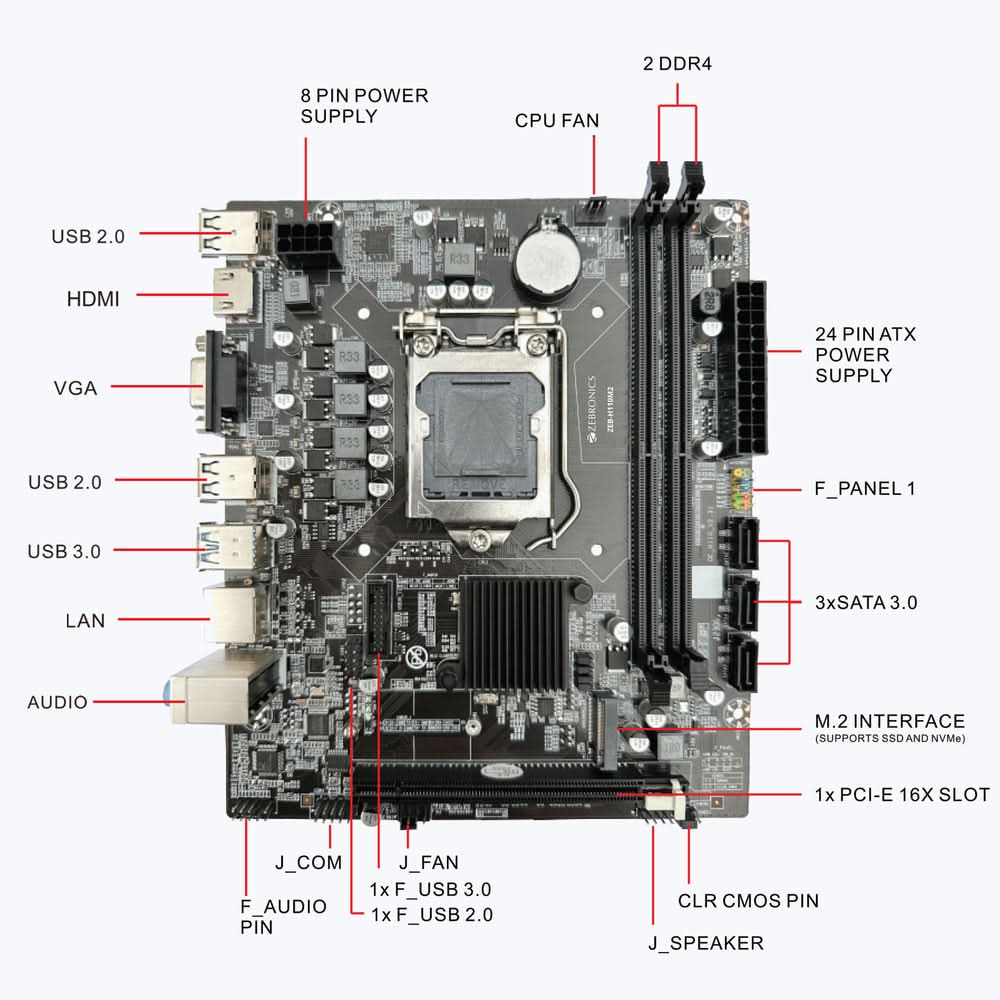

| Onboard Interface | 1 x 24 pin ATX Power Connector, 1 x 8 Pin ATX 12V Power Connector, 1 x Front Panel connector, 1 x Front Audio Connector, 1 x Speaker Connector, 1 x USB 2.0 Connectors, 1 x USB 3.0 Connector, 1 x CPU Fan Connector, 1 x SYS Fan Connector, 1 x clear CMOS Connector,3 x SATA 3.0. | |
| Integrated LAN | Supports RTL 8111G 10/100/1000 Mbps Ethernet LAN | |
| Integrated Sound | With 5.1-Channel HD Audio | |
| Expansion Slot | 1 x PCI Express x16 slot,1 x NVMe M.2 slot | |
| Form Factor | Micro-ATX | |
| Country of Origin | China | |
| Package Contents | ||
| Motherboard | 1 U | |
| SATA Cable | 1 U | |
| I/O Backplate | 1 U | |
| Driver Disc | 1 U | |
| User Manual | 1 U |
