Description
| CPU | Supports AMD Ryzenô 5000 & 3000 Series desktop processors (not compatible with AMD Ryzenô 5 3400G & Ryzenô 3 3200G) and AMD Ryzenô 4000 G-Series desktop processors |
| Chipset | AMDÆ B550 Chipset |
| Memory | 4x DDR4 memory slots, supporting up to 128GB |
| Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC | |
| Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE | |
| 1. 1DPC 1R max speed 4400 MHz | |
| 2. 1DPC 2R max speed 3733 MHz | |
| 3. 2DPC 1R max speed 3866 MHz | |
| 4. 2DPC 2R max speed 3466 MHz | |
| Dual channel memory architecture | |
| Supports non-ECC UDIMM memory | |
| Supports ECC UDIMM memory (non-ECC mode) | |
| Supports un-buffered memory | |
| Expansion Slot | 1x PCIe 3.0 x16 slot (From CPU) |
| 2x PCIe 3.0 x1 slots (From AMD B550 chipset) | |
| Onboard Graphics | 1x VGA port, supports a maximum resolution of 2048◊1536 @50Hz, 2048◊1280 @60Hz, 1920◊1200 @60Hz |
| 1x HDMI 1.4 port, supporting a maximum resolution of 4096◊2160 @30Hz, 2560◊1600 @60Hz | |
| 1x DVI-D port, supports a maximum resolution of 1920◊1200 @60Hz | |
| Maximum shared memory of 16 GB | |
| SATA Ports | 4x SATA 6Gb/s ports (From AMD B550 Chipset) |
| M.2 SSD Slots | 1x M.2 slot (Key M) |
| M2_1 slot (From CPU) | |
| Supports PCIe 3.0 x4 | |
| Supports SATA 6Gb/s | |
| Supports 2242/ 2260/ 2280 storage devices | |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices |
| Audio | RealtekÆ ALC897 Codec |
| 7.1-Channel High Definition Audio | |
| LAN | 1x RealtekÆ RTL8111H 1Gbps LAN controller |
| Power Connectors | 1x 24-pin ATX main power connector |
| 1x 8-pin ATX 12V power connector | |
| Internal USB Connectors | 1x USB 3.2 Gen 1 5Gbps connectors (From AMD B550 Chipset) |
| Supports additional 2 USB 3.2 Gen 1 5Gbps ports | |
| 2x USB 2.0 Type-A connectors (From AMD B550 Chipset) | |
| Supports additional 4 USB 2.0 ports | |
| Fan Connectors | 1x 4-pin CPU fan connector |
| 2x 4-pin system fan connectors | |
| System Connectors | 1x Front panel audio connector |
| 2x System panel connectors | |
| 1x Chassis Intrusion connector | |
| 1x Serial port connector | |
| 1x Parallel port connector | |
| 1x TPM module connector | |
| Jumpers | 1x Clear CMOS jumper |
| LED Features | 1x 4-pin RGB LED connector |
| 4x EZ Debug LED | |

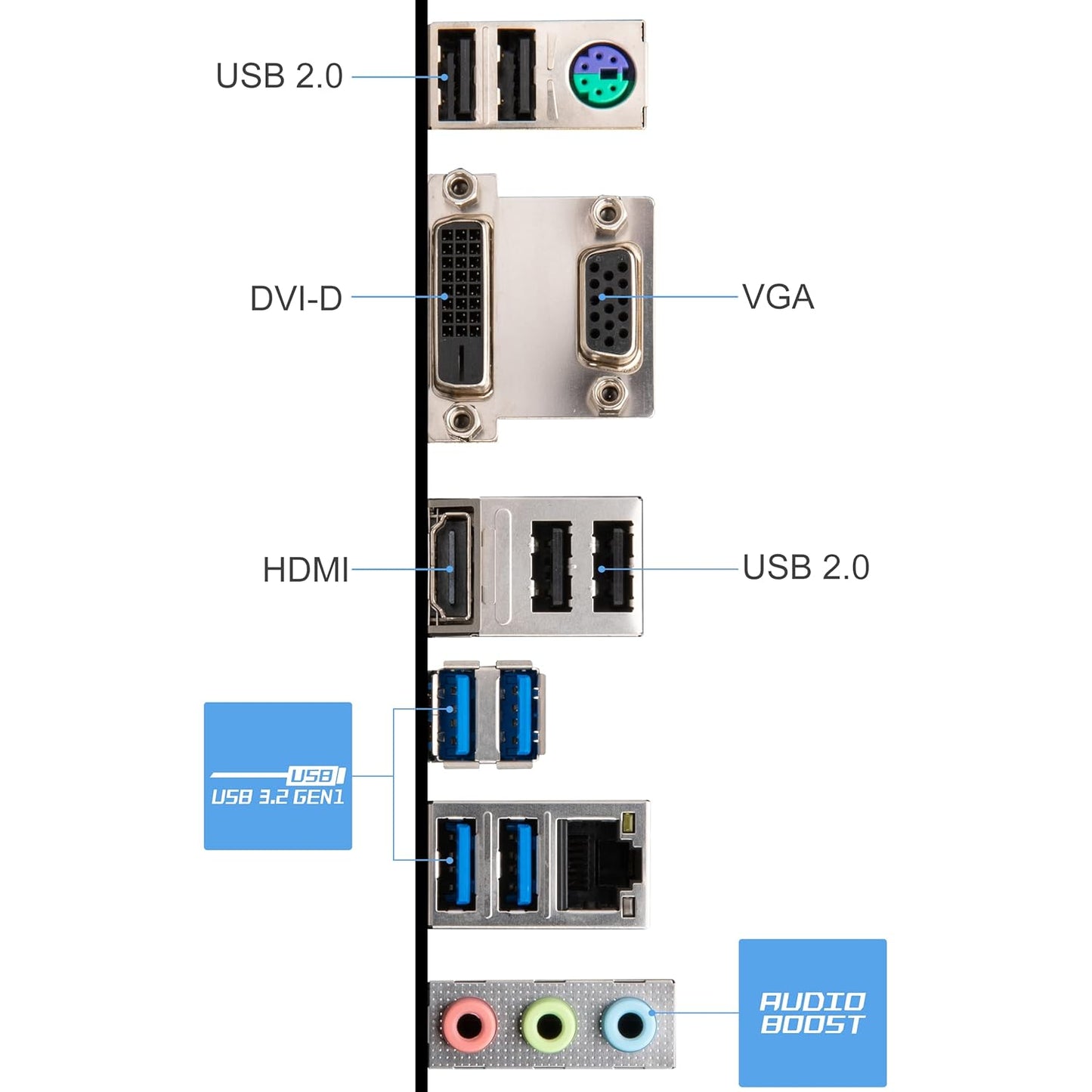

| Back Panel Connectors | Keyboard / Mouse |
| VGA | |
| USB 2.0 | |
| USB 3.2 Gen 1 5Gbps | |
| Type-A | |
| LAN port | |
| Audio connector | |
| USB 2.0 | |
| DVI-D | |
| HDMI | |
| USB 3.2 Gen 1 5Gbps Type-A | |
| I/O Controller | NUVOTON NCT6795D-M Controller Chip |
| Hardware Monitor | CPU/ System/ Chipset temperature detection |
| CPU/ System fan speed detection | |
| CPU/ System fan speed control | |
| Form Factor | m-ATX Form Factor |
| 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) | |
| BIOS Features | 1x 256 Mb flash |
| UEFI AMI BIOS | |
| ACPI 6.1, SMBIOS 2.8 | |
| Multi-language | |
| Software | MSI Center |
| Warranty | 3 Years |
