Description
| Model | PRO B760M-A WIFI DDR4 |
| Chipset | INTEL Z790 |
| CPU Support | Supports 12th/13th Gen IntelÆ Coreô Processors, PentiumÆ Gold and CeleronÆ Processors |
| LGA 1700 | |
| Memory | 4x DDR4, Maximum Memory Capacity 128GB |
| Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) | |
| Max. overclocking frequency: | |
| ï 1DPC 1R Max speed up to 5333+ MHz | |
| ï 1DPC 2R Max speed up to 4800+ MHz | |
| ï 2DPC 1R Max speed up to 4400+ MHz | |
| ï 2DPC 2R Max speed up to 4000+ MHz | |
| Supports Dual-Channel mode | |
| Supports non-ECC, un-buffered memory | |
| Supports IntelÆ Extreme Memory Profile (XMP) | |
| Onboard Graphics | Support HDMIô 2.1, maximum resolution of 4K 60Hz |
| Support DP 1.4, maximum resolution of 4K 60Hz | |
| Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. | |
| 2x HDMIô | |
| 2x DisplayPort | |
| Expansion Slot | 2x PCI-E x16 slot |
| 1x PCI-E x1 slot | |
| PCI_E1 PCIe 4.0 supports up to x16 (From CPU) | |
| PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) | |
| PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) | |
| Storage | 2x M.2 slot |
| M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices | |
| M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices | |
| 4x SATA 6G port | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | 2x USB 2.0 (Rear) |
| 4x USB 2.0 (Front) | |
| 2x USB 3.2 Gen1 Type A (Rear) | |
| 4x USB 3.2 Gen1 Type A (Front) | |
| 1x USB 3.2 Gen1 Type C (Front) | |
| 2x USB 3.2 Gen2 Type A (Rear) | |
| LAN | IntelÆ 2.5Gbps LAN |
| Wireless Lan & Bluetooth | IntelÆ Wi-Fi 6E |
| The Wireless module is pre-installed in the M.2 (Key-E) slot | |
| Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps | |
| Supports 802.11 a/ b/ g/ n/ ac/ ax | |
| Supports BluetoothÆ 5.3, FIPS, FISMA | |
| Audio | RealtekÆ ALC897 Codec |
| 7.1-Channel High Definition Audio | |
| Internal IO | 1x Power Connector(ATX_PWR) |
| 2x Power Connector(CPU_PWR) | |
| 1x CPU Fan | |
| 1x Pump Fan | |
| 2x System Fan | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Front Audio (JAUD) | |
| 1x Com Port (JCOM) | |
| 2x Addressable V2 RGB LED connector (JARGB_V2) | |
| 1x RGB LED connector(JRGB) | |
| 1x TPM pin header(Support TPM 2.0) | |
| 4x USB 2.0 | |
| 4x USB 3.2 Gen1 Type A | |
| 1x USB 3.2 Gen1 Type C | |
| LED Features | 4x EZ Debug LED |

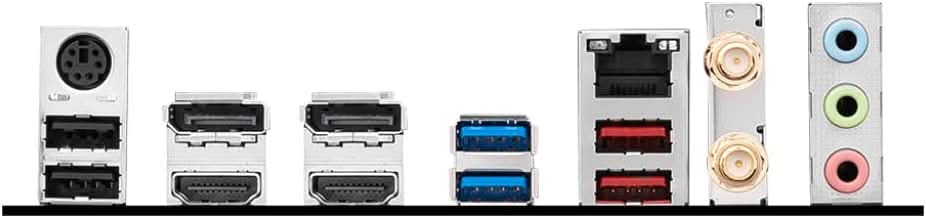

| Back Panel Ports | Keyboard / Mouse |
| DisplayPort | |
| USB 3.2 Gen 1 5Gbps (Type-A) | |
| 2.5G LAN | |
| Wi-Fi / Bluetooth | |
| Audio Connectors | |
| USB 2.0 | |
| HDMIô | |
| USB 3.2 Gen 2 10Gbps (Type-A) | |
| Operating System | Support for WindowsÆ 11 64-bit, WindowsÆ 10 64-bit |
| PCB Info | mATX |
| 243.84mmx243.84mm | |
| Warranty | 3 Years |
