Description

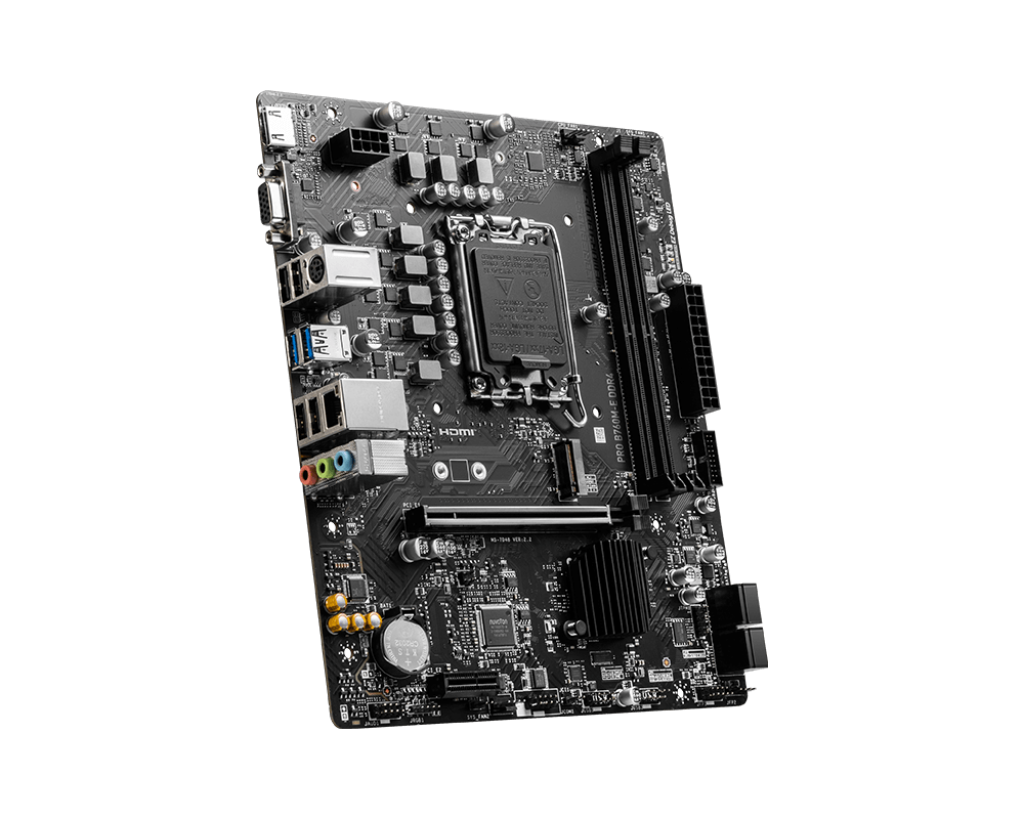

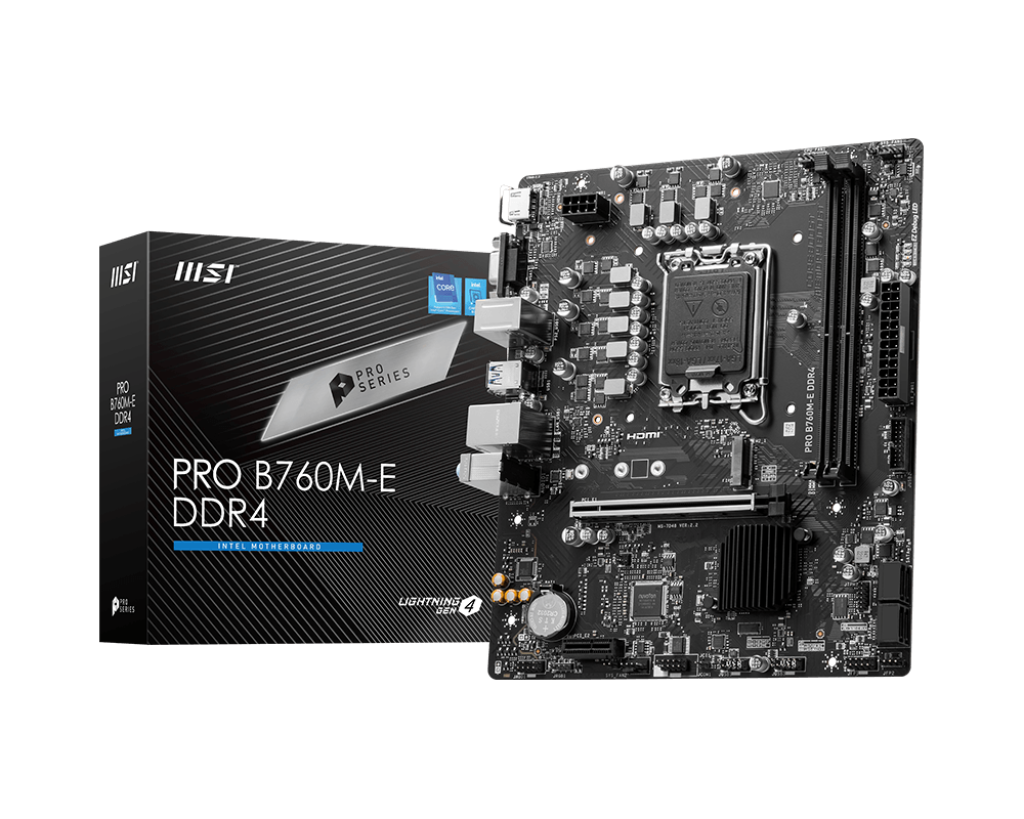

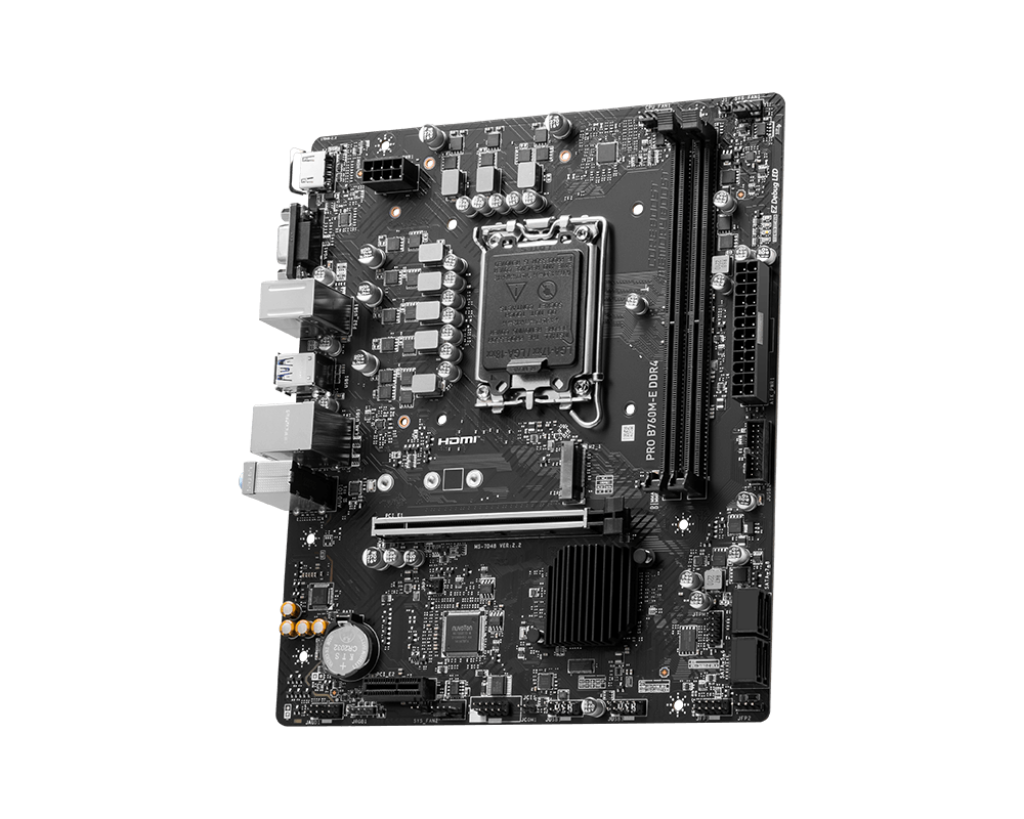

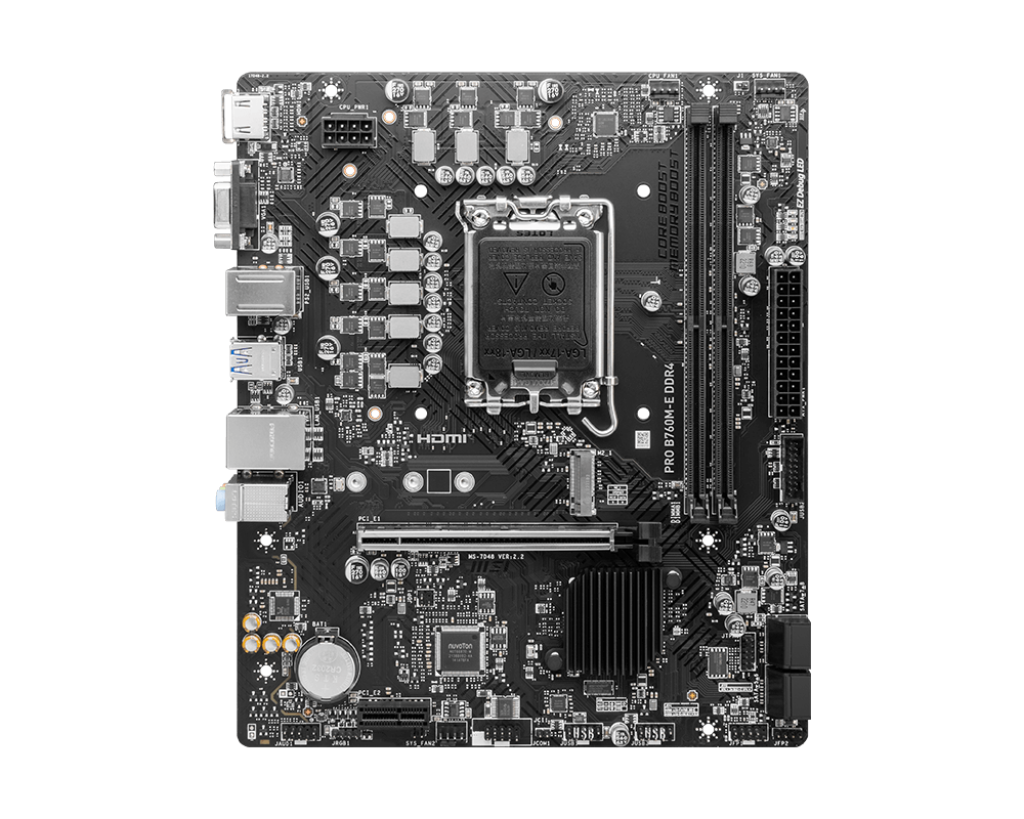

| Model | PRO B760M-E DDR4 |
| Chipset | INTEL B760 |
| CPU SUPPORT | Supports 12th/13th Gen IntelÆ Coreô Processors, PentiumÆ Gold and CeleronÆ Processors |
| LGA 1700 | |
| Memory | 2x DDR4, Maximum Memory Capacity 64GB |
| Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) | |
| Max. overclocking frequency: | |
| ï 1DPC 1R Max speed up to 4800+ MHz | |
| ï 1DPC 2R Max speed up to 4600+ MHz | |
| Onboard Graphics | 1x HDMIô |
| 1x VGA | |
| Support HDMIô 1.4 with HDR, maximum resolution of 4K 30Hz* | |
| Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz | |
| *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. | |
| EXPANSION SLOT | 1x PCI-E x16 slot |
| 1x PCI-E x1 slot | |
| PCI_E1 PCIe 4.0 supports up to (From CPU) | |
| PCI_E2 PCIe 3.0 supports up to (From Chipset) | |
| Storage | 1x M.2 slot |
| M.2_1 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices | |
| 4x SATA 6G port | |
| * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | 4x USB 2.0 (Rear) |
| 4x USB 2.0 (Front) | |
| 2x USB 3.2 Gen1 Type A (Rear) | |
| 2x USB 3.2 Gen1 Type A (Front) | |
| LAN | RealtekÆ RTL8111H Gigabit LAN |
| Audio | RealtekÆ ALC897 Codec |
| 7.1-Channel High Definition Audio | |
| Internal I/O | 1x Power Connector(ATX_PWR) |
| 1x Power Connector(CPU_PWR) | |
| 1x CPU Fan | |
| 2x System Fan | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Front Audio (JAUD) | |
| 1x Com Port (JCOM) | |
| 1x RGB LED connector(JRGB) | |
| 1x TPM pin header(Support TPM 2.0) | |
| 2x USB 2.0 | |
| 1x USB 3.2 Gen1 Type A | |
| LED FEATURE | 4x EZ Debug LED |

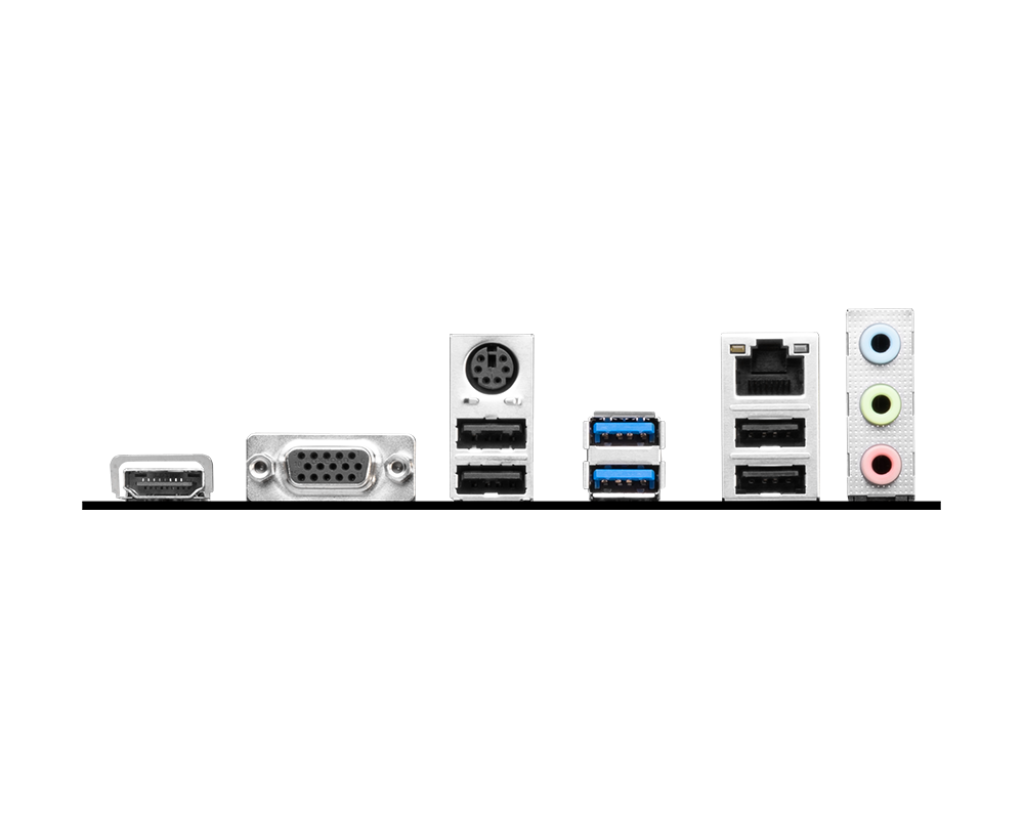

| BACK PANEL PORTS | HDMI |
| VGA | |
| Keyboard / Mouse | |
| USB 3.2 Gen 1 5Gbps (Type-A) | |
| LAN port | |
| Audio Connectors | |
| USB 2.0 | |
| USB 2.0 | |
| OPERATING SYSTEM | Support for WindowsÆ 11 64-bit, WindowsÆ 10 64-bit |
| PCB Dimension | mATX |
| 200mmx236.16mm | |
| Warranty | 3 Years |
