Description
Specifications:

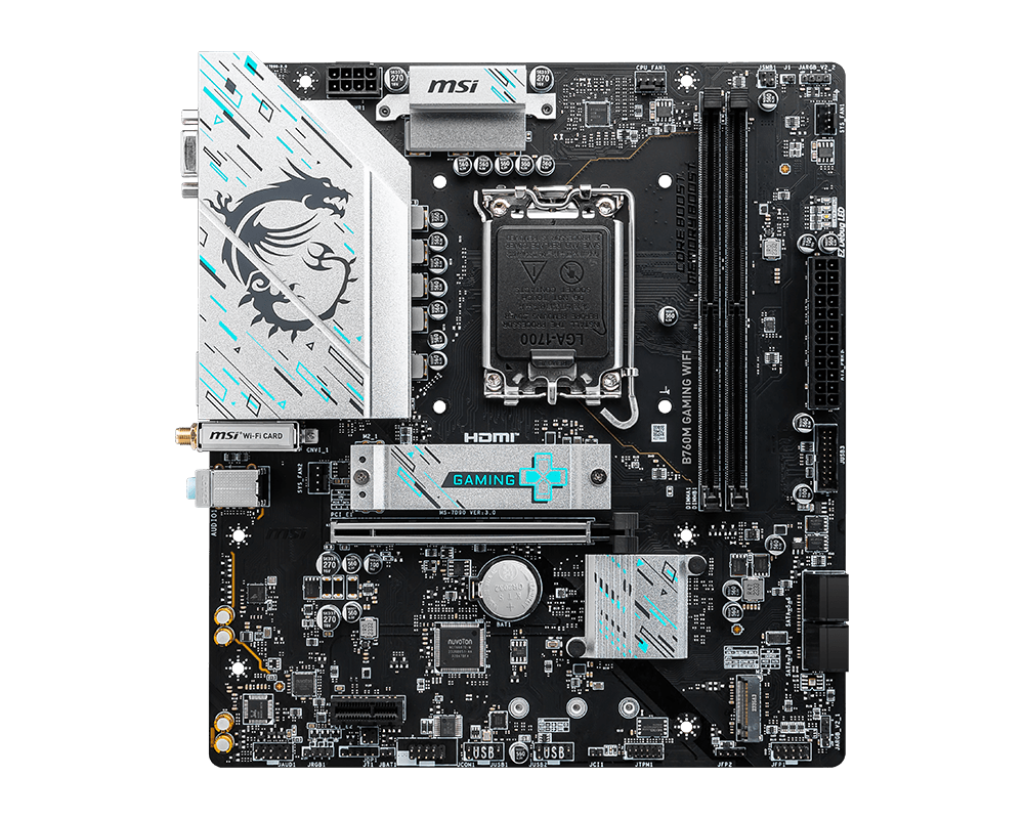

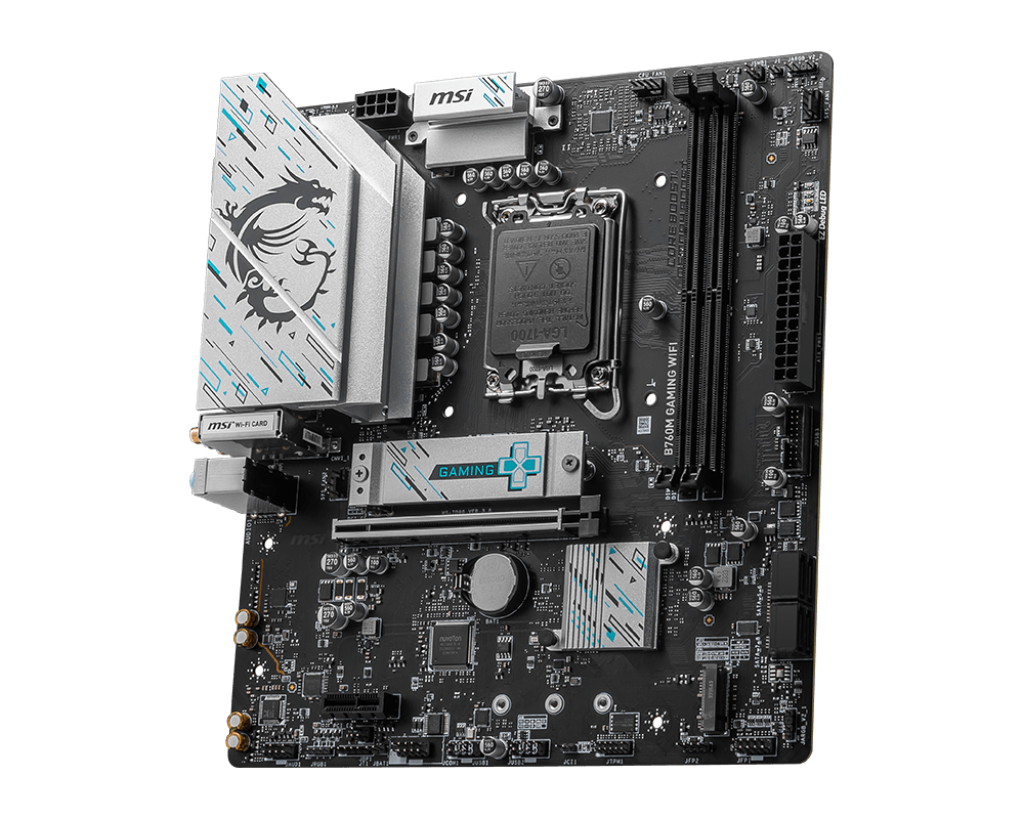

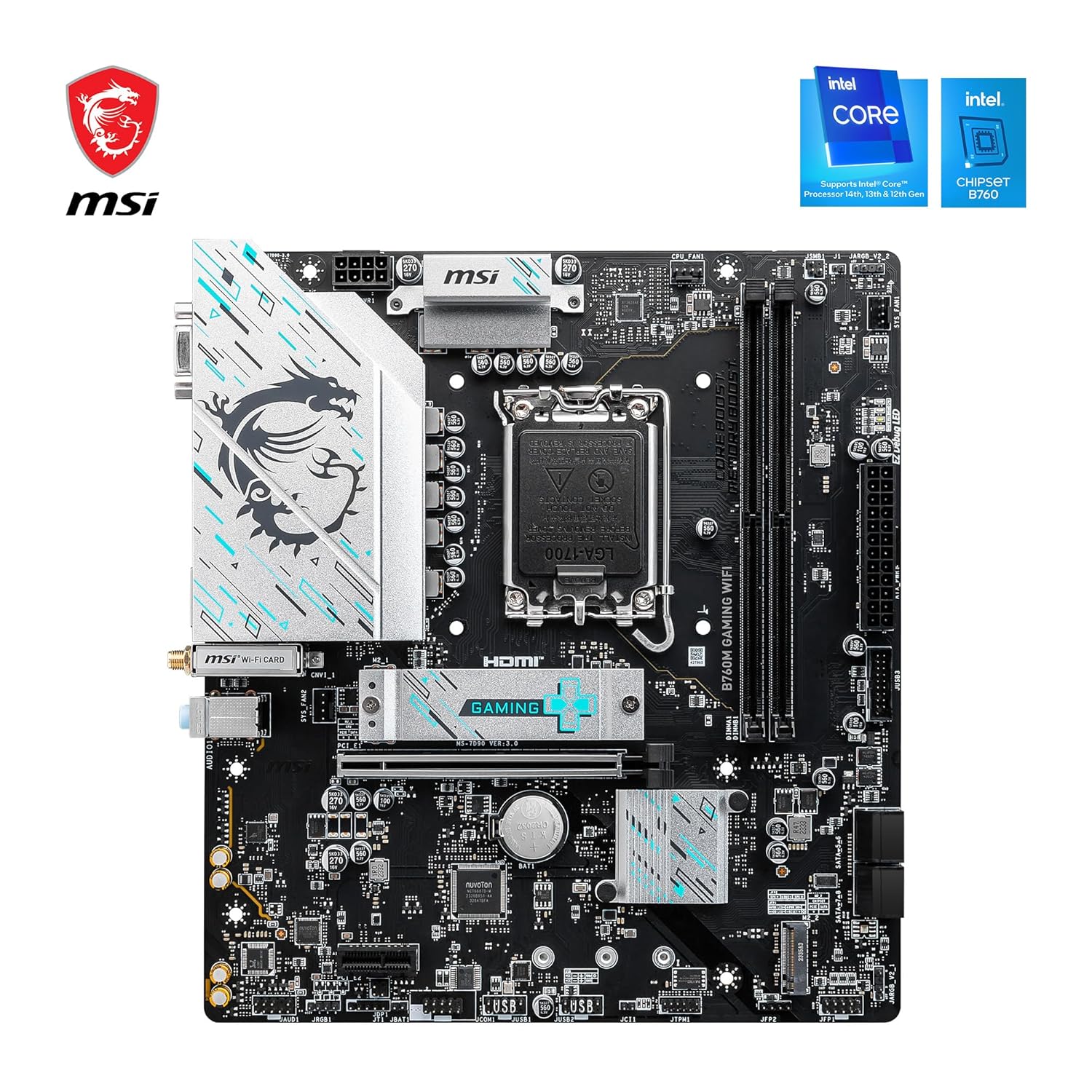

| Model | B760M GAMING WIFI |
| Chipset | INTEL B760 |
| CPU | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors |
| LGA 1700 | |
| Memory | 2x DDR5, Maximum Memory Capacity 128GB |
| Memory Support DDR5 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz | |
| Max. overclocking frequency: | |
| 1DPC 1R Max speed up to 8000+ MHz | |
| 1DPC 2R Max speed up to 6400+ MHz | |
| Supports Intel XMP 3.0 OC | |
| Supports Dual-Controller Dual-Channel mode | |
| Supports non-ECC, un-buffered memory | |
| Onboard Graphics | 1x HDMI |
| Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz* | |
| 1x DisplayPort | |
| Support DP 1.4, maximum resolution of 4K 60Hz* | |
| 1x VGA | |
| Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz* | |
| *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. | |
| Slot | 1x PCI-E x16 slot |
| 1x PCI-E x1 slot | |
| PCI_E1 Gen PCIe 4.0 supports up to (From CPU) | |
| PCI_E2 Gen PCIe 4.0 supports up to (From Chipset) | |
| Audio | Realtek ALC897 Codec |
| 7.1-Channel High Definition Audio | |
| Supports S/PDIF output | |
| Storage | 2x M.2 |
| M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices | |
| M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices | |
| 4x SATA 6G | |
| * SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | 2x USB 2.0 (Rear) |
| 4x USB 2.0 (Front) | |
| 4x USB 5Gbps Type A (Rear) | |
| 2x USB 5Gbps Type A (Front) | |
| LAN | Realtek RTL8125B 2.5Gbps LAN |
| WIRELESS LAN & BLUETOOTH | Intel Wi-Fi 6E |
| The Wireless module is pre-installed in the M.2 (Key-E) slot | |
| Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps | |
| Supports 802.11 a/ b/ g/ n/ ac/ ax | |
| Supports Bluetooth® 5.3, FIPS, FISMA | |
| * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. | |
| ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. | |
| Internal IO | 1x Power Connector(ATX_PWR) |
| 1x Power Connector(CPU_PWR) | |
| 1x CPU Fan | |
| 2x System Fan | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Front Audio (JAUD) | |
| 1x Com Port (JCOM) | |
| 2x Addressable V2 RGB LED connector (JARGB_V2) | |
| 1x RGB LED connector(JRGB) | |
| 1x TPM pin header(Support TPM 2.0) | |
| 4x USB 2.0 ports | |
| 2x USB 5Gbps Type A ports | |
| LED FEATURE | 4x EZ Debug LED |

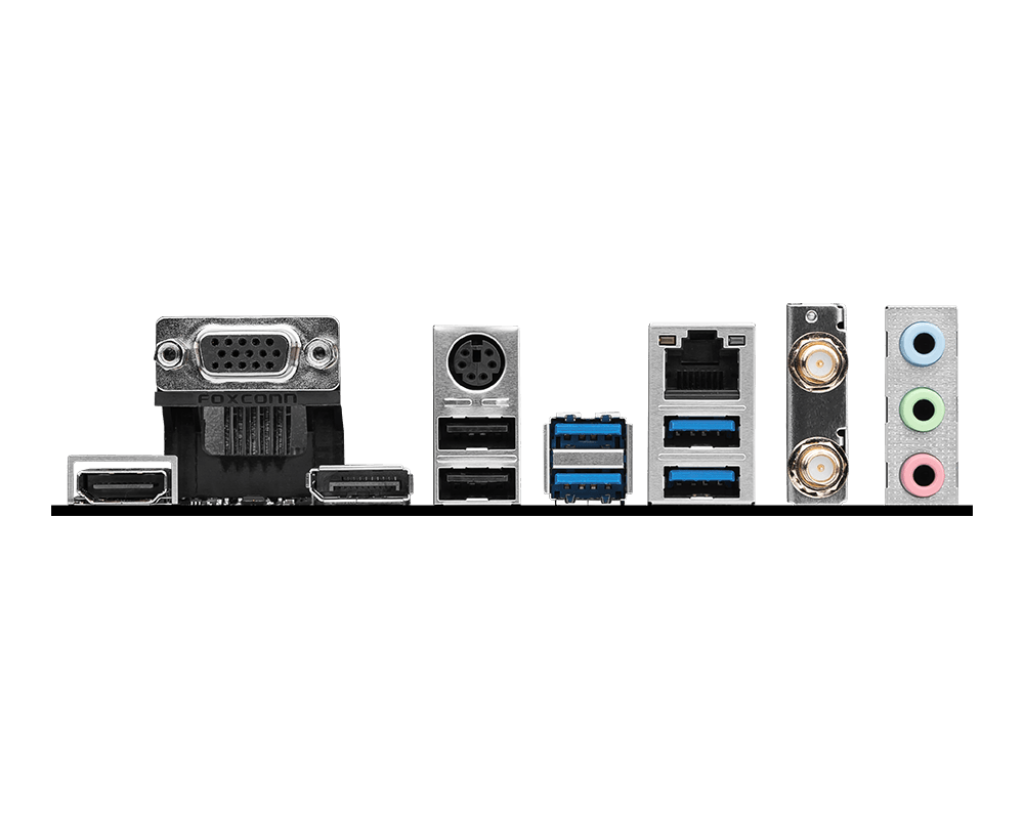

| BACK PANEL PORTS | VGA |
| Keyboard / Mouse | |
| 2.5G LAN | |
| Wi-Fi / Bluetooth | |
| Audio Connectors | |
| HDMI™ | |
| DisplayPort | |
| USB 2.0 | |
| USB 3.2 Gen 1 5Gbps (Type-A) | |
| OPERATING SYSTEM | Support for Windows 11 64-bit, Windows 10 64-bit |
| PCB Info | mATX |
| 220mmx243.84mm | |
| Warranty | 3 Years |
