Description
Features
- Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 2933(Max) MHz
- Core Boost: With premium layout and digital power design to support more cores and provide better performance.
- DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
- Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
- Audio Boost: Reward your ears with studio grade sound quality
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
Speciifcations
| PROCESSOR | Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA 1200 socket1 2 Onboard graphics output are disabled when using F SKU processors. |
| CHIPSET | Intel® H410 Chipset |
| MEMORY | 2x DDR4 memory slots, support up to 64GB Intel® Core™ i7/ i9 Supports up to DDR4 2933 MHz Intel® Core™ i5 and below Supports up to DDR4 2666 MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory |
| EXPANSION SLOT | 1x PCIe 3.0 x16 slot (From CPU) 1x PCIe 3.0 x1 slot (From PCH) 1x M.2 slot with E key for WiFi module only |
| ONBOARD GRAPHICS | 1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz 1x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz Maximum shared memory is 1GB |
| STORAGE | Intel® H410 Chipset 4x SATA 6Gb/s ports 1x M.2 slot (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices |
| USB | Intel® H410 Chipset 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector) |
| AUDIO | Realtek® ALC892/ALC897 Codec 7.1-Channel High Definition Audio |
| LAN | 1x Intel® I219V Gigabit LAN controller |
| INTERNAL CONNECTORS | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen1 5Gbps ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x Front panel connectors 1x Serial port connector 1x TPM module connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 4x EZ Debug LED |

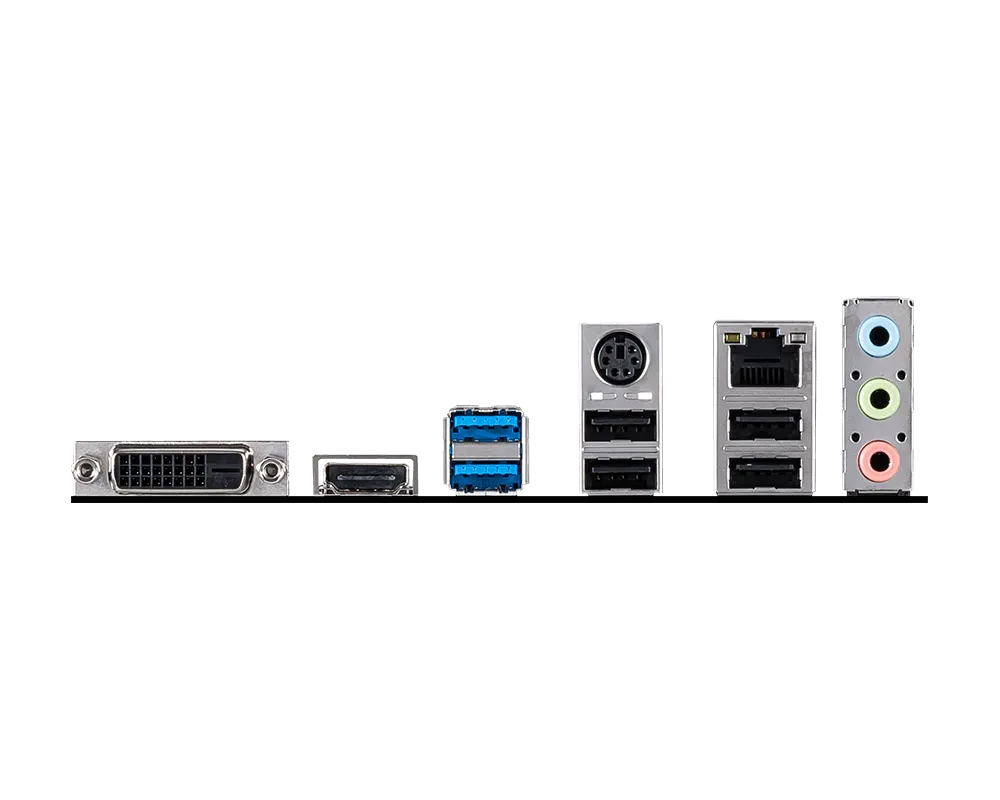

| BACK PANEL PORTS | Keyboard / Mouse LAN DVI-D HDMI USB 3.2 Gen 1 5Gbps Type-A USB 2.0 USB 2.0 Audio Connectors |
| DIMENSIONS | Mirco-ATX Form Factor 9.3 in. x 7.5 in. (23.6 cm x 19.0 cm) |
| MOUNTING | 6 mounting holes |
| OPERATING SYSTEM | Support for Windows® 10 64-bit |
| WARRANTY | 3 Years |
