Description
| Processor | Supports 12th Gen IntelÆ Coreô, PentiumÆ Gold and CeleronÆ processors 1 |
| Processor socket LGA1700 | |
| Chipset | IntelÆ B660 Chipset |
| Memory | 4x DDR4 memory slots, support up to 128GB 1 |
| Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR) | |
| Max overclocking frequency: | |
| 1DPC 1R Max speed up to 4800+ MHz | |
| 1DPC 2R Max speed up to 4000+ MHz | |
| 2DPC 1R Max speed up to 4000+ MHz | |
| 2DPC 2R Max speed up to 3600+ MHz | |
| Supports Dual-Channel mode | |
| Supports non-ECC, un-buffered memory | |
| Supports IntelÆ Extreme Memory Profile (XMP) | |
| Expansion Slot | 2x PCIe x16 slots |
| PCI_E1 slot (From CPU) | |
| Supports PCIe 4.0 x16 | |
| PCI_E3 slot (From B660 Chipset) | |
| Supports PCIe 3.0 x4 | |
| 1x PCIe 3.0 x1 slot | |
| Multi-GPU | Supports 2-Way AMDÆ CrossFireô Technology |
| Onboard Graphics | 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1 / 2 |
| 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz 1 / 2 | |
| Available only on processors featuring integrated graphics. | |
| Graphics specifications may vary depending on the CPU installed. | |
| Storage | 4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset) 1 |
| 2x SATA 6Gb/s ports (SATA_A & SATA_B, from ASMedia ASM1061) | |
| 2x M.2 slots (Key M) | |
| M2_1 slot (From CPU) | |
| Supports PCIe 4.0 x4 | |
| Supports 2242/ 2260/ 2280 storage devices | |
| M2_2 slot (From B660 Chipset) 1 | |
| Supports PCIe 4.0 x4 | |
| Supports SATA 6Gb/s | |
| Supports 2242/ 2260/ 2280 storage devices | |
| Supports IntelÆ Optaneô Memory | |
| SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices 1 |
| SATA_A & SATA_B do not support RAID function. | |
| USB | IntelÆ B660 Chipset |
| 1x USB 3.2 Gen2x2 20Gbps Type-C port on the back panel | |
| 1x USB 3.2 Gen 2 10Gbps Type-C port available through the internal connector | |
| 2x USB 3.2 Gen 1 5Gbps ports available through the internal connector | |
| 4x USB 2.0 ports on the back panel | |
| USB Hub-GL3590 | |
| 3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel | |
| USB Hub-GL850G | |
| 4x USB 2.0 ports available through internal connectors | |
| Audio | RealtekÆ ALC1200 Codec |
| 7.1-Channel High Definition Audio | |
| Supports S/PDIF output | |
| LAN | 1x RealtekÆ 8125BG 2.5Gbps LAN controller |
| Wireless LAN & BluetoothÆ | IntelÆ Wi-Fi 6 |
| The Wireless module is pre-installed in the M.2 (Key-E) slot | |
| Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ up to 2.4Gbps | |
| Supports 802.11 a/ b/ g/ n/ ac/ ax | |
| Supports BluetoothÆ 5.2 | |
| Internal connectors | 1x 24-pin ATX main power connector |
| 2x 8-pin ATX 12V power connectors | |
| 6x SATA 6Gb/s connectors | |
| 2x M.2 slots (M-Key) | |
| 1x USB 3.2 Gen 2 10Gbps Type-C connector | |
| 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) | |
| 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) | |
| 1x 4-pin CPU fan connector | |
| 1x 4-pin water-pump fan connector | |
| 2x 4-pin system fan connectors | |
| 1x Front panel audio connector | |
| 2x System panel connectors | |
| 1x Chassis Intrusion connector | |
| 1x Clear CMOS jumper | |
| 1x TPM module connector | |
| 1x TBT connector (supports RTD3) | |
| 1x Tuning Controller connector | |
| LED Feature | 4x EZ Debug LED |
| 1x 4-pin RGB LED connector | |
| 2x 3-pin RAINBOW LED connectors | |

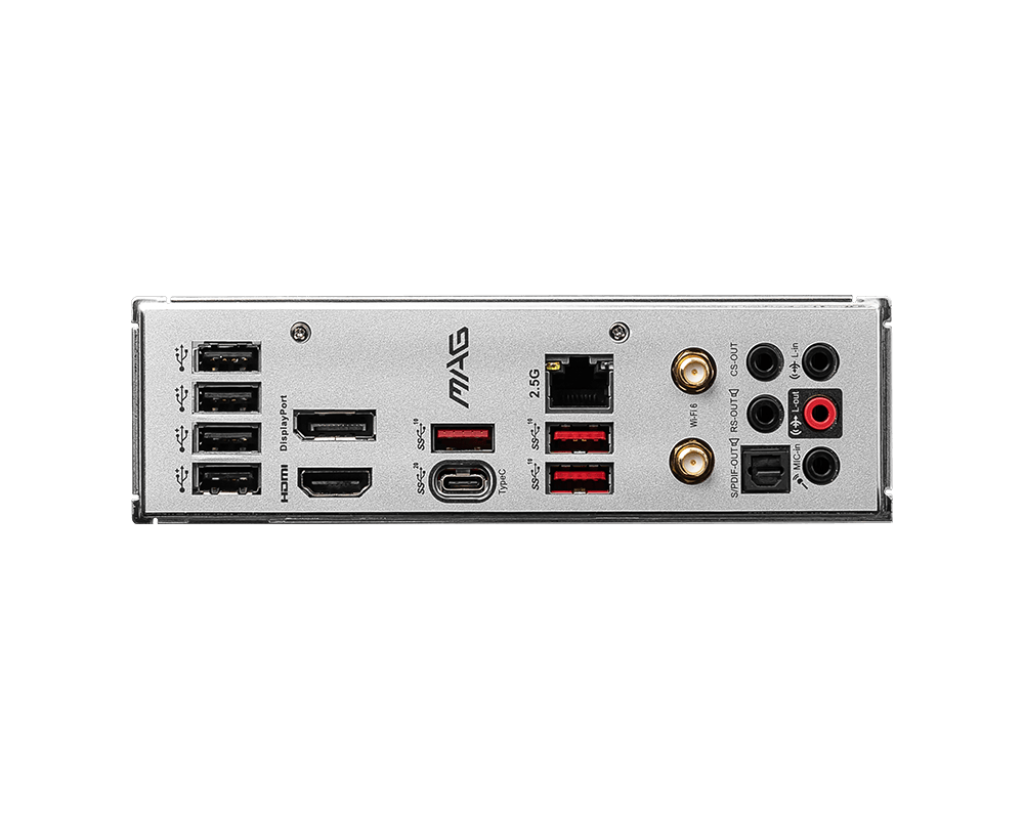

| Back panel ports | USB 2.0 Port |
| DisplayPort 1.4 | |
| USB 3.2 Gen 2 10Gbps Type-A | |
| 2.5G LAN Port | |
| Wi-Fi / Bluetooth Antenna | |
| HD Audio Connectors | |
| HDMI 2.1 Port | |
| USB 3.2 Gen 2x2 20Gbps Type-C | |
| Optical S/PDIF OUT | |
| Dimensions | Micro-ATX Form Factor |
| 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) | |
| Warranty | 3 Years |
