Specifications:
| Specification | Details |
|---|---|
| Radiator Compatibility | 120 / 140 / 240 mm |
| Case Form Factor | Mid Tower |
| Motherboard Form Factor Support | Regular: ATX / Micro-ATX / Mini-ITX Back-connect: ATX / Micro-ATX |

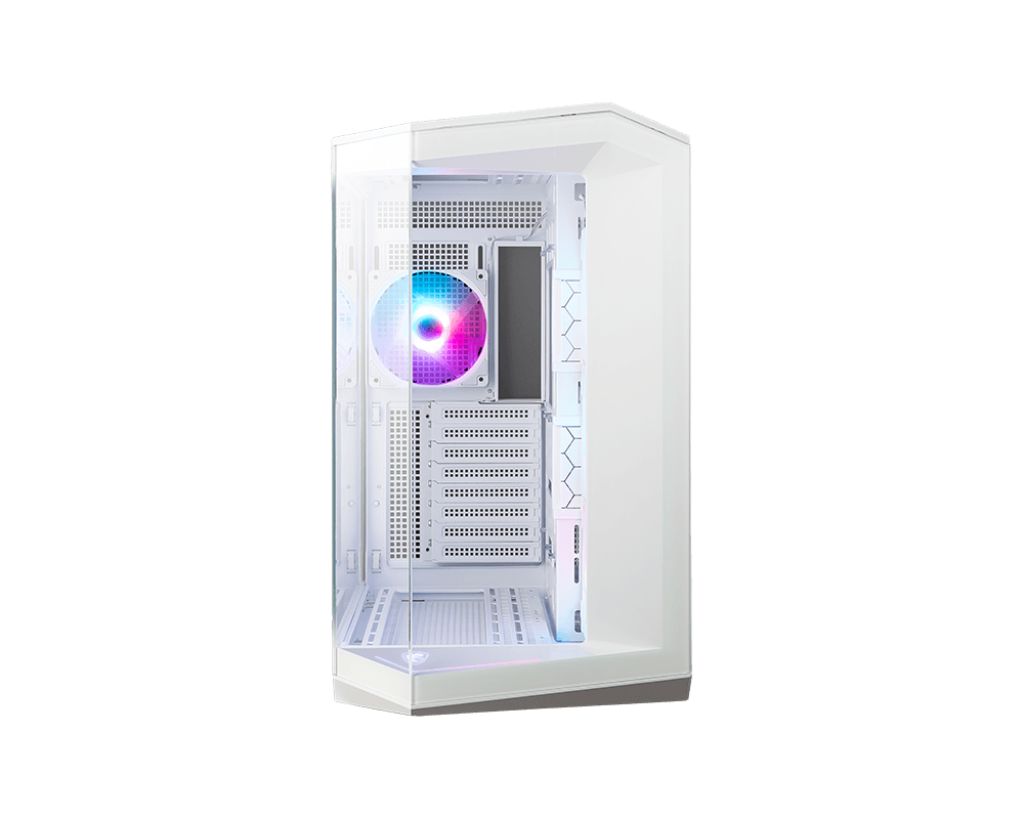

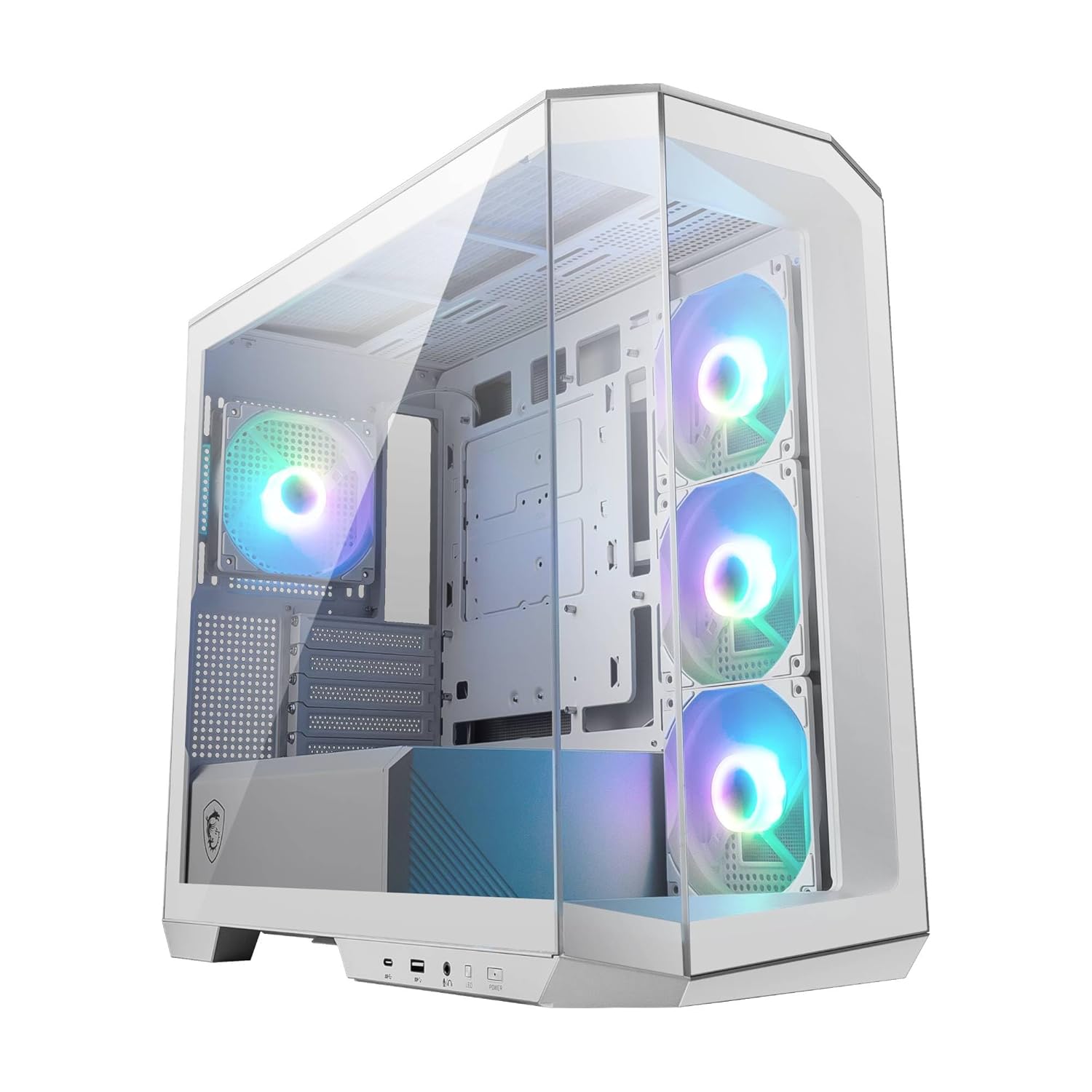

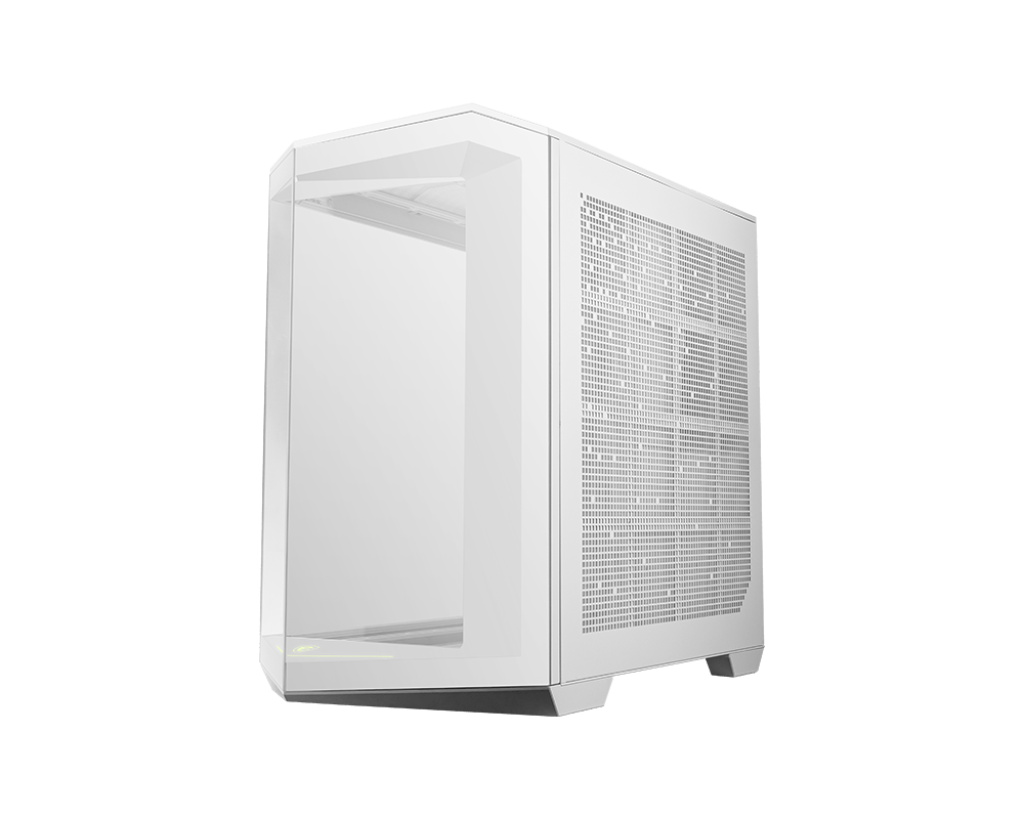

| Product Name | MAG PANO 100R PZ |
| Drive Mount Support | 3 x 2.5” 2 x 2.5”/3.5” combo |
| Dimension | 518.7 x 290 x 482 mm / 20.42 x 11.42 x 18.98 inches |
| I/O Ports | 1 x USB 20Gbps Type-C 2 x USB 5Gbps Type-A 1 x Audio-Out / Mic-in 1 x LED Switch Button 1 x Power Button |
| Case Expansion Slots | 8 |
| Pre-install Fan | Side: 3 x ARGB Reverse-blade Rear: 1 x ARGB |
| Fan Support | Side: 3 x 120 mm / 2 x 140 mm Rear: 1 x 120 mm Top: 3 x 120 mm / 3 x 140 mm Front: NA Bottom: 3 x 120 mm / 2 x 140 mm / 2 x 160 mm |
| Maximum PSU Length | 200 mm / 7.87 inches |
| Maximum GPU Length | 380 mm / 14.96 inches |
| Maximum CPU Cooler Length | 166 mm / 6.54 inches |
| Radiator Layout | Top: 120 / 240 / 360 mm Front: NA Rear: 120 mm Side: 120 / 240 / 360 mm Bottom: 120 / 240 / 360 mm |
| Lighting | Side: 3 x ARGB Reverse-blade Rear: 1 x ARGB |
| Power Supply | ATX |
