Support HDMIô 2.1 FRL, maximum resolution of 4K 120Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
1x Type-C DisplayPort
Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz
EXPANSION SLOT
3x PCI-E x16 slot
Supports x16/x4/x2
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From CPU)
PCI_E4 Gen PCIe 4.0 supports up to x2 (From Chipset)
Storage
4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
RAID
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
USB
4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
4x USB 3.2 Gen1 Type A (Front)
2x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
LAN
RealtekÆ RTL8125BG 2.5Gbps LAN
WIRELESS / BLUETOOTH
AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports BluetoothÆ 5.3
Audio
RealtekÆ ALC1200 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
Internal I/O
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports
LED FEATURE
4x EZ Debug LED

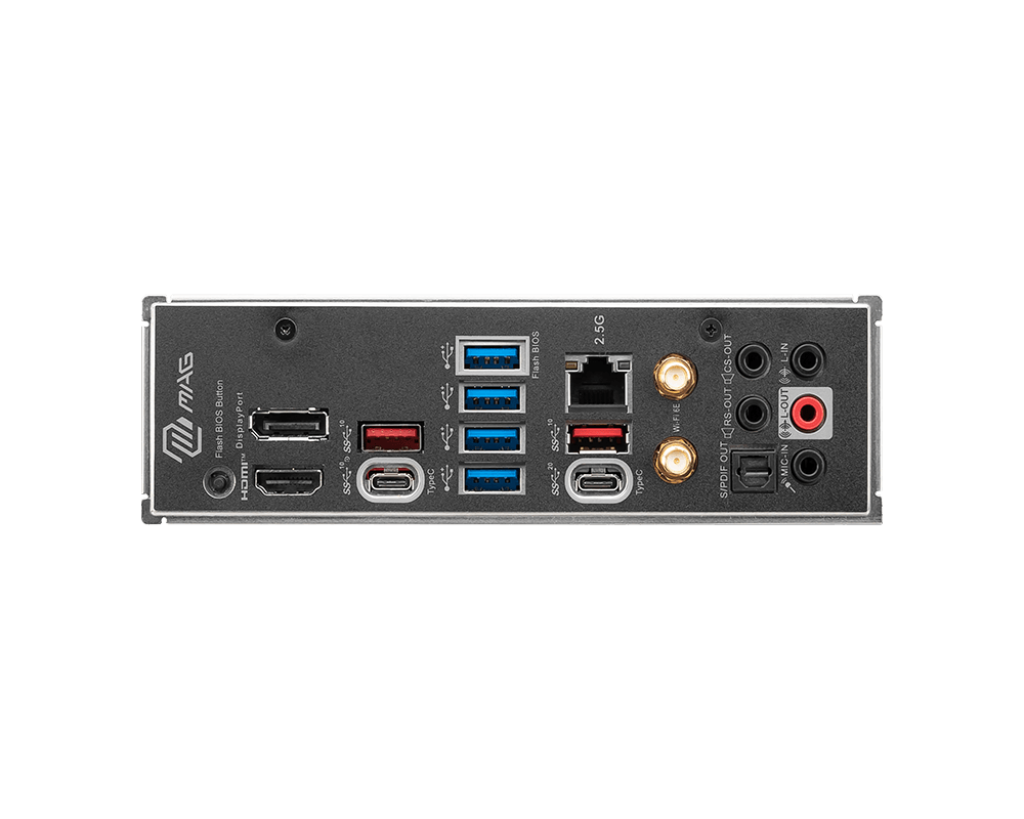

BACK PANEL PORTS
DisplayPort
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 2 5Gbps (Type-A)
2.5G LAN
Wi-Fi / Bluetooth
Audio Connectors
Flash BIOS Button
HDMIô
USB 3.2 Gen 2 10Gbps (Type-C Display port)
USB 3.2 Gen 2x2 20Gbps (Type-C)
S/PDIF-Out
OPERATING SYSTEM
Support for WindowsÆ 11 64-bit, WindowsÆ 10 64-bit
PCB Dimension (W ◊ L)
ATX
243.84mmx304.8mm
Warranty
3 Years
*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice.Warranty: 3 years
