Description
| Chipset | INTEL Z790 |
| CPU SUPPORT | Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors |
| Memory | 4x DDR4, Maximum Memory Capacity 128GB |
| Memory Support 5333/5200/5066/5000/4800/4600/4533/4400/4266/4000/3866/3733/3600/3466/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133(By JEDCE & POR) | |
| Max. overclocking frequency: | |
| ï 1DPC 1R Max speed up to 5333+ MHz | |
| ï 1DPC 2R Max speed up to 4800+ MHz | |
| ï 2DPC 1R Max speed up to 4400+ MHz | |
| ï 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode | |
| Supports non-ECC, un-buffered memory | |
| Supports IntelÆ Extreme Memory Profile | |
| Onboard Graphics | 1x HDMIô |
| 1x DisplayPort | |
| Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* | |
| Support DP 1.4, maximum resolution of 8K 60Hz* | |
| *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. | |
| EXPANSION SLOT | 2x PCI-E x16 slot |
| Supports x16/x4 | |
| 1x PCI-E x1 slot | |
| PCI_E1 PCIe 5.0 supports up to x16 (From CPU) | |
| PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) | |
| PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) | |
| Storage | 4x M.2 slot |
| M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices | |
| M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |
| M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices | |
| M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices | |
| 7x SATA 6G port | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices* |
| Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices | |
| * SATA_A1_A2 do not support RAID function. | |

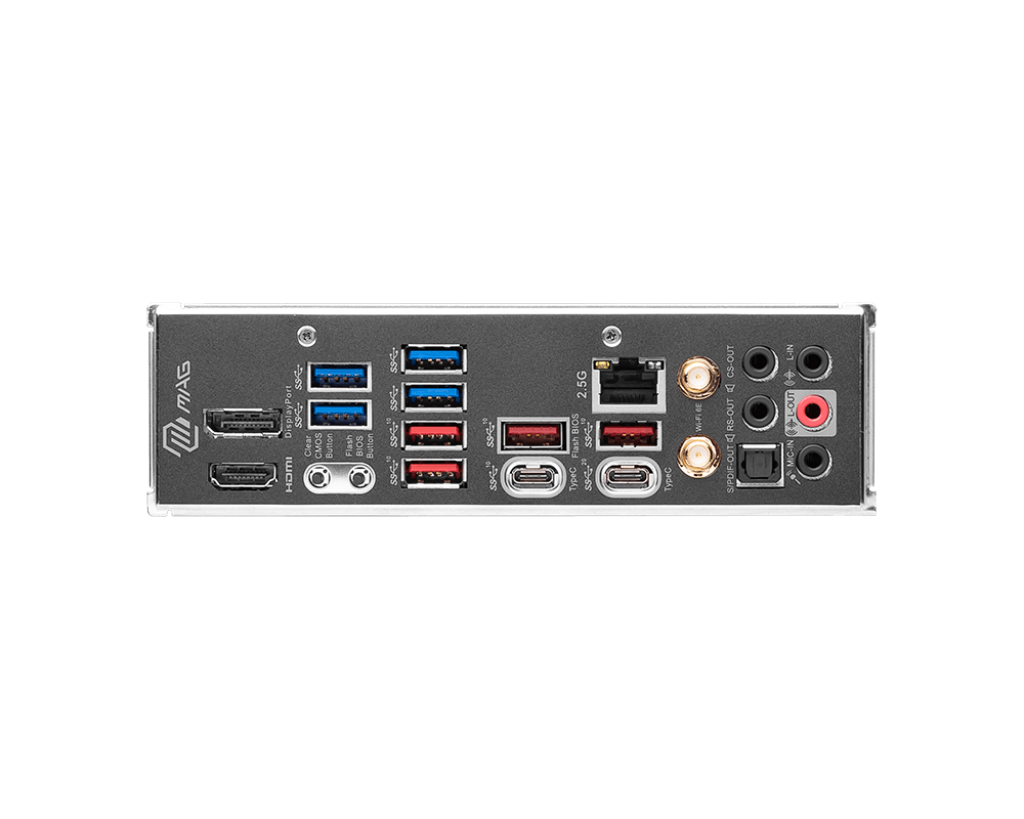

| USB | 4x USB 2.0 (Front) |
| 4x USB 3.2 Gen1 Type A (Rear) | |
| 2x USB 3.2 Gen1 Type A (Front) | |
| 4x USB 3.2 Gen2 Type A (Rear) | |
| 1x USB 3.2 Gen2 Type C (Rear) | |
| 1x USB 3.2 Gen2 Type C (Front) | |
| 1x USB 3.2 Gen2x2 Type C (Rear) | |
| LAN | IntelÆ 2.5Gbps LAN |
| WIRELESS / BLUETOOTH | IntelÆ Wi-Fi 6E |
| The Wireless module is pre-installed in the M.2 (Key-E) slot | |
| Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps | |
| Supports 802.11 a/ b/ g/ n/ ac/ ax | |
| Supports BluetoothÆ 5.3**, FIPS, FISMA | |
| * Wi-Fi 6E 6GHz may depend on every countryís regulations and will be ready in Windows 10 build 21H1 and Windows 11. | |
| ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. | |
| Audio | RealtekÆ ALC4080 Codec |
| 7.1-Channel USB High Performance Audio | |
| Supports S/PDIF output | |
| Supports up to 32-Bit/384 kHz playback on front panel | |
| Internal I/O | 1x Power Connector(ATX_PWR) |
| 2x Power Connector(CPU_PWR) | |
| 1x CPU Fan | |
| 1x Pump Fan | |
| 6x System Fan | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Front Audio (JAUD) | |
| 1x TBT connector (JTBT, supports RTD3) | |
| 1x Tuning Controller connector(JDASH) | |
| 3x Addressable V2 RGB LED connector (JARGB_V2) | |
| 1x RGB LED connector(JRGB) | |
| 1x TPM pin header(Support TPM 2.0) | |
| 4x USB 2.0 | |
| 2x USB 3.2 Gen1 Type A | |
| 1x USB 3.2 Gen2 Type C | |
| LED FEATURE | 4x EZ Debug LED |
| OPERATING SYSTEM | Support for WindowsÆ 11 64-bit, WindowsÆ 10 64-bit |
| PCB Dimension | ATX 243.84mmx304.8mm |
| Warranty | 3 Years |
