Description
| Manufacturer Part No | MEG X670E GODLIKE |
| Operating System | Support for WindowsÆ 11 64-bit, WindowsÆ 10 64-bit |
| CPU | Supports AMD Ryzenô 7000 Series Desktop Processors |
| Chipset | AMDÆ X670 Chipset |
| CPU Socket | Socket AM5 |
| Form Factor | E-ATX |
| Memory | 4x DDR5, Maximum Memory Capacity 128GB |
| LAN | MarvellÆ AQC113-B1-C 10Gbps LAN |
| IntelÆ I225V 2.5Gbps LAN | |
| Wireless LAN | AMD Wi-Fi 6E |
| The Wireless module is pre-installed in the M.2 (Key-E) slot | |
| Supports MU-MIMO TX/RX | |
| Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands | |
| Supports 802.11 a/ b/ g/ n/ ac/ ax | |
| Bluetooth | Supports BluetoothÆ 5.2 |
| Audio | RealtekÆ ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA |
| 7.1-Channel High Definition Audio | |
| Supports S/PDIF output | |
| Supports up to 32-Bit/384 kHz playback on front panel | |
| Multi GPU | Supports NVIDIAÆ SLIô Technology |
| Supports AMD MULTI-GPU | |
| Storage | 4 x M.2 slot |
| 8 x SATA 6G port | |
| Raid | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices |
| Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices | |

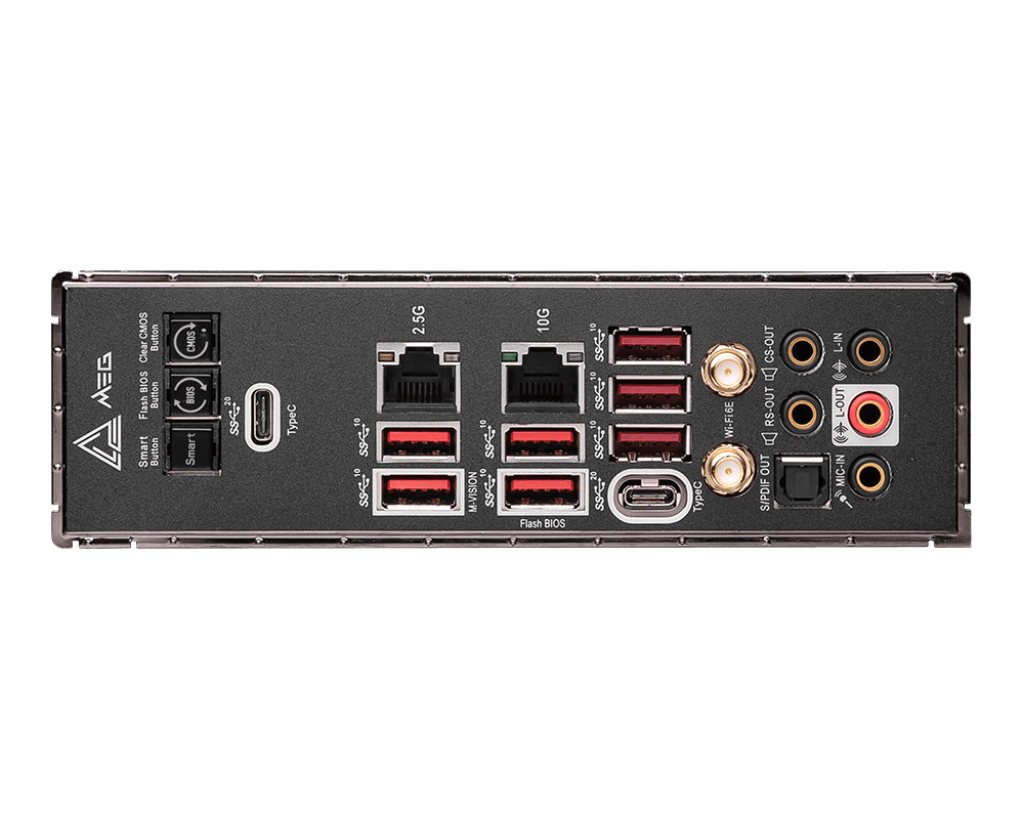

| I/O (Rear) | Clear CMOS Button |
| Flash BIOS Button | |
| 2.5G LAN | |
| 10G Super LAN | |
| USB 3.2 Gen 2 10Gbps (Type-A) | |
| Wi-Fi / Bluetooth | |
| HD Audio Connectors | |
| Smart Button | |
| USB 3.2 Gen 2◊2 20Gbps (Type-C) | |
| USB 3.2 Gen 2 10Gbps (Type-A) | |
| USB 3.2 Gen 2 10Gbps (Type-A) | |
| USB 3.2 Gen 2◊2 20Gbps (Type-C) | |
| Optical S/PDIF-Out | |
| Expansion Slots | 3x PCI-E x16 slot |
| Supports x16/x0/x4, x8/x8/x4 | |
| PCI_E1 PCIe 5.0 supports up to x16 (From CPU) | |
| PCI_E2 PCIe 5.0 supports up to x8 (From CPU) | |
| PCI_E3 PCIe 5.0 supports up to x4 (From CPU) | |
| USB (Front) | 4 x USB 2.0 ports |
| 4 x USB 3.2 Gen1 Type A ports | |
| 1 x USB 3.2 Gen2x2 Type C ports | |
| 1 x USB 3.2 Gen2 Type C ports | |
| USB (Rear) | 7 x USB 3.2 Gen2 Type A ports |
| 2 x USB 3.2 Gen2x2 Type C ports | |
| Internal Connectors | 1 x Power Connector(ATX_PWR) |
| 2 x Power Connector(CPU_PWR) | |
| 1 x Power Connector(PCIE_PWR 4pin or 6 pin) | |
| 1 x Front Type-C Quick Charge Connector(PD_PWR1) | |
| 1 x CPU Fan | |
| 2 x Pump Fan | |
| 6 x System Fan | |
| 2 x Front Panel (JFP) | |
| 1 x Chassis Intrusion (JCI) | |
| 1 x Water Flow connector | |
| 1 x Front Audio (JAUD) | |
| 2 x Thermal Sensor connectors(T_SEN) | |
| 1 x Tuning Controller connector(JDASH) | |
| 3 x Addressable V2 RGB LED connector (JARGB_V2) | |
| 1 x RGB LED connector(JRGB) | |
| 4 x USB 2.0 ports | |
| 4 x USB 3.2 Gen1 Type A ports | |
| 1 x USB 3.2 Gen2 Type C ports | |
| V-check point | |
| Dimensions | 11.33? x 12.00? |
| Warranty | 3 Years |
