Description
About this item

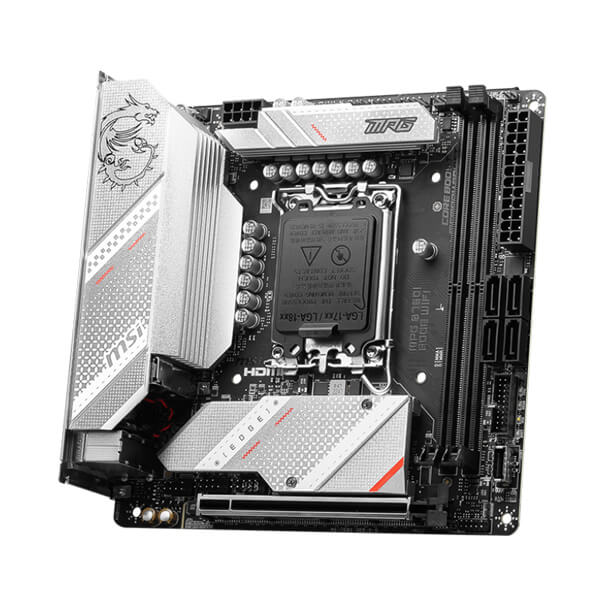

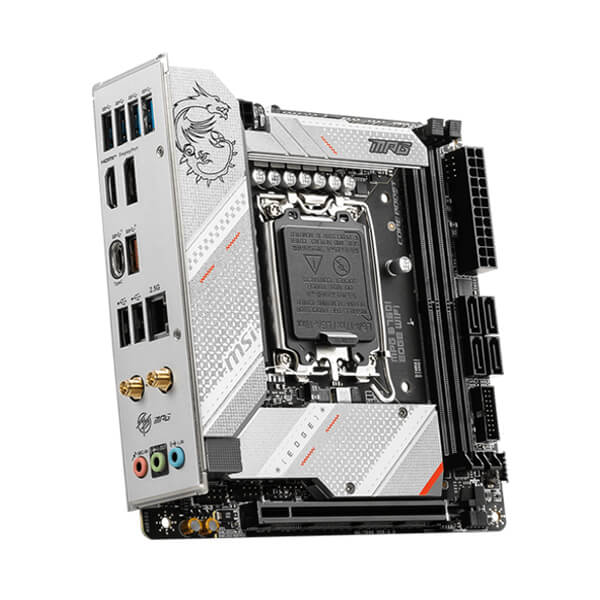

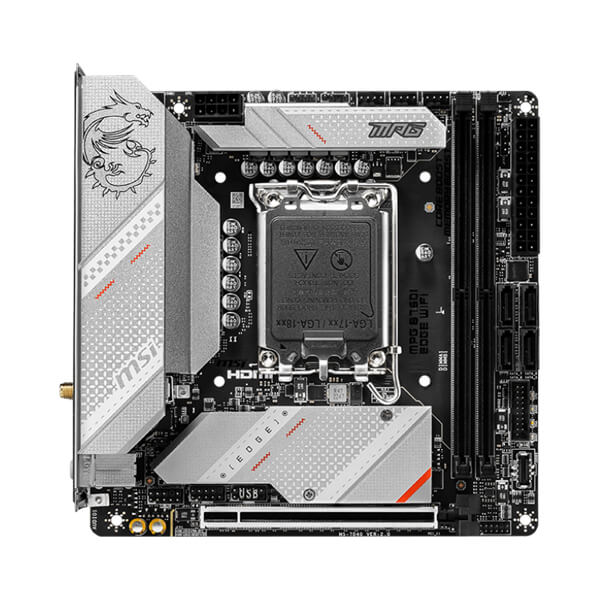

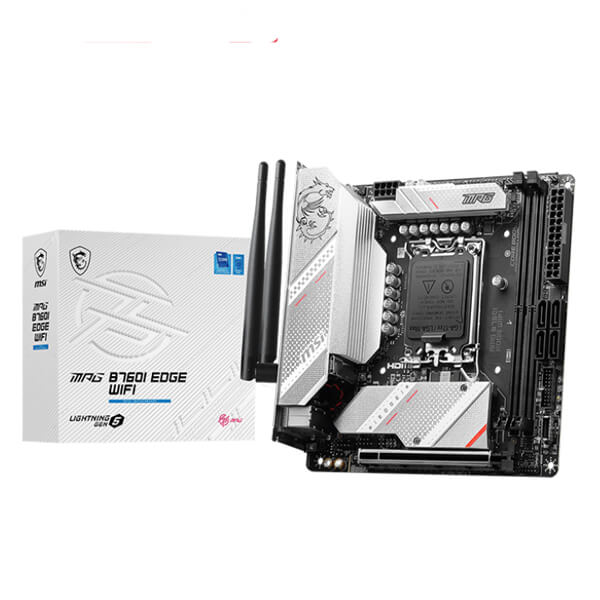

- 12TH & 13TH GEN CORE, HIGH PERFORMANCE - The MPG B760I EDGE WIFI (Mini-ITX) employs an 8+1+1 Direct (90A, DrMOS) VRM for the Intel B760 chipset (LGA 1700, 12th & 13th Gen Core) with Core Boost architecture for high CPU core count power demands
- DDR5 MEMORY, PCIe 5.0 x16 SLOT - 2 x DDR5 DIMM slots with Memory Boost isolated circuitry for overclocking (1DPC 1R, 7200+ MHz); Primary PCIe x16 slot supports PCIe 5.0 (128Gbps) and includes Steel Armor
- DUAL M.2 CONNECTORS - Storage options include 2 x M.2 Gen4 x4 64Gbps slots, the primary slot with Shield Frozr to prevent thermal throttling during hyper-fast SSD access
- WI-FI 6E CONNECTIVITY - Network hardware includes an Intel Wi-Fi 6E module with Bluetooth 5.3 & 2.5Gbps LAN; Rear ports include USB 3.2 Gen 2 Type-C (10Gbps), HDMI 2.1 & DisplayPort 1.4, and 7.1 HD Audio with Audio Boost
Technical Details
| Platform | INTEL |
| Socket | LGA1700 |
| Cpu Type | 14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors |
| Chipset | B760 |
| Memory Speed | up to 7200+ |
| Max Memory Support | 128 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
| Graphics Port | 1x HDMI, 1x DisplayPort |
| Expansion Slots | 1x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) |
| Wireless Networking | WiFi 6E,Bluetooth 5.3 |

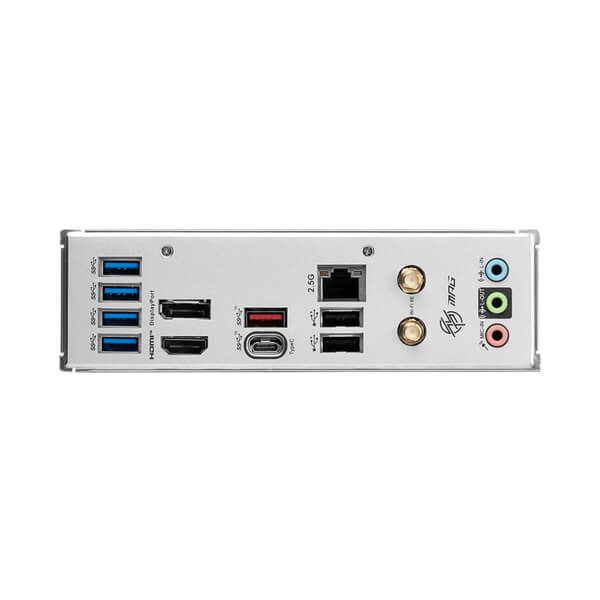

| Back Panel I/O Ports | USB 5Gbps Display Port USB 10Gbps 2.5G LAN Audio Connectors HDMI USB 10Gbps (Type-C) USB 2.0 Wi-Fi / Bluetooth |
| Internal I/O Connector | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 2x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| Form Factor | Mini-ITX |
| Warranty | 3 Years |
