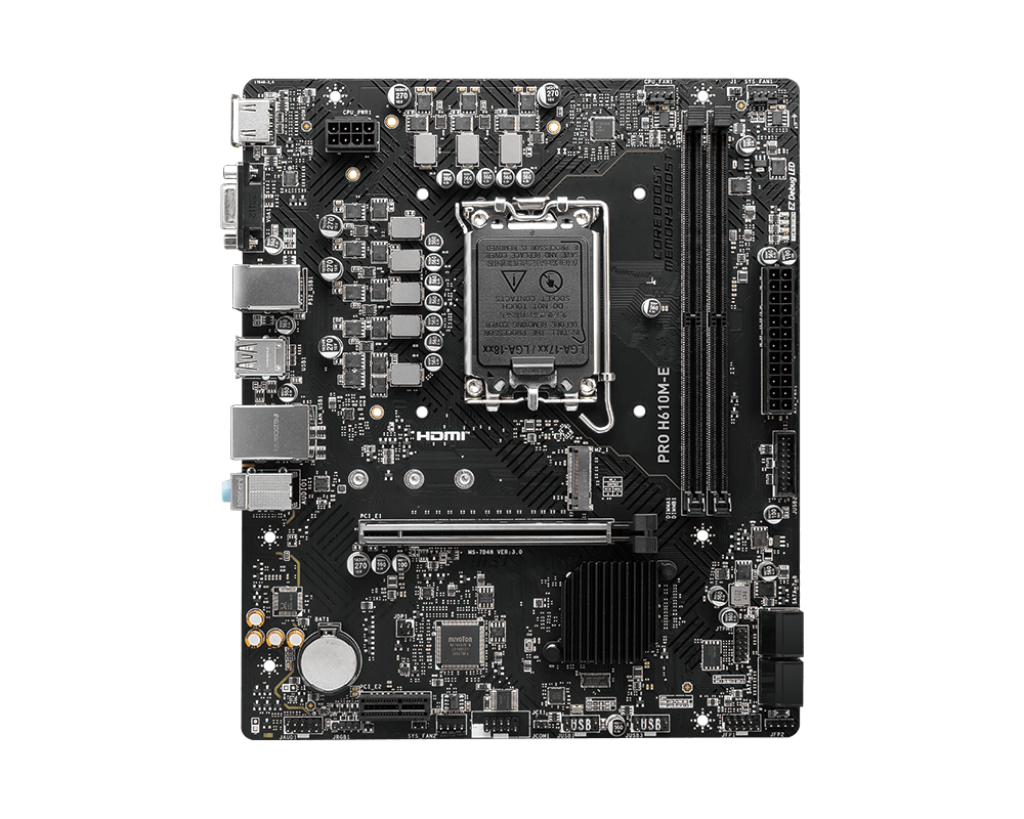

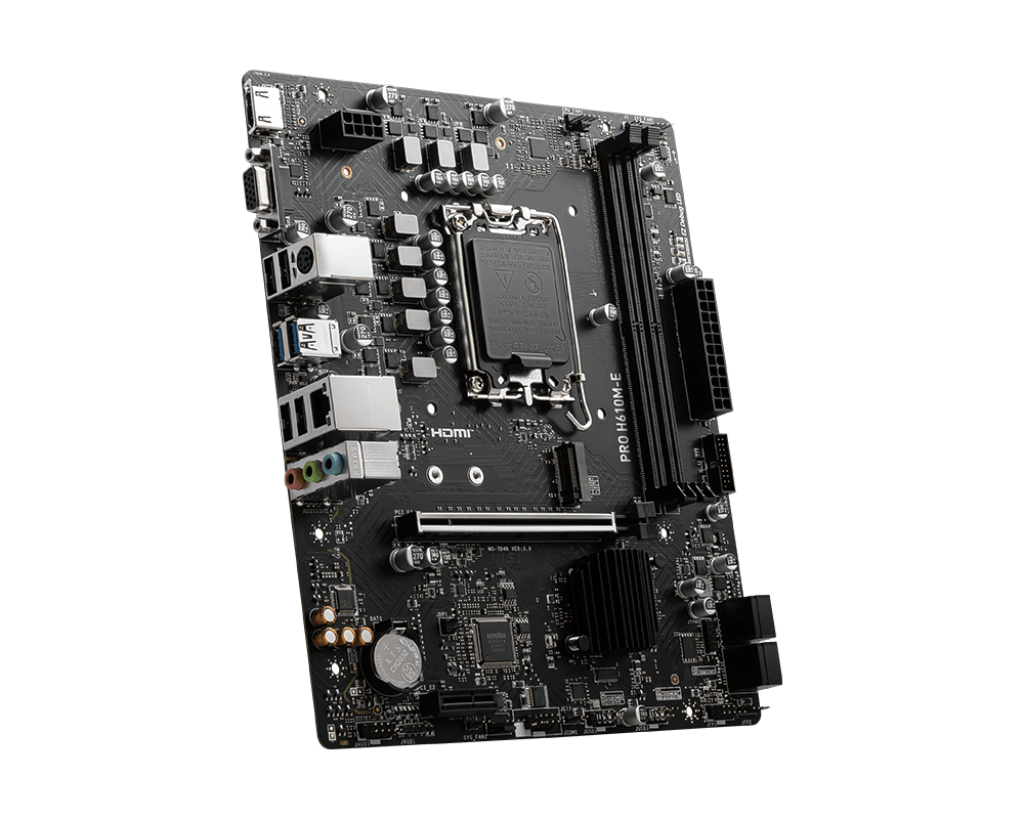

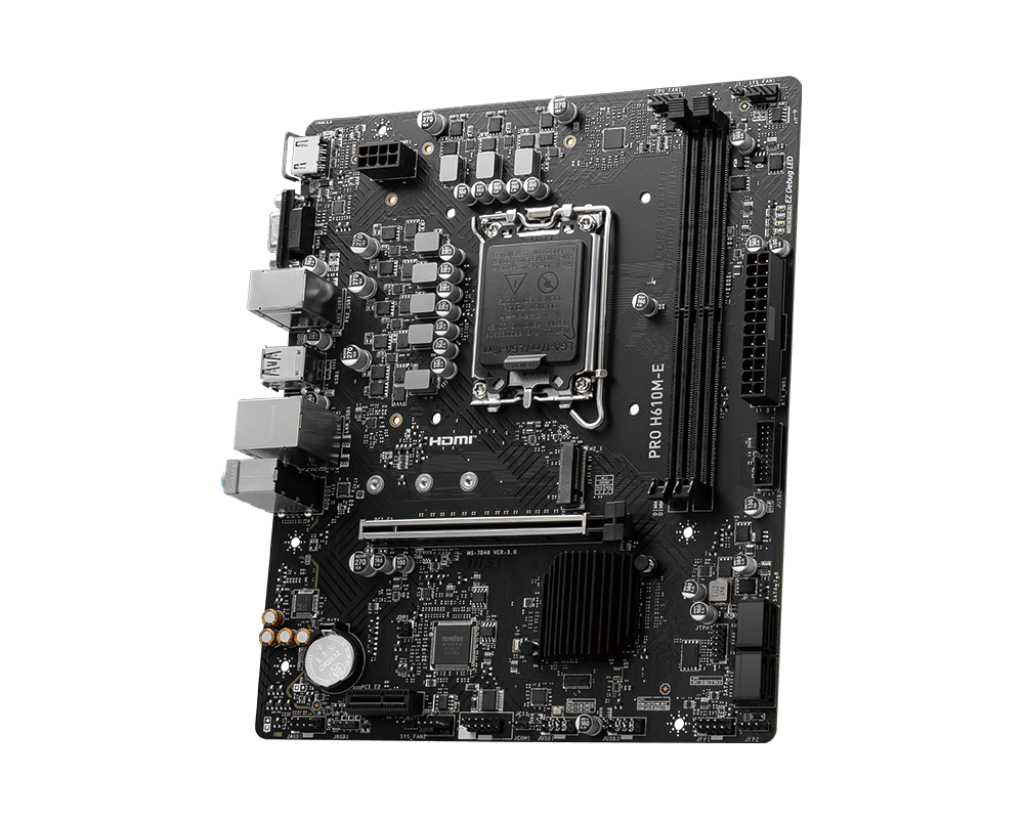

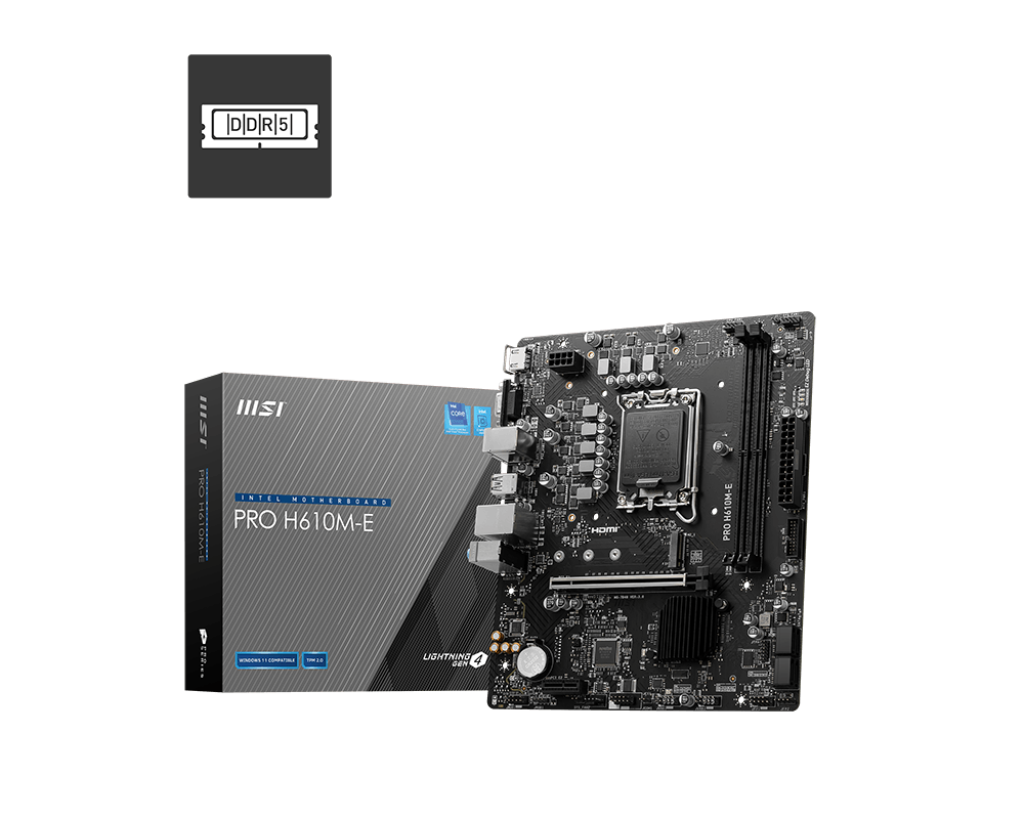

Description
| Processor | Supports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors |
| Processor socket LGA1700 | |
| Chipset | Intel H610 Chipset |
| Memory | 2x DDR4 memory slots, support up to 64GB |
| Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR) | |
| Supports Dual-Channel mode | |
| Supports non-ECC, un-buffered memory | |
| Expansion Slot | 1x PCIe x16 slot (From CPU) |
| Supports up to PCIe 4.0 x16 | |
| 1x PCIe x1 slot (From H610 chipset) | |
| Supports PCIe 3.0 x1 | |
| Onboard Graphics | 1x HDMI 1.4 with HDR port, supporting a maximum resolution of 4K 30Hz 1 / 2 |
| 1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz 1 / 2 | |
| Available only on processors featuring integrated graphics. | |
| Graphics specifications may vary depending on the CPU installed. | |
| SATA Ports | 4x SATA 6Gb/s ports (From H610 chipset) |
| M.2 SSD Slot | 1x M.2 slot (Key M) (from CPU) |
| Supports up to PCIe 3.0 x4 | |
| Supports 2242/ 2260/ 2280 storage devices | |
| Audio | Realtek ALC897 Codec |
| 7.1-Channel High Definition Audio | |
| LAN | 1x Realtek RTL8111H 1Gbps LAN controller |
| Power Connectors | 1x 24-pin ATX main power connector |
| 1x 8-pin +12V power connector | |
| Internal USB Connectors | 1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset) |
| Supports additional 2 USB 3.2 Gen 1 5Gbps ports | |
| 2x USB 2.0 Type-A connectors (From Hub-GL850G) | |
| Supports additional 4 USB 2.0 ports | |
| Fan Connectors | 1x 4-pin CPU fan connector |
| 2x 4-pin system fan connectors | |
| System Connectors | 1x Front panel audio connector |
| 2x System panel connectors | |
| 1x Chassis Intrusion connector | |
| 1x TPM module connector | |
| 1x Serial port connector | |
| Jumpers | 1x Clear CMOS jumper |
| LED Features | 1x 4-pin RGB LED connector |
| 4x EZ Debug LED | |

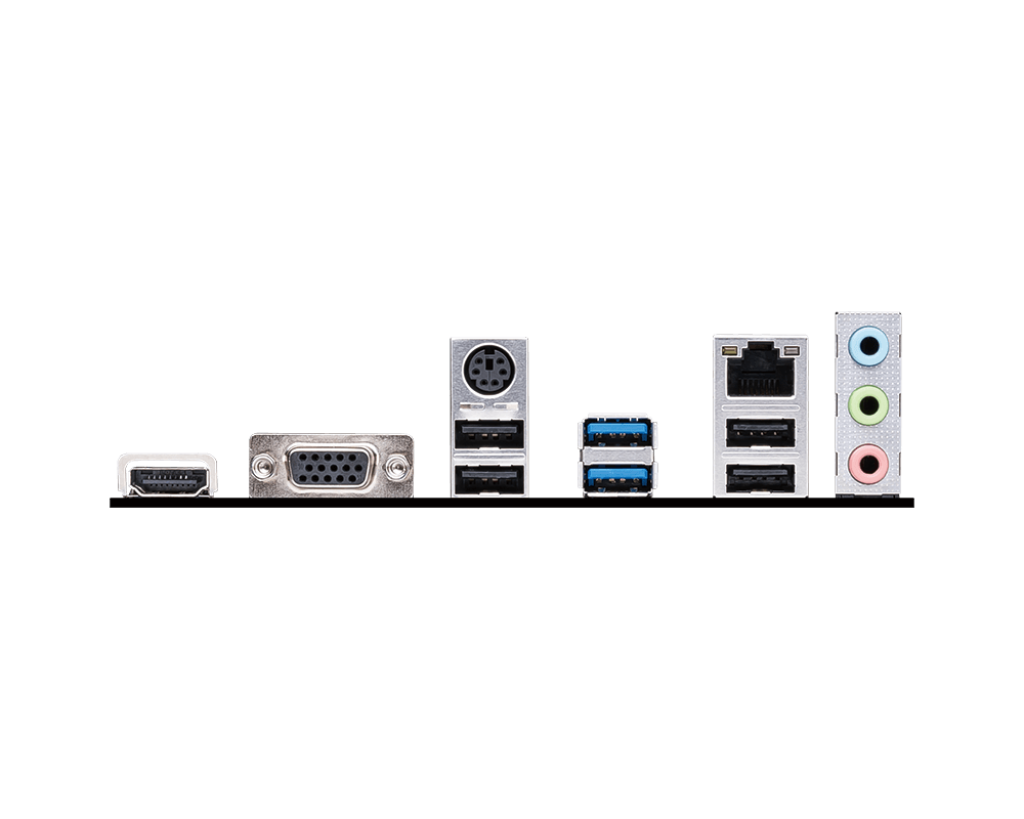

| Back panel ports | HDMI |
| VGA | |
| Keyboard / Mouse | |
| USB 3.2 Gen 1 5Gbps Type-A | |
| LAN port | |
| Audio connector | |
| USB 2.0 | |
| Dimensions | M-ATX Form Factor |
| 9.3 in. x 7.9 in. (23.6 cm x 20 cm) | |
| Warranty | 3 Years |
