Description
| Chipset | INTEL Z790 |
| CPU SUPPORT | Supports 12th/13th Gen IntelÆ Coreô Processors, PentiumÆ Gold and CeleronÆ Processors |
| LGA 1700 | |
| Memory | 4x DDR5, Maximum Memory Capacity 128GB |
| Memory Support 7000+(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(JEDEC)/5400(JEDEC)/5200(JEDEC)/5000(JEDEC)/4800(JEDEC) MHz | |
| Max. overclocking frequency: | |
| ï 1DPC 1R Max speed up to 7000+ MHz | |
| ï 1DPC 2R Max speed up to 6600+ MHz | |
| ï 2DPC 1R Max speed up to 6400+ MHz | |
| ï 2DPC 2R Max speed up to 5600+ MHz | |
| Supports IntelÆ XMP3.0 OC | |
| Supports Dual-Controller Dual-Channel mode | |
| Supports non-ECC, un-buffered memory | |
| Onboard Graphics | 1x HDMIô |
| 1x DisplayPort | |
| Support HDMIô 2.1 with HDR, maximum resolution of 4K 60Hz | |
| Support DP 1.4, maximum resolution of 4K 60Hz | |
| EXPANSION SLOT | 3x PCI-E x16 slot |
| 1x PCI-E x1 slot | |
| PCI_E1 PCIe 5.0 supports up to x16 (From CPU) | |
| PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) | |
| PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) | |
| PCI_E4 PCIe 3.0 supports up to x1 (From Chipset) | |
| Storage | 4x M.2 slot |
| M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices | |
| M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices | |
| M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices | |
| M.2_4 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices | |
| 6x SATA 6G port | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices | |
| USB | 4x USB 2.0 (Rear) |
| 4x USB 2.0 (Front) | |
| 2x USB 3.2 Gen1 Type A (Rear) | |
| 4x USB 3.2 Gen1 Type A (Front) | |
| 1x USB 3.2 Gen2 Type A (Rear) | |
| 1x USB 3.2 Gen2 Type C (Front) | |
| 1x USB 3.2 Gen2x2 Type C (Rear) | |
| LAN | IntelÆ 2.5Gbps LAN |
| WIRELESS / BLUETOOTH | IntelÆ Wi-Fi 6E |
| The Wireless module is pre-installed in the M.2 (Key-E) slot | |
| Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps | |
| Supports 802.11 a/ b/ g/ n/ ac/ ax | |
| Supports BluetoothÆ 5.3, FIPS, FISMA | |
| Audio | RealtekÆ ALC897 Codec |
| 7.1-Channel High Definition Audio | |
| Internal I/O | 1x Power Connector(ATX_PWR) |
| 2x Power Connector(CPU_PWR) | |
| 1x CPU Fan | |
| 1x Pump Fan | |
| 6x System Fan | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Front Audio (JAUD) | |
| 1x TBT connector (JTBT, supports RTD3) | |
| 1x Tuning Controller connector(JDASH) | |
| 2x Addressable V2 RGB LED connector (JARGB_V2) | |
| 1x RGB LED connector(JRGB) | |
| 1x TPM pin header(Support TPM 2.0) | |
| 4x USB 2.0 | |
| 4x USB 3.2 Gen1 Type A | |
| 1x USB 3.2 Gen2 Type C | |
| LED FEATURE | 4x EZ Debug LED |

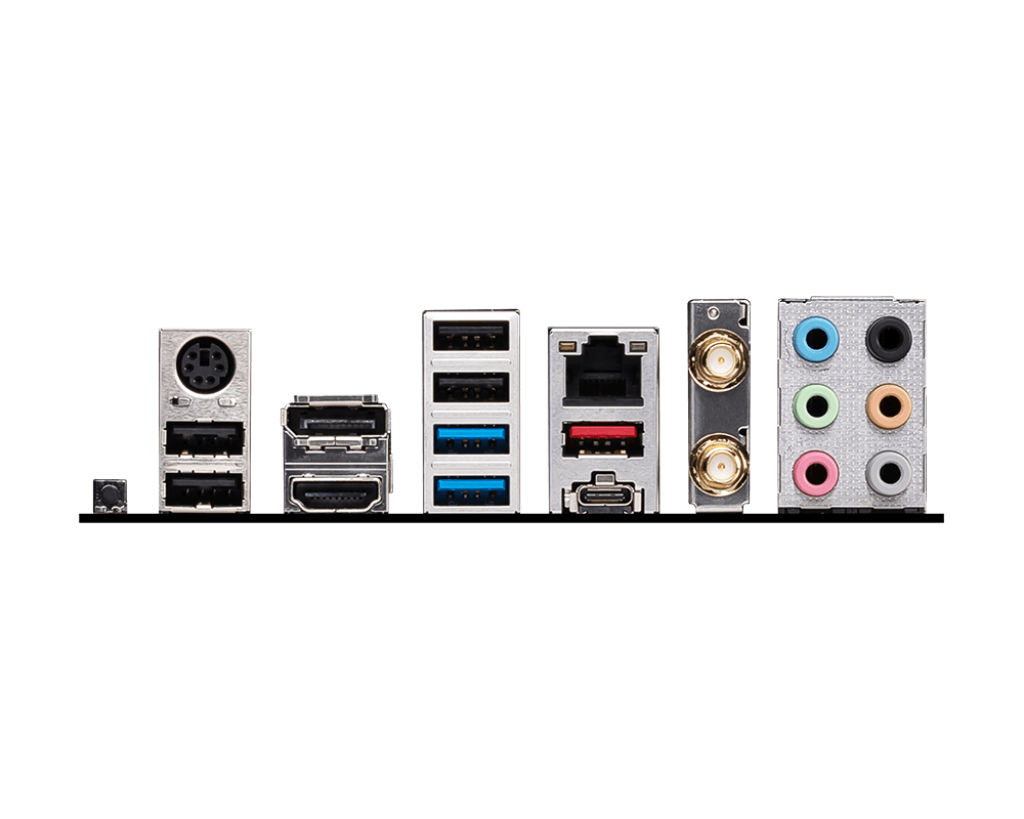

| BACK PANEL PORTS | Keyboard / Mouse |
| DisplayPort | |
| USB 2.0 | |
| 2.5G LAN | |
| Wi-Fi / Bluetooth | |
| Audio Connectors | |
| Flash BIOS Button | |
| USB 2.0 | |
| HDMIô | |
| USB 3.2 Gen 1 5Gbps (Type-A) | |
| USB 3.2 Gen 2x2 20Gbps (Type-C) | |
| USB 3.2 Gen 2 10Gbps (Type-A) | |
| OPERATING SYSTEM | Support for WindowsÆ 11 64-bit, WindowsÆ 10 64-bit |
| PCB Dimension | ATX |
| 243.84mmx304.8mm | |
| Warranty | 3 Years |
