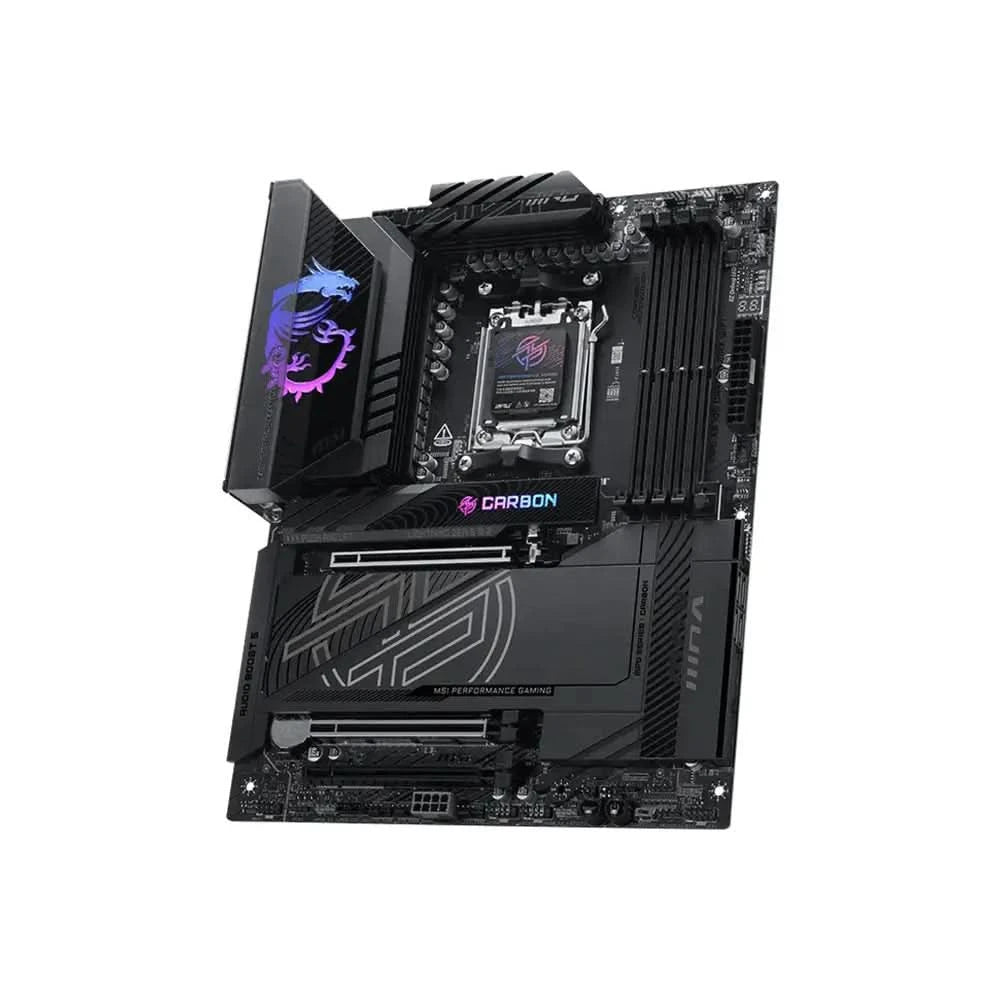

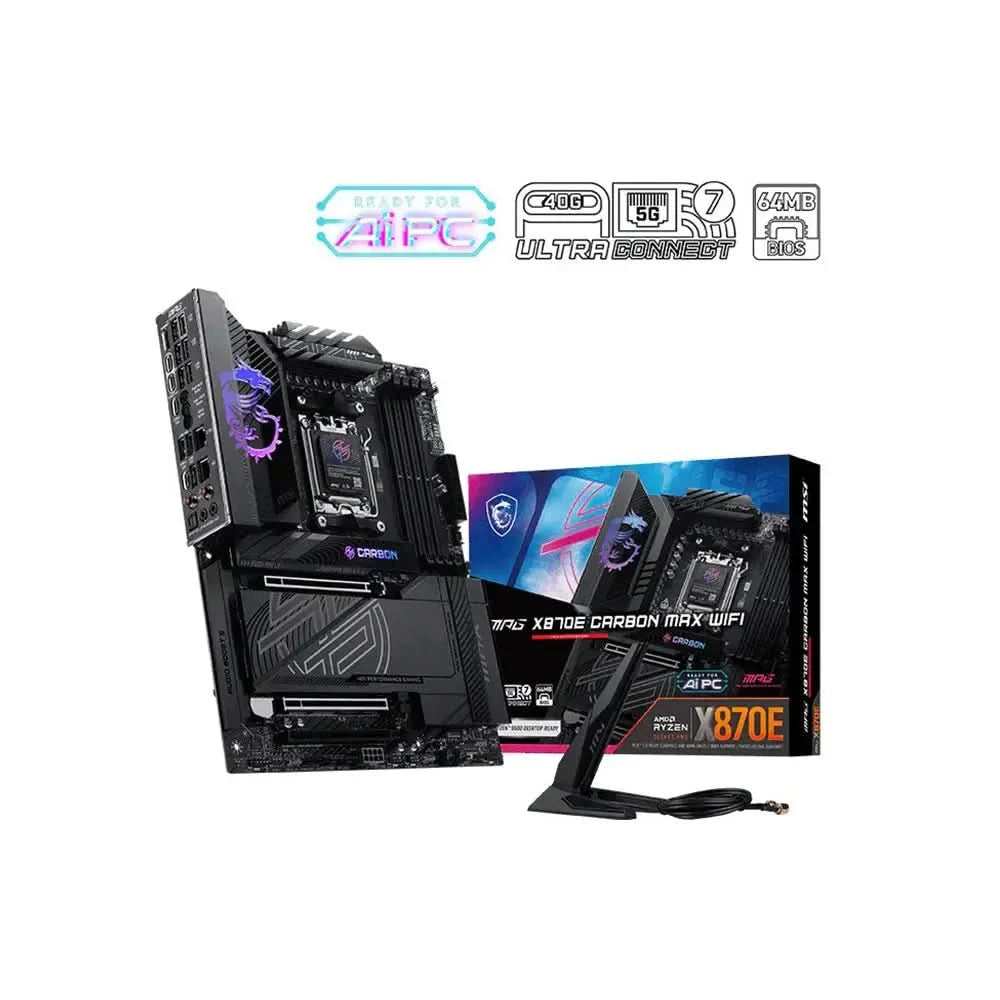

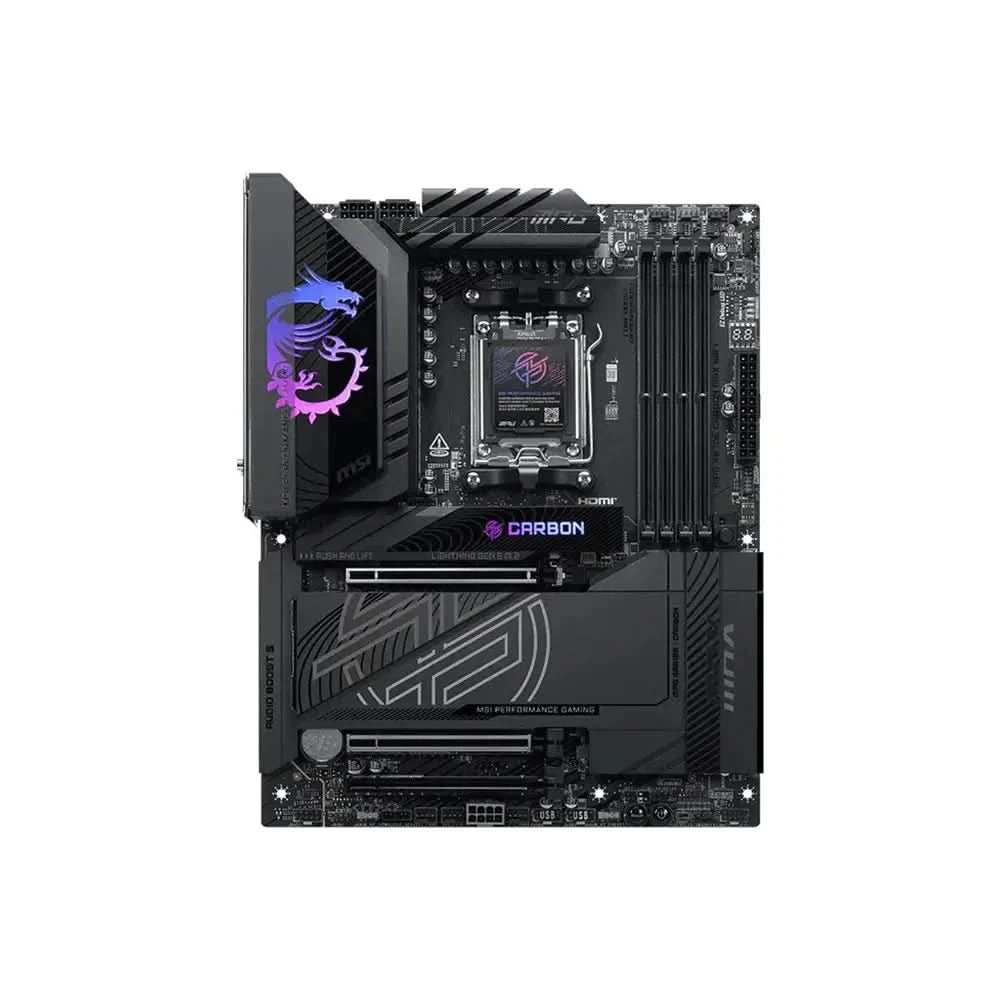

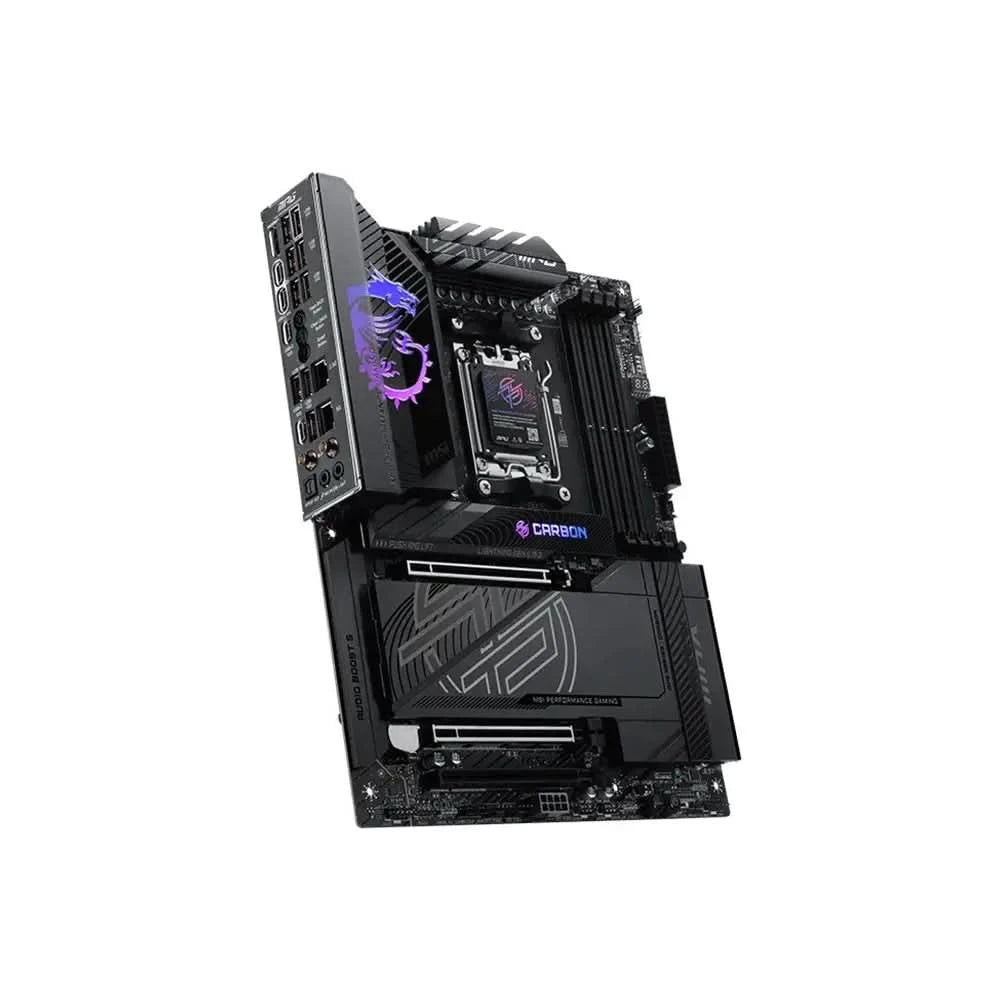

MPG X870E CARBON MAX WIFI
Guaranteed safe & Secure checkout
Checking availability...
Location Restricted This product is only available for orders within Hyderabad.
Description
Feature
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
- MSI Ultra Performance: 18+2+1 Duet Rail Power System, OC Engine, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- EZ DIY: 64MB BIOS ROM, EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2
- Ultra Connect: USB4 and 5G LAN + 2.5G LAN with Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
| Chipset | AMD X870E |
| CPU Support | Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors |
| CPU Socket | Socket AM5 |
| Memory Slots | 4 × DDR5 UDIMM |
| Maximum Memory Capacity | 256 GB |
| Memory Support | DDR5 9000–5600 MT/s (OC), 5600–4800 MT/s (JEDEC) |
| Ryzen™ 9000 Max OC Speeds | 1DPC 1R: 8400+ MT/s, 1DPC 2R: 6400+ MT/s, 2DPC 1R: 6400+ MT/s, 2DPC 2R: 6400+ MT/s |
| Memory Features | AMD EXPO™, AMD POR Speed, JEDEC Speed, Dual-Channel Mode, Non-ECC Un-buffered Memory, CUDIMM Support |
| DIMM Latch Design | Single-Sided Latches |
| Onboard Graphics | 1 × HDMI™ 2.1 FRL (Up to 8K@60Hz), 2 × USB4® Type-C with DisplayPort 1.4 HBR3 (Up to 4K@60Hz) |
| Expansion Slots | 3 × PCIe x16 Slots |
| PCI_E1 | PCIe 5.0 x16 (From CPU) |
| PCI_E2 | PCIe 5.0 x8 (From CPU) |
| PCI_E3 | PCIe 4.0 x4 |
| PCIe Lane Configuration | PCI_E1 & PCI_E2 support PCIe 5.0 x16/x0 or x8/x4 on Ryzen™ 9000/7000 CPUs |
| Audio | Realtek® ALC4080 Codec, 7.1-Channel USB High-Performance Audio, 32-Bit/384 kHz Playback, Optical S/PDIF Out |
| M.2 Slots | 4 × M.2 |
| M.2_1 | PCIe 5.0 x4, Supports 2280/2260 |
| M.2_2 | PCIe 5.0 x4, Supports 2280/2260 |
| M.2_3 | PCIe 4.0 x4, Supports 2280/2260 |
| M.2_4 | PCIe 4.0 x4, Supports 2280/2260 |
| SATA Ports | 4 × SATA 6G |
| RAID Support | RAID 0 / 1 / 10 for SATA, RAID 0 / 1 / 5 / 10 for NVMe |
| Front USB Ports | 4 × USB 2.0, 4 × USB 5Gbps Type-A, 1 × USB 20Gbps Type-C |
| Rear USB Ports | 9 × USB 10Gbps Type-A, 2 × USB 10Gbps Type-C, 2 × USB 40Gbps Type-C |
| LAN | 1 × Realtek® 8126 5G LAN, 1 × Realtek® 8125 2.5G LAN |
| Wireless Connectivity | Wi-Fi 7, Bluetooth® 5.4 |
| Wireless Features | MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz, Up to 5.8Gbps, 802.11 a/b/g/n/ac/ax/be, MLO, 4KQAM |
| Internal I/O Connectors | ATX Power, 2 × CPU Power, PCIe Power 8-Pin, CPU Fan, Pump/System Fan, 5 × System Fan, EZ Conn Header, Front Panel Headers, Chassis Intrusion, Front Audio, Thermal Sensor, 3 × ARGB Gen2 Headers, RGB Header, TPM Header, USB Headers |
| LED Features | 4 × EZ Debug LED, 1 × EZ Digit Debug LED |

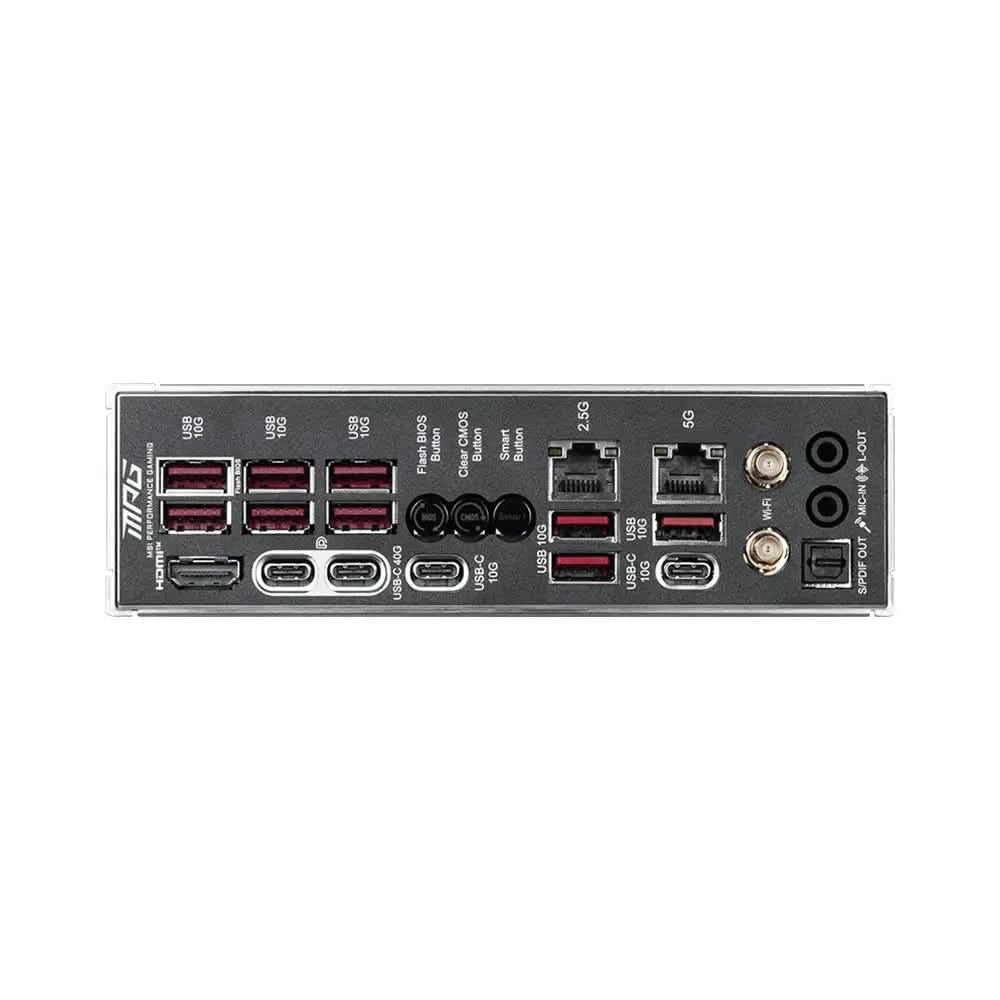

| Back Panel Ports | USB 10Gbps Type-A, USB 10Gbps Type-C, USB 40Gbps Type-C, HDMI™, 2.5G LAN, 5G LAN, Wi-Fi/Bluetooth Antenna Ports, Audio Connectors, Optical S/PDIF Out, Flash BIOS Button, Clear CMOS Button, Smart Button |
| Operating System Support | Windows® 11 64-bit |
| PCB Form Factor | ATX |
| PCB Dimensions | 243.84 × 304.8 mm |
