SPECIFICATIONS

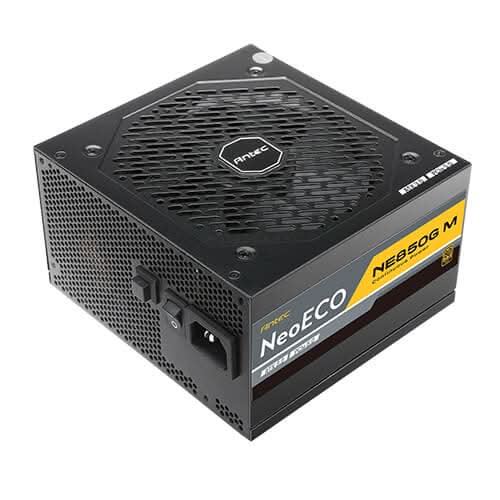

| Model | NE850G M ATX3.0 |
| Type | ATX 12V 3.0 |
| Dimension | 140(L)*150(W)*86(H) |
| Modular | Full-Modular |
| Warranty | 10 years |
| Input Voltage | 100V-240V |
| Input Current | 10A-5A |
| Input Frequency Range | 60Hz-50Hz |
| PFC | Active PFC |
| Power Good Signal | 100-150ms |
| Protection | OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO |
| Output Capacity | 850W |
| Operation Temperature | 0~40°C |
| Regulatory | cTUVus / TUV / CB / RCM / CE / FCC / BIS / BSMI / KC / UKCA / ICES |
| Fan | 120mm FDB Silent Fan |
| Certifications | 80 Plus Gold |
| Connector | 1 x 24(20+4)pin MB |
| 1 x 16(12+4)pin PCIE 5.0 12VHPWR | |
| 2 x 8(4+4)pin CPU | |
| 4 x 8(6+2) Pin PCI-E | |
| 12 x SATA | |
| 4 x Molex | |
| Net Weight | 1.6 Kgs |
| Gross Weight | 4.62 Kgs |
| UPC# | 0-761345-11386-1 NE850G M ATX3.0 0-761345-11387-8 NE850G M ATX3.0 AU 0-761345-11388-5 NE850G M ATX3.0 EC 0-761345-11389-2 NE850G M ATX3.0 GB 0-761345-11390-8 NE850G M ATX3.0 JP |
