Description

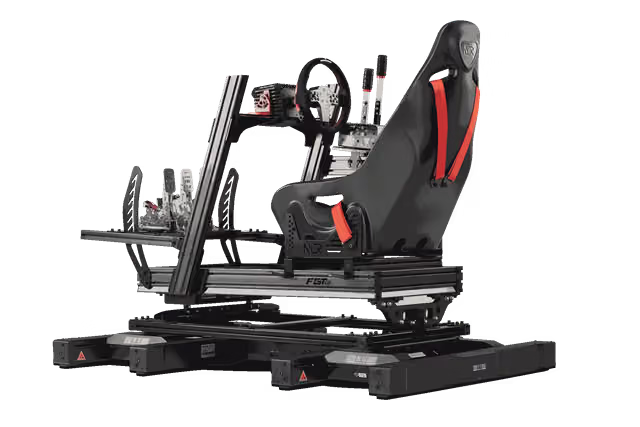

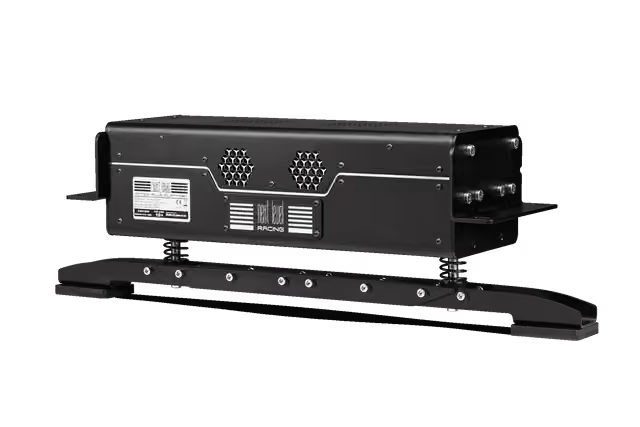

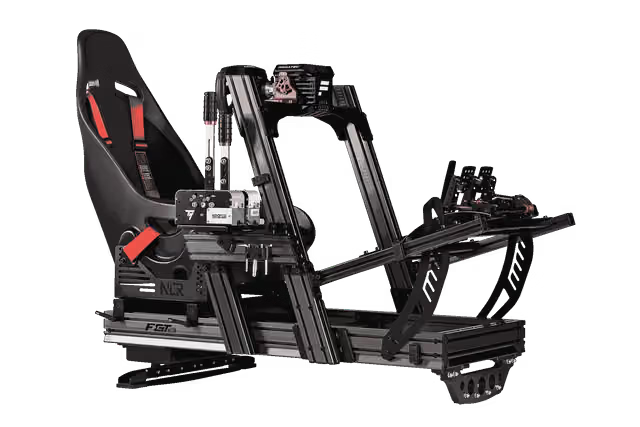

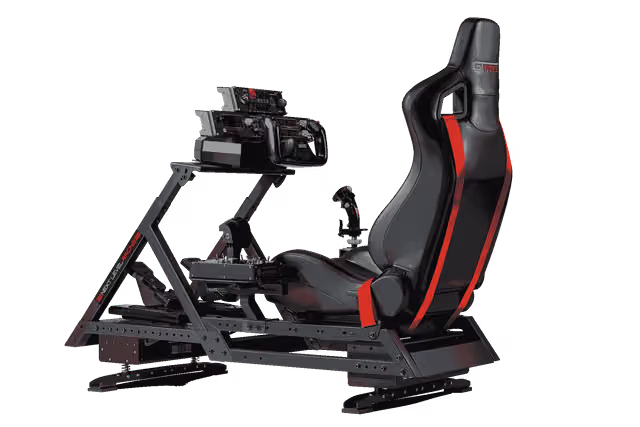

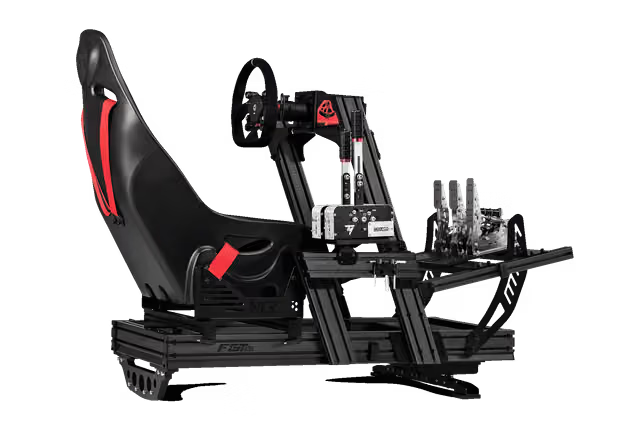

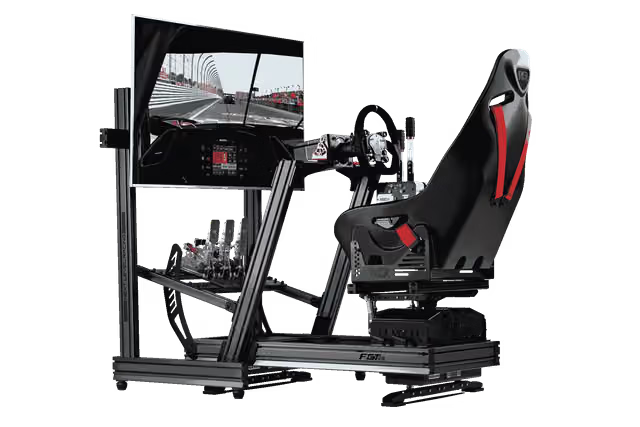

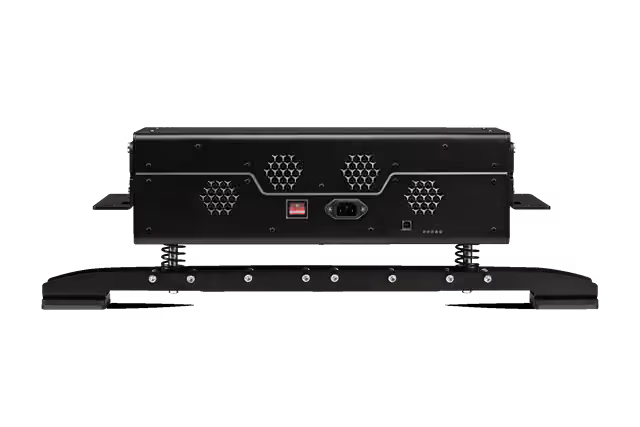

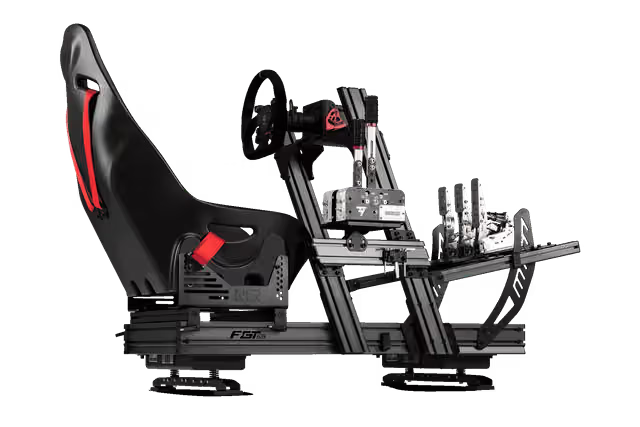

The Next Level Racing Motion Plus Platform NLR-M007 is a high-performance motion platform designed to bring realistic chassis movement to racing and flight simulation setups. It delivers pitch, roll and partial heave motion, translating telemetry from supported games into precise physical movement to simulate effects such as braking, acceleration, cornering, bumps, gear shifts and road vibrations.
A single Motion Plus Platform provides 2-DOF chassis motion, while adding a second unit enables 3-DOF chassis motion with full heave. The platform can also be combined with the Motion Platform V3 or Traction Plus Platform to build a larger Next Level Racing motion ecosystem. Its integrated pivot bar enables single-unit configurations, while the Platform Manager software provides adjustable motion effects and support for major PC racing and flight simulation titles.
Specifications
| Brand | Next Level Racing |
| Product | Motion Plus Platform |
| Model | NLR-M007 |
| Product Type | Motion Simulator Platform |
| Primary Application | Sim Racing and Flight Simulation |
| Motion Type | Chassis Motion |
| Single Unit DOF | 2-DOF |
| Motion Axes | Pitch and Roll with Partial Heave |
| Dual Unit DOF | 3-DOF with Full Heave |
| Maximum Payload | 250 kg, 550 lb |
| Maximum Acceleration | Up to 1100 mm/s² |
| Roll Velocity | Up to 21°/second |
| Braking and Acceleration Effects | Up to 8°/second |
| Motion Processing | Up to 4000 microprocesses per second |
| Technology | Magnetic Encoder Feedback |

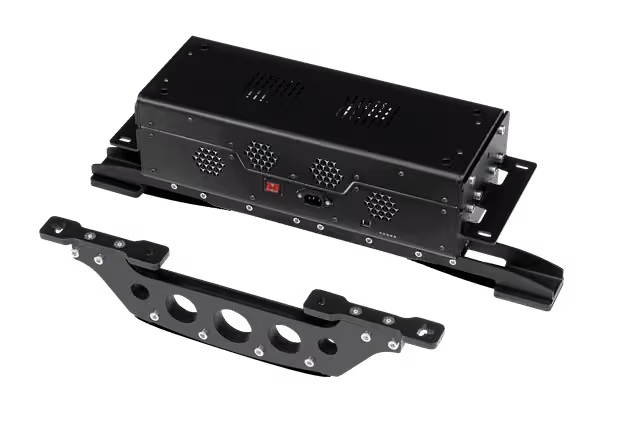

| Pivot Bar | Included |
| Software | Next Level Racing Platform Manager |
| VR Support | Yes, with VR Headway 2.0 |
| Power Supply | 4A, 115VAC, 60Hz or 2A, 230VAC, 50Hz |
| Power Supply Rating | 321W |
| Product Dimensions | 70 × 18.2 × 20 cm |
| Product Weight | 21.7 kg including Pivot Bar |
| Box Dimensions | 51.5 × 22.3 × 32 cm |
| Boxed Weight | 28 kg |
| Operating Temperature | 4°C to 45°C |
| Color | Black |
