Specifications:
| Specification | Details |
|---|---|
| Socket Compatibility | Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM4, AM5 |
| Height (without fan) | 160 mm |
| Width (without fan) | 150 mm |
| Depth (without fan) | 135 mm |
| Weight (without fan) | 980 g |
| Height (with fan) | 165 mm |
| Width (with fan) | 150 mm |
| Depth (with fan) | 161 mm |
| Weight (with fan) | 1320 g |
| Material | Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating |
| NSPR | 183 |
| Max. TDP | see NSPR |
| Fan Compatibility | 140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25 |

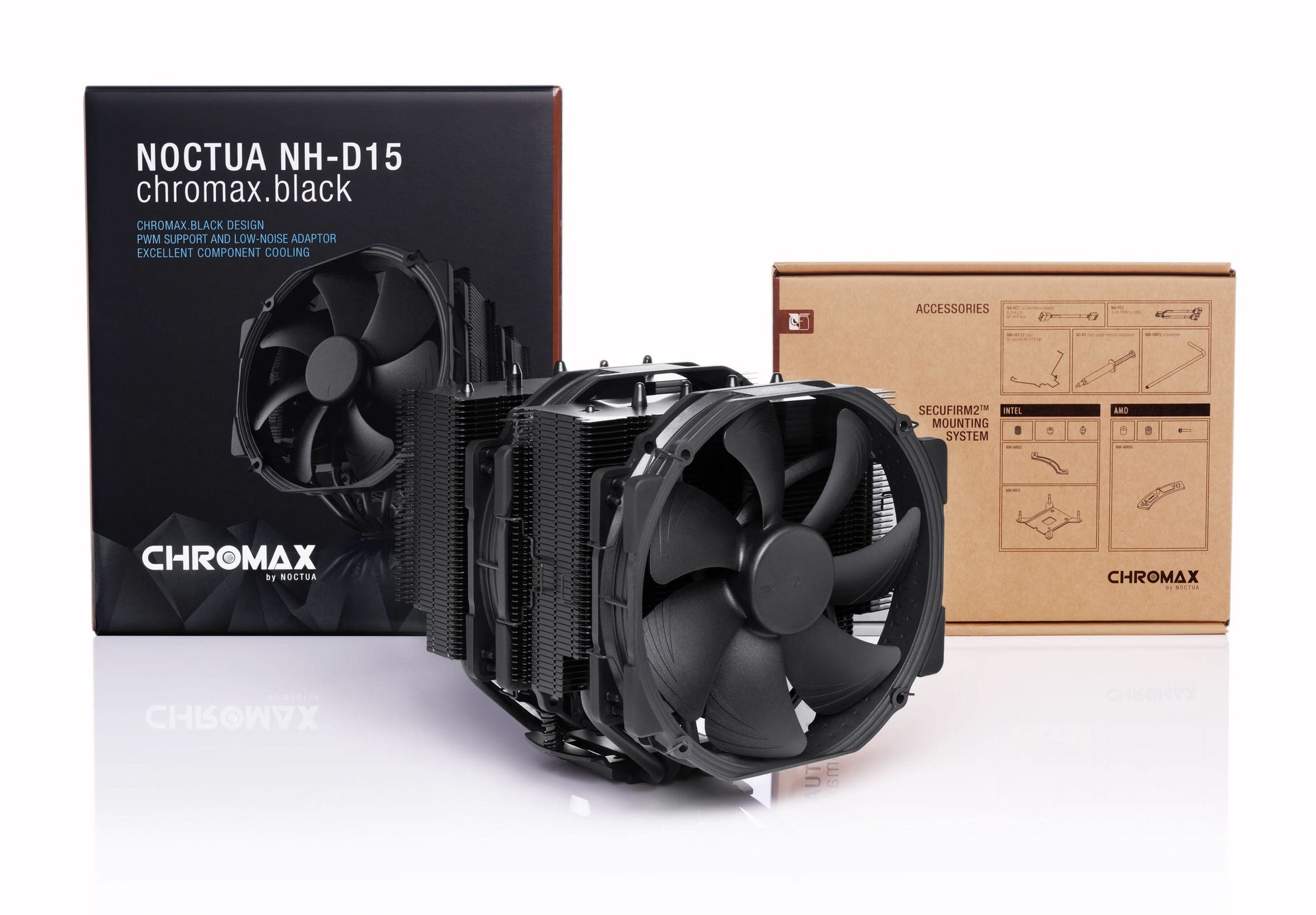

| Scope of Delivery | Black NH-D15 heatsink 2x NF-A15 HS-PWM chromax.black premium fan 2x NA-RC7 Low-Noise Adaptor (L.N.A.) NA-YC1 4-pin PWM splitter cable NT-H1 high-grade thermal compound Black SecuFirm2™ mounting kit Noctua Metal Case-Badge |
| Warranty | 6 Years |
| FAN Model | 2x Noctua NF-A15 HS-PWM chromax.black |
| Bearing | SSO2 |
| Max. Rotational Speed (+/- 10%) | 1500 RPM |
| Max. Rotational Speed with L.N.A. (+/- 10%) | 1200 RPM |
| Min. Rotational Speed @ 20% PWM (+/-20%) | 300 RPM |
| Max. Airflow | 140.2 m³/h |
| Max. Airflow with L.N.A. | 115.5 m³/h |
| Max. Acoustical Noise | 24.6 dB(A) |
| Max. Acoustical Noise with L.N.A. | 19.2 dB(A) |
| Voltage Range | 12 V |
| MTTF | > 150,000 h |
