Specifications:
| Specification | Details |
|---|---|
| Socket Compatibility | AMD sTRX4, sWRX8, TR4, SP3 |
| Height (without fan) | 158 mm |
| Width (without fan) | 125 mm |
| Depth (without fan) | 45 mm |
| Weight (without fan) | 695 g |
| Height (with fan) | 158 mm |
| Width (with fan) | 125 mm |
| Depth (with fan) | 71 mm |
| Weight (with fan) | 870 g |
| Material | Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating |
| NSPR | 129 |
| Max. TDP | see NSPR |
| Fan Compatibility | 120 x 120 x 25 mm |

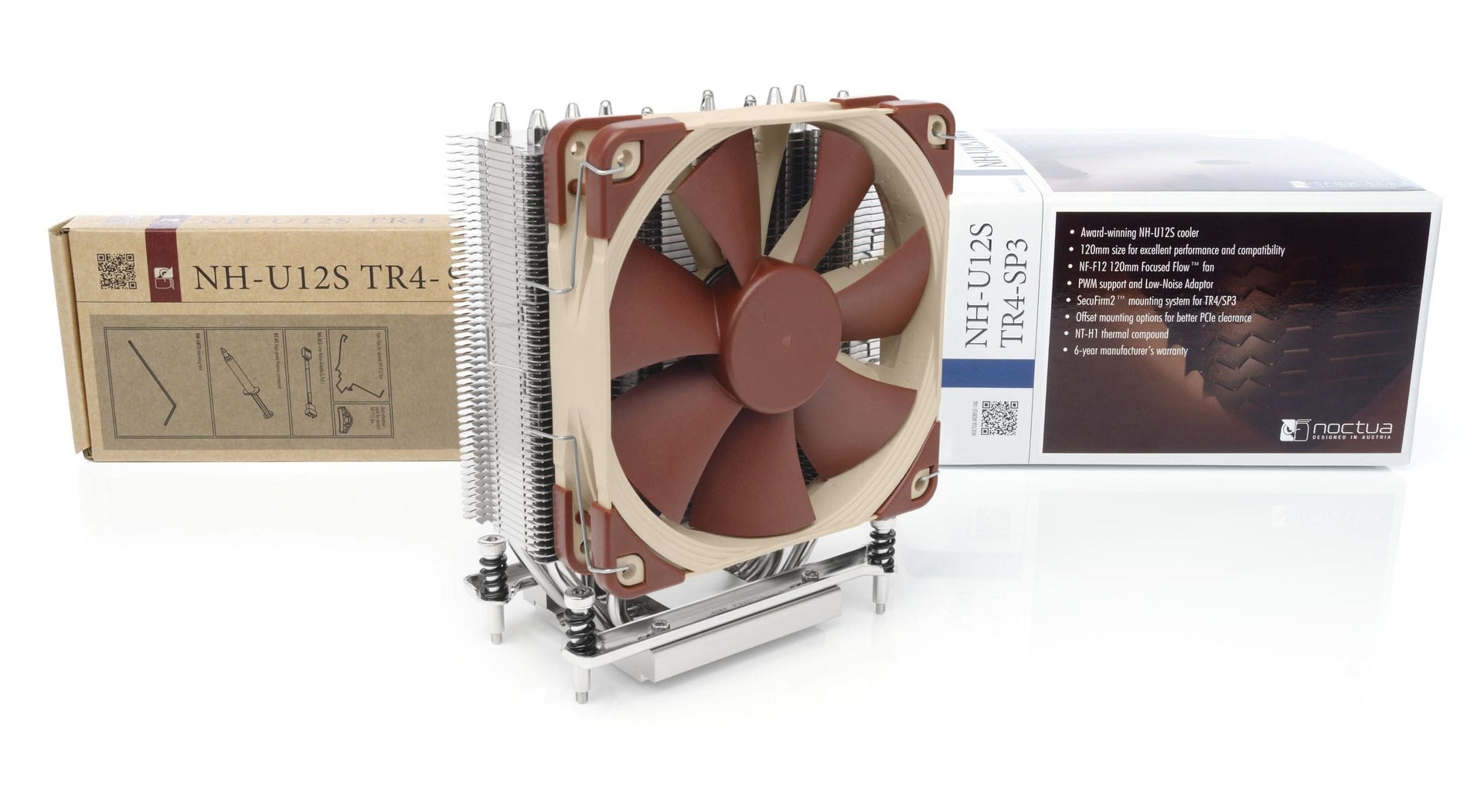

| Scope of Delivery | NF-F12 PWM premium fan Low-Noise Adaptor (L.N.A.) NT-H1 high-grade thermal compound SecuFirm2™ sTRX4/TR4/SP3 mounting-kit Anti-vibration pads and fan-clips for second NF-F12 Noctua metal case-badge |
| Warranty | 6 Years |
| FAN Model | Noctua NF-F12 PWM |
| Bearing | SSO2 |
| Max. Rotational Speed (+/- 10%) | 1500 RPM |
| Max. Rotational Speed with L.N.A. (+/- 10%) | 1200 RPM |
| Min. Rotational Speed @ 20% PWM (+/-20%) | 300 RPM |
| Max. Airflow | 93.4 m³/h |
| Max. Airflow with L.N.A. | 74.3 m³/h |
| Max. Acoustical Noise | 22.4 dB(A) |
| Max. Acoustical Noise with L.N.A. | 18.6 dB(A) |
| Input Power (max.) | 0.6 W |
| Voltage Range | 12 V |
| MTTF | > 150,000 h |
