Award-winning NH-U series

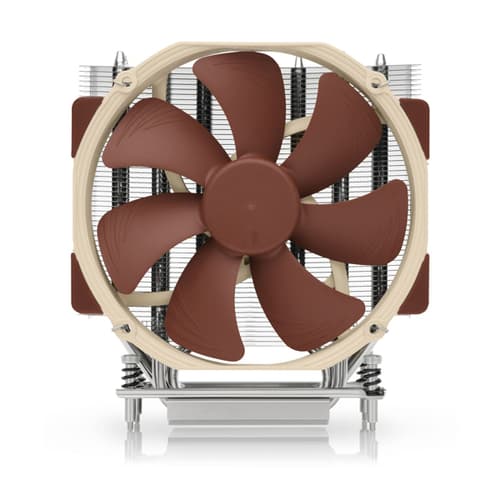

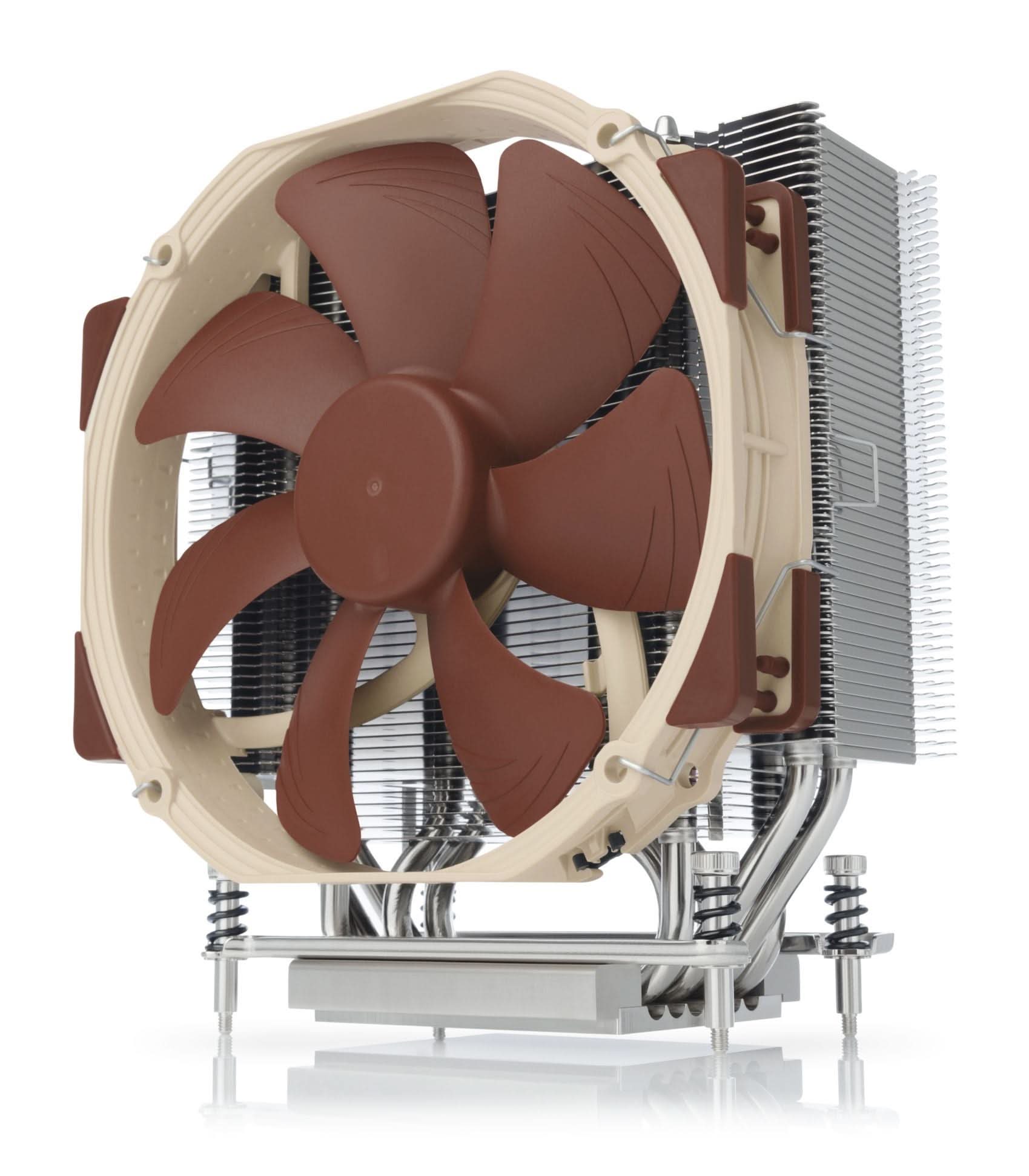

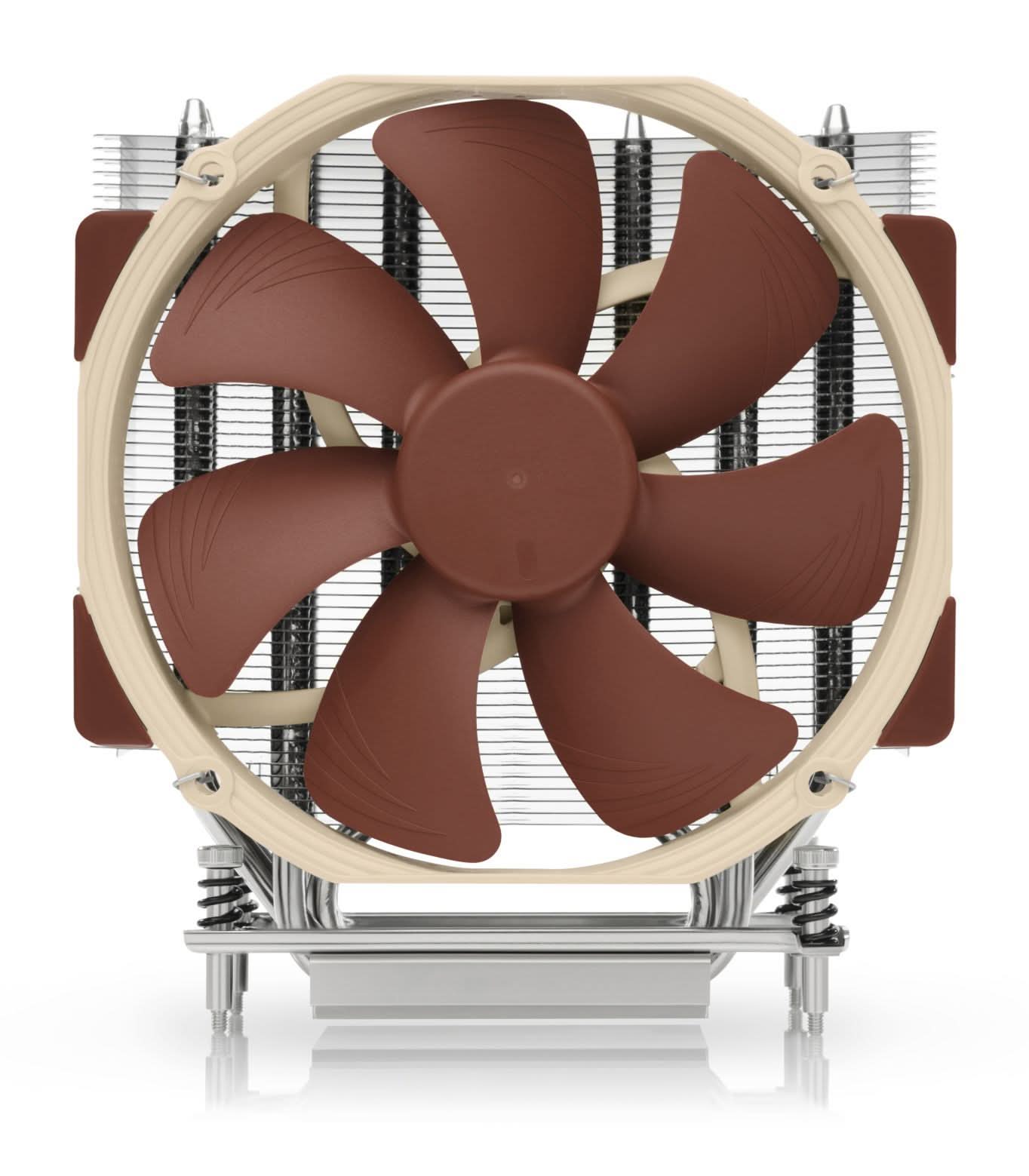

The NH-U14S is the first 140mm model in Noctua's award-winning NH-U series. First introduced in 2005, the NH-U series has become a standard choice for premium quality quiet CPU coolers and won more than 400 awards and recommendations from leading international hardware websites and magazines.
Tailored custom version for sTRX4/TR4/SP3 (Ryzen Threadripper / Epyc)

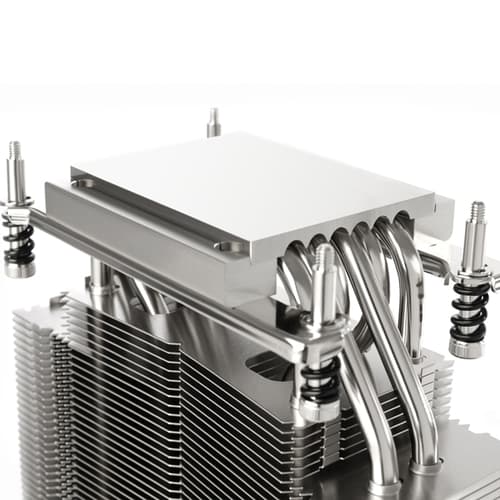

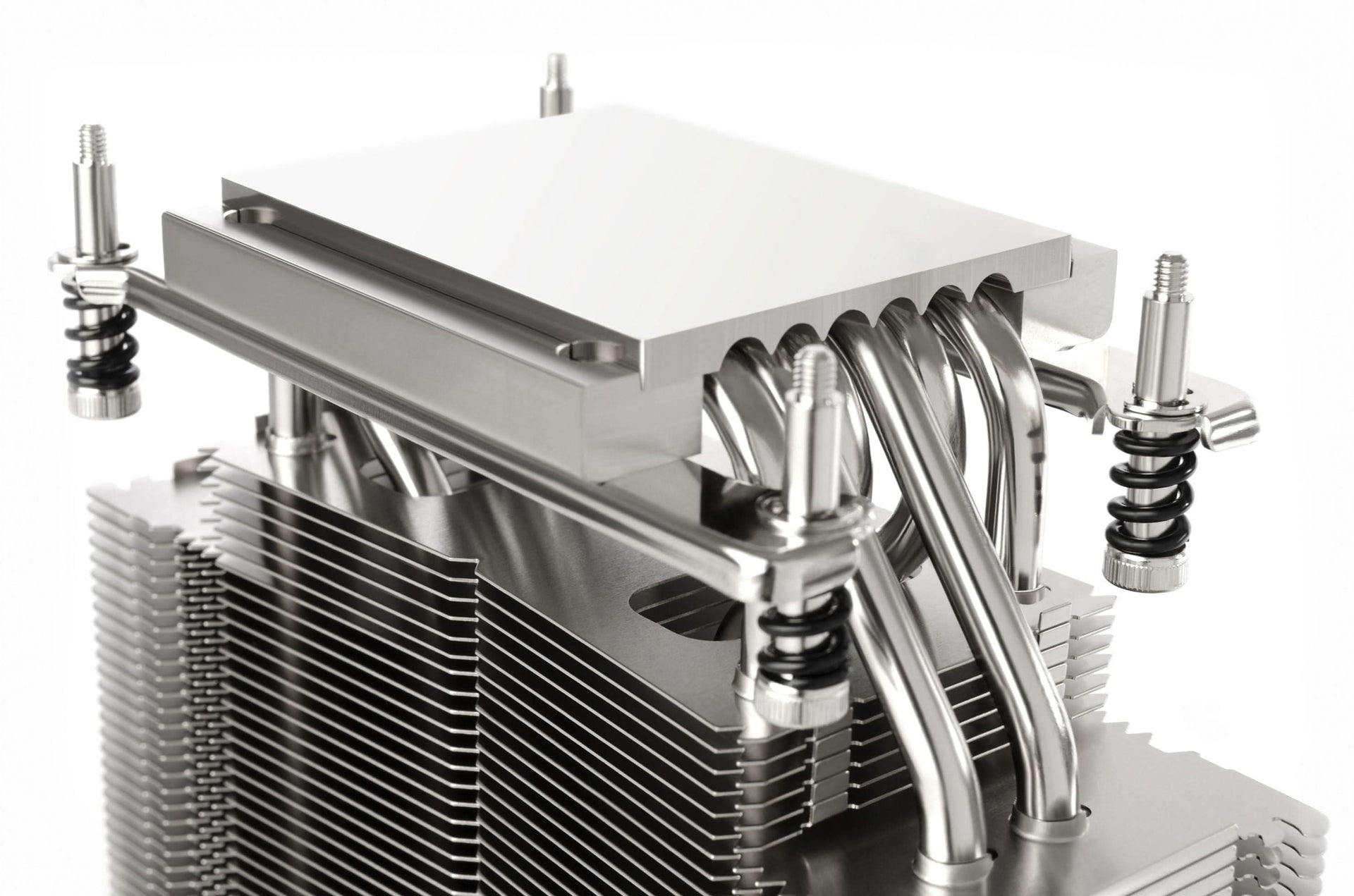

At 70x56mm, the copper contact surface of the TR4-SP3 version is more than double the size of the standard model. Tailored to fit the enormous integrated heat-spreaders (IHS) of AMDís sTRX4/TR4/SP3-based processors, this customised design allows for an optimal heat flow from the CPU over the base to the heatpipes and on to the cooling fins.
140mm size for maximum performance

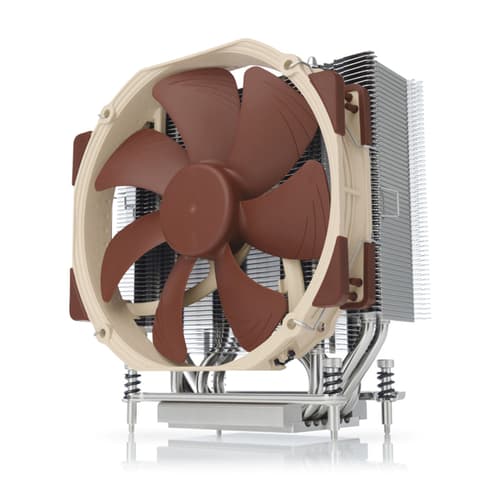

With six heatpipes, a fin surface area of more than 6000cm≤ and the large NF-A15 140mm fan, the NH-U14S TR4-SP3 provides a superior level of cooling performance that makes it ideal for the most high-end, enthusiast-grade sTRX4/TR4/SP3 systems.
NF-A15 140mm premium fan
Complying with Noctuaís AAO standard and featuring sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A15 has quickly built up a reputation as one of the best 140mm heatsink fans on the market.
Anti-vibration pads and fan-clips for second NF-A15 (optional)
For users who want to achieve even better performance by adding a second, optional NF-A15 fan to create a push/pull setup, the NH-U14S includes fan clips and an extra set of custom-designed anti-vibration pads that allow to off-set the rear fan by 5mm to improve acoustics in dual-fan mode.*
SecuFirm2ô mounting system for sTRX4/TR4/SP3
Noctuaís SecuFirm2ô mounting systems have become synonymous with quality, safety and ease of use. The TR4-SP3 variant has been completely custom-designed for the new socket and is particularly easy to install: Put on the heatsink, fix the four spring-loaded screws and youíre done!

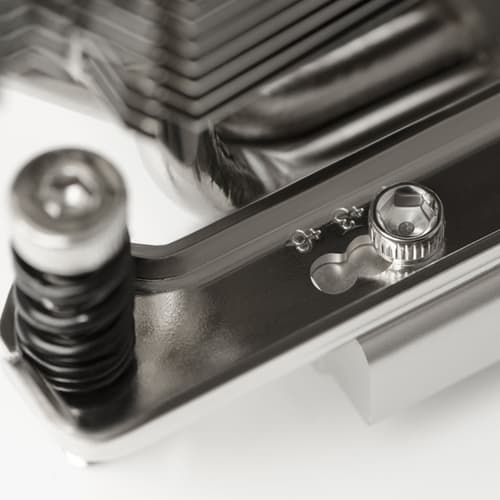

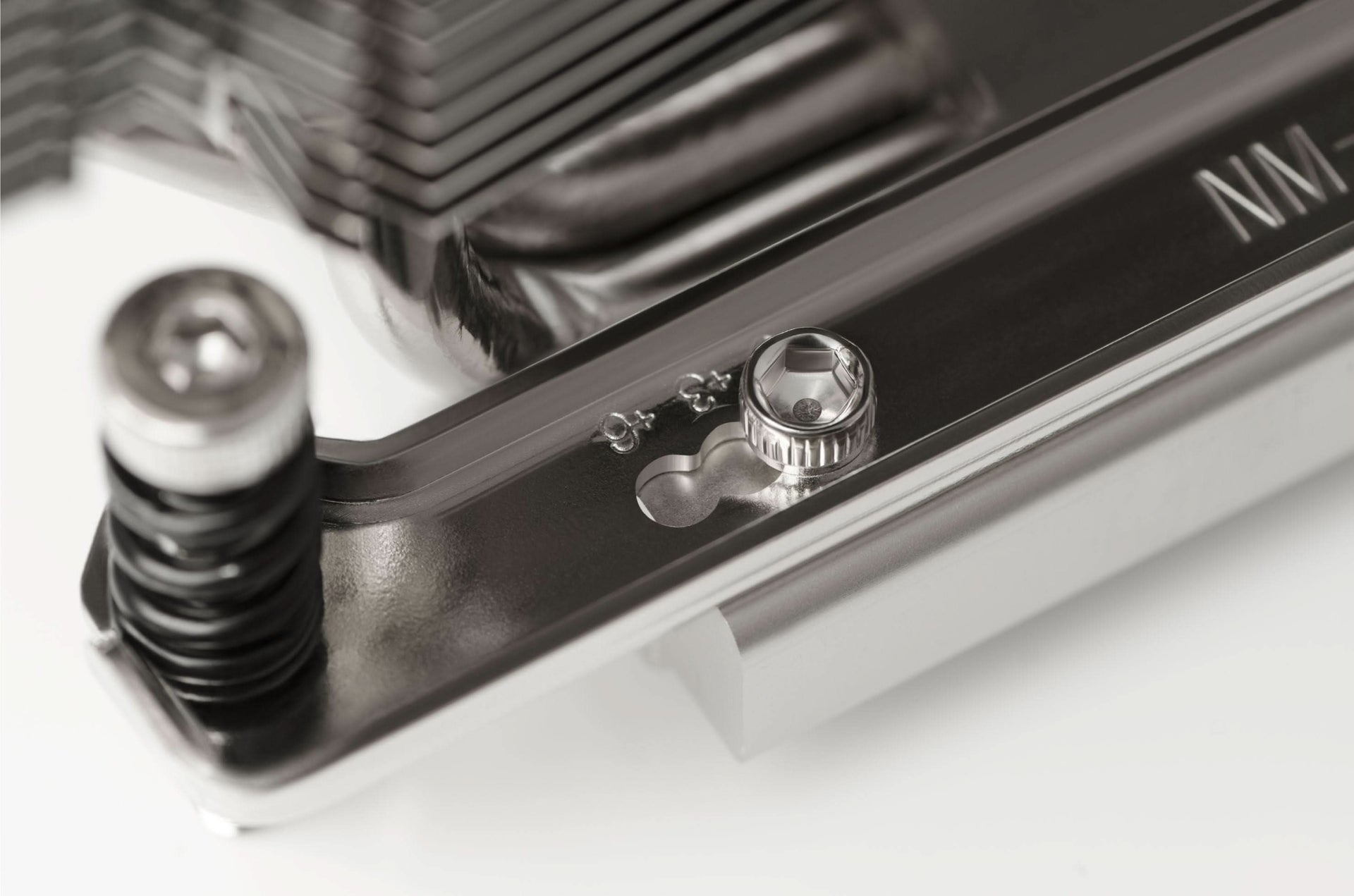

Offset mounting options for better PCIe clearance
In order to assure optimal compatibility with SLI and CrossFire multi-GPU setups, the SecuFirm2ô mounting for sTRX4/TR4/SP3 makes it possible to offset the cooler by 3 or 6mm towards the upper edge of the motherboard, thereby increasing clearance of the top PCIe slot.
NT-H1 thermal compound
Having received more than 100 awards and recommendations from hardware journalists around the world, Noctua's NT-H1 is a proven professional grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability.
Product Details
Notes and warnings
Please note that the NH-U14S TR4-SP3 is a dedicated version for the AMD sTRX4/sWRX8/TR4/SP3 socket. Due to its customised larger base, it cannot be used on any other sockets and is incompatible with Noctuaís standard mounting kits.
Cooler Specification
AMD sTRX4, sWRX8, TR4, SP3
Height (without fan)
165 mm
Width (without fan)
150 mm
Depth (without fan)
52 mm
Weight (without fan)
865 g
Height (with fan)
165 mm
Width (with fan)
150 mm
Depth (with fan)
78 mm
Weight (with fan)
1030 g
Material
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
162
Max. TDP
see NSPR
Fan compatibility
140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25

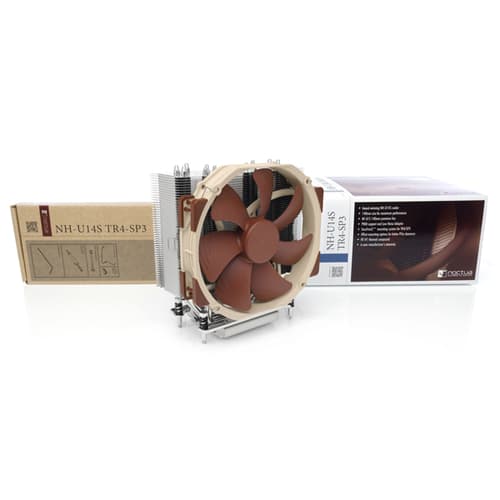

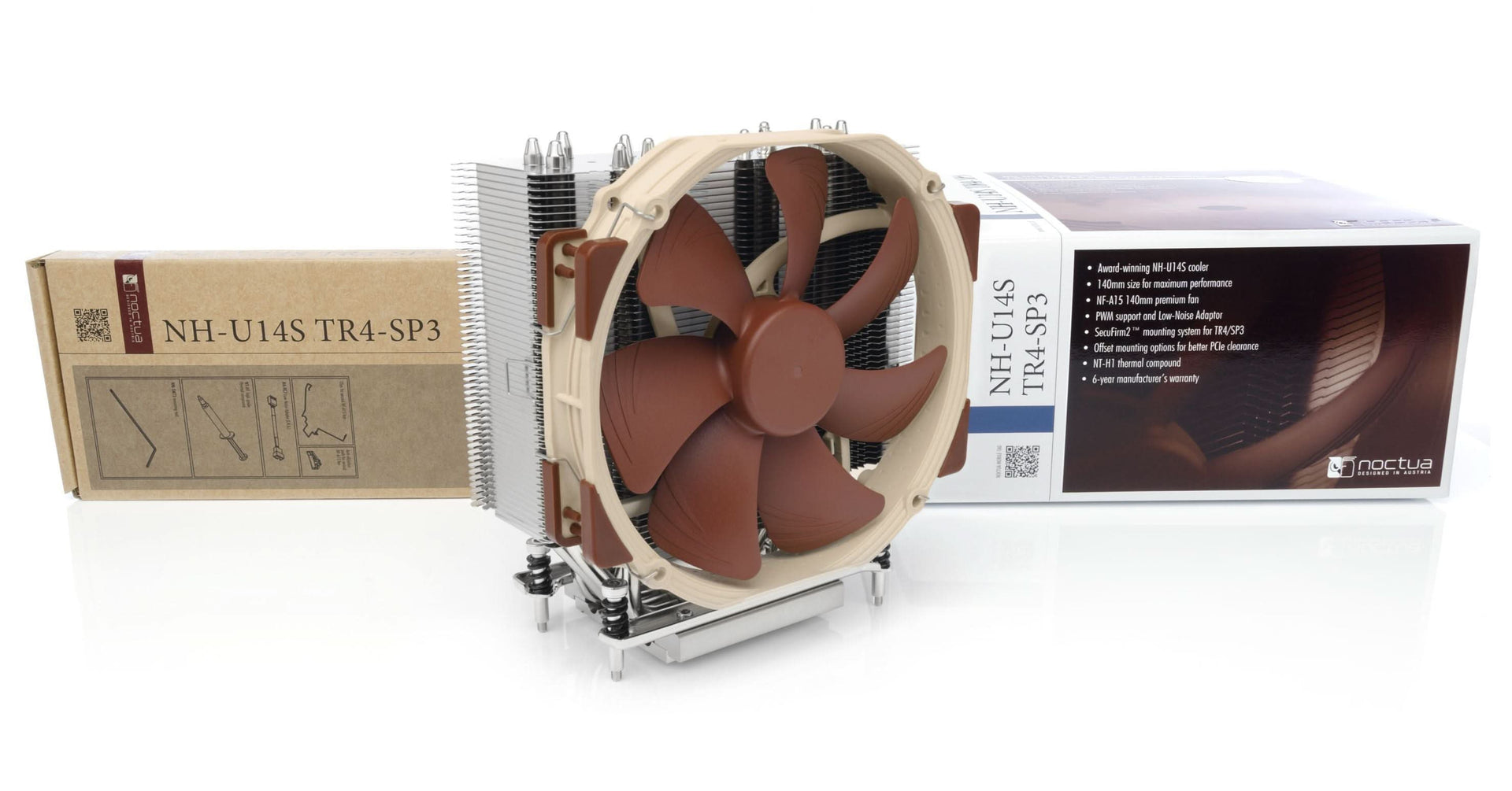

Scope of delivery
- NF-A15 PWM premium fan
- Low-Noise Adaptor (L.N.A.)
- NT-H1 high-grade thermal compound
- SecuFirm2ô mounting kit
- Anti-vibration pads and fan-clips for second NF-A15 (optional)
- Noctua metal case-badge
6 Years
FAN Specification
Model
Noctua NF-A15 PWM
Bearing
Max. rotational speed (+/- 10%)
1500 RPM
Max. rotational speed with L.N.A. (+/- 10%)
1200 RPM
Min. rotational speed (PWM, +/-20%)
300 RPM
140,2 m≥/h
115,5 m≥/h
Max. acoustical noise
24,6 dB(A)
Max. acoustical noise with L.N.A.
19,2 dB(A)
Input power
1,56 W
Voltage range
12 V
MTTF
> 150.000 h
