Zoom
Description
| Specifications | Riser card interface | PCI Express 3.0 x16 |
| 2.5? SSD unit positions | 2 (height limitation 10.5mm) | |
| Expansion slots | 2 | |
| Front ports | 2x USB 3.0, Audio in/out, Power button with LED (white) | |

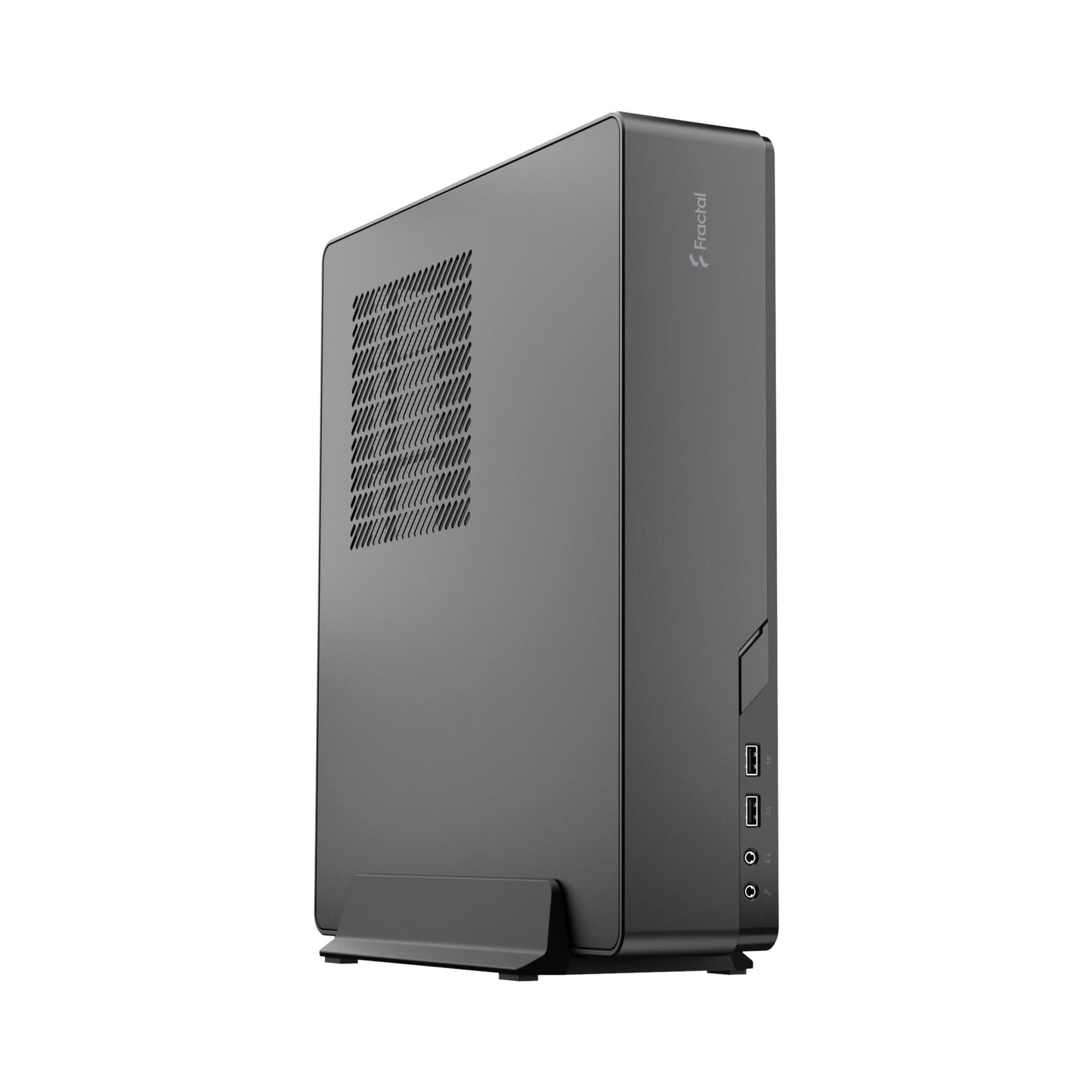

| Position | Can be placed both vertical and horizontal position | |
| Total fan mounts | 2x 120 mm in graphics card chamber | |
| Dust filters | 3 (CPU, GPU & PSU) | |
| Power supply type | SFX (up to 130 mm long)* | |
| Compatibility | Motherboard compatibility | Mini ITX |
| GPU max dimensions (LxHxD) | 310x145x47 mm | |
| CPU cooler max height | 56 mm | |
| *NOTE | Node 202 is not compatible with Ion SFX-L | |
| Case dimensions - Horizontal (WxHxD) | 377 x 82 x 330 mm | |
| PSU Compatibility | SFX PSUs up to 130 mm long | |
| Dimensions | Case dimensions - Horizontal, with feet/protrusions/screws (WxHxD) | 377 x 88 x 332 mm |
| Case dimensions - Vertical, with feet/protrusions/screws (WxHxD) | 125 x 385 x 332 mm | |
| Net weight | 3.5 kg | |
| Package dimensions (WxHxD) | 145 x 463 x 388 mm | |
| Package weight | 4.0kg | |
| Volume | 10.3 litres | |
| Other | Package contents | Node 202 computer case, accessory box, user manual, vertical stand & riser card for graphics card |
| Package contents (Anode SFX Bronze version) | Node 202 computer case, accessory box, user manual, vertical stand & riser card for graphics card, Anode SFX Bronze | |
| EAN | 7350041082675 | |
| EAN (Anode SFX Bronze version) | 7340172703754 | |
| UPC | 817301012676 | |
| UPC (Anode SFX Bronze version) | 843276103750 | |
| Product code | FD-CA-NODE-202-BK | |
| Product code (Anode SFX Bronze version) | FD-MCA-NODE-202-AB | |
| Additional information | Available for System Integrators | |
| Warranty | 2 Years |
