Description
Overview:
Details

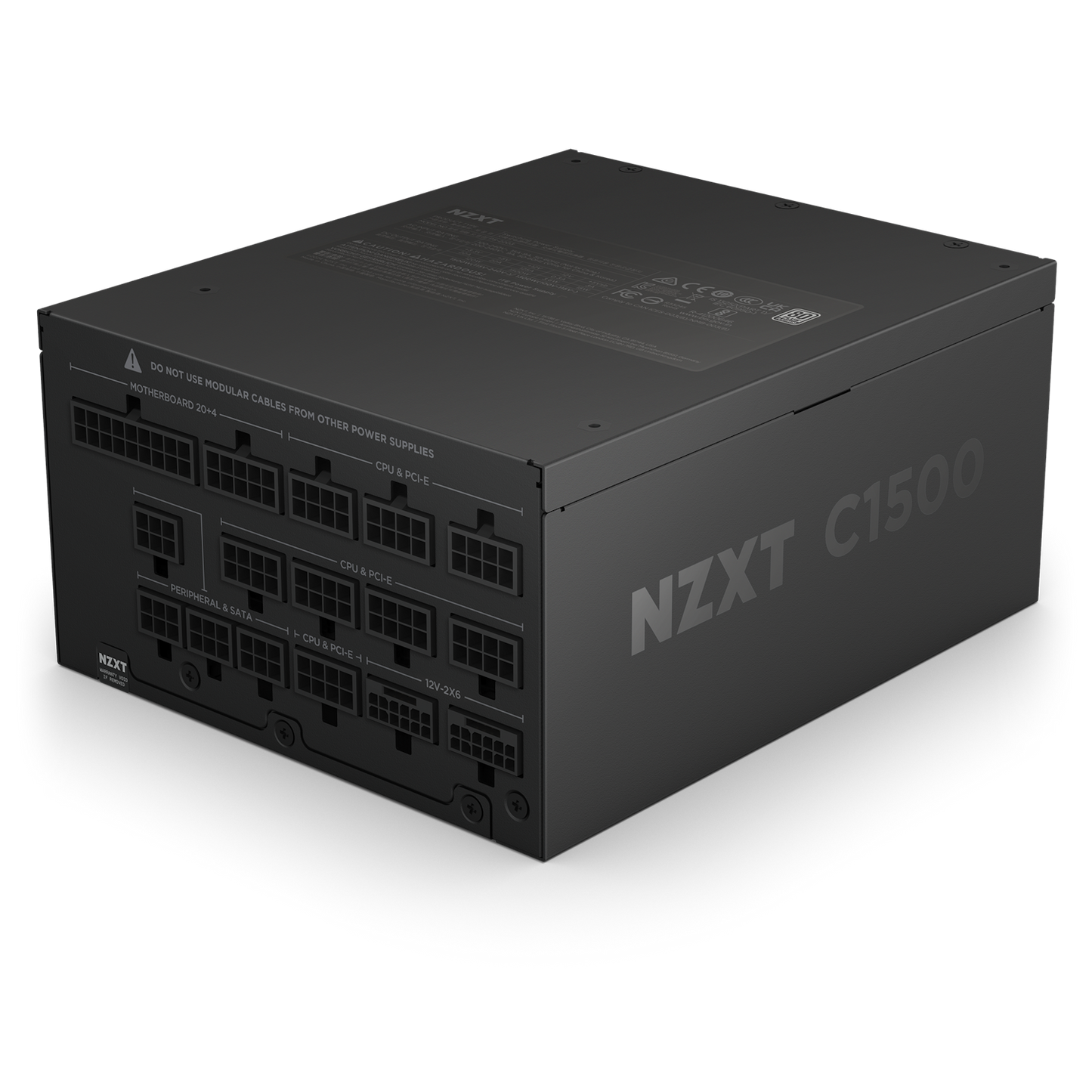

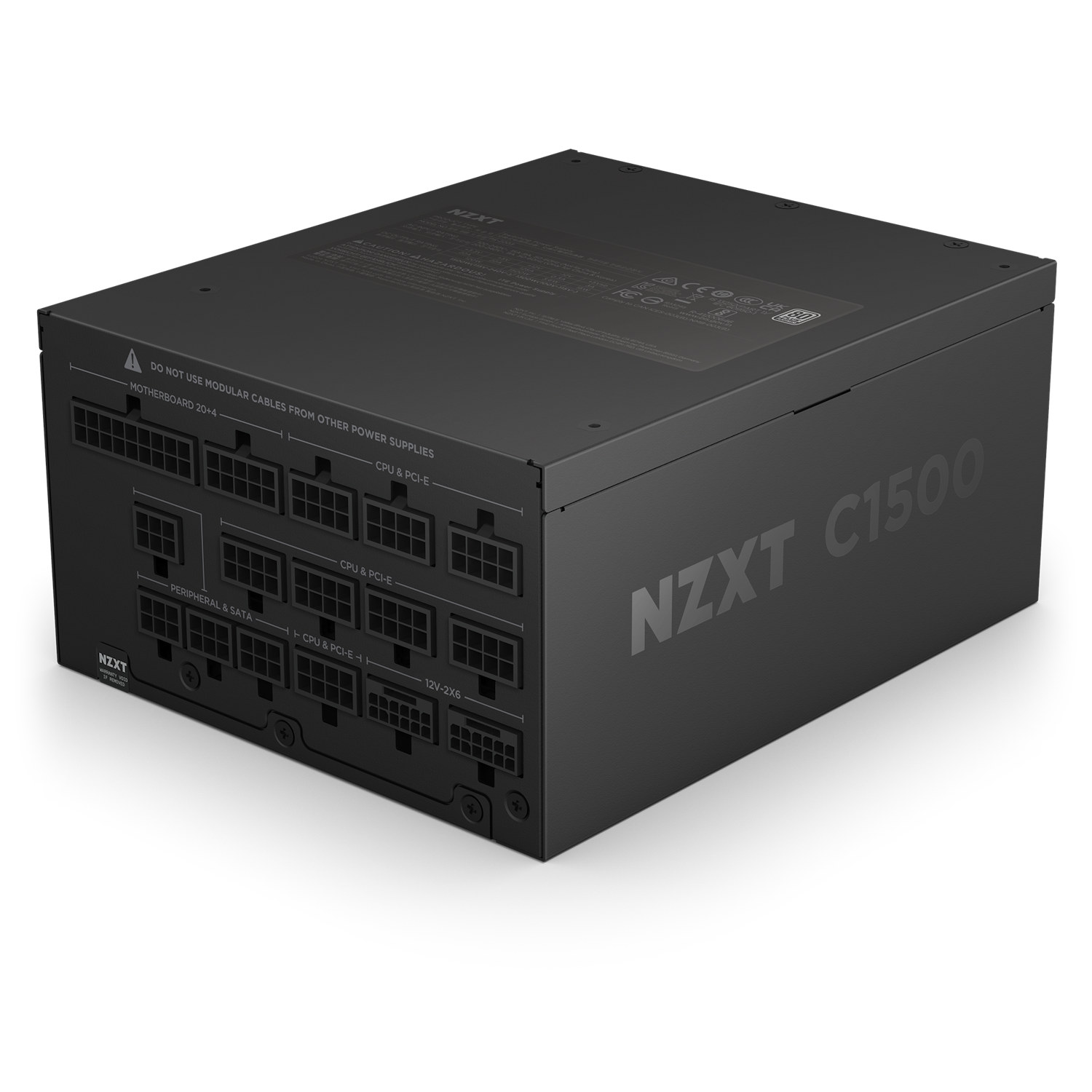

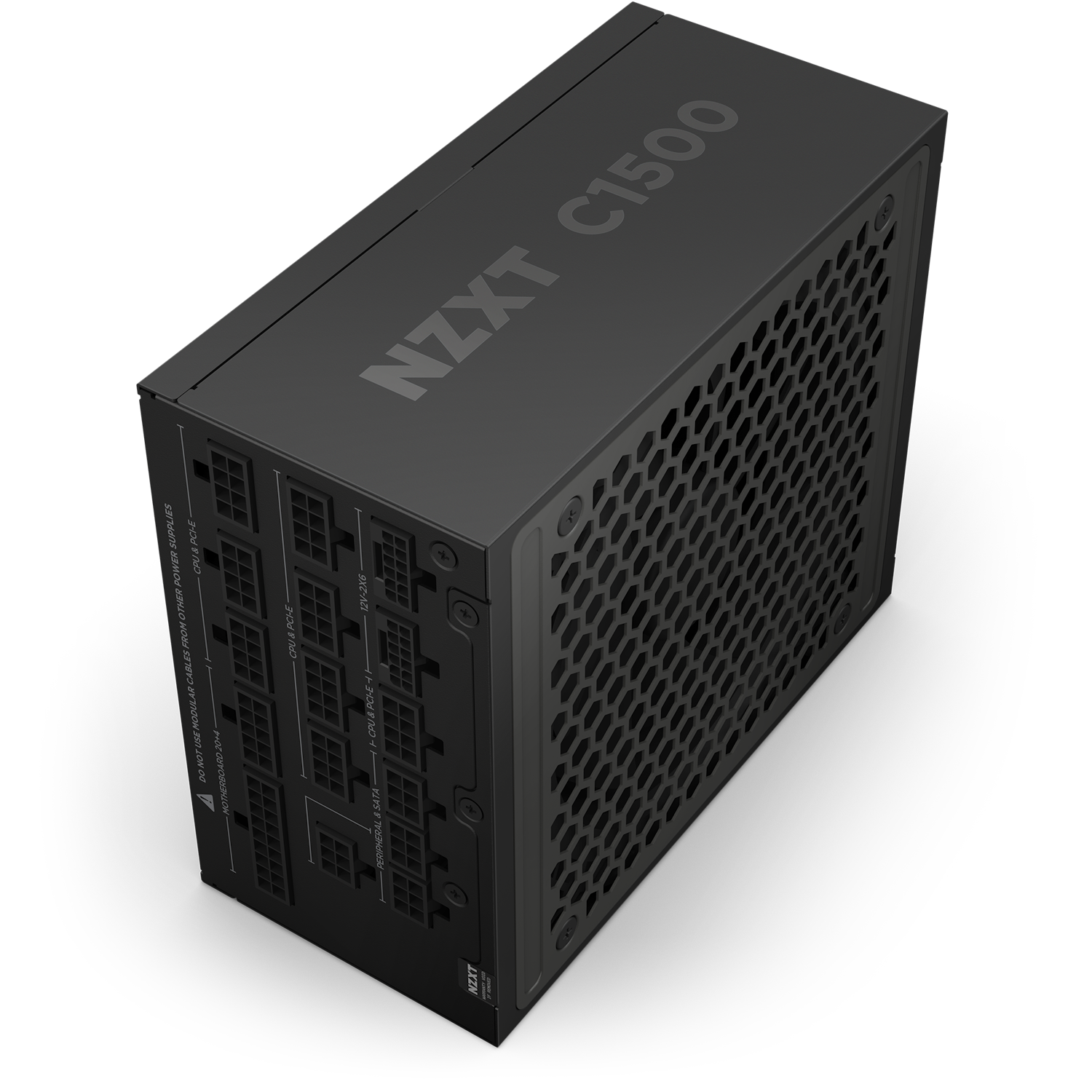

The NZXT C1500 Platinum PSU offers highly efficient, digitally-controlled power, ATX 3.1 compliance, and PCIe 5.1 connectivity with a high-performance magnetic levitation fan.

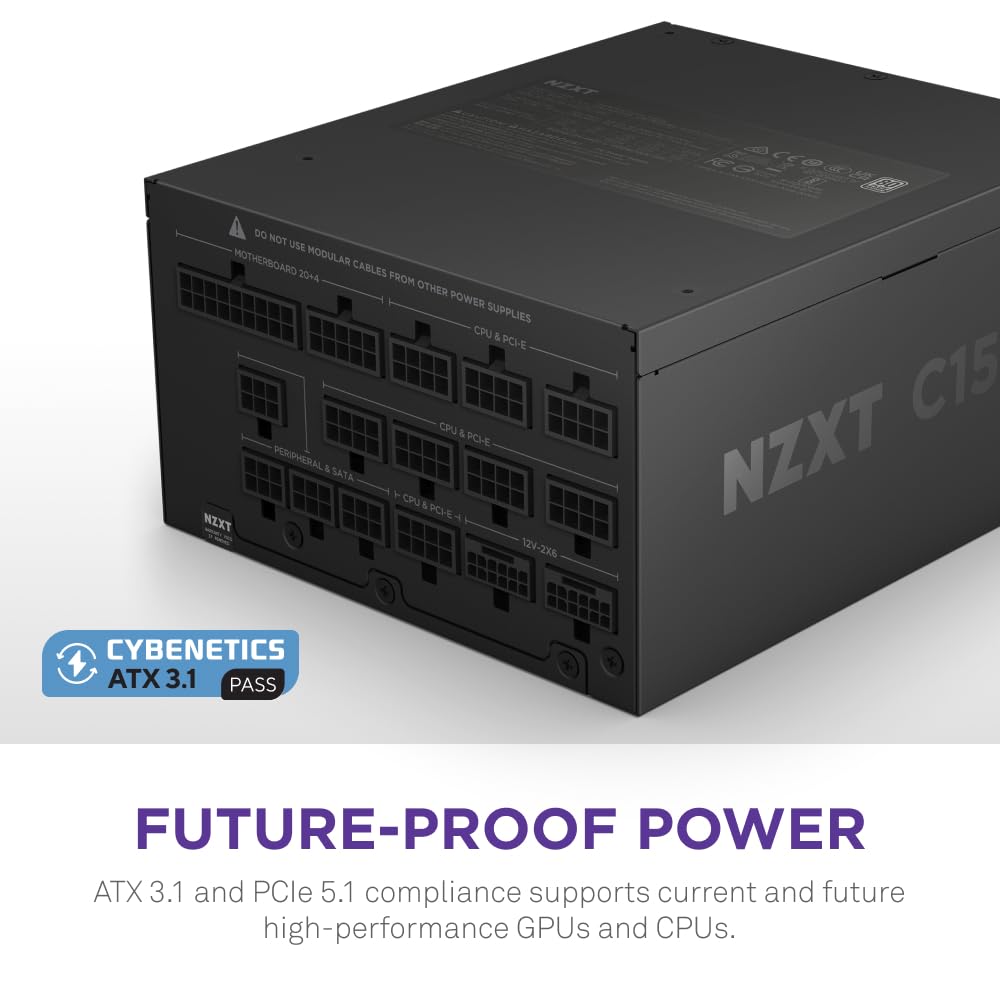

- Designed with ATX 3.1 and PCIe 5.1 compliance to power current and future generations of high-performance GPUs and CPUs.

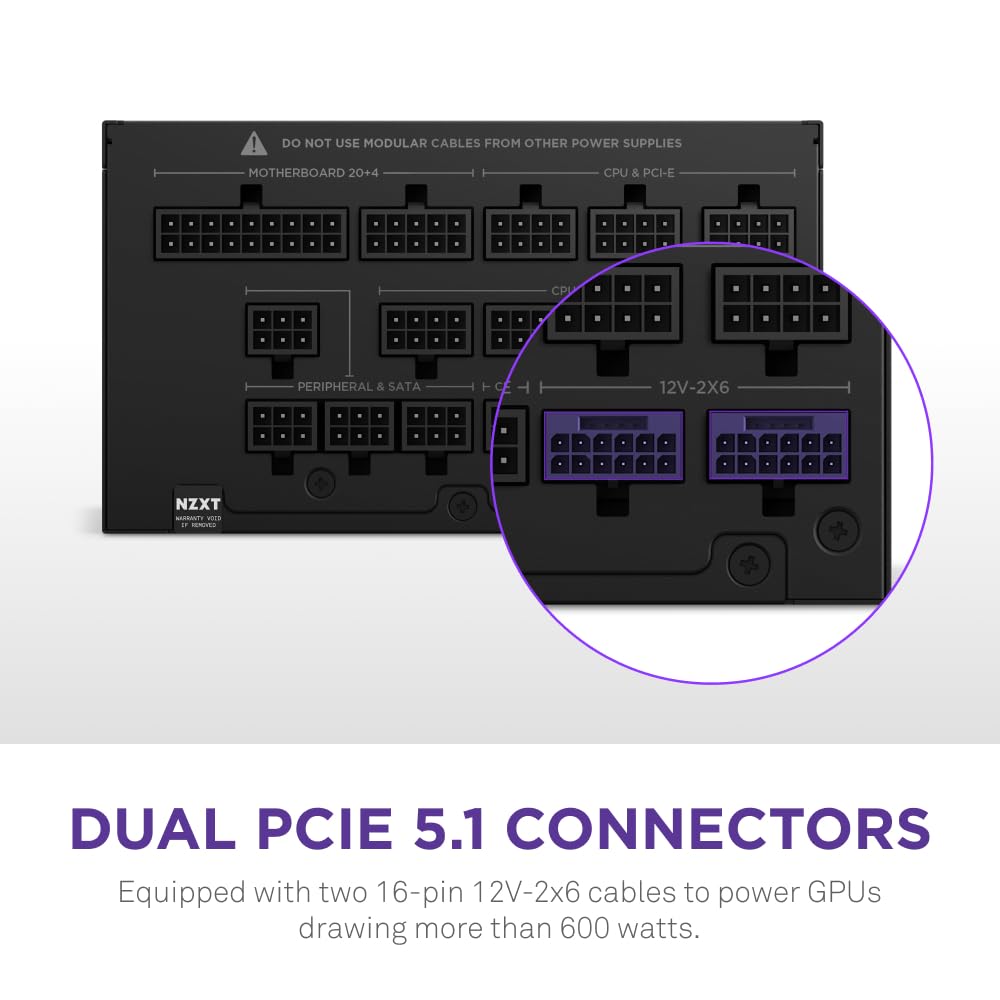

- Includes two 16-pin 12V-2x6 PCIe 5.1 cables, each capable of delivering over 600 watts to power-hungry GPUs.
- Digital power enables precise voltage regulation, resulting in higher efficiency and lower ripple noise.
- Exceeding 80 Plus Platinum standards, the 94% efficiency reduces power consumption for lower monthly bills and cooler, quieter operation.

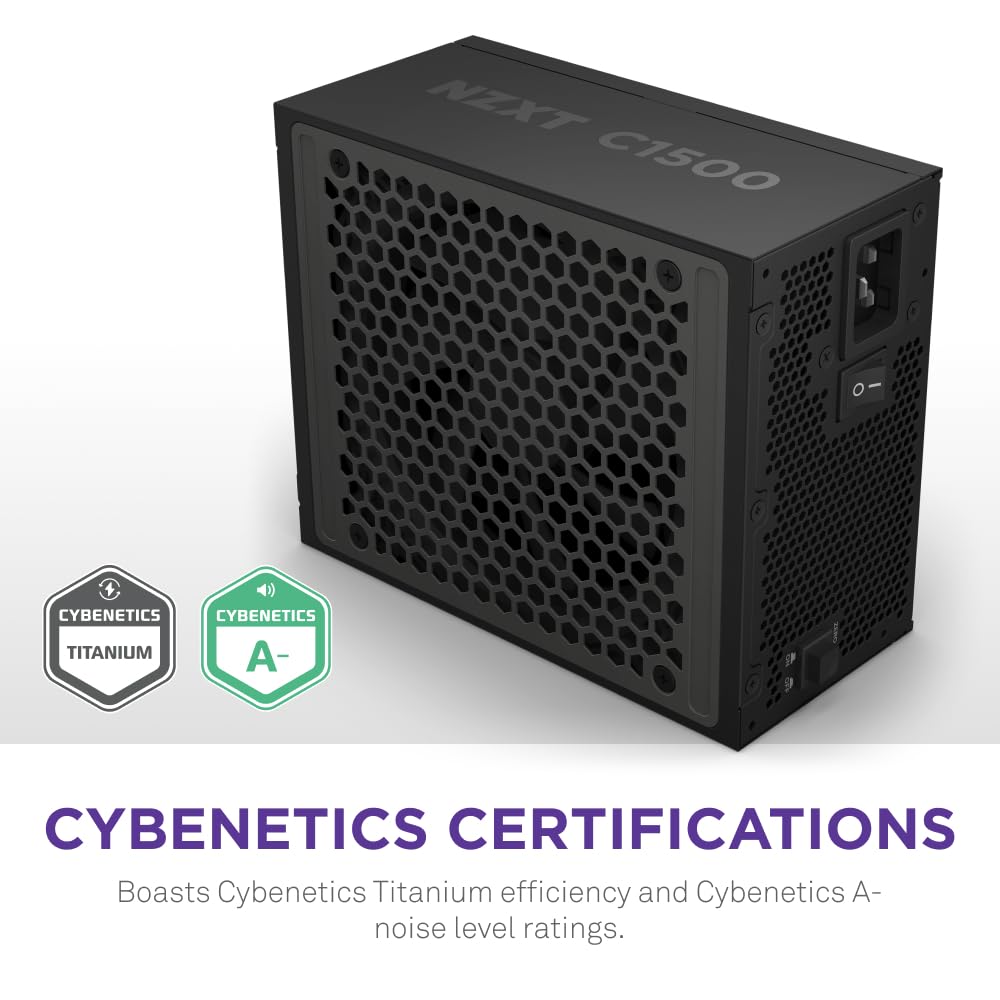

- Certified for ultra-high efficiency and ultra-low noise with Cybenetics Titanium efficiency and Cybenetics A- noise level ratings.

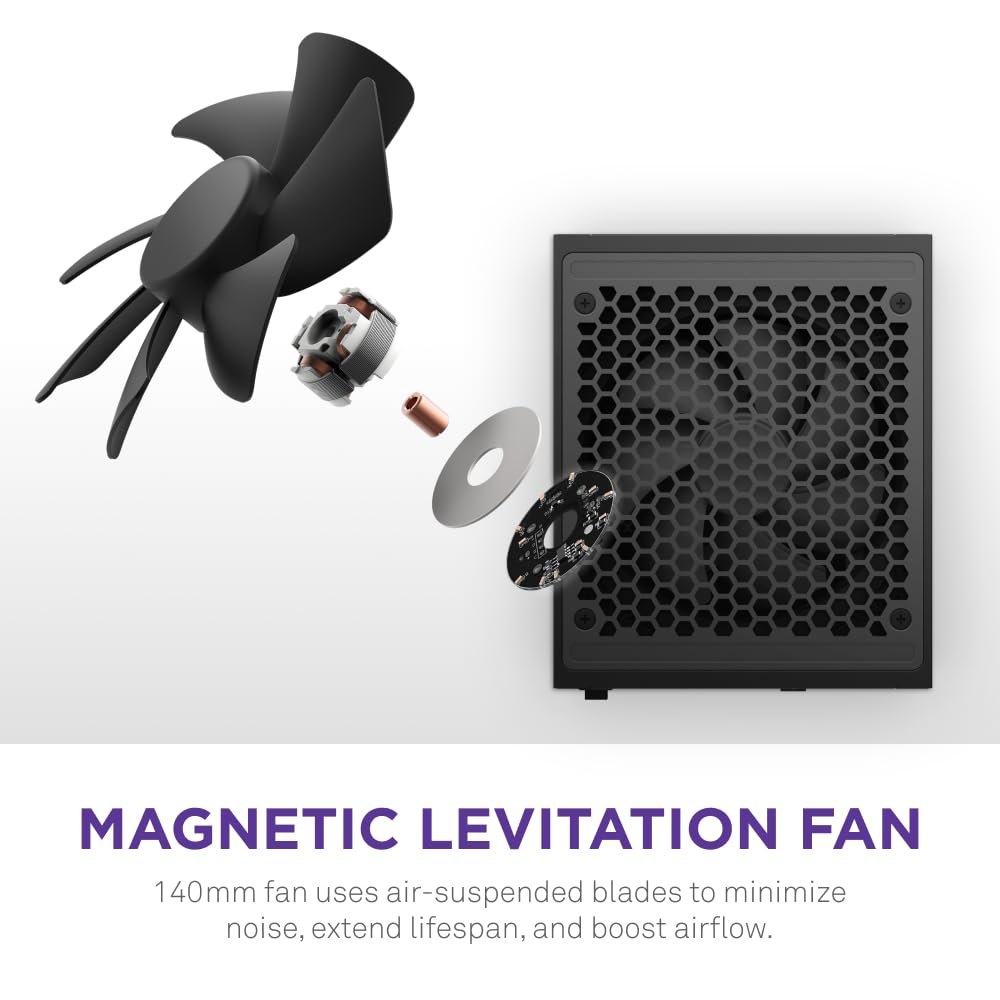

- 140mm magnetic levitation fan uses air-suspended blades for low noise, high airflow, and a long lifespan.
- Constructed using high-quality 105°C Japanese capacitors for excellent reliability and long-lasting performance.

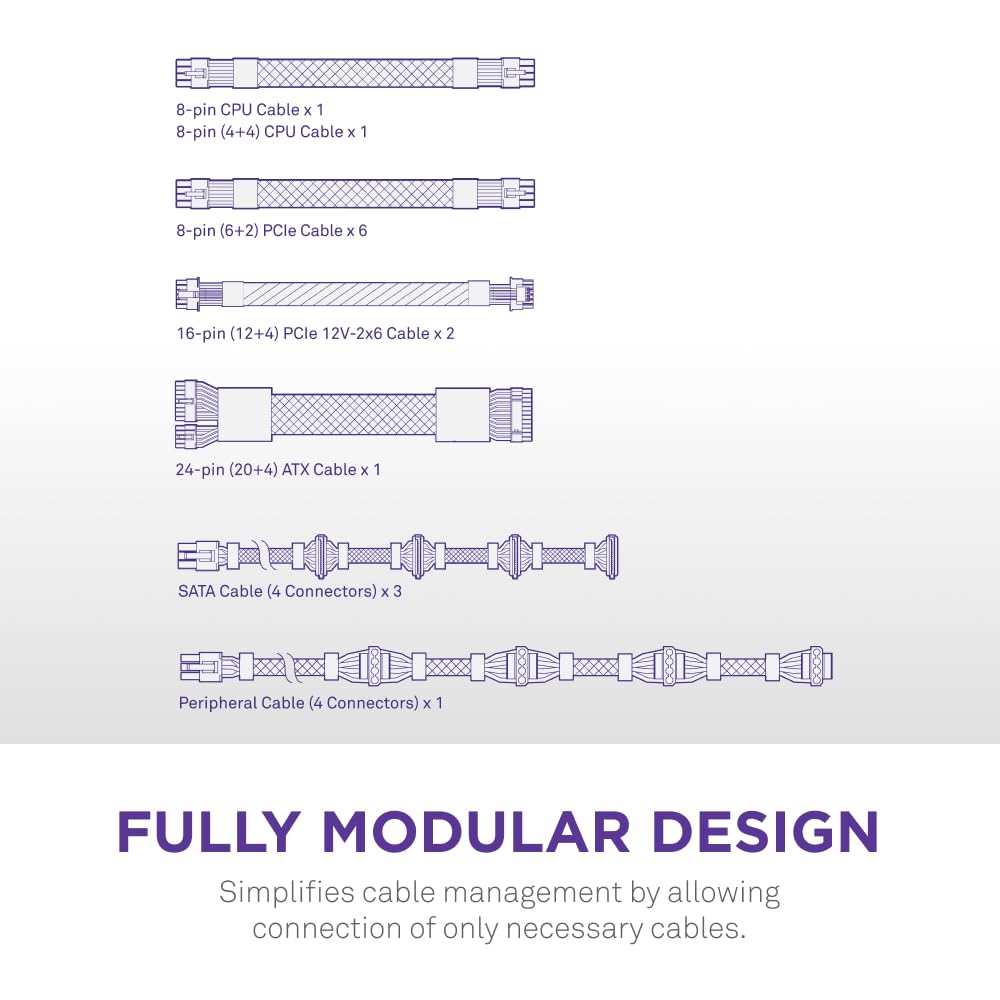

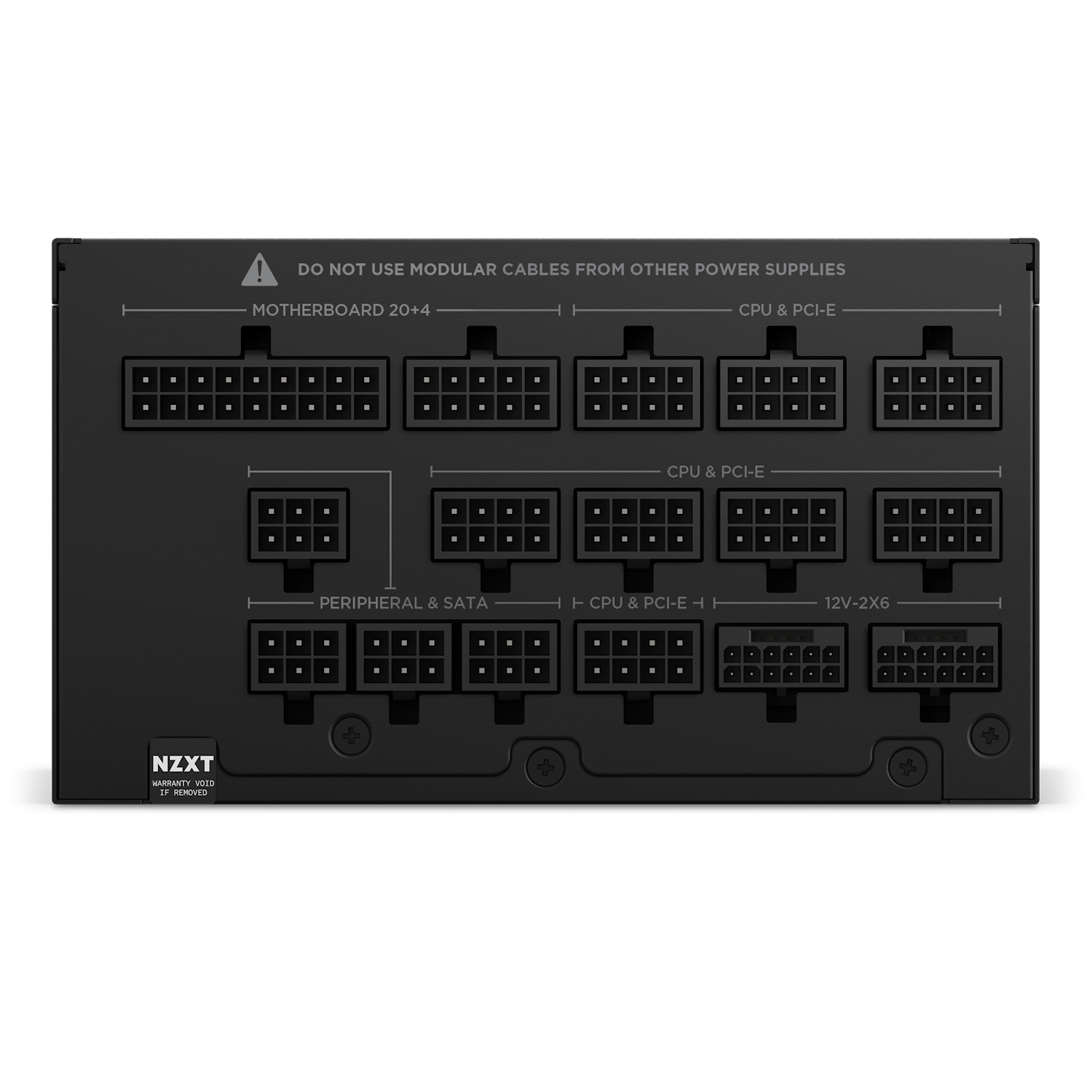

- Fully modular design simplifies cable management, allowing for the connection of only necessary cables.
- Compact 180mm form factor optimizes valuable case space while promoting improved airflow.

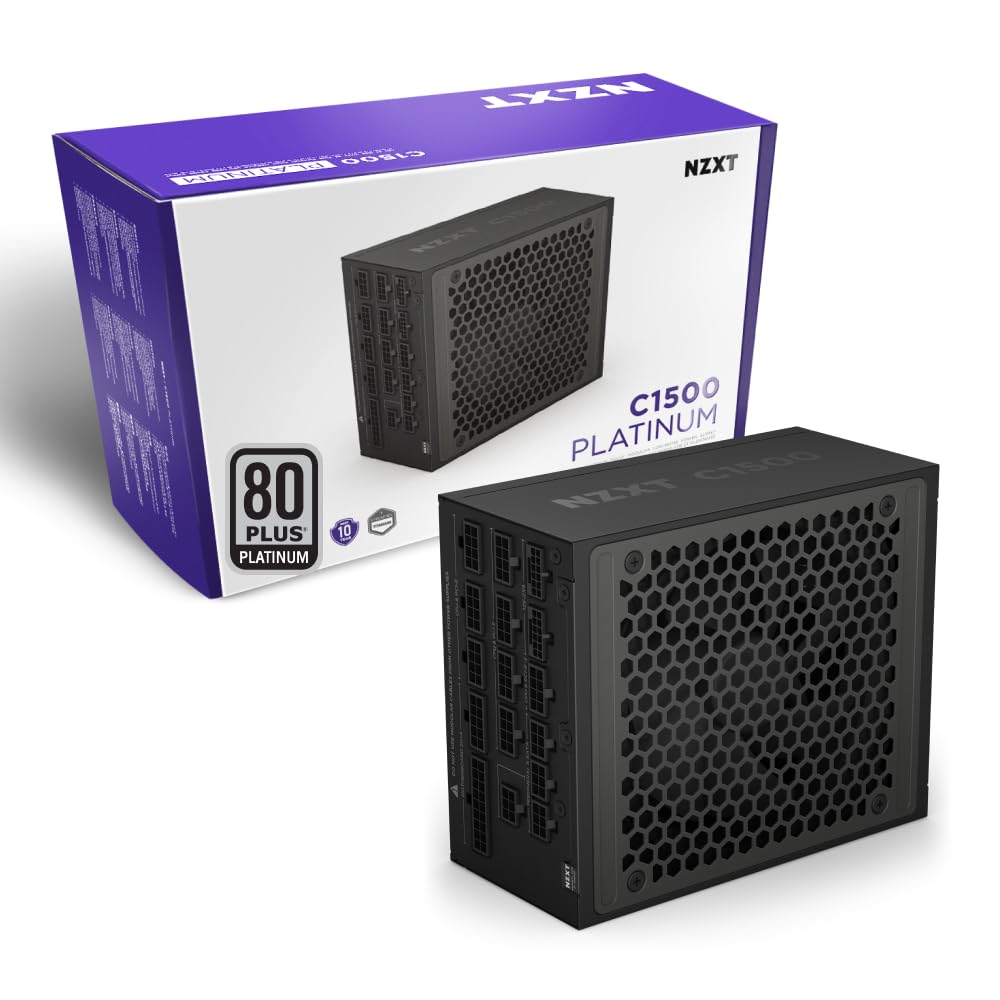

Inside the Box
-
C1500 Platinum1
-
24-pin ATX Power Cable1
-
4+4-pin CPU Power Cable1
-
8-pin CPU Power Cable1
-
6+2-pin PCIe Power Cable6
-
16-pin (12+4) 12V-2x6 PCIe Cable2
-
SATA Cable3
-
Peripherals Cable1
-
6-32 Screws4
-
AC Power Cord1
Tech specs:
Category | Specification |
---|---|

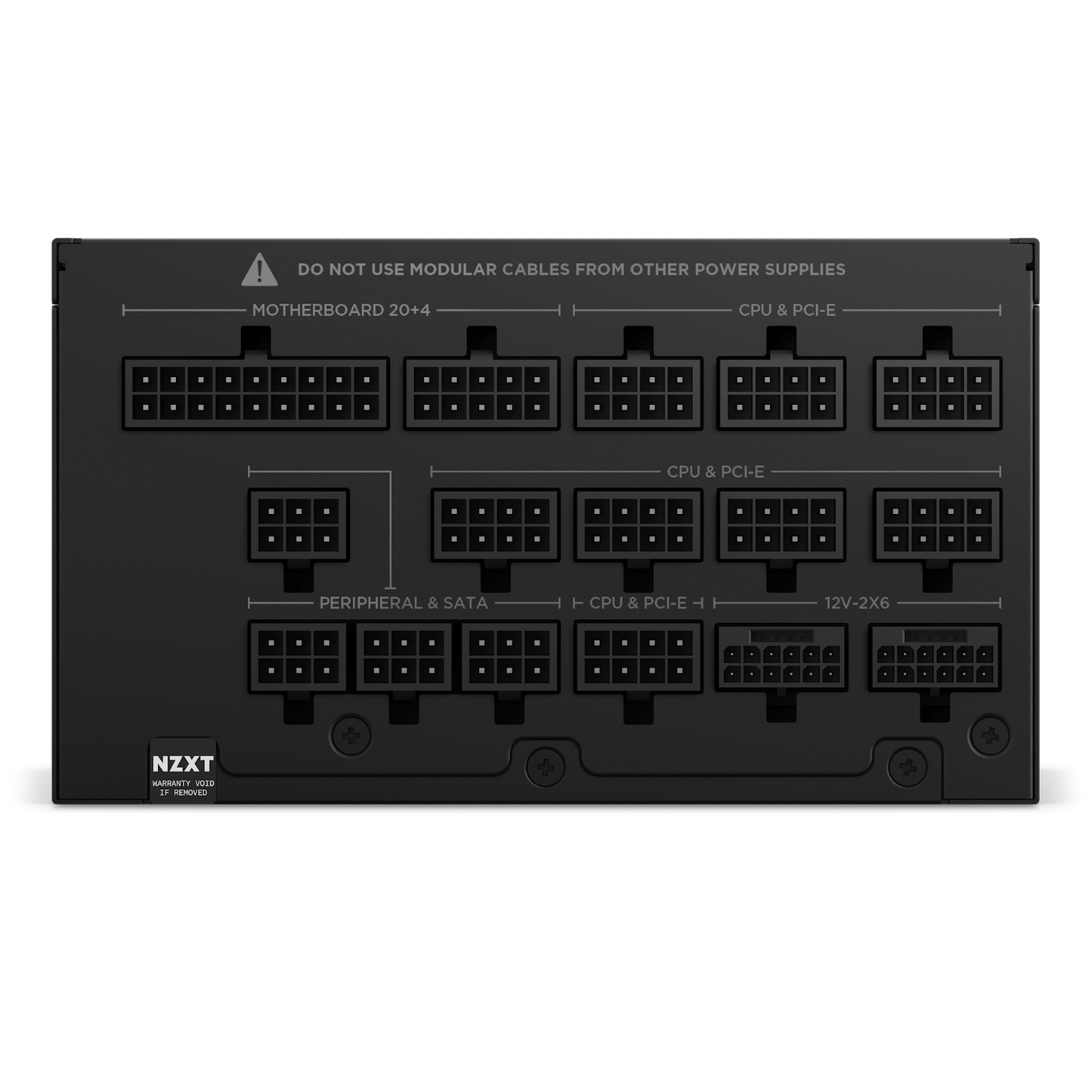

Output Connectors | |
24-pin ATX Power Cable | 1 |
4+4-pin CPU Power Cable | 1 |
8-pin CPU Power Cable | 1 |
6+2-pin PCIe Power Cable | 6 |
16-pin (12+4) 12V-2x6 PCIe Cable | 2 |
SATA Cable | 12 |
Peripherals Cable | 4 |
Cable Specs | |
24-pin ATX Power Cable | 600mm with nylon sleeving |
4+4-pin CPU Power Cable | 700mm with nylon sleeving |
8-pin CPU Power Cable | 700mm with nylon sleeving |
6+2-pin PCIe Power Cable | 650mm with nylon sleeving |
16-pin (12+4) 12V-2x6 PCIe Cable | 650mm with nylon sleeving |
SATA Cable | 500 + 150mm with nylon sleeving |
Peripherals Cable | 500 + 150mm with nylon sleeving |
AC Input Rating | |
100 - 240Vac | 15A-9A, 50Hz-60Hz |
200 - 240Vac | 9A, 50Hz-60Hz |
DC Output Rating | |
3.3V / +5V | 22A (120W) |
12V | 125A (1500W) |
5Vsb | 3A (15W) |
Total Power Output | 1500W (115-240Vac) / 1300W (100-115Vac) |
Energy Efficiency | 80 Plus Platinum |
10% Loading | 92% @115Vac |
20% Loading | 94% @115Vac |
50% Loading | 93.8% @115Vac |
100% Loading | 90.8% @115Vac |
Electrical Features | |
PF Correction | Active @0.99 |
Protections | OVP, UVP, SCP, OTP, OPP, OCP |
Fan Specs | |
Dimensions | 140 x 140 x 25 mm |
Speed | 2500 ± 10% RPM |
Airflow | 125 CFM (Typ.) |
Noise | 41.0 dBA max |
Bearing | Magnetic Levitation Bearing (ML) |
Operation | |
MTBF | 100,000 hours |
Temperature Range | 0 - 50 °C |
Dimensions | |
Width | 150 mm (5.91 in) |
Height | 86 mm (3.39 in) |
Depth | 180 mm (7.09 in) |
General | |
Material(s) | Steel, PCB, Plastic |
Compliance Standard | ATX12V v3.1 / EPS12V v2.92 |
Certifications | FCC, CE, CB, UKCA, CCC, BSMI, BIS, RCM, UAE, TUV, cTUVus, KC, CP65 |
Warranty | 10 Years |
Model Numbers & Codes | |
US Model Number | PA-5P1BB-US |
EU Model Number | PA-5P1BB-EU |
UK Model Number | PA-5P1BB-UK |
CN Model Number | PA-5P1BB-CN |
JP Model Number | PA-5P1BB-JP |
AU Model Number | PA-5P1BB-AU |
EAN Codes | |
US | 5056547203645 |
EU | 5056547203652 |
UK | 5056547203669 |
CN | 5056547203638 |
JP | 5056547203676 |
AU | 5056547203683 |
UPC Codes | |
US | 810074843720 |
EU | 810074843737 |
UK | 810074843744 |
CN | 810074843713 |
JP | 810074843751 |
AU | 810074843768 |
