Description
Tech Specs:
| Category | Specification |
|---|---|

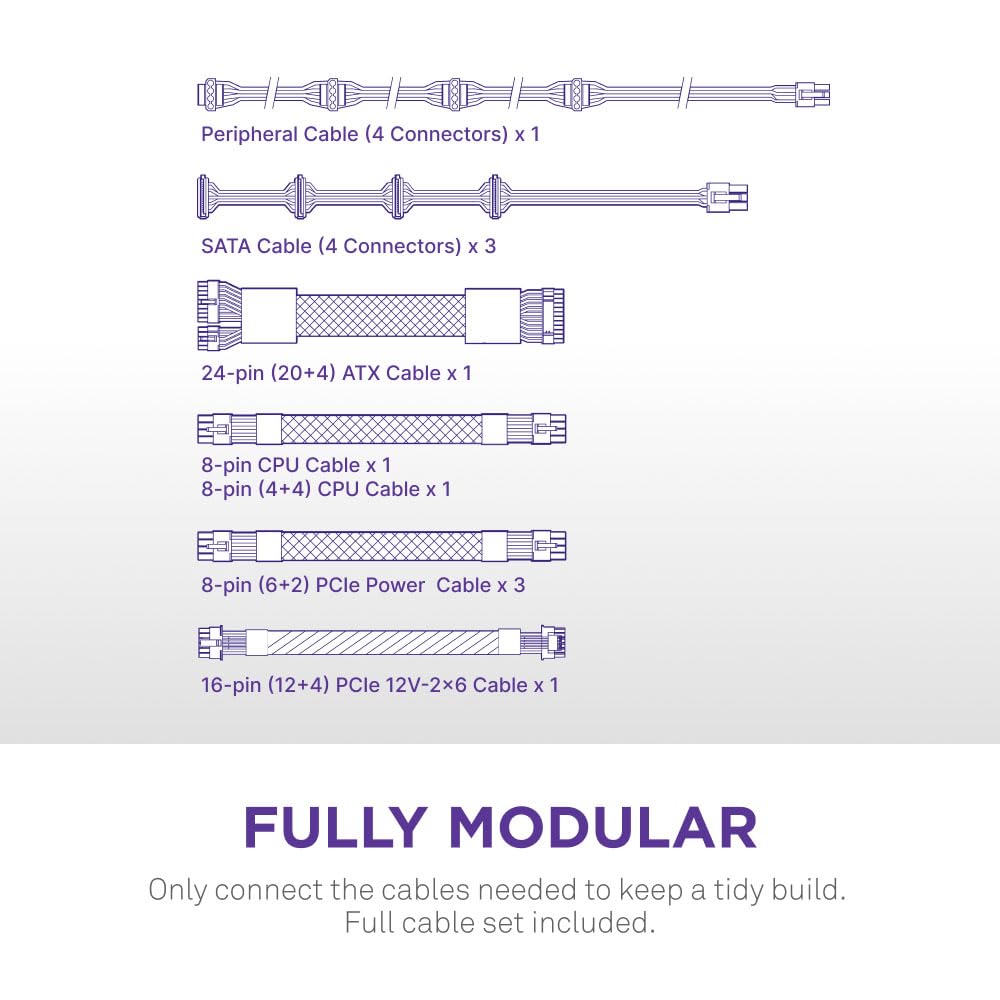

| Output Connectors | |
| 24-pin ATX Power Cable | 1 |
| 4+4-pin CPU Power Cable | 1 |
| 8-pin CPU Power Cable | 1 |
| 6+2-pin PCIe Power Cable | 3 |
| 16-pin (12+4) 12V-2x6 PCIe Cable | 1 |
| SATA Cable | 12 |
| Peripherals Cable | 4 |
| Cable Specs | |
| 24-pin ATX Power Cable | 600mm with nylon sleeving |
| 4+4-pin CPU Power Cable | 700mm with nylon sleeving |
| 8-pin CPU Power Cable | 700mm with nylon sleeving |
| 6+2-pin PCIe Power Cable | 650mm with nylon sleeving |
| 16-pin (12+4) 12V-2x6 PCIe Cable | 650mm with nylon sleeving |
| SATA Cable | 500 + 150mm |
| Peripherals Cable | 500 + 150mm |
| AC Input Rating | |
| 100 - 240Vac | 13A 50Hz-60Hz |
| 200 - 240Vac (China & South Korea) | 6.5A 50Hz-60Hz |
| DC Output Rating | |
| 3.3V / +5V | 22A (120W) |
| 12V | 83.3A (1000W) |
| 5Vsb | 3A (15W) |
| Total Power | 1000W |
| Energy Efficiency | |
| Rating | 80 Plus Gold |
| 10% Loading | 85.5% @115Vac |
| 20% Loading | 89.7% @115Vac |
| 50% Loading | 91.9% @115Vac |
| 100% Loading | 89.3% @115Vac |
| Electrical Features | |
| PF Correction | Active @0.99 |
| Protections | OVP, UVP, SCP, OTP, OPP, OCP |
| Fan Specs | |
| Dimensions | 135 x 135 x 25 mm |
| Speed | 2300 ± 10% RPM |
| Airflow | 93.02 CFM (Min.) |
| Noise | 44.5 dBA max |
| Bearing | Fluid Dynamic Bearing (FDB) |
| Operation | |
| MTBF | 100,000 hours |
| Temperature | 0 - 50 °C |
| Dimensions | |
| Width | 150 mm |
| Height | 86 mm |
| Depth | 160 mm |
| General | |
| Material(s) | Steel, PCB, and Plastic |
| Compliance Standard | ATX12V v3.1 / EPS12V v2.92 |
| Regulation & Certification | FCC, Canada, CE, CB(IEC 62368-1), UKCA, CCC, BSMI, BIS, RCM, UAE, TUV, cTUVus, KC, CP65 |
| Warranty | 10 Years |
| Model Numbers (Black) | PA-0G2BB-CN / PA-0G2BB-UK / PA-0G2BB-US / PA-0G2BB-EU / PA-0G2BB-JP / PA-0G2BB-AU |
| Model Numbers (White) | PA-0G2BW-CN / PA-0G2BW-UK / PA-0G2BW-US / PA-0G2BW-EU / PA-0G2BW-JP / PA-0G2BW-AU |
| EAN (Black) | 5056547204680 (CN) / 5056547204697 (UK) / 5056547204703 (US) / 5056547204710 (EU) / 5056547204727 (JP) / 5056547204734 (AU) |
| EAN (White) | 5056547206318 (CN) / 5056547206325 (UK) / 5056547206332 (US) / 5056547206349 (EU) / 5056547206356 (JP) / 5056547206363 (AU) |
| UPC (Black) | 810074844758 (CN) / 810074844765 (UK) / 810074844772 (US) / 810074844789 (EU) / 810074844796 (JP) / 810074844802 (AU) |
| UPC (White) | 810074846370 (CN) / 810074846387 (UK) / 810074846394 (US) / 810074846400 (EU) / 810074846417 (JP) / 810074846424 (AU) |
