Description
Overview:

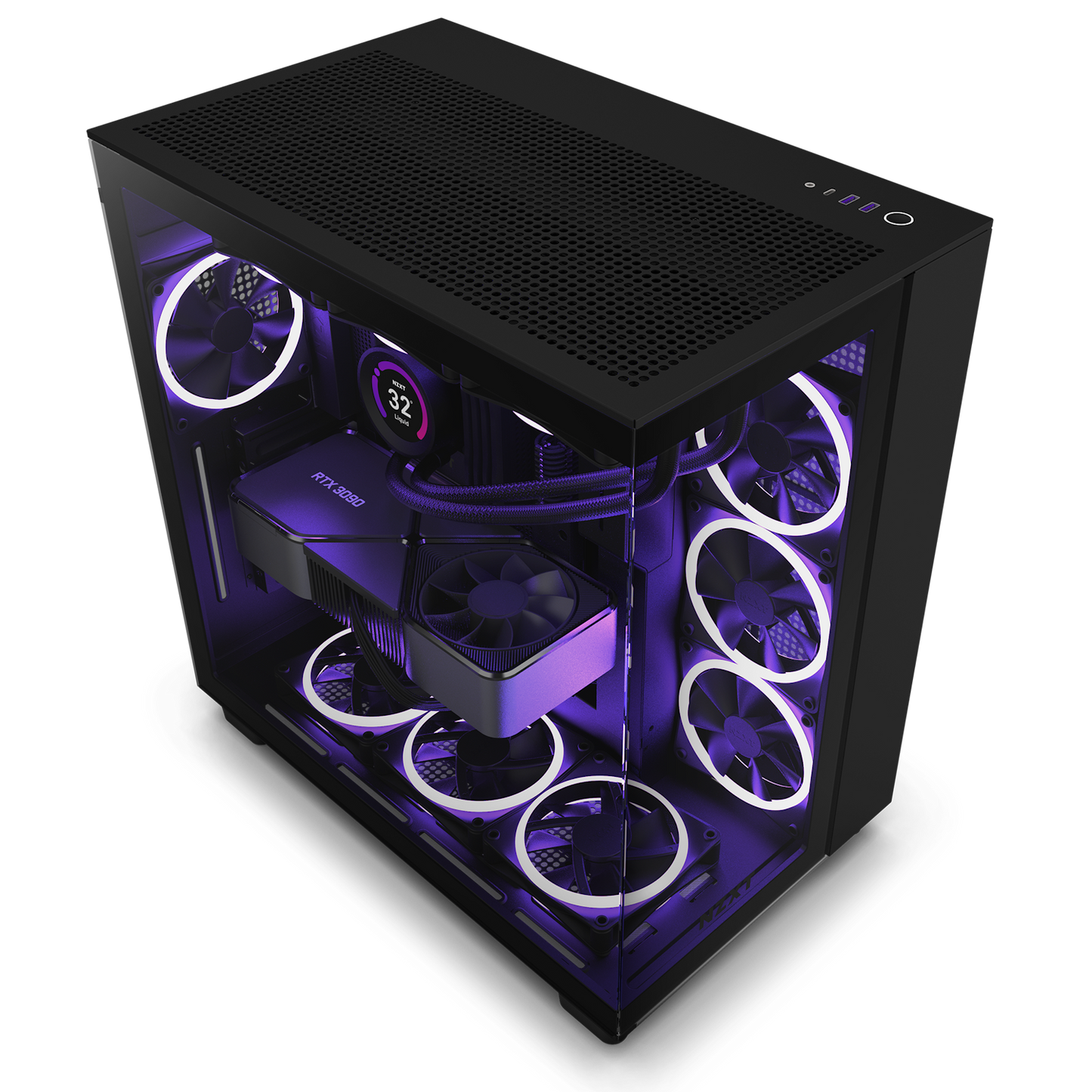

The H9 Flow is designed to cool off powerful GPUs with its expansive thermal capabilities, featuring the capacity for ten fans and numerous 360mm radiator mounting options and the perforated top panel takes cooling even further.
- Unique uninterrupted glass panel for a clear view of the interior
- Intuitive cable management and dual chamber design
- Room for ten fans or three 360mm Radiators
- Perforated top panel for enhanced cooling
- Direct airflow to the GPU for handling high-powered components
- Enhanced experience with other products from the NZXT ecosystem
- Includes four F Series 120mm Quiet Airflow fans (Case Version)
Specifications:
| Category | Specification |
|---|---|
| Motherboard Support | Mini-ITX, Micro-ATX, ATX |
| Enclosure Type | Mid-Tower |
| Case Material | SGCC Steel, Ultra-clear Tempered Glass, Dark Tinted Tempered Glass (Black only) |
| Dimensions | |
| Height (With Feet) | 495 mm |
| Width | 290 mm |
| Depth | 466 mm |
| Weight | 12.1 kg |
| Compatibility & Clearance | |
| Max CPU Cooler Clearance | Up to 165 mm |
| Max GPU Clearance | Up to 435 mm |
| PSU Clearance | 200 mm |
| Cable Management | 91 mm |
| Front I/O Ports | |
| USB 3.2 Gen 1 Type-A | 2 |
| USB 3.2 Gen 2x2 Type-C (20 Gbps) | 1 |
| Headset Audio Jack | 1 |
| Expansion Slots | |
| Standard | 7 |
| Vertical | 0 |
| Drive Bays | |
| 2.5" | 4+2 |
| 3.5" | 2 |
| Fan Support | |
| Side | 3 x 120 mm |
| Top | 3 x 120 mm / 2 x 140 mm |
| Bottom | 3 x 120 mm / 2 x 140 mm |
| Rear | 1 x 120 mm |
| Filters | All Air Intakes |
| Radiator Support | |
| Side | Up to 360 mm with Push/Pull |
| Top | Up to 360 mm |
| Bottom | Up to 360 mm |
| Rear | Up to 120 mm |
| Fan Specs | |
| Model | F120Q (Case Version) |
| Speed | 1200 ± 240 RPM |
| Airflow | 62.18 CFM |
| Static Pressure | 1.05 mm - H₂O |
| Noise Level | 25.1 dBA |
| Fan Connector | 3-pin |
| General | |
| Warranty | 2 Years |
| Model Number | CM-H91FW-01 (White) / CM-H91FB-01 (Black) |
| UPC | 810074842495 (White) / 810074842488 (Black) |
| EAN | 5056547202419 (White) / 5056547202402 (Black) |
