Description
Features

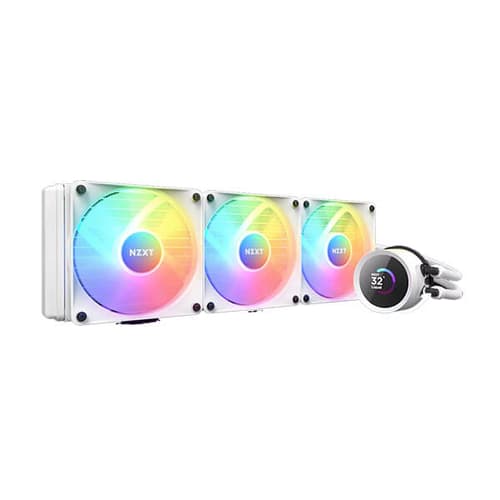

The Kraken delivers chillingly cool performance, an easy install, and a display screen for system specs or custom images.
- Pump features an embedded 1.54” square LCD screen to display real-time system info or custom images
- Adjustable screen orientation accommodates pump head position
- Powerful Asetek pump provides optimal cooling and up to 2,800 RPM whisper-quiet operation
- Includes high-performance PWM fans with fluid dynamic bearings for optimal cooling
- Includes F120 RGB Core fans
- Rubber tubing is reinforced with nylon-braided sleeves to prevent leaks
- Control custom screen content, RGB, pump speed, and zero-noise fan curves with NZXT CAM software.

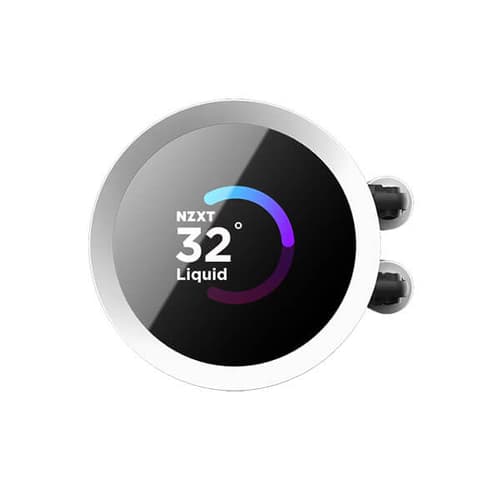

LCD Display
1.54" square LCD display with 240x240 resolution, 30 Hz refresh rate, and high brightness.
High-Performance Pump
The powerful Asetek pump circulates coolant efficiently and quietly.
Colorful Cooling
RGB Core Fans with fluid dynamic bearings provide powerful cooling and vivid RGB lighting.
Installation Made Easy
- A single breakout cable from pump to motherboard streamlines installation.
- Includes compatible mounting brackets for Intel (LGA 1700/1200/115X) and AMD processors (AM4, AM5).
- Pre-applied NZXT High-Performance Thermal Paste.
- Extended rubber tubing with durable nylon-braided sleeves for worry-free handling.
Specification
| Model | RL-KR360-W1 |
| Cap | |
| Material | Aluminum and plastic |
| Display Orientation | Software adjustable Default, +90, +180, and -90 Degrees |
| Display Panel Active Area | 1.54" (39.1mm) |
| Display Resolution | 240 x 240 px |
| Display Brightness | 300 cd/m² |
| Display Panel Type | Transmissive TFT, 262K color |
| Fan(s) | |
| Model | F120 RGB Core Fans |
| Quantity | 3 |
| Dimension | 120 x 120 x 26mm |
| Speed | 500-1,800 ± 180 RPM |
| Air Flow | 21.67 - 78.02 CFM |
| Air Pressure | 0.75 - 2.7mm-H2O |
| Noise | 17.9 - 30.6dBA |
| Bearing | Fluid Dynamic Bearing |
| Power Consumption | 12V DC, 0.23A, 2.76W |
| Connector | 4-pin PWM |
| Life | 60,000 hours / 6 Years |
| Water Block | |
| Dimensions | Diameter: 74.7mm H: 55.97mm |
| Material | Block: Copper, Housing: Plastic |
| Pump | |
| Motor Speed | 800 – 2,800 ± 300RPM |
| Power | 12V DC, 0.3A |
| Radiator | |
| Dimensions | 121 x 394 x 27mm |
| Material | Aluminum |
| Tube | |
| Length | 400mm |
| Material | Ultra-low Evaporation Rubber with Nylon Braided Sleeve |
| Compatible Socket & CPU | |
| Intel Socket | LGA 1700 & 1200/115X |
| Intel | Core i9 / Core i7 / Core i5 / Core i3 / Pentium / Celeron |
| AMD Socket | AM5, AM4, sTRX4*, TR4* (*Threadripper bracket not included) |
| AMD | Ryzen 9 / Ryzen 7 / Ryzen 5 / Ryzen 3 / Threadripper |
| RGB Controller | |
| Dimensions | 63.2 x 53.2 x 12.8mm |
| Weight | 52.8g |
| Mounting | Magnet and 3M Dual Lock |
| Connection Cables | 1x USB 2.0 internal connector 1x SATA power cable |
| Input Connector | 12V DC / 2.6A |
| RGB Lighting Channels | 3 |
| Output Channel Voltage | 5V DC |
| NZXT RGB Channel Output LED Qty | Up to 40 LEDs per channel and up to 120 LEDs combined total for the total 3 channels |
| Warranty | 6 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
