Description
Overview:
Details

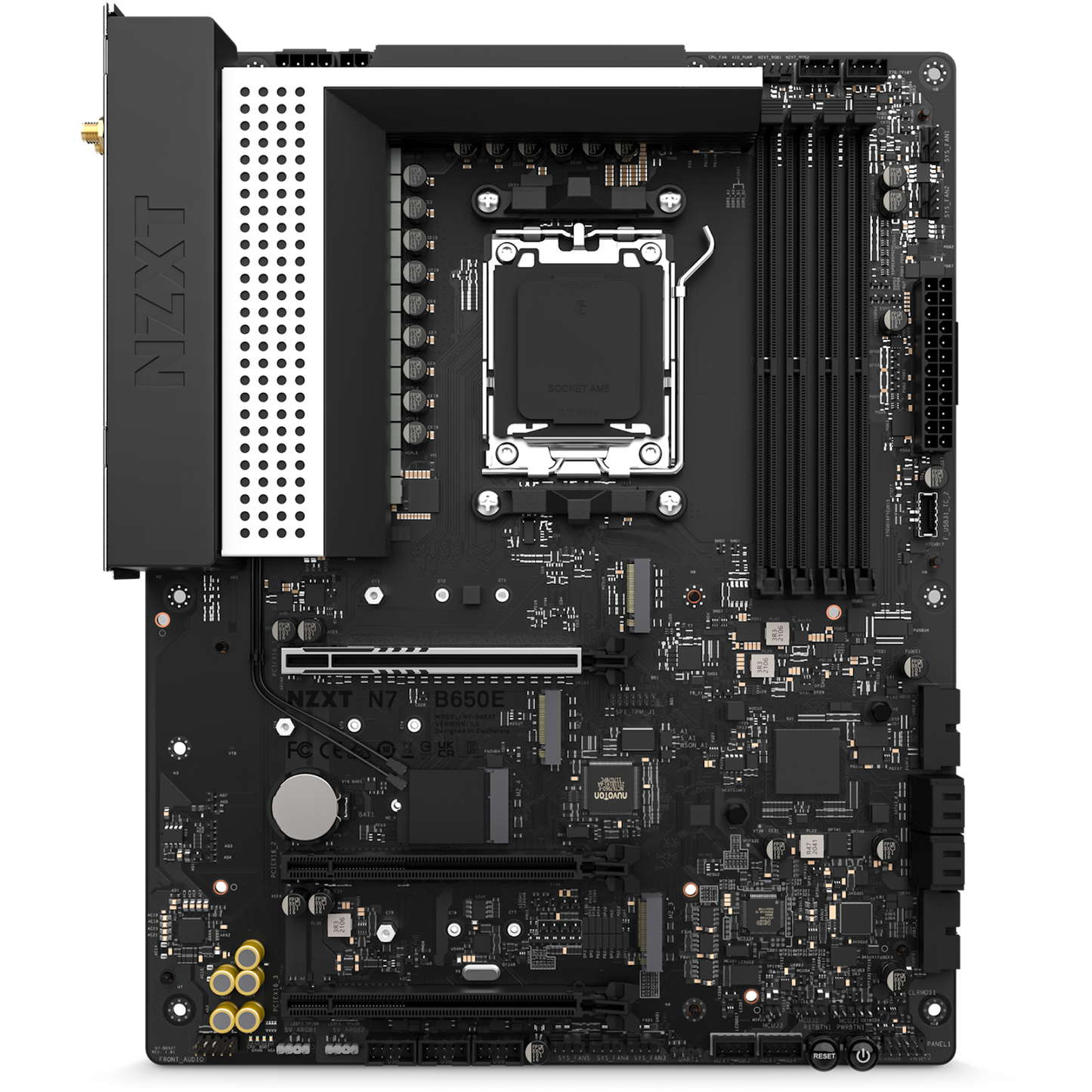

Leverage the full value of your AMD Ryzen™ 9000, 8000, and 7000 Series Processors with the AMD B650 chipset. The N7 B650E features upgraded compatibility as well as N7 favorites, such as digital RGB and fan control, Wi-Fi 6e, and more.
Maximum Control:
Easily customize lighting and cooling modes via NZXT CAM, with access to six RGB lighting channels. Configure lights and fans from any manufacturer.
Finishing Touch:

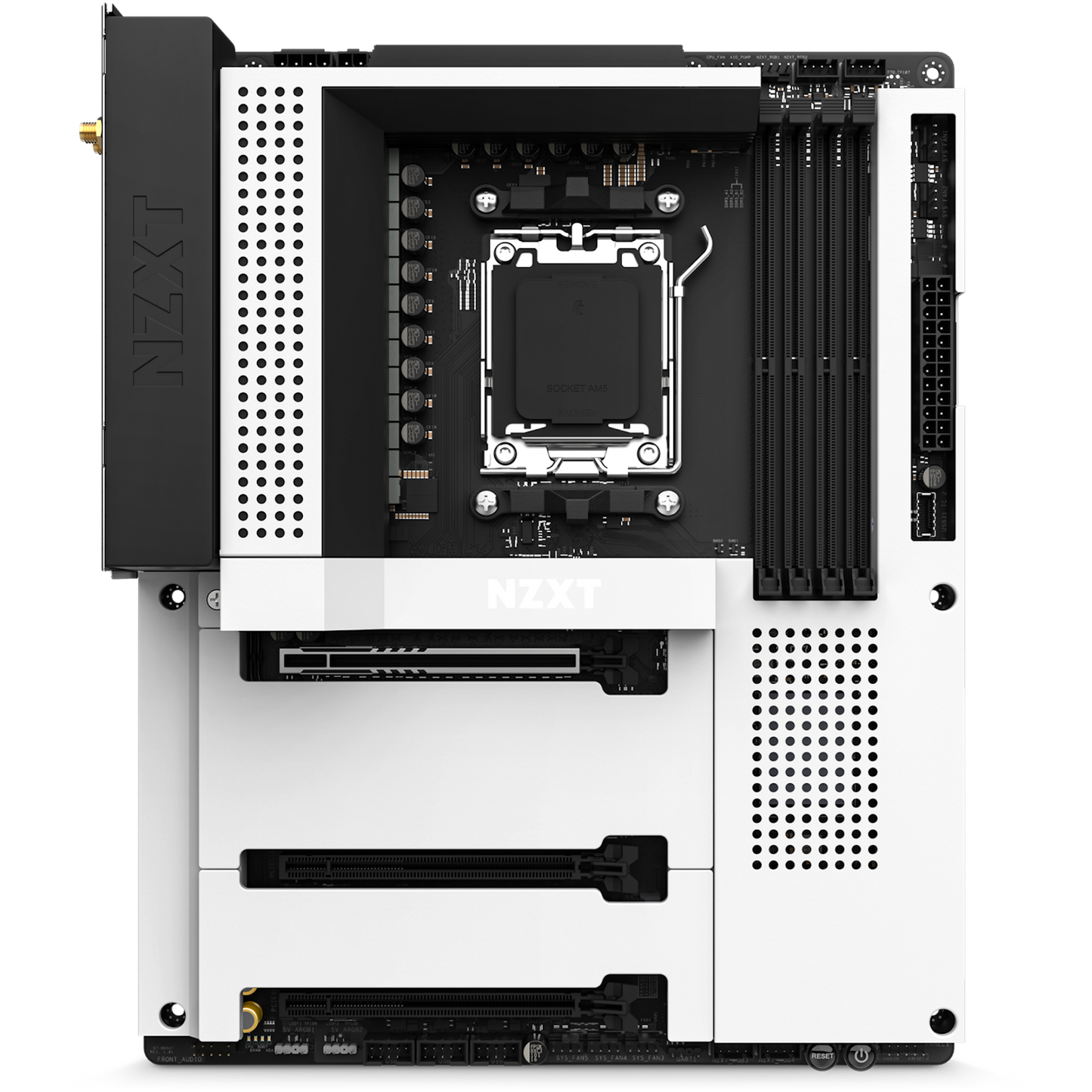

A white or black metal cover conceals the inner workings, blending seamlessly with your case. The heat fins have been expanded to cool the PCIe Gen 5 enabled NVMe drive slot.
Ready To Rock:
Integrated Wi-Fi 6E, rear I/O shield, and clever port placement makes the build process easy—plenty of room on board for upgrades down the line.
Stunning Craftsmanship:

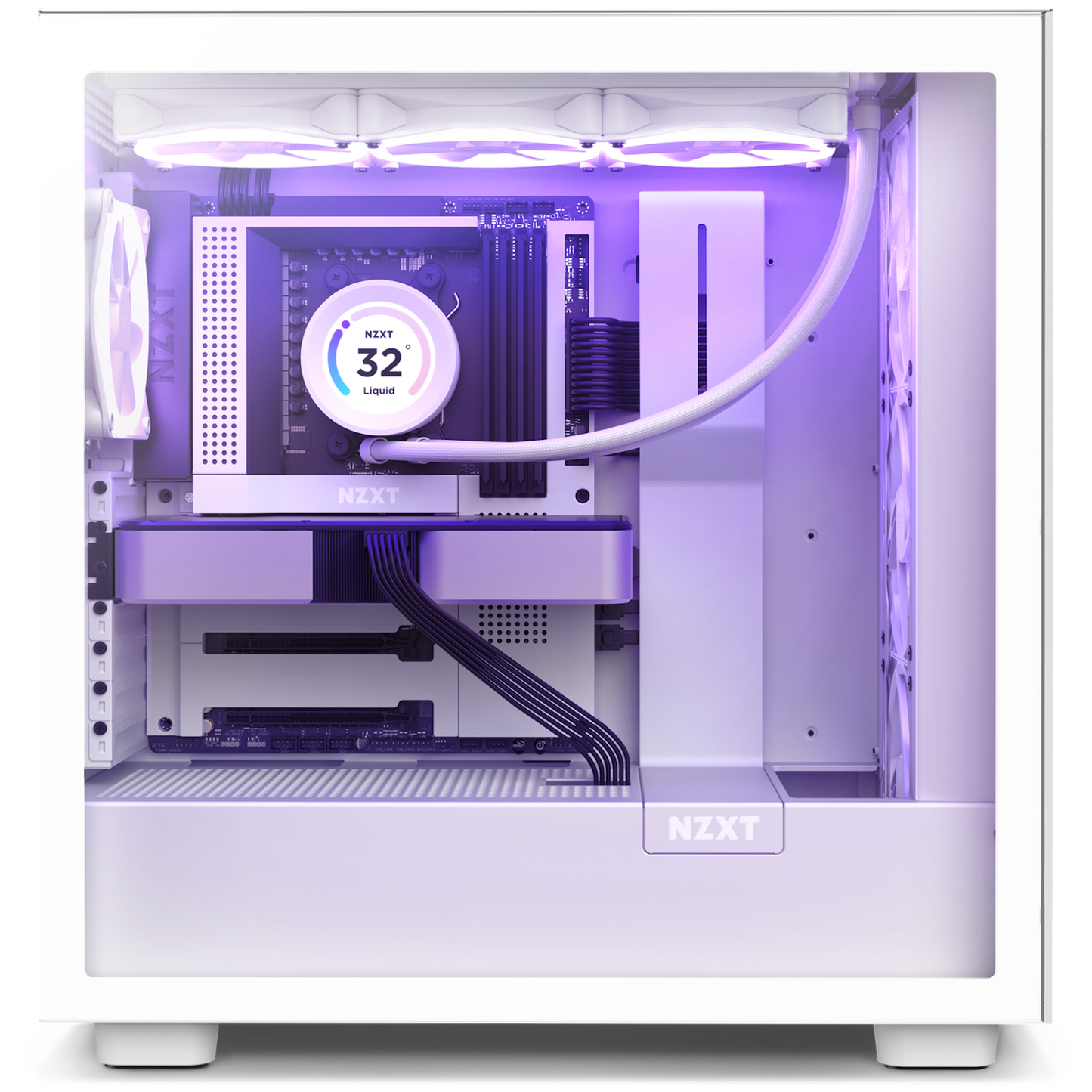

Build your dream system with a full metal cover that blends aesthetically with black or white cases for a seamless backdrop for your components.
CPU and Socket:
Supports AMD Socket AM5 for AMD Ryzen™ 9000, 8000, and 7000 Series Processors.
- 16+2+1 Power phase design with 90A Smart Power Stage
- Seamless cover with integrated heat spreader
- Digital RGB lighting control through CAM
- Digital fan control for convenient fan profiles with seven independent fan channels
Inside the Box
-
N7 B650E Motherboard1
-
SATA cables (2 x 90°, 2 x 180°)4
-
M.2 screws2
-
Wireless antenna2
Tech specs:
| Category | Specification |
|---|---|
| CPU | |
| Supports AMD Socket AM5 | AMD Ryzen™ 9000, 8000, and 7000 Series Processors |
| Chipset | |
| AMD | B650E |
| Memory | |
| DIMM Slots | 4, DDR5 only |
| Max Memory Support | 128GB |
| Memory Architecture | Dual-Channel |
| OC Frequency | DDR5 Non-ECC, Un-buffered Memory up to 7200+ (OC) |
| Extreme Memory Profile (XMP) | Supported |
| EXTended Profiles for Overclocking (EXPO) | Supported |
| Expansion Slots | |
| PCIe 5.0 ×16 slot (PCIEX16_1) | 1 (Supports NVMe SSD as boot disks) |
| PCIe 4.0 ×16 slots (PCIEX16_2 and PCIEX16_3) | 2 (Supports NVMe SSD as boot disks) |
| M.2 Socket (Key E) | 1 (Supports Type 2230 Wi-Fi/BT PCIe Wi-Fi module) |
| Integrated Graphics | |
| Integrated AMD RDNA™ 2 graphics | Supported |
| HDMI 2.1 TMD Compatible | 1 |
| HDR | Supported |
| HDCP 2.3 | Max. resolution up to 4K 60Hz |
| Storage | |
| M.2_1 | Type 2242/2260/2280 (PCIe 5.0 ×4 mode) - 1 |
| M.2_2 | Type 2242/2260/2280 (PCIe 4.0 ×4 mode) - 1 |
| M.2_3 | Type 2242/2260/2280 (PCIe 4.0 ×2 mode) - 1 |
| SATA 6Gb/s ports | 4 |
| RAID 0/1/10 for SATA storage devices | Supported |
| RAID 0/1/10 for M.2 NVMe storage devices | Supported |
| NVMe SSD as boot disks | Supported |
| LAN | |
| Realtek® | RTL8125BG 2.5G LAN |
| Wireless | |
| 802.11ax Wi-Fi 6E Module | Supported |
| Bluetooth | V5.2 |
| Audio | |
| Realtek® | ALC1220 Codec |
| Rear I/O | |
| Wireless antenna SMA connectors | 2 |
| HDMI™ port | 1 |
| USB 2.0 | 2 |
| USB 3.2 Gen 2 Type-C port | 1 |
| USB 3.2 Gen 2 ports | 2 |
| USB 3.2 Gen 1 ports | 4 |
| Clear CMOS button | 1 |
| BIOS Flashback button | 1 |
| LAN (RJ45) port | 1 |
| Audio jacks | 5 |
| Optical S/PDIF Out port | 1 |
| Internal I/O | |
| 24-pin ATX power connector | 1 |
| 8+4-pin ATX 12V power connector | 1 |
| 4-pin CPU_FAN connector | 1 |
| 4-pin AIO_PUMP connector | 1 |
| 4-pin SYS_FAN connectors | 5 |
| NZXT RGB LED connectors | 4 |
| 5V ARGB LED connector | 2 |
| USB 2.0 header (Up to 6 USB 2.0 ports) | 3 |
| USB 3.2 Gen1 header (Up to 4 USB 3.2 Gen 1 ports) | 2 |
| USB 3.2 Gen2x2 front panel header (For USB Type-C) | 1 |
| Front panel audio connector | 1 |
| Power button | 1 |
| Reset button | 1 |
| POST LEDs | 4 |
| General | |
| System Requirements | NZXT CAM software requires Microsoft Windows® 11/10 |
| Form Factor | ATX |
| Warranty | 3 years |
| Certifications | FCC, CE, WHQL, ErP/EuP Ready |
| Model Number | N7-B65XT-W1 (White) / N7-B65XT-B1 (Black) |
| UPC | 810074842877 (White) / 810074842884 (Black) |
| EAN | 5056547202815 (White) / 5056547202822 (Black) |
