Description

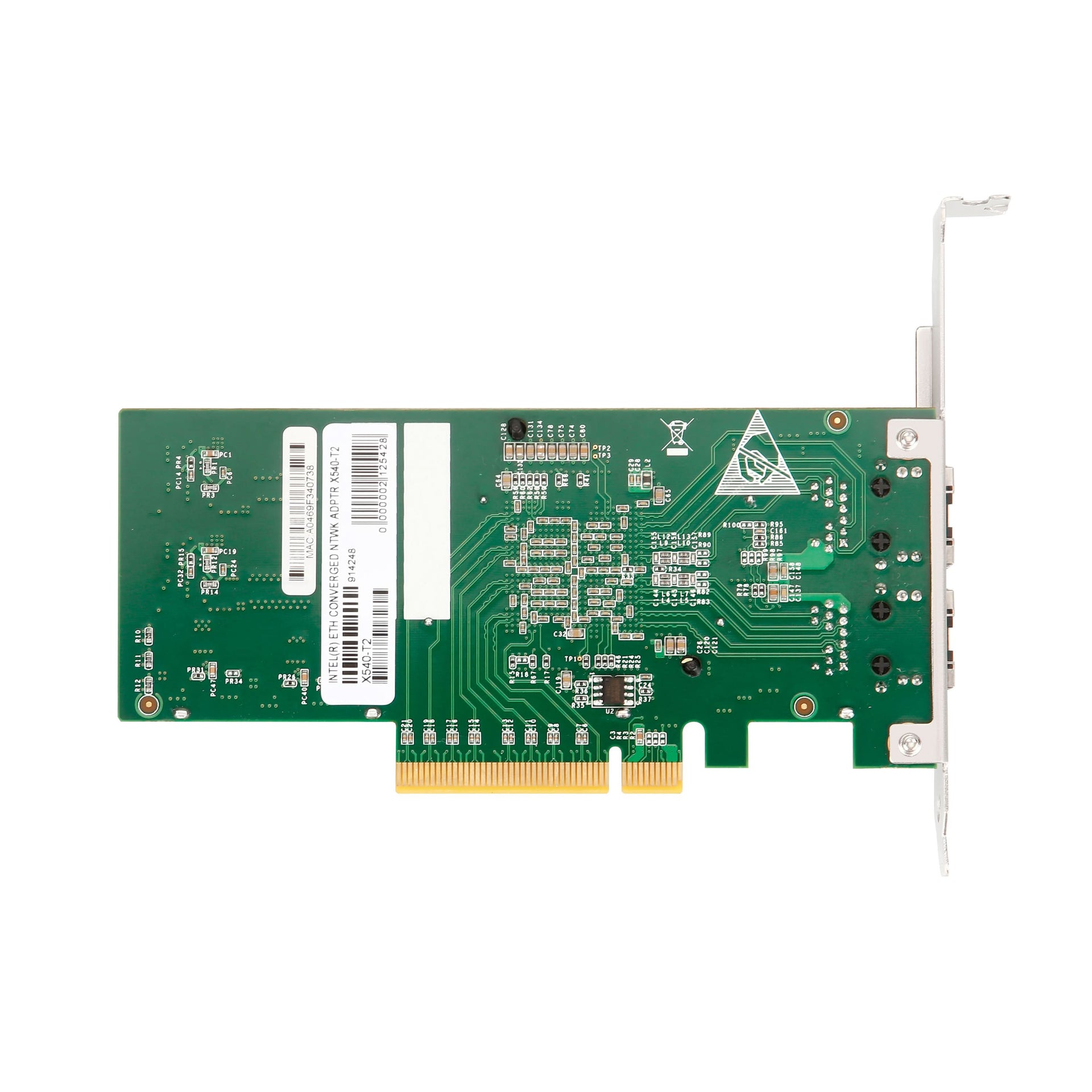

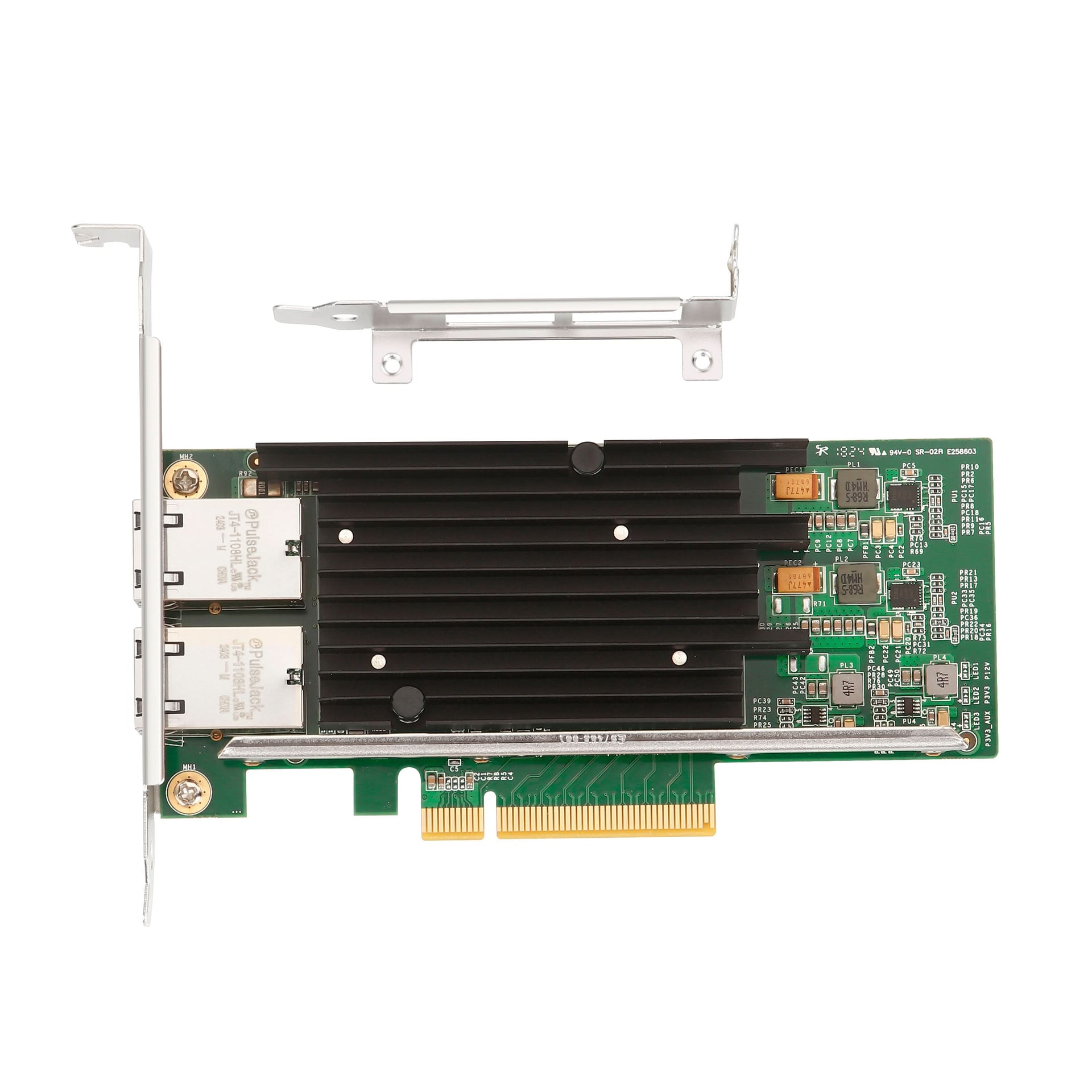

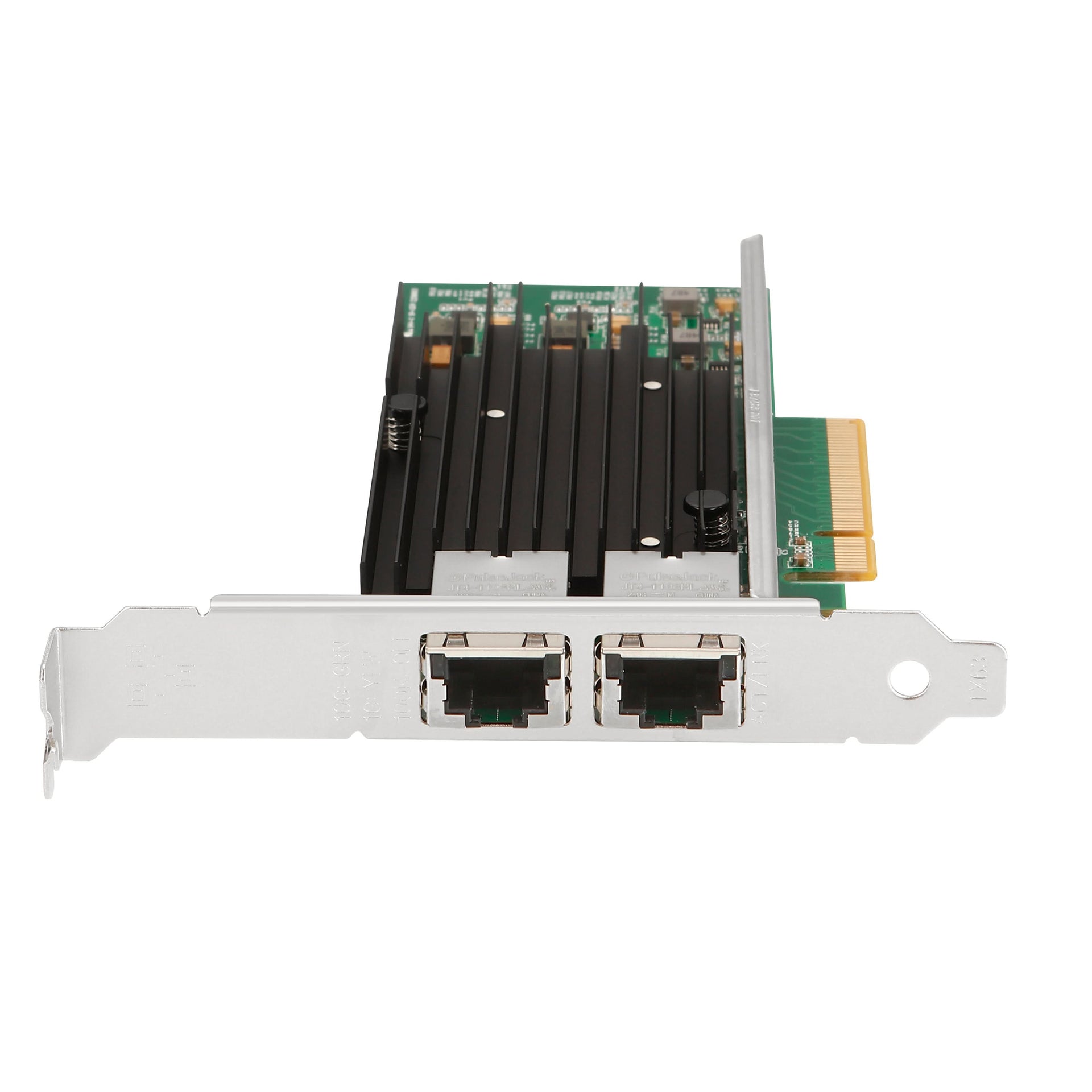

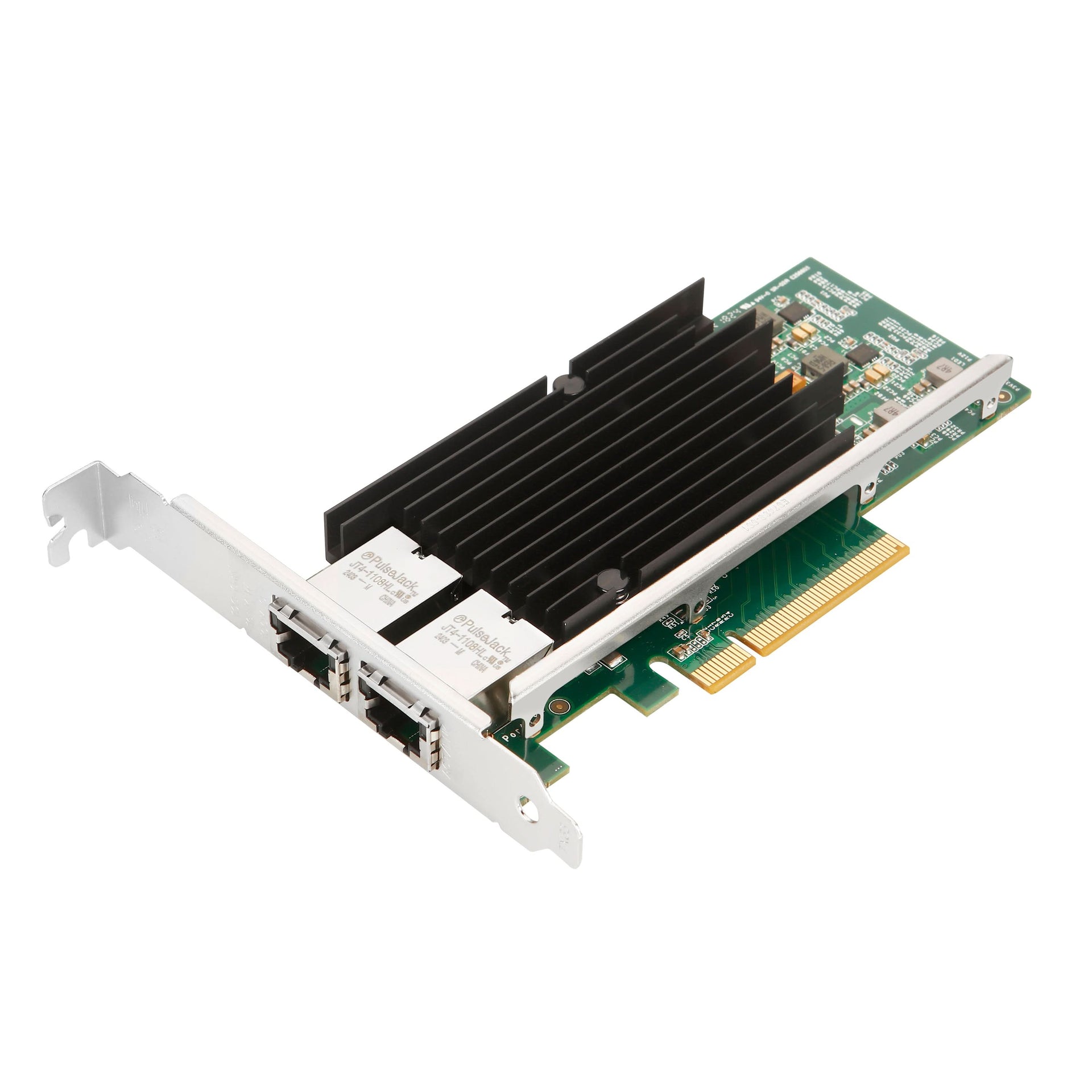

S-Tech PCIe 10GbE Dual Port RJ45 Ethernet Network Card – Intel X540
The S-TECH STC-X540-T2 is a high-performance dual-port 10GbE Ethernet network
adapter based on the Intel® Ethernet Controller X540. Designed for enterprise servers, data
centers, virtualization platforms, storage networks, and high-performance workstations, the
adapter delivers reliable high-speed connectivity with efficient network processing and
advanced data center capabilities.
Featuring two RJ45 copper ports and a PCI Express 2.1 host interface, the adapter supports
10GbE, 1GbE, and 100Mb Ethernet connectivity over standard twisted-pair cabling. With
support for Intel® Virtualization Technology for Connectivity (VT-c), SR-IOV, VMDq, Data
Center Bridging (DCB), intelligent hardware offloads, Jumbo Frames, PXE Boot, iSCSI, and
FCoE, the STC-X540-T2 provides a versatile networking solution for modern enterprise and
data center environments.
PRODUCT FEATURES
• Dual-port 10GbE RJ45 Ethernet adapter based on Intel® Ethernet Controller X540
• PCI Express 2.1 host interface
• Supports 10GbE / 1GbE / 100Mb Ethernet data rates
• Dual RJ45 10GBASE-T copper ports
• Supports CAT6 / CAT6A cabling for 10GbE connectivity
• Intel® VT-c and SR-IOV virtualization support
• Jumbo Frame support up to 15.5KB
• Data Center Bridging (DCB) support
• PXE Boot and Wake-on-LAN support
• iSCSI and FCoE support
• Full-height bracket installed; Low-profile bracket included
• Ideal for enterprise servers, virtualization, storage networking, cloud infrastructure,
and data center applications
SPECIFICATION
| Essentials | |
| Product Name | STC-X540-T2 |
| Product Collection | Intel® X540 10GbE Network Adapter |
| Controller | Intel® Ethernet Controller X540-AT2 |
| Bus Type / Bus Width | PCI Express 2.1 x8 |
| Connections | 2 × RJ45 Copper |
| Data Rate Supported | 10GbE / 1GbE / 100Mb |
| Technical Specification | |
| Physical Layer Interface | RJ45 / 10GBASE-T |
| Transmission Media | CAT6 / CAT6A |
| Maximum Cable Distance | Up to 100 m |
| Network Standards | IEEE 802.3an, IEEE 802.3ab, IEEE 802.3u |
| Auto Negotiation | Supported |
| Auto MDI/MDI-X | Supported |
| Jumbo Frames | Up to 15.5KB |
| Virtualization | SR-IOV, VMDq, Intel® VT-c |
| Traffic Management | QoS, Data Center Bridging (DCB) |
| Network Offloads | TCP/UDP/IP Checksum Offload, TSO |
| Receive Side Scaling (RSS) | Supported |
| Network Virtualization | VXLAN / NVGRE Offload |
| Storage Offload | iSCSI, FCoE |
| Time Synchronization | IEEE 1588, IEEE 802.1AS |
| Security | Intel® MACsec, IPsec Offload |
| Boot Support | PXE, iSCSI/FCoE Boot |
| Wake-on-LAN | Supported |
| Interrupt Support | MSI, MSI-X |
| Bracket | Full Height Installed, Low Profile Included |
| System Requirements | |
| Operating System | Windows® 10 / 8.1 / 8 / 7 |
| Windows Server® 2008 R2 / 2012 / 2012 R2 / 2016 / 2019 | |
| RHEL 7.9 / 8.4 / 8.5, SLES 12 SP5, SLES 15 SP3 | |
| Ubuntu 18.04 LTS / 20.04 LTS | |
| VMware ESXi 6.x / 7.x | |
| FreeBSD 12.2 / 13 | |
| Environment & Certification | |
| Power Consumption | Max. 12.5 W |
| Operating Temperature | 0°C to 55°C* |
| Storage Temperature | -40°C to 70°C |
| Storage Humidity | 90% Non-condensing |
| Thermal Design | Passive Heatsink |
