Description

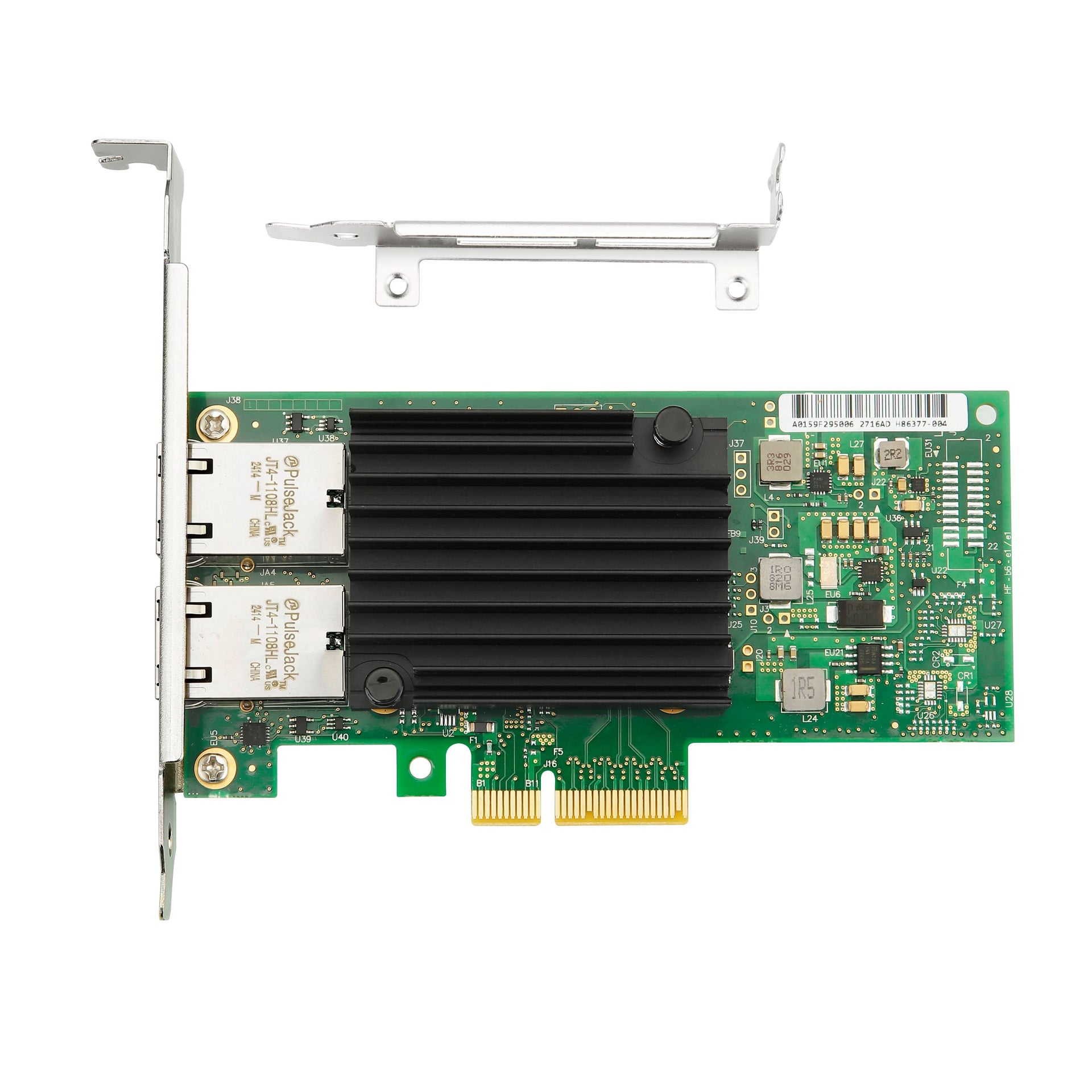

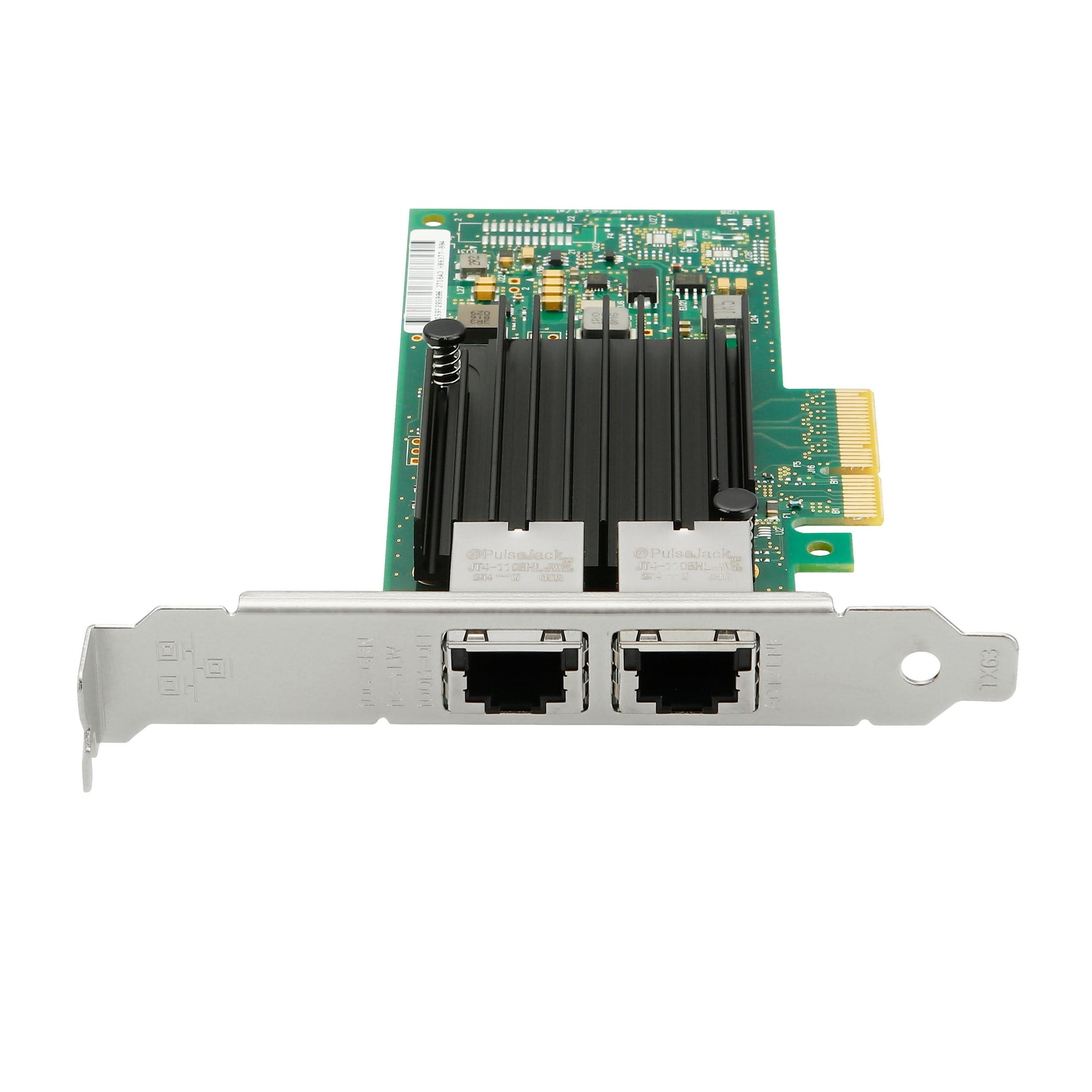

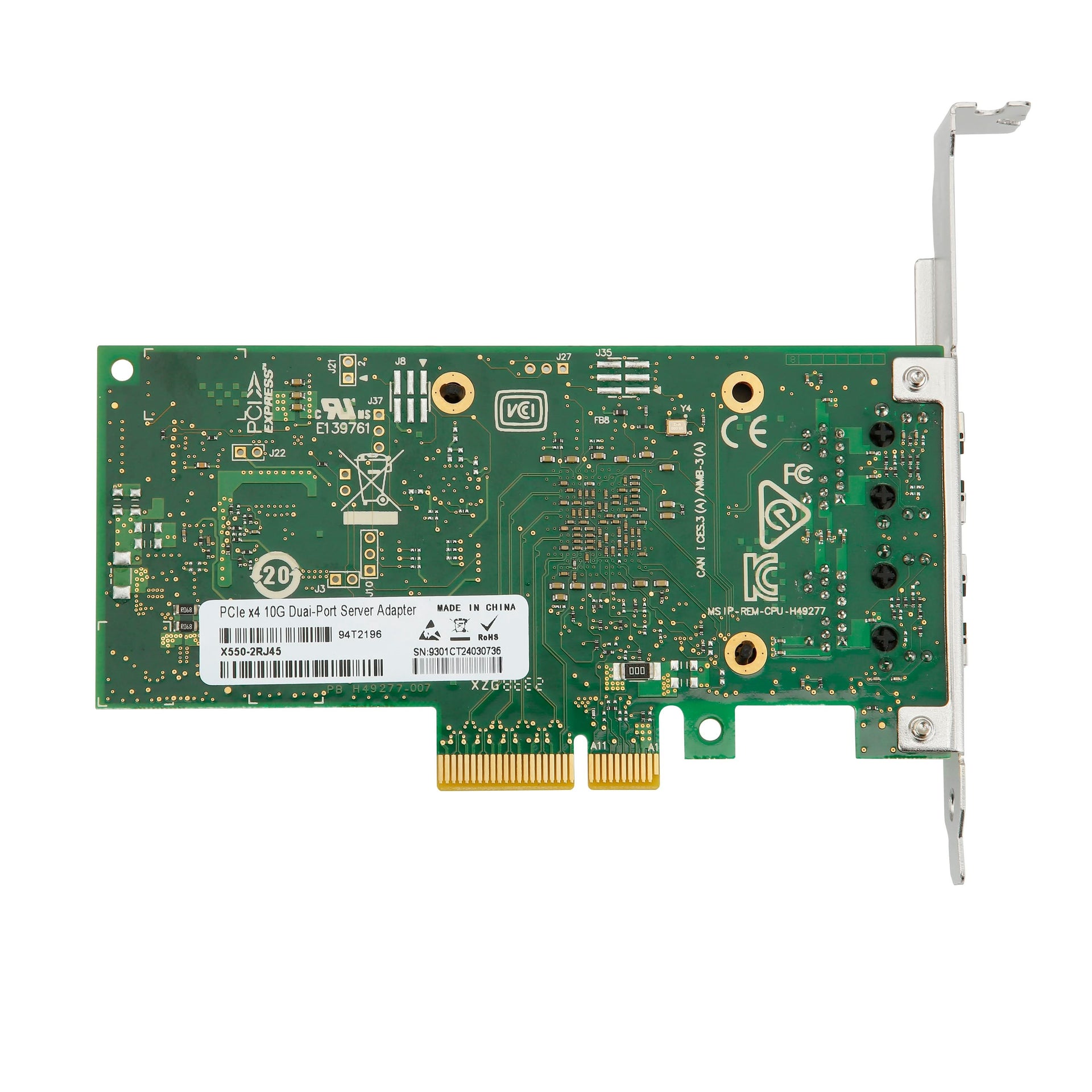

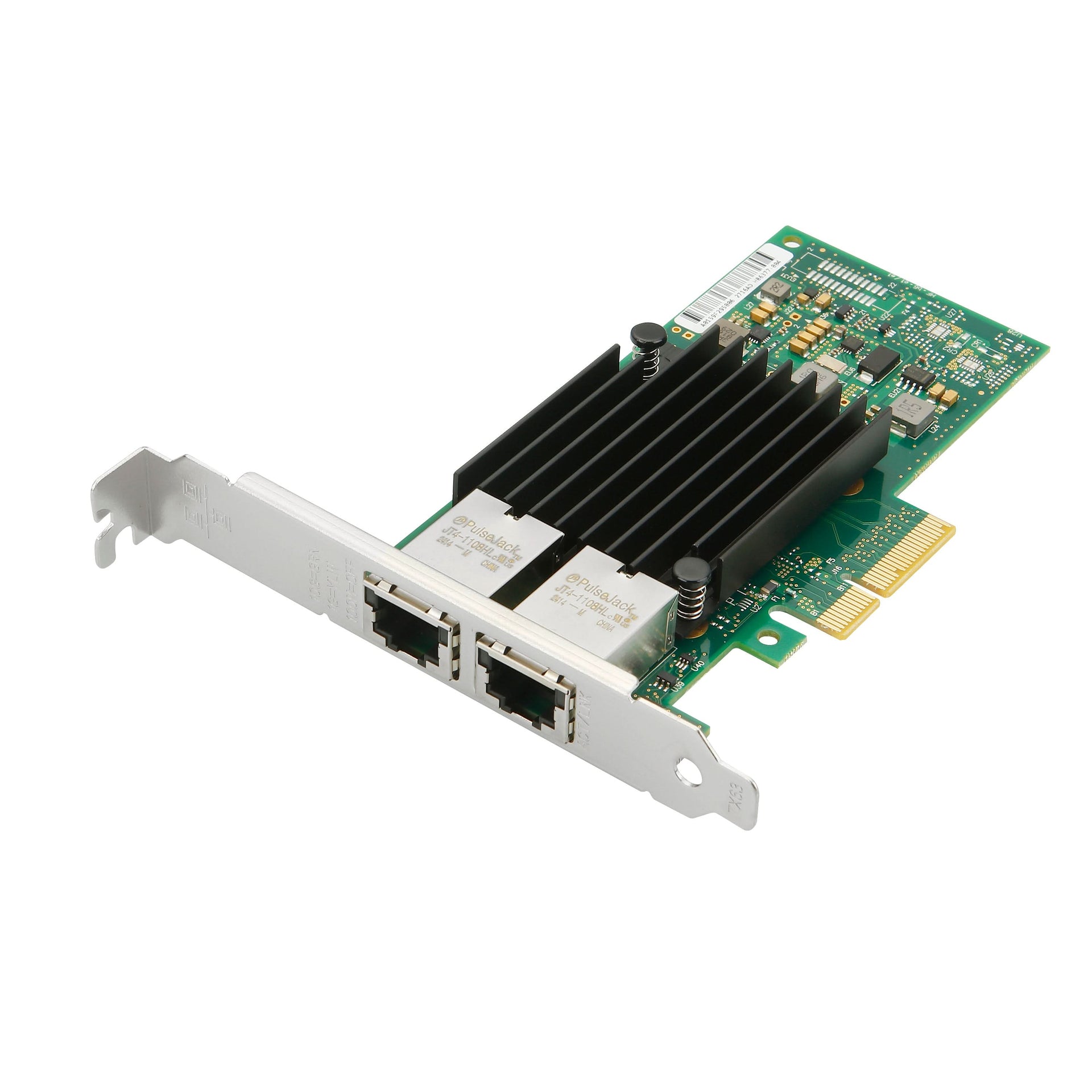

S-Tech PCIe 10GbE Dual Port RJ45 Ethernet Network Card – Intel X550
The S-TECH STC-X550-T2 is a high-performance dual-port 10GbE Ethernet network
adapter based on the Intel® Ethernet Controller X550. Designed for enterprise servers, data
centers, virtualization platforms, storage networks, and high-performance workstations, the
adapter provides reliable high-speed connectivity with advanced virtualization, traffic
management, and network offload capabilities.
Featuring two RJ45 copper ports and a PCI Express 3.0 x4 host interface, the adapter
supports 10GbE, 5GbE, 2.5GbE, 1GbE, and 100Mb Ethernet connectivity over standard
twisted-pair cabling. With support for SR-IOV, VMDq, Flexible Port Partitioning, Data Center
Bridging, intelligent hardware offloads, PXE Boot, and storage networking features, the STC-X550-T2 provides a versatile networking solution for modern enterprise and data center environments.
PRODUCT FEATURES
• Dual-port 10GbE RJ45 Ethernet adapter based on Intel® Ethernet Controller X550-AT2
• PCI Express 3.0 x4 host interface
• Supports 10GbE / 5GbE / 2.5GbE / 1GbE / 100Mb Ethernet data rates
• Dual RJ45 10GBASE-T copper ports
• Supports CAT6 and CAT6A cabling
• SR-IOV and VMDq virtualization support
• Data Center Bridging (DCB) and advanced traffic management
• Jumbo Frame support up to 15.5KB
• PXE Boot and Wake-on-LAN support
• iSCSI, FCoE and NFS storage networking support
• Full-height bracket installed; Low-profile bracket included
• Ideal for enterprise servers, virtualization, storage networking, cloud infrastructure, and data center applications
SPECIFICATION
| Essentials | |
| Product Name | STC-X550-T2 |
| Product Collection | Intel® X550 10GbE Network Adapter |
| Controller | Intel® Ethernet Controller X550-AT2 |
| Bus Type / Bus Width | PCI Express 3.0 x4 (8.0 GT/s) |
| Connections | 2 × RJ45 Copper |
| Data Rate Supported | 10GbE / 5GbE / 2.5GbE / 1GbE / 100Mb* |
| Technical Specification | |
| Physical Layer Interface | RJ45 / 10GBASE-T |
| Transmission Media | CAT6 / CAT6A |
| Maximum Cable Distance | CAT6: up to 55m; CAT6A: up to 100m |
| Auto Negotiation | Supported |
| Jumbo Frames | Up to 15.5KB |
| Virtualization | SR-IOV, VMDq |
| Traffic Management | QoS, Flexible Port Partitioning, Data Center Bridging |
| Network Virtualization Offloads | VXLAN, NVGRE |
| Advanced Features | Intel® Data Direct I/O Technology, Intelligent Offloads |
| Storage Over Ethernet | iSCSI, FCoE, NFS |
| Time Synchronization | IEEE 1588 |
| Interrupt Support | MSI, MSI-X |
| Boot Support | PXE, UEFI |
| Wake-on-LAN | Supported |
| FCoE | Supported |
| iWARP / RDMA | Not Supported |
| System Requiurement | |
| Operating System | Windows® 10 / 11 |
| Windows Server® 2016 / 2019 / 2022 / 2025 | |
| RHEL / SLES / Ubuntu and other supported Linux distributions | |
| VMware ESXi 7.x / 8.x | |
| FreeBSD 13.x / 14.x / 15.x | |
| Environment & Certification | |
| Controller TDP | 11 W |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -40°C to 70°C |
| Cabling | CAT6 / CAT6A |
| Bracket | Full Height Installed, Low Profile Included |
| LED Indicators | Link / Activity / Speed |
| Certifications | CE, FCC, RoHS |
| Warranty | 1 Year |
