Description

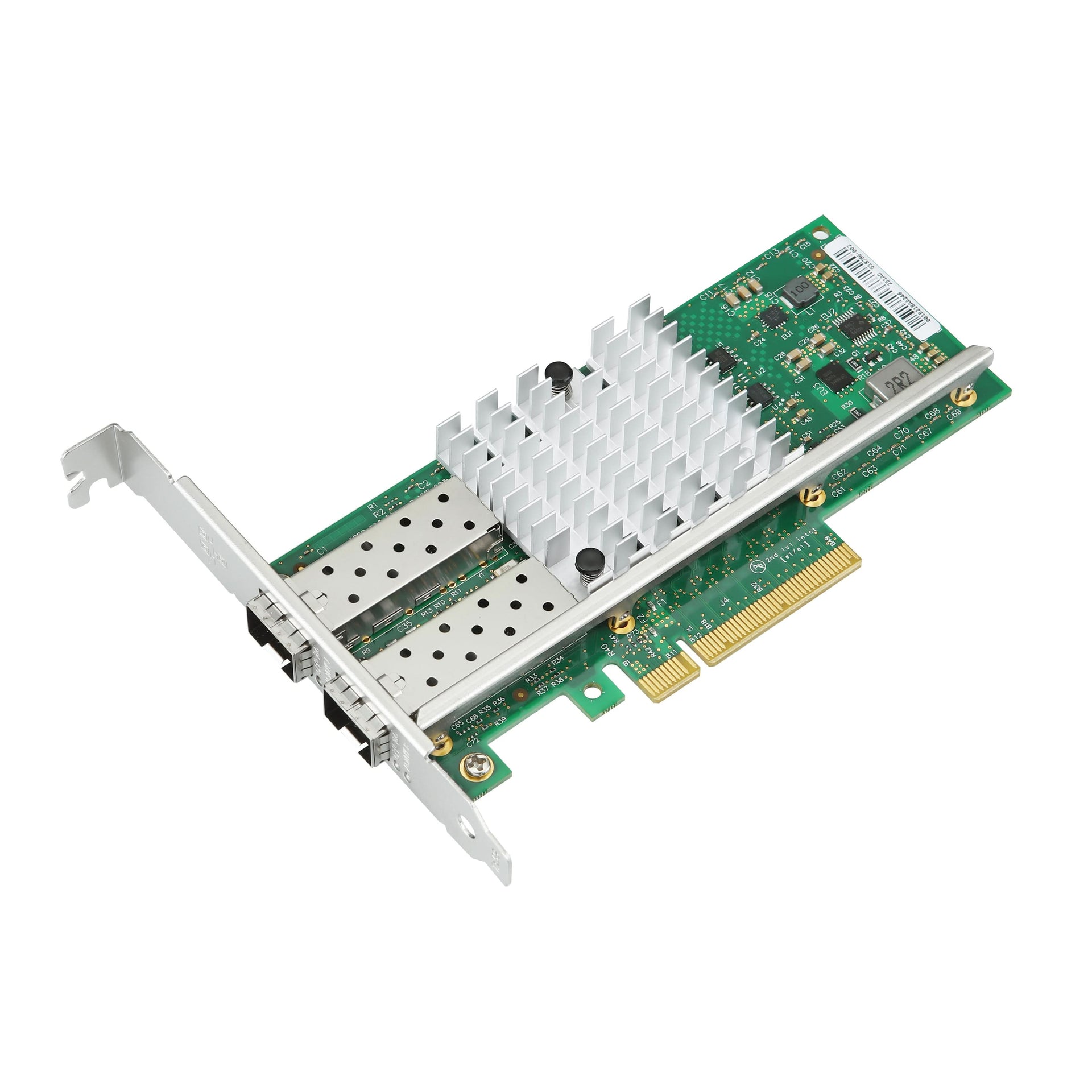

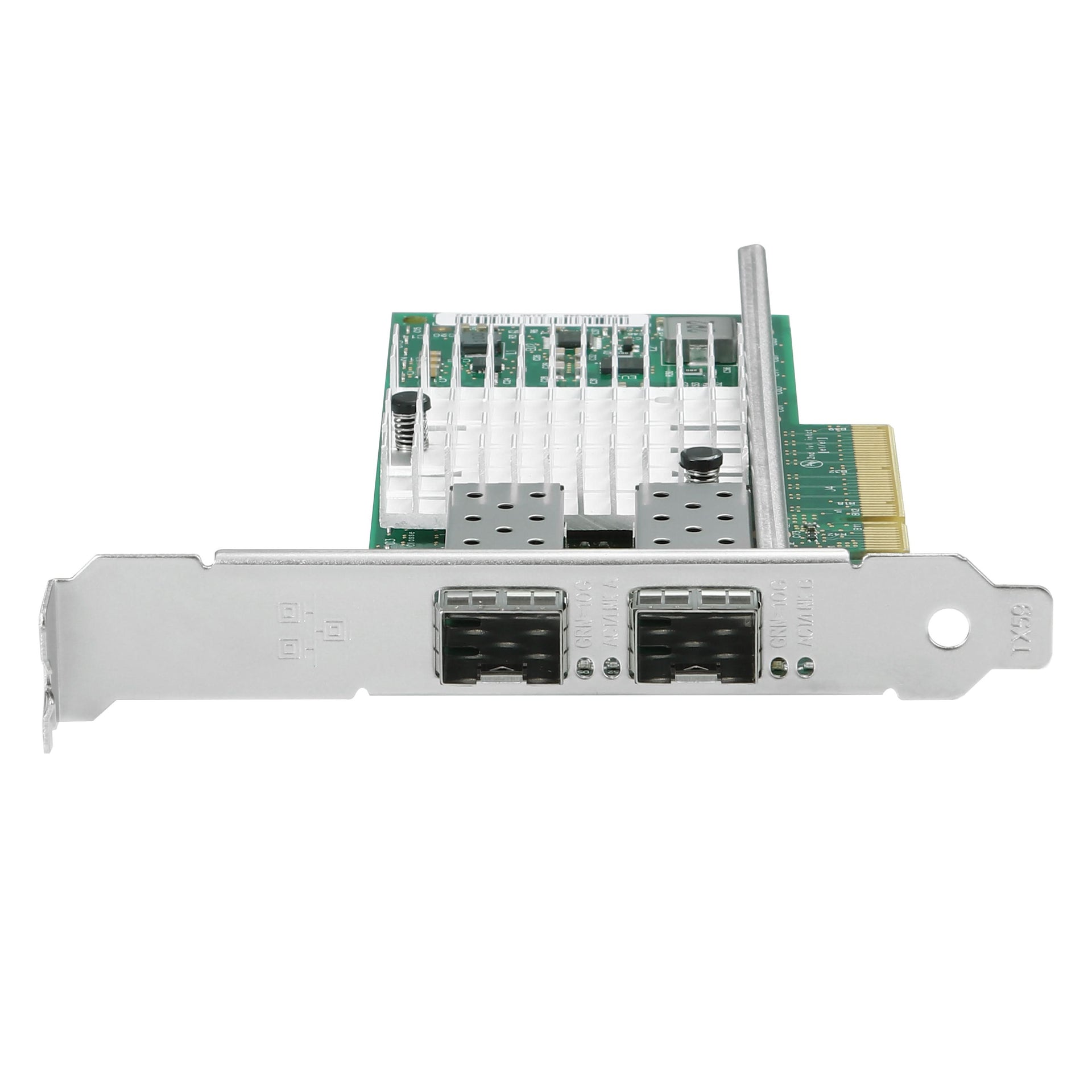

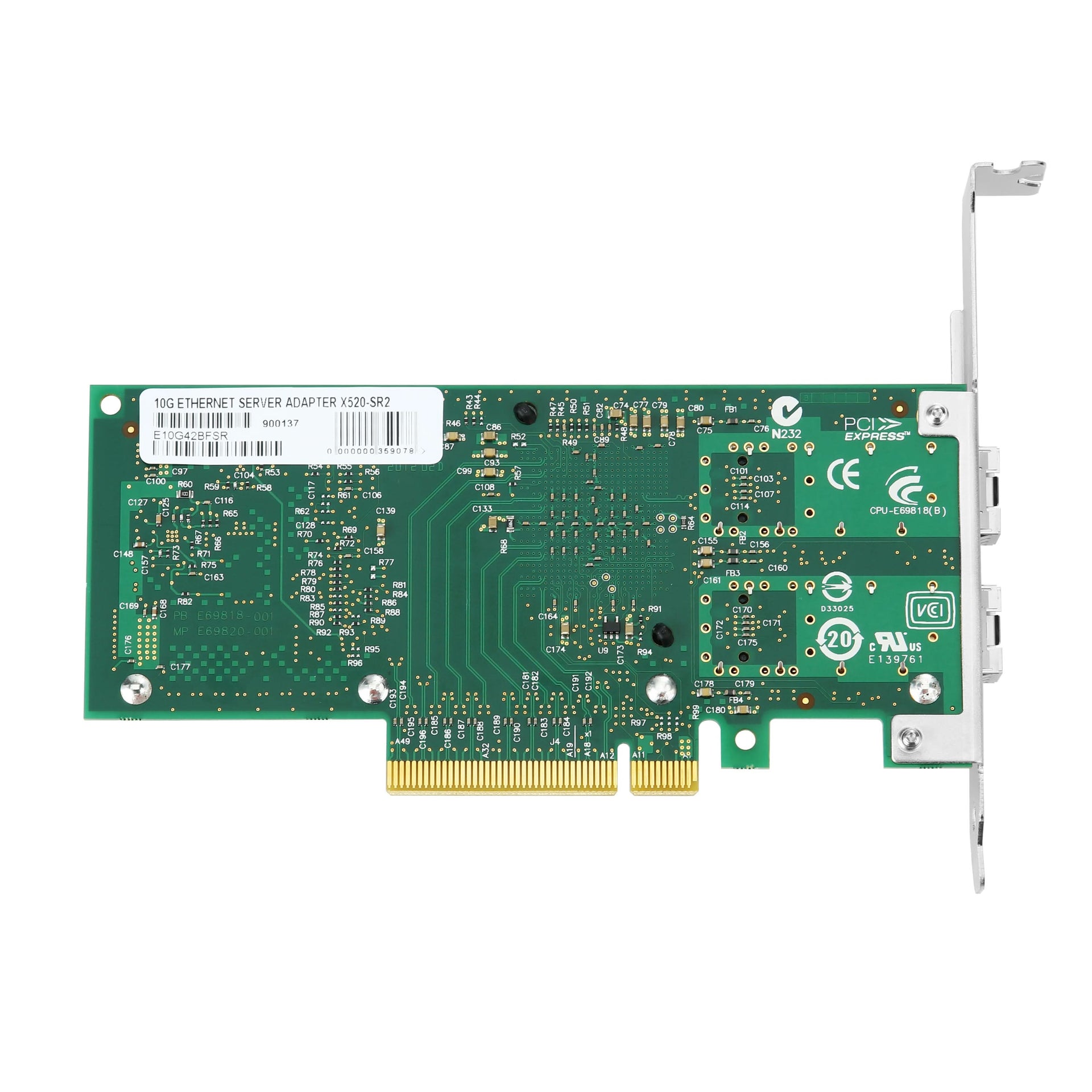

S-Tech PCIe 10GbE Dual Port SFP+ Ethernet Network Card – Intel X520
The S-TECH STC-X520-DA2 is a high-performance Dual-port 10GbE Ethernet network
adapter based on the Intel® 82599ES 10 Gigabit Ethernet Controller. Designed for
enterprise servers, data centers, virtualization platforms, storage networks, and high-
performance workstations, the adapter provides reliable high-speed connectivity with advanced
networking and virtualization capabilities.
Featuring Dual SFP+ ports and a PCI Express 2.0 x8 host interface, the adapter supports
10GbE and 1GbE connectivity and is compatible with SFP+ optical transceivers and Direct
Attach Copper (DAC) cables. With support for SR-IOV, VMDq, VLAN, Jumbo Frames, PXE
Boot, iSCSI and FCoE offloads, the STC-X520-DA2 is well suited for demanding enterprise
and data-center networking applications.
PRODUCT FEATURES
• Dual-port 10GbE SFP+ Ethernet adapter based on Intel® 82599 10 Gigabit Ethernet
Controller
• PCI Express 2.0 x8 host interface
• Supports 10GbE / 1GbE Ethernet data rates
• Compatible with SFP+ optical transceivers and DAC cables
• Supports SR-IOV and VMDq virtualization technologies
• Jumbo Frame support
• VLAN and Data Center Bridging support
• PXE Boot and iSCSI / FCoE support

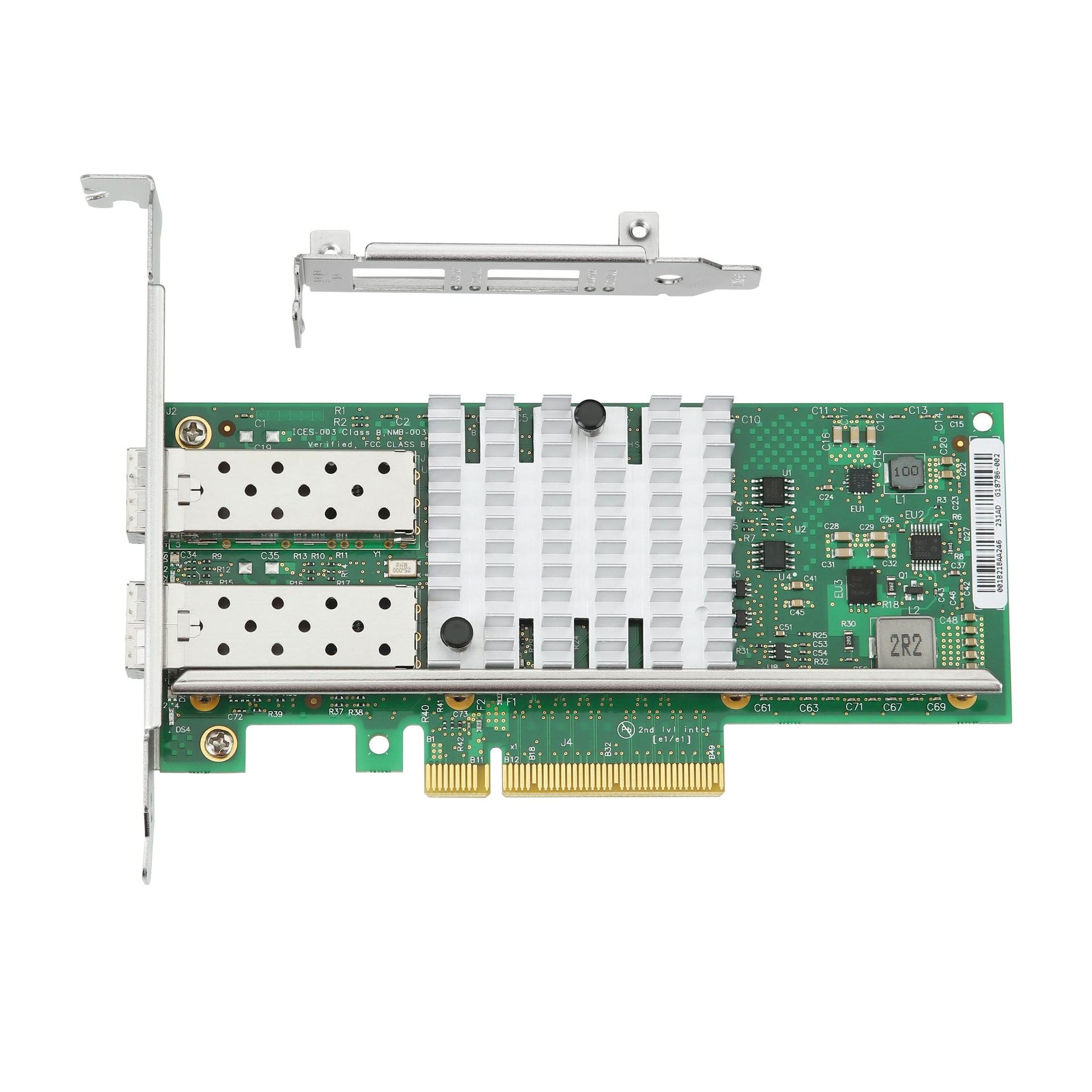

• Full-height bracket installed; Low-profile bracket included
• Ideal for enterprise servers, virtualization, storage networking, cloud infrastructure, and
data-center applications
SPECIFICATION
| Essentials | |
| Product Name | STC-X520-DA2 |
| Product Collection | Intel® X520 10GbE Network Adapter |
| Controller | Intel® 82599 10 Gigabit Ethernet Controller |
| Bus Type / Bus Width | PCI Express 2.0 x8 |
| Connections | 2 × SFP+ |
| Data Rate Supported | 10GbE / 1GbE |
| Technical Specification | |
| Physical Layer Interface | SFP+ |
| Media Support | SFP+ Optical Transceivers, DAC |
| Network Standards | IEEE 802.3ae, IEEE 802.3, IEEE 802.3u |
| Jumbo Frames | Supported |
| Virtualization | SR-IOV, VMDq |
| Traffic Management | QoS, VLAN |
| Storage Offload | iSCSI, FCoE, NFS |
| Network Virtualization | VXLAN / NVGRE Offload |
| Receive Side Scaling (RSS) | Supported |
| Checksum Offload | IPv4 / IPv6 / TCP / UDP |
| TCP Segmentation Offload (TSO) | Supported |
| Boot Support | PXE, UEFI |
| Interrupt Support | MSI, MSI-X |
| Bracket | Full Height Installed, Low Profile Included |
| System Requirement | |
| Windows Client | Windows® 10 / 8.1 / 8 / 7 |
| Windows Server | Windows Server® 2008 R2 / 2012 / 2012 R2 / 2016 / 2019 |
| Linux | RHEL 7.x / 8.x, SLES 12 / 15, Ubuntu 18.04 LTS / 20.04 LTS |
| VMware | VMware ESXi 6.x / 7.x |
| FreeBSD | FreeBSD 12.x / 13.x |
| Environment & Certification | |
| Power Consumption | Max. 10 W |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -40°C to 70°C |
| Storage Humidity | 90% Non-condensing |
| LED Indicators | Link / Activity |
| Certifications | CE, FCC, RoHS |
| Warranty | 1 Year |
