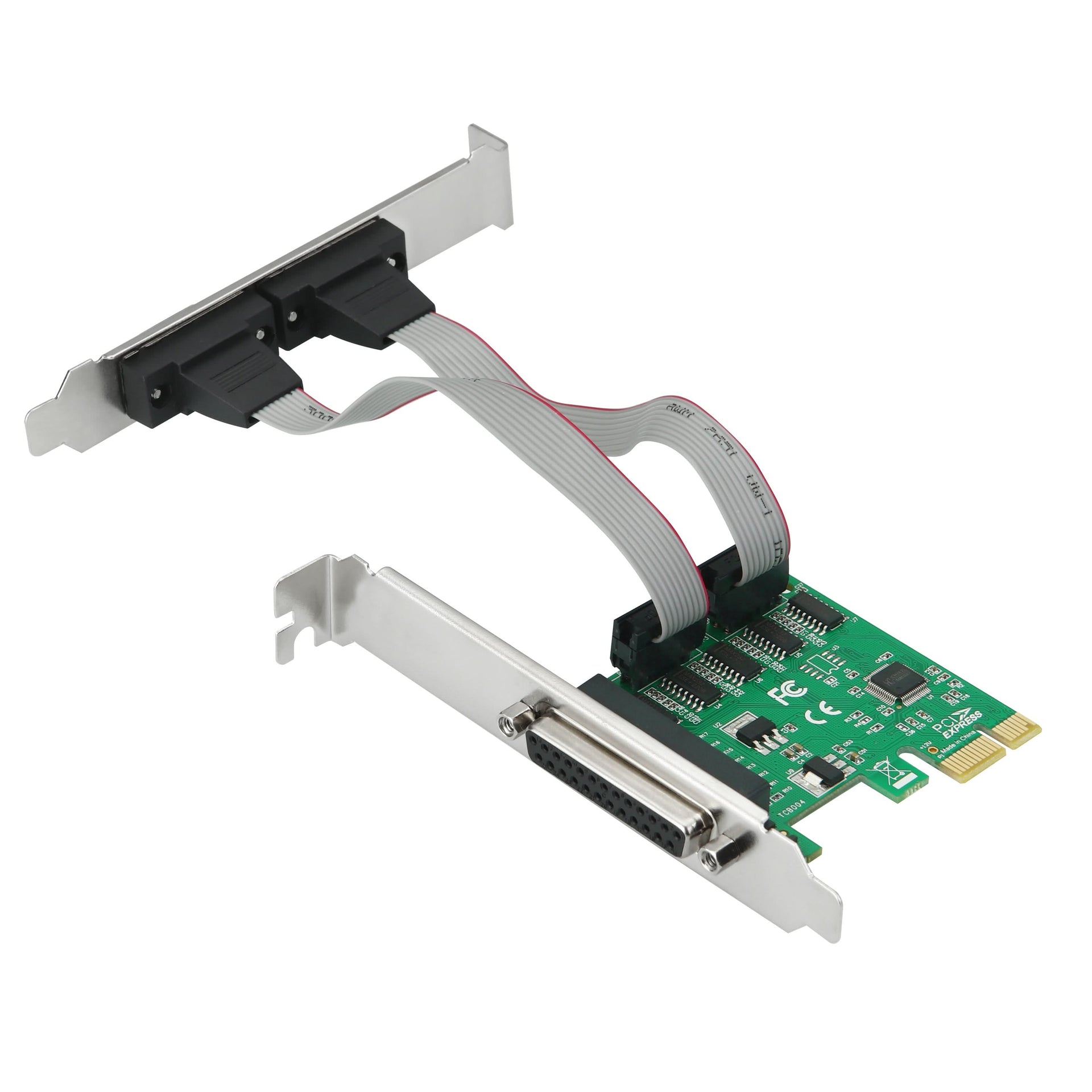

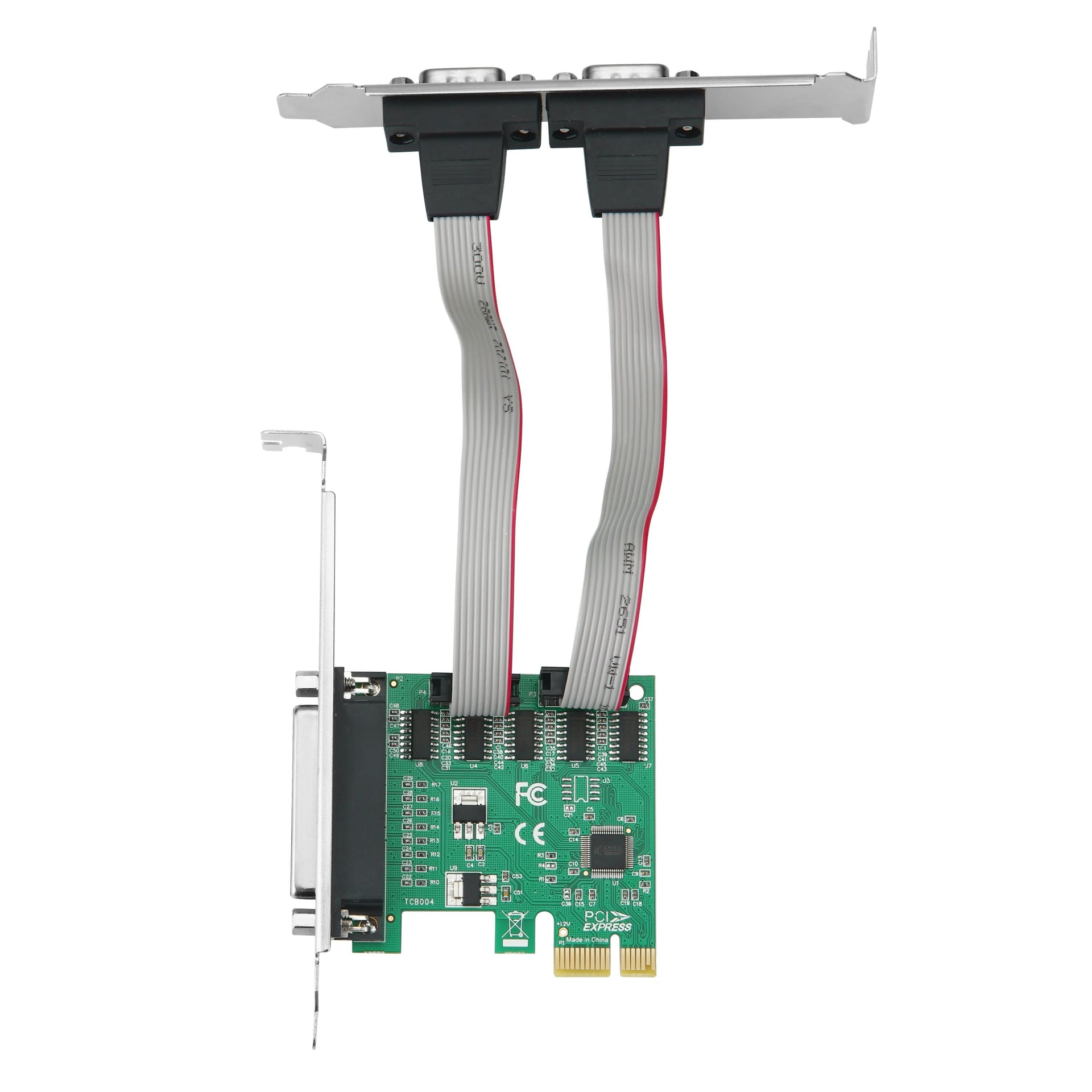

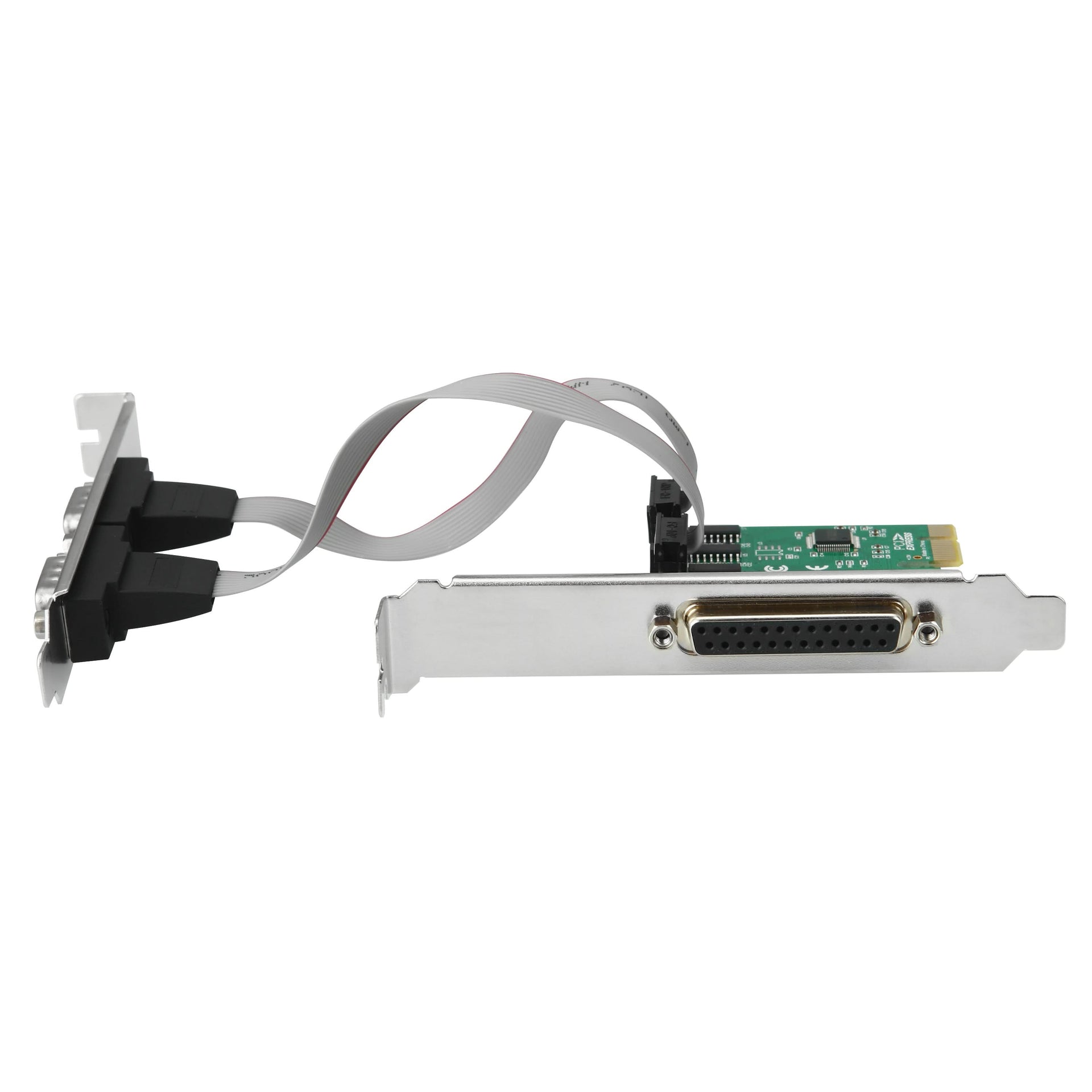

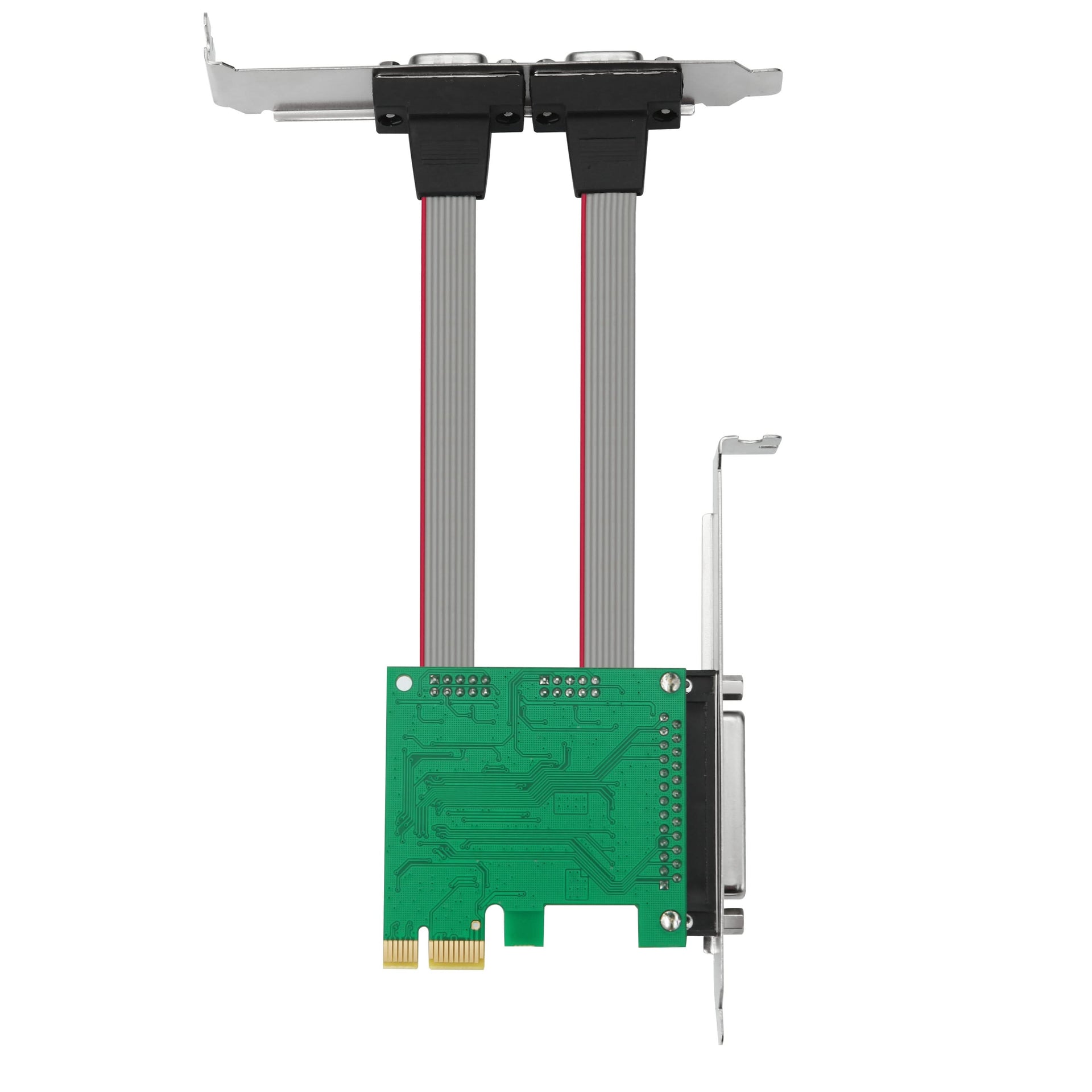

S-Tech PCIe 2-Port RS-232 Serial + 1-Port Parallel LPT Card
The S-TECH STC-WCH2S1P is a multi-interface expansion card based on the WCH
CH382L PCI Express controller. It provides two independent RS232 serial ports and one
standard parallel/LPT port through a single PCI Express x1 interface, allowing modern
desktop computers, workstations, and industrial PCs to connect legacy serial and parallel
peripherals.
The adapter is suitable for applications requiring multiple serial and parallel interfaces,
including POS systems, industrial controllers, CNC machines, test and measurement
equipment, barcode scanners, modems, printers, and other legacy peripherals.
PRODUCT FEATURES
• 2-port RS232 serial interface expansion
• 1-port parallel/LPT interface
• Based on WCH CH382L PCI Express controller
• PCI Express x1 interface
• Standard DB9 connectors for serial ports
• Standard DB25 connector for parallel port
• Supports RS232 serial communication
• Supports IEEE 1284-compatible parallel interface
• Supports ECP, EPP and standard parallel modes
• Independent serial port operation
• Plug-and-play operation
• Full-height bracket installed; Low-profile bracket included
• Suitable for desktop, workstation and industrial PC applications
Specifications:
| Product Name | STC-WCH2S1P |
| Product Collection | S-TECH PCI Express Serial & Parallel Adapter |
| Controller | WCH CH382L |
| Bus Type / Bus Width | PCI Express x1 |
| Serial Connections | 2 × DB9 Male |
| Parallel Connection | 1 × DB25 Female |
| Serial Interface | RS232 |
| Parallel Interface | Parallel / LPT |
| Parallel Standard | IEEE 1284 |
| Serial Ports | 2 × RS232 |
| Serial Connector | DB9 Male |
| Serial Data Transfer | Full Duplex |
| Serial Data Width | 8-bit |
| Serial FIFO Buffer | Integrated |
| Serial Communication | RS232 |
| Parallel Port | 1 × Parallel / LPT |
| Parallel Connector | DB25 Female |
| Parallel Modes | SPP / EPP / ECP |
| Parallel Data Width | 8-bit |
| Parallel Data Transfer | Bi-directional |
| Plug and Play | Supported |
| Interrupt Support | MSI / MSI-X |
| I/O Address | Software Configurable |
| Port Configuration | 2 × Serial + 1 × Parallel |
| Operating System | Windows® 11 / 10 / 8.1 / 8 / 7 Windows Server® 2022 / 2019 / 2016 / 2012 / 2008 Supported Linux distributions with WCH CH382 driver |
| Operating Temperature | -40°C to 85°C* |
| Storage Temperature | -40°C to 85°C* |
| Power Supply | 3.3V |
| Power Consumption | Low Power Design |
| Bracket | Full Height Installed, Low Profile Included |
| Certifications | CE, FCC, RoHS |
| Warranty | 1 Year |
