Description

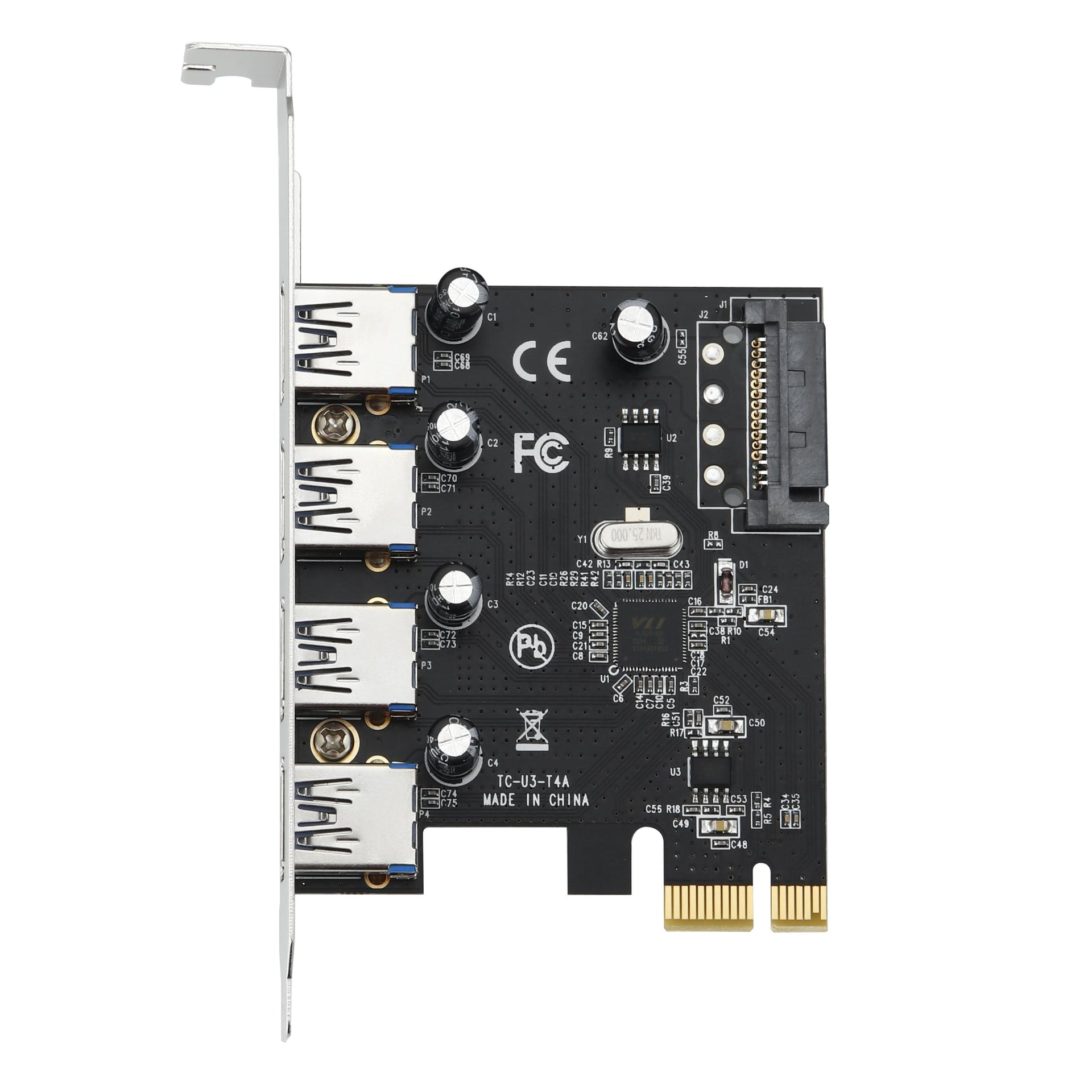

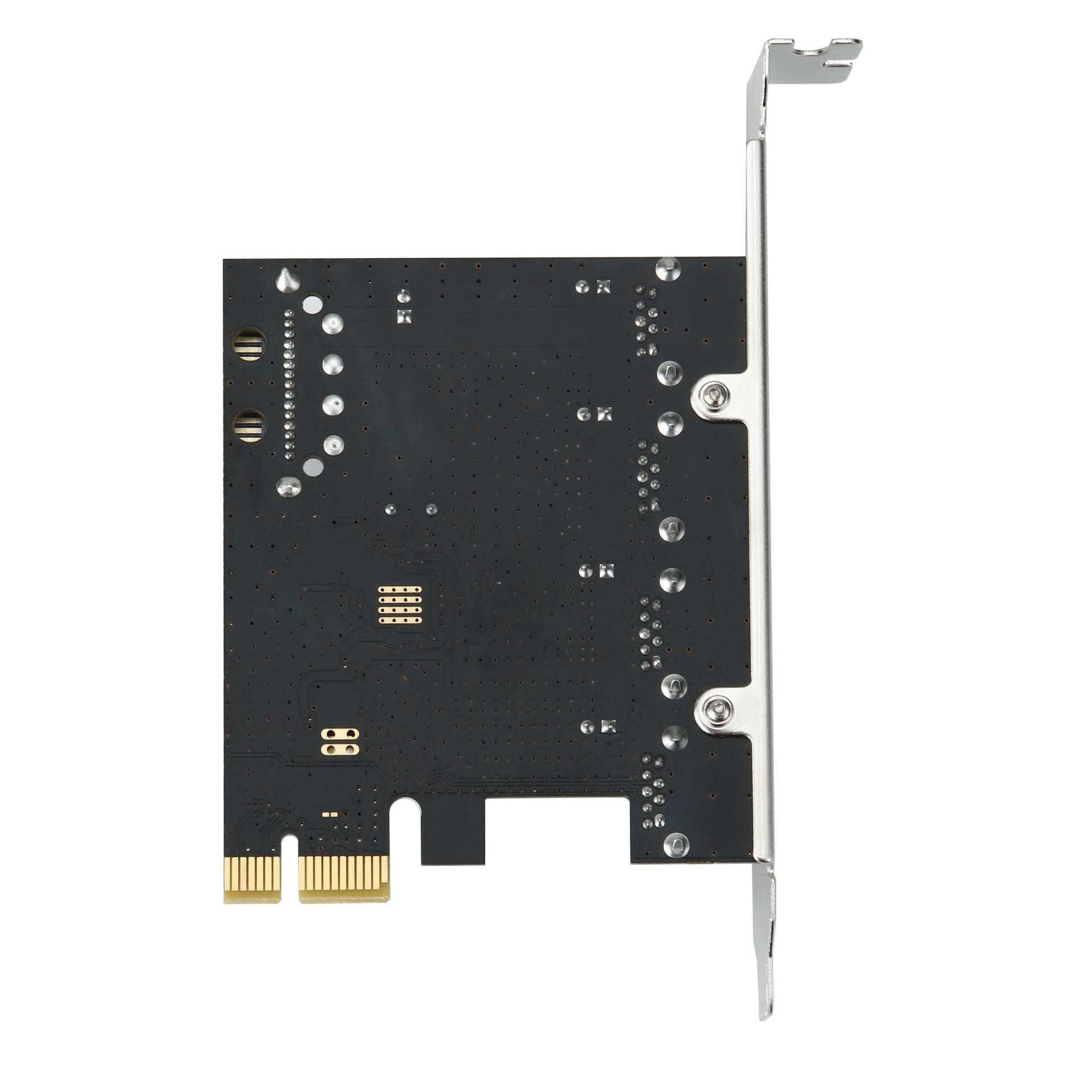

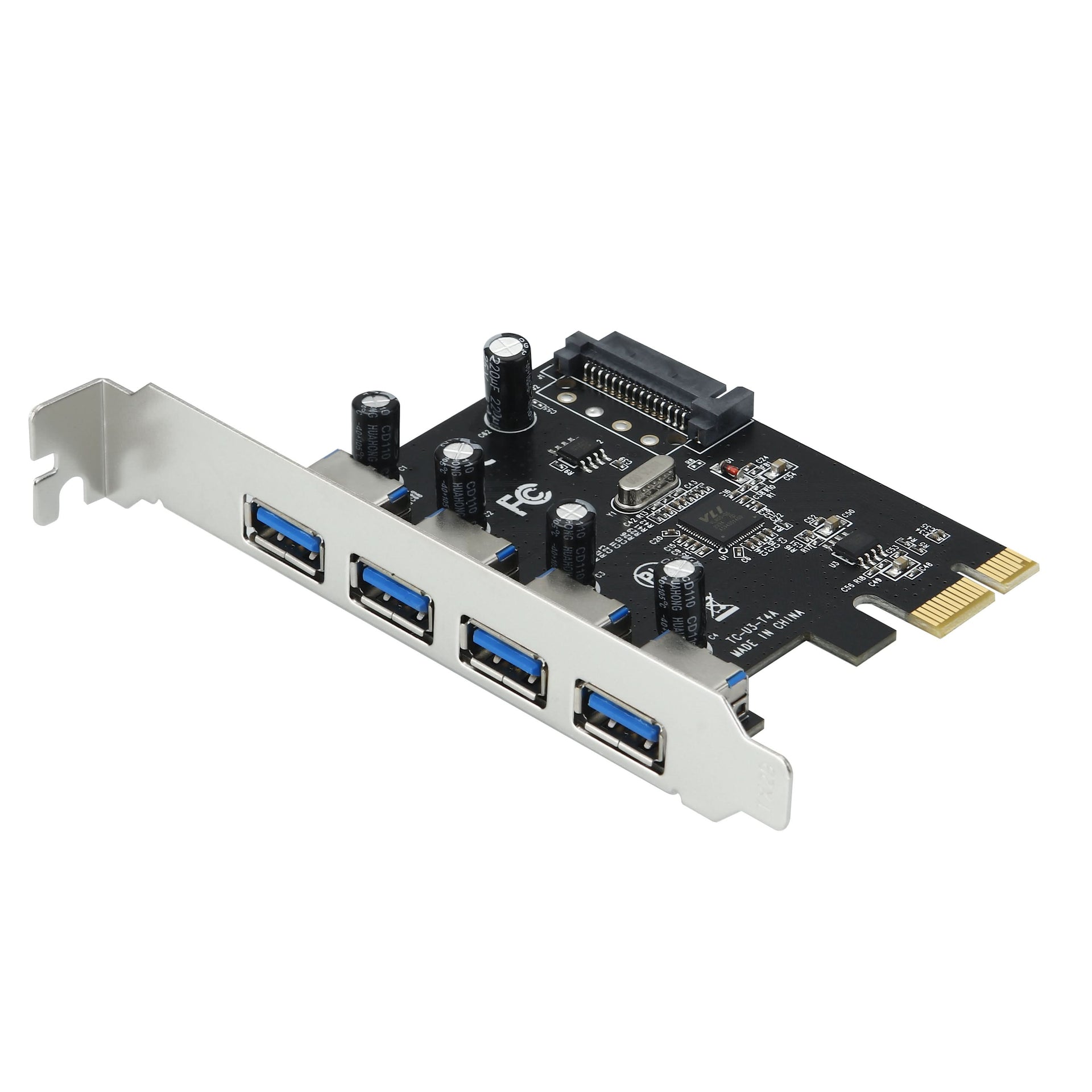

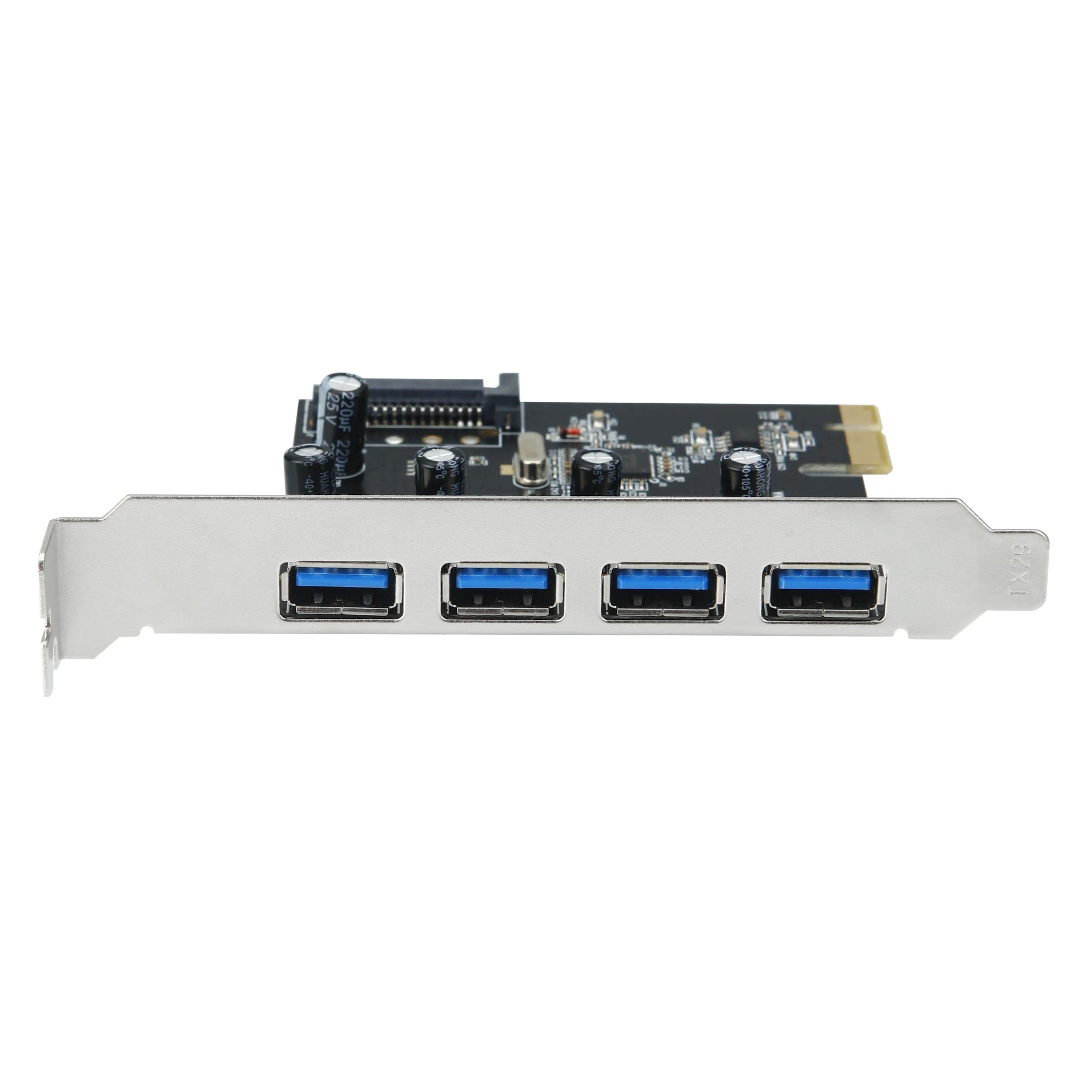

S-Tech PCIe 4-Port USB 3.0 Expansion Card
The S-TECH STC-VIA4U is a 4-port USB 3.0 expansion card based on the VIA VL805 USB
3.0 Host Controller. It adds four high-speed USB ports to desktop computers, workstations,
and industrial PCs through a single PCI Express x1 interface.
The adapter supports USB 3.0 SuperSpeed data transfer rates of up to 5 Gbps and is
backward compatible with USB 2.0 and USB 1.1 devices, providing a convenient solution for
connecting external storage devices, printers, scanners, cameras, keyboards, mice, USB hubs,
and other USB peripherals. The VL805 supports PCI Express 2.0 x1 and is backward
compatible with PCI Express 1.0.
PRODUCT FEATURES
• 4-port USB 3.0 expansion card
• Based on VIA VL805 USB 3.0 Host Controller
• PCI Express x1 host interface
• Supports USB 3.0 SuperSpeed data transfer rates up to 5 Gbps
• 4 × USB 3.0 Type-A female ports
• Backward compatible with USB 2.0 and USB 1.1 devices
• Compliant with USB 3.0 specification
• Compliant with USB 2.0 specification
• Supports xHCI specification
• Supports USB legacy functions
• Supports Plug-and-Play operation
• Supports hot-plugging
• Suitable for desktops, workstations and industrial PCs
• Full-height bracket installed; Low-profile bracket included
Specifications:
| Essentials | |
| Product Name | STC-VIA4U |
| Product Collection | S-TECH PCI Express USB 3.0 Adapter |
| Controller | VIA VL805 |
| Bus Type / Bus Width | PCI Express x1 |
| PCI Express Specification | PCI Express 2.0 x1 |
| PCI Express Compatibility | Backward compatible with PCI Express 1.0 |
| USB Ports | 4 × USB 3.0 Type-A Female |
| USB Interface | USB 3.0 |
| USB Standard | USB 3.0 / USB 2.0 / USB 1.1 |
| Maximum Data Rate | Up to 5 Gbps |
| Technical Specifications | |
| USB Ports | 4 × USB 3.0 Type-A |
| USB 3.0 Speed | Up to 5 Gbps |
| USB 2.0 Speed | Up to 480 Mbps |
| USB 1.1 Speed | Up to 12 Mbps |
| USB Transfer Modes | SuperSpeed / High-Speed / Full-Speed / Low-Speed |
| Controller Standard | xHCI |
| USB Backward Compatibility | USB 2.0 / USB 1.1 |
| Data Transfer | Bi-directional |
| UASP Support | Supported* |
| Hot Plug | Supported |
| Plug and Play | Supported |
| USB Legacy Function | Supported |
| Power Output | Up to 900 mA per USB 3.0 port* |
| Port Configuration | 4 × External USB 3.0 |
| Connector | USB Type-A Female |
| System Requirements | |
| Operating System | Windows® 11 / 10 / 8.1 / 8 / 7* Windows Server® 2022 / 2019 / 2016 / 2012 / 2008* Supported Linux distributions |
| Environment & Certification | |
| Operating Temperature | -40°C to 85°C* |
| Storage Temperature | -40°C to 85°C* |
| Power Supply | PCI Express Bus Power* |
| Power Consumption | Low Power Design |
| Bracket | Standard Full Height PCIe Bracket |
| Certifications | CE, FCC, RoHS |
| Warranty | 1 Year |
