Description

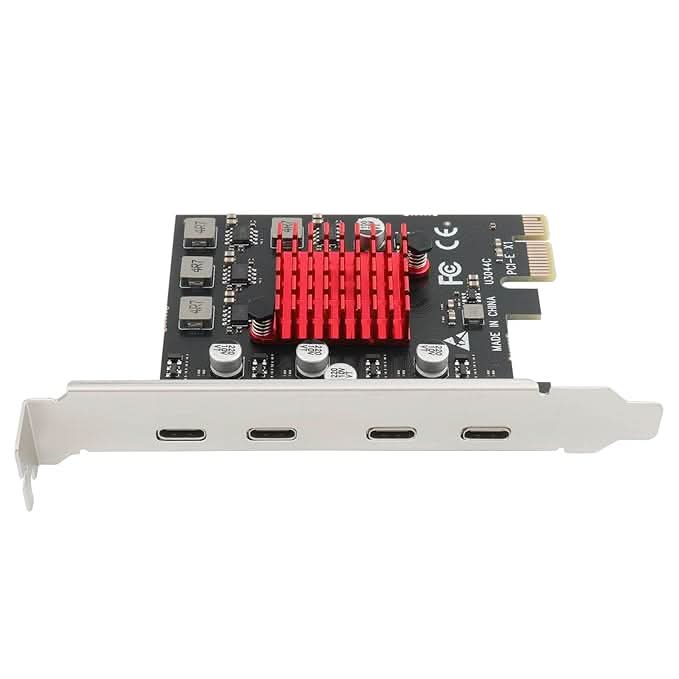

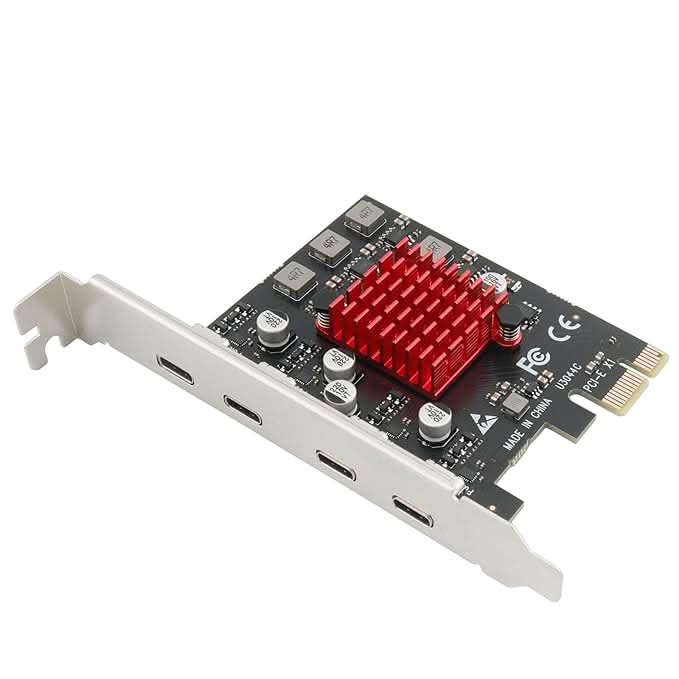

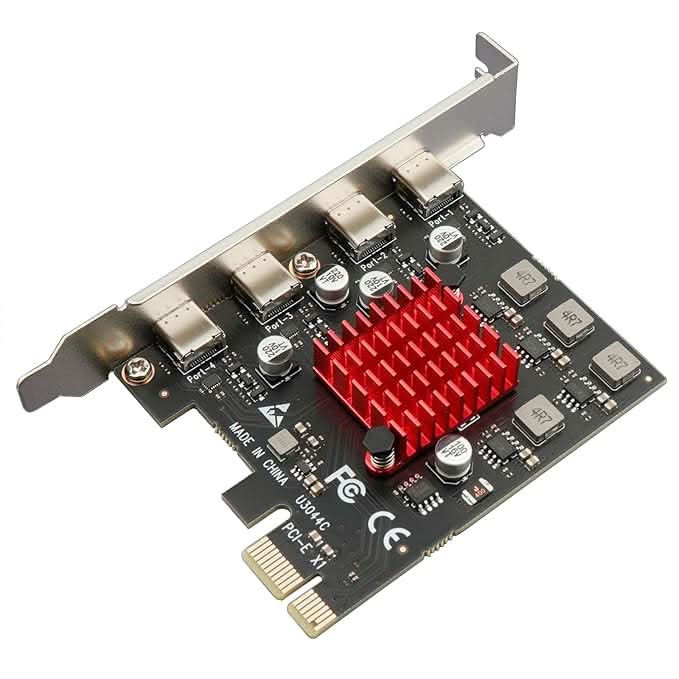

S-Tech PCIe 4-Port USB Type-C Expansion Card
The S-TECH STC-UPD4TC is a high-performance PCI Express expansion card designed to
add four USB Type-C ports to a desktop computer or workstation. Powered by the Renesas
μPD720201 USB 3.0 host controller, the card provides USB 3.2 Gen1 connectivity with data
transfer rates of up to 5 Gbps.
The card uses a PCI Express Gen2 x1 host interface and can be installed in PCI Express x1,
x4, x8 or x16 slots, making it suitable for a wide range of desktop systems and workstations.
With four independent Type-C ports, the STC-UPD720201-4C provides convenient
connectivity for modern USB Type-C peripherals, storage devices and other compatible USB
devices.
PRODUCT FEATURES
• 4 × USB Type-C ports for connecting modern USB peripherals
• Powered by the Renesas μPD720201 USB 3.0 host controller
• Supports USB 3.2 Gen1 with transfer rates up to 5 Gbps
• PCI Express Gen2 x1 host interface
• Compatible with PCI Express x1, x4, x8 and x16 slots
• Supports simultaneous connection of multiple USB devices
• Ideal for desktop PCs and workstations requiring additional Type-C connectivity
• Standard full-height PCIe bracket included
• Supports Windows and Linux operating systems
SPECIFICATION
| Product Type | PCI Express USB Type-C Expansion Card |
| Model | STC-UPD4TC |
| Chipset / Controller | Renesas μPD720201 |
| Number of Ports | 4 |
| Port Type | USB Type-C |
| USB Standard | USB 3.2 Gen1 |
| Maximum Data Rate | Up to 5 Gbps |
| Host Interface | PCI Express Gen2 x1 |
| Windows 11 / 10 / 8.x | Plug and Play — 32/64-bit |
| Windows Server 2012 / 2012 R2 / 2016 / 2019 / 2022 | Plug and Play |
| Windows XP / Vista / 7 | Driver installation required — 32/64-bit |
| Windows Server 2003 / 2003 R2 / 2008 / 2008 R2 | Driver installation required — 32/64-bit |
| Linux | Plug and Play on most Linux kernels |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | 0°C to 80°C |
| Input Voltage | DC 12V |
| Input Current | 4A |
| Bracket | Standard Full Height PCIe Bracket |
| Certifications | CE, FCC, RoHS |
| Warranty | 1 Year |
